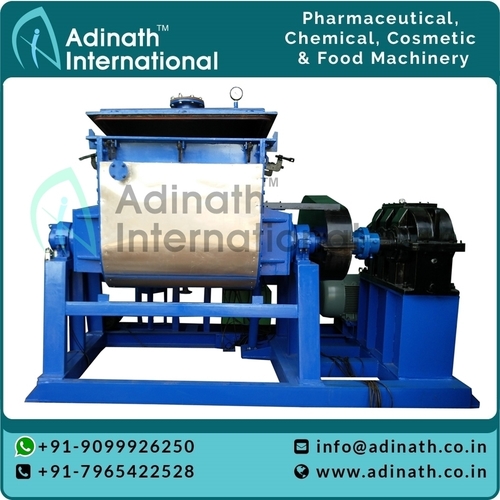

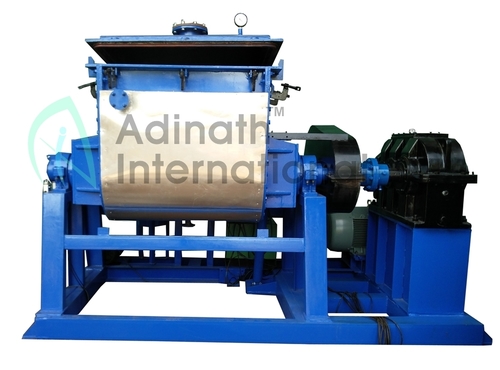

Sigma Mixer Kneader Machine is uses for uniform mixing of semi solid materials. Machine consist of U trough bowl with two Z shape blades each rotates in opposite direction for proper mixing of material. Machine equipped with suitable capacity motor & gearbox decided as per characteristics of the product & process. Equipment is provided with Jacket arrangement for heating or cooling applications. We manufacture Sigma Mixer Kneader in capacity ranging from 5 liters up to 5000 liters.

Sigma Mixer Kneader is widely uses for mixing polyester putty, rubber solution, biscuit dough, sauce, polymers etc.

This machine comprises of a double 'U' shaped container welded and machined together inside which rotates two 'Z' shaped sigma blades in opposite directions. The clearances between the walls and the container are kept to a minimum to ensure maximum efficiency in kneading and mixing. The shafts of the sigma blades are fitted in bearing blocks which are each provided with roller bearings, steel glands/PTFE rubber seals for smooth and leakless operations. The kneader is mounted on a sturdy base frame fabricated out of ISMC sections and are free from vibrations. For cooling and heating jackets are provided.

These types of machines are available in Mils Steel or Mild Steel constructions. The kneader can be tilted by means of a mechanical system or manually and for bigger models beyond 100 Kgs we provided hydraulic tilting.

Hydraulic tilting system is provided with complete power pack, electric motor, pressure valves, pipes, fittings, cylinders and hoses which makes the tilting mechanism quick, easy and simple to operate.

Sigma mixer kneader, Sigma mixer extruder, Z blade sigma mixer, Double arm sigma mixer, Food grade sigma mixer, Heavy duty sigma mixer, Bubble gum sigma mixer, Sigma dough mixer, Liquid soap sigma mixer, Lab sigma mixer

• Available in Stainless Steel 316, Stainless Steel 304 and Mild Steel materials.
• Stainless Steel polish to matt & mirror finish as per customers requirements.
• Mild Steel finish with one coat of red oxide and two coats of epoxy paint.
• Discharge option of hand wheel operated (manual) or hydraulic operated (automatic) offered.
• Jacket for heating or cooling application can be offered.
• Mineral wool insulation with cladding on jacket.
• Tangential designed Z blades offered for uniform mixing.
• PTFE made shaft sealing provided for food grade compatibility.
• Minimum gap between trough inner shell & blades remove possibility of sticking product.
• On demand Spray system, vacuum system can be offered.

• Liquid Spray System
• Vacuum System
• Blades Cooling Arrangement
• Screw System
• Automatic Valve Discharge System

Model	Capacity  Litres		Motor (H.P.)
	Working Capacity	Gross Capacity	General	Heavy Duty
ASM  50	50	80	5 H.P.	7.5 H.P.
ASM  75	75	110	7.5 H.P.	10 H.P.
ASM  100	100	150	10 H.P.	15 H.P.
ASM  150	150	200	15 H.P.	20 H.P.
ASM 200	200	300	20 H.P.	25 H.P.
ASM  400	400	550	30 H.P.	40 H.P.
ASM  500	500	750	40 H.P.	50 H.P.
ASM 750	750	1150	50 H.P.	60 H.P.
ASM  1000	1000	1500	60 H.P.	70 H.P.
ASM  1500	1500	2100	75 H.P.	80 H.P.
ASM  2000	2000	2600	80 H.P.	90 H.P.
ASM  3000	3000	3800	100 H.P.	120 H.P.

• Power voltage can be adjusted as per customers domestic power voltage requirements.
• Rights of technical improvements & modification reserved.
• Illustrations & dimensions are shown for information purpose only.
