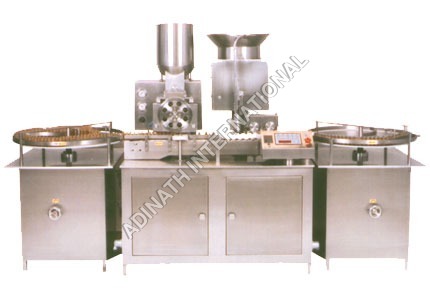

Powder Filling Machine for Glass Vials is suitable to fill sterile powder into vials. The precision built welded steel frame is encompassed with stainless steel sheets with access doors for servicing the machine. All parts coming in contact with container, powder and rubber stopper or exposed to the atmosphere are made of stainless steel for long life.
Technical Specification :
30 to 120 Vials/Minute
25mm to 38mm
36mm to 75mm
20mm, 28mm & 30mm Butyl
50 mg. to 1.5 gms with the help of change parts.
Up to 6 gms filling by multiple dosing.
± 1% depending upon consistency and uniformity of bulk density of Injectable Powder under controlled level of humidity (Below 28% Rh)
Pure Air Filter, Vacuum Pump
Oil Free Air Compressor
Online Pre-Media Filling Arrangement
Programmable Logic Control (System) with MMI
Aluminum Profile Cabinet covering full machine
Max. 2 Kg./Cm² Oil Free
25 Hg. @ 300 LPM Displacement
2100mm (L) X 842mm (W) X 1700mm (H)
(Dimension include main machine with in-feed turn table)
