Sigma Mixer Extruder

Sigma Mixer Extruder
Sigma Mixer Extruder
Product Code : SME
Brand Name : Adinath
Product Description

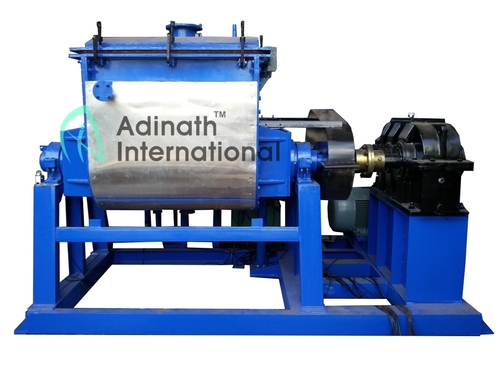

Sigma Mixer Extruder

Sigma Mixer Extruder comprises of a double 'U' shaped container welded and machined together inside which rotates two 'Z' shaped sigma blades in opposite directions. The clearances between the walls and the container are kept to a minimum to ensure maximum efficiency in kneading and mixing. The shafts of the sigma blades are fitted in bearing blocks which are each provided with roller bearings, steel glands/PTFE rubber seals for smooth and leakless operations. The kneader is mounted on a sturdy base frame fabricated out of ISMC sections and are free from vibrations. For cooling and heating jackets are provided.

These types of machines are available in M.S. And S.S. construction. The kneader can be tilted by means of a mechanical system or manually and for bigger models beyond 250 Kgs we provided hydraulic tilting.

Hydraulic tilting system is provided with complete power pack, electric motor, pressure valves, pipes, fittings, cylinders and hoses which makes the tilting mechanism quick, easy and simple to operate.

 Technical Specification

 Model Working Capacity Gross Capacity Motor (H.P.)
 ASM – 50 50 80 5 H. P.
 ASM – 75
 75 110 7.5 H. P.
 ASM – 100 100 150 10 H. P.
 ASM – 150 150 200 15 H. P.
 ASM – 200 200 300 20 H. P.
 ASM – 400 400

 550

 30 H. P.
 ASM – 500 500 750 40 H. P.
 ASM – 750 750 1150 50 H. P.
 ASM – 1000 1000 1500 60 H. P.
 ASM – 1500 1500 2100 75 H. P.
 ASM – 2000 2000 2600 80 H. P.
 ASM – 3000 3000 3800 100 H. P.
