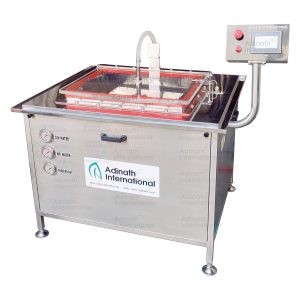

Multijet Vial Washing Machine

The Multijet Vial Washing Machine (also known as a Multijet Ampoule & Vial Washing Machine) is a specialized piece of pharmaceutical equipment designed for the efficient cleaning of glass vials and ampoules used in injectable drug manufacturing. It is a semi-automatic, compact, versatile, and reliable washing machine that complies with current Good Manufacturing Practices (cGMP) standards, ensuring high hygiene and minimal contamination risks in medium- and small-scale injectable production facilities.

Multijet Vial Washing Machine Video

Key Features

• Construction and Design: Built with durable stainless steel (often SS 316L for contact parts) for corrosion resistance and easy maintenance. It includes an acrylic top cover for clear visibility of the washing process and safety interlocks that halt operations if the cover is lifted mid-cycle.

• Capacity and Compatibility: Handles glass vials from 2 ml to 100 ml and ampoules from 1 ml to 20-25 ml, using interchangeable change parts.

• Washing Mechanism: Features a timer-operated solenoid valve or mechanical cam-operated system for up to six sequential wash cycles in one operation. It uses pressurized jets from stainless steel needles for both internal and external cleaning, minimizing water and air usage while ensuring thorough removal of particles.

• Controls: Equipped with a PLC-based HMI touch screen for precise timer control and cycle management. Optional microprocessor integration allows for customized sequences.

• Filtration: Includes inline polycarbonate housing with 5- or 10-micron PP filter cartridges for purified water, enhancing wash quality.

• Loading Options: Supports manual loading via trays or dump loading from ready-to-dump boxes for efficiency.

Operation Process

1. Loading: Vials or ampoules are placed in perforated trays and inserted into the chamber. The handle lowers to align washing needles precisely into each vial’s mouth.

2. Washing Cycle: Upon activation, the machine performs sequential washes—typically water jets for rinsing followed by air jets for drying—both internally and externally. Cycles are automated and can be observed through the transparent cover.

3. Unloading: After completion, the machine stops automatically. Trays are removed, and washed items are ready for further processing (e.g., sterilization).

Exclusive Features of Multijet Vial Washing Machine

• Compact GMP model.

• Solenoid valve system with timer operated mechanism controlled from HMI.

• PLC HMI based touch screen control panel.

• Suitable to wash 1ml to 20ml ampoules and 2ml to 100ml vials.

• Positive & pressurized jets through washing needle for pressure cleaning at minimum usages for washing media. Sound design concept of pressure tank for reverse & continuous supply of wash medias.

• Both internal & external washing ensuring absolutely & continuous ampoule after sequential washing.

• Acrylic top cover provided for clear view of washing during running of the machine.

• On-line poly carbonates housing with P.P. replaceable filter cartridge of 5 or 10 micron of water for best possible washing.

• All contact parts of washing media & Compressed Air are made from Stainless Steel316 or Polycarbonate HDPE or P.P. or any other FDA approved material.

• Machine automatically stop in case of acrylic top cover lifted during cycle operation and machine re-start from the point when cover is pushed down.

• Easy to operate machine can be operated by even semi-skilled operator.

• IQ/OQ documentation can be provided.

Working Principle of Semi-Automatic Vial Washing Machine

Ampoules are loaded in bulk onto combi tray if received in ready to dump boxes, which will have exactly same number of Ampoules and the pitch, as loading tray. Alternatively, each Ampoule/Vial has to be arranged into the tray individually. The loading tray is placed directly into the machine & the handlebar is lowered for automatic centering of washing needles into the Ampoules neck. The top cover is lowered & switch is operated for automatic sequential washing. Washing is performed from inside and outside of each individual Ampoule. Machine automatically stops after one complete washing cycle with buzzer sound and red-light indication. For removal of tray, reverse procedure is to be observed. Depending on loading & operator’s efficiency one can achieve 30 loading trays in an hour.

Production Performance of Multijet Vial Washing Machine

Washing Cycle of Vial Washer

Technical Specification of Multijet Vial Washing Machine

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
