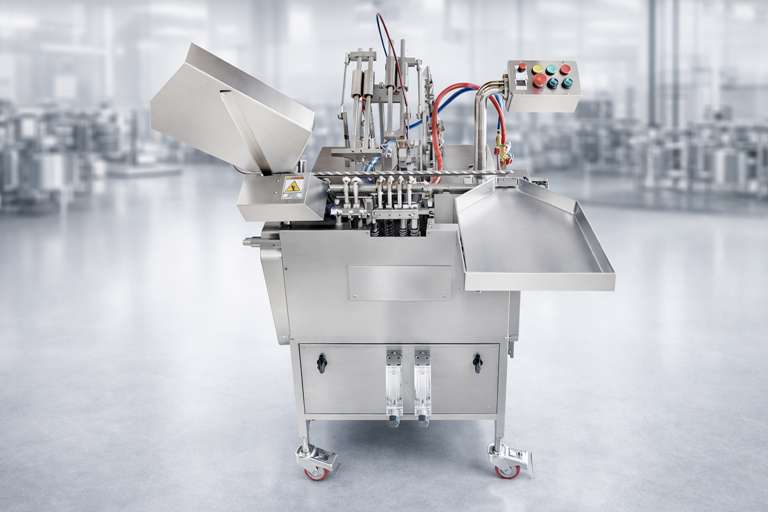

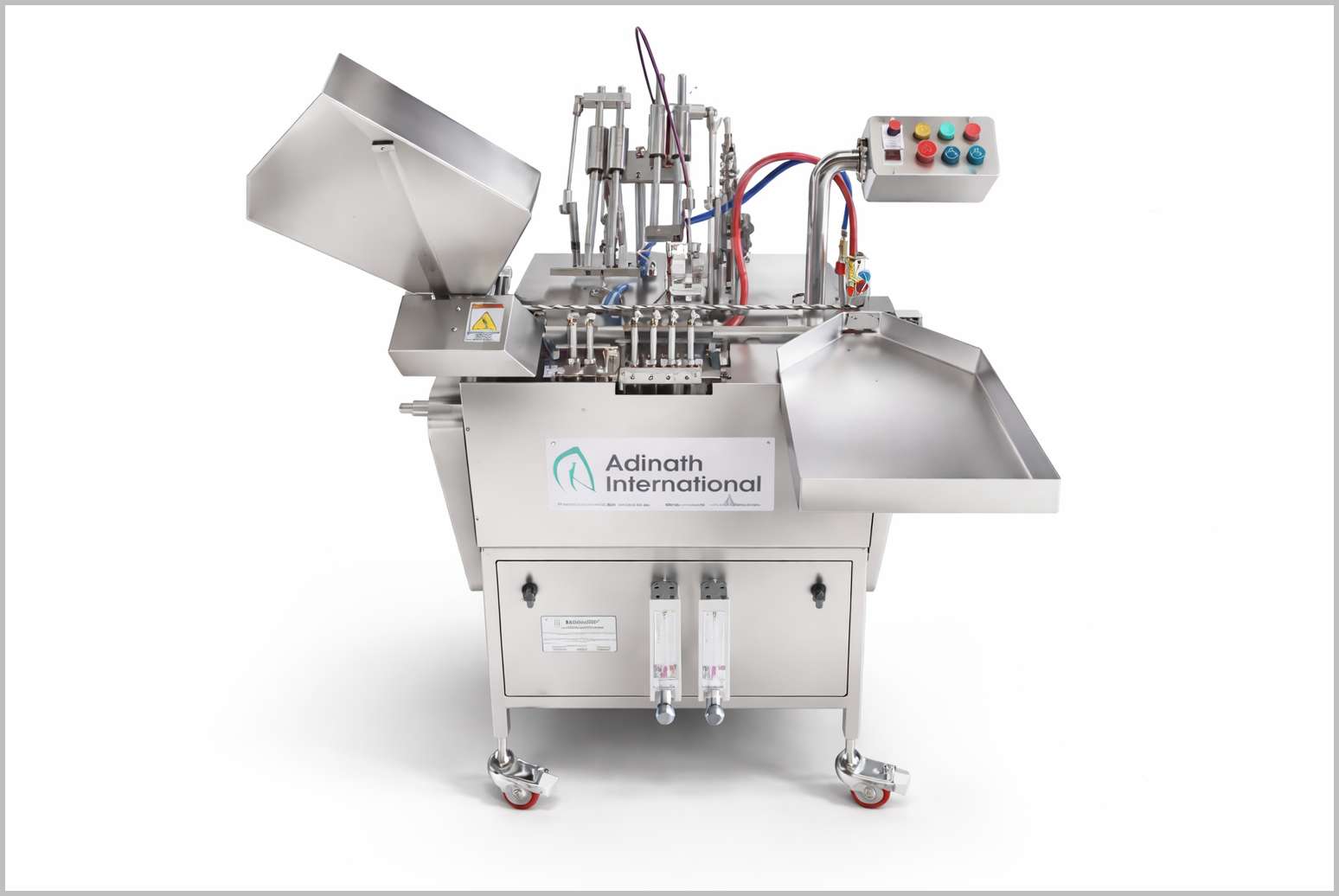

Low Speed Ampoule Filler

Description

Low Speed Ampoule Filler is a compact, versatile, and highly efficient machine specially engineered for small-scale production, laboratory use, R&D, and pilot-scale operations in the pharmaceutical, biotech, cosmetic, and chemical industries. This advanced ampoule filling and sealing machine accurately fills and hermetically seals glass ampoules with liquid formulations or, in select configurations, powder, delivering consistent precision while fully complying with cGMP, FDA, and EMA standards.



Designed with a space-saving monobloc structure, the low speed ampoule filler typically operates at 15–50 ampoules per minute, making it ideal for startups, research labs, and facilities that do not require high-volume output. It handles ampoule sizes ranging from 1 ml to 30 ml with minimal changeover time. Key features include volumetric piston or peristaltic pumps for ±1% filling accuracy, pre- and post-nitrogen flushing to protect oxygen-sensitive products, “No Ampoule – No Fill” and “No Ampoule – No Seal” safety systems, and flame sealing using LPG and oxygen with a pre-heating station for reliable, leak-proof seals.



All product-contact parts are constructed from pharmaceutical-grade Stainless Steel 316L (autoclavable), while non-contact components use SS 304, ensuring sterility, easy cleaning, and long-term durability. The machine’s variable frequency drive allows smooth speed control, and optional Class 100 laminar airflow integration further enhances aseptic processing. Its compact footprint fits easily into limited cleanroom spaces, reducing installation costs and operational complexity.



Businesses choose the low speed ampoule filler for its cost-effectiveness, low maintenance requirements, gentle handling that minimizes glass breakage, and ability to maintain high product integrity with minimal wastage. Whether used for injectable drugs, vaccines, diagnostic reagents, cosmetics, or specialty chemicals, this cGMP-compliant ampoule filling machine provides reliable performance, regulatory readiness, and the flexibility needed for small-batch manufacturing and laboratory applications. It remains one of the most practical solutions for precise, sterile ampoule filling and sealing on a controlled scale.

Working Principle of Low Speed Ampoule Filler

Machine having hopper for storing ampoules. User has to load empty ampoules on this hopper in bulk from where ampoule deliver onto moving rack one by one. In the movement over rack ampoule reaches to the filling station where filling needles fill preset volume of liquid in ampoules. Further ampoules reached to the sealing station where two burner nozzles installed in which first one is preheating nozzle and second is sealing nozzle. Rollers provided for rotation of ampoules, so evenly heating provided on all around the ampoule neck. During rotation of ampoule with nozzle gassing, the glass of ampoule get melt. Sealing clipper installed which do up & down movement above sealing unit. During down movement clipper take off excess melt part of ampoules and drop into waste glass collection box. Duly filled and packed ampoules get collected onto delivery tray of the machine.

Technical Specification of Low Speed Ampoule Filler

Model

AFS-30

Production Output

Up to 25 ampules/minute

Ampoule Size

1ml to 30ml

Filling Accuracy

± 1%

Require Gas for Sealing

LPG & Oxygen (O₂)

Nitrogen Flushing

Pre & Post Nitrogen Flushing Available

Power Specification

0.5 H. P.

Electrical Characteristics

230 Volts, Single Phase, 50 Hertz

Contact Parts

Made from Stainless Steel 316L.

Non-Contact Parts

Made from Stainless Steel 304

Overall Dimension

915mm (L) x 610mm (W) x 965mm (H) approx.

Net Weight

150 Kgs. approx.

Gross Weight

225 Kgs. approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Ampoule Filling Machine

Applications of Ampoule Filling Machine

Advantages of Low Speed Ampoule Filler

Cost-Effective: Lower initial investment compared to high-speed models, making it ideal for startups or small-scale operations.

Flexibility: Handles a range of ampoule sizes (1ml to 30ml) with minimal changeover time.

Sterility and Safety: Ensures contamination-free filling with nitrogen flushing and hermetic sealing, meeting stringent pharmaceutical standards.

Ease of Operation: Requires minimal operator intervention, with semi-automatic or fully automatic options available.

Key Features of Low Speed Ampoule Filler

  • Compact Design: Low-speed ampoule fillers are designed to occupy minimal space, making them suitable for small facilities or labs.



  • Filling Capacity: Typically handles 15 to 50 ampoules per minute, depending on the model (e.g., single-head or two-head configurations). Filling volumes range from 0.5ml to 30ml in a single dose.



  • Material Construction: Contact parts are made of high-quality stainless steel 316L to prevent contamination, while non-contact parts are often stainless steel 304, ensuring durability and compliance with cGMP standards.



  • Filling Mechanism: Operates on a volumetric piston-pump or peristaltic pump system for precise liquid dosing, with neck-centering to ensure accurate filling without spillage.



  • Sealing Process: Uses combustible gases (oxygen and LPG/propane) for flame sealing, with pre-heating and sealing stations to ensure hermetic seals that protect contents from contamination.



  • Nitrogen Flushing: Equipped with pre- and post-nitrogen flushing to maintain sterility and prevent oxidation of sensitive products.



  • No Ampoule, No Fill System: Includes sensors to stop filling if no ampoule is detected, reducing waste and ensuring operational efficiency.



  • Ease of Maintenance: Features large openings for easy cleaning and tool-free changeover for different ampoule sizes, minimizing downtime.
    •

FAQ for Low Speed Ampoule Filler

The Low Speed Ampoule Filler typically delivers an output of up to 25–50 ampoules per minute (depending on ampoule size, fill volume, and configuration).

  • Filling range: 0.5 ml to 30 ml in a single dose
  • Filling accuracy: ±1% It uses volumetric piston pumps or peristaltic pumps with neck-centering for precise, drip-free filling. This makes it perfect for small-batch and laboratory-scale production rather than large commercial runs.

This machine is widely used in:

  • Pharmaceutical industry (injectables, vaccines, sterile liquids)
  • Biotechnology
  • Cosmetics (serums, essential oils)
  • Chemical industry

It is ideal for filling injectable liquids, diagnostic solutions, or other sterile products that require hermetic sealing to ensure long shelf life and protection from contamination.

Key features include:

  • Compact monobloc design with small footprint
  • Pre- and post-nitrogen flushing for oxidation protection
  • Flame sealing using LPG + Oxygen with pre-heating station
  • “No Ampoule – No Fill” and “No Ampoule – No Seal” sensors
  • Contact parts made of SS 316L (autoclavable)
  • Frequency drive for variable speed control
  • Easy and quick changeover with minimal parts
  • Optional Class 100 Laminar Air Flow and IQ/OQ documentation
  • cGMP, FDA, and EMA compliant construction

These features ensure high sterility, minimal product wastage, and ease of maintenance.

The Low Speed Ampoule Filler is the best choice for small-scale production, R&D, clinical trials, or pilot plants because:

  • It requires significantly lower investment
  • Occupies very little space (ideal for cleanrooms)
  • Offers excellent flexibility for different ampoule sizes with fast changeover
  • Provides high filling accuracy and sterility at an affordable price
  • Is easier to operate and maintain compared to high-speed lines

It delivers professional, regulatory-compliant results without the complexity and cost of high-output equipment.

Yes — Adinath International Low Speed Ampoule Filler complies to cGMP, MHRA, FDA and WHO-GMP standards, with optional CE marked equipments and 21 CFR Part 11 software compliance for the HMI/PLC. Machine contact parts having Stainless Steel 316L grade materials with validation documents having IQ, OQ, DQ validation protocols as optional. Organization is ISO 9001:2015 certified.

Manufacturing lead time is generally 7 to 14 weeks from order confirmation. Further it takes 2 to 8 weeks for international shipping depending upon destination. Order can be expediate sooner or later as per specific buying requirements. Destination specific certifications like US FDA, EU, ANVISA, SFDA. CE can add 3 to 6 weeks additionally.

Yes, Adinath International Low Speed Ampoule Filler export this machine to more than 48 countries of this world including America, Europe, Asia, Middle East, Africa, CIS and Australia sub continents. Please visit our clientele page for complete list of our customers worldwide. Located at Ahmedabad, India having world class infrastructure.

Service of skilled engineers and technicians provided for technical support of supplied equipments. Installations, commissioning, training and IQ, OQ, DQ validations performed by qualified engineers. Remote support through video call, phone, email and other modes provided for international installations. Spare parts of Low Speed Ampoule Filler stocked at our premises in Ahmedabad and shipped immediately after ordering. Standard 12 months manufacturing warranty included with supplied equipment.
