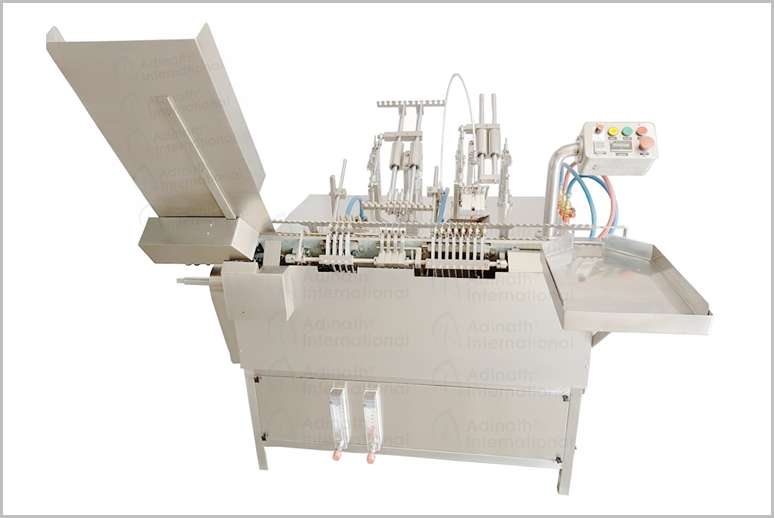

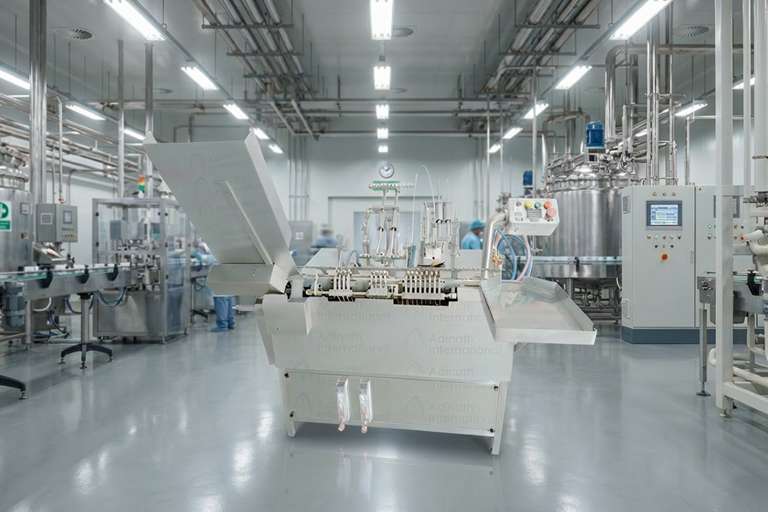

Manufacturer of Ampoule Filling Machine

A manufacturer of ampoule filling machine designs and produces automated equipment used for filling and sealing glass ampoules, primarily for pharmaceutical, biotech, cosmetic, and chemical industries. These machines ensure precise filling of liquids (0.5ml to 30ml) into ampoules, often incorporating advanced technologies like piston or peristaltic pumps, nitrogen purging, and flame sealing to maintain sterility and accuracy. Key features include:

Manufacturer of Ampoule Filling Machine Video

Key Components of an Ampoule Filling Machine

1. Infeed System:

   • A hopper or feeding turntable where empty, pre-sterilized ampoules are loaded.

   • A wire mesh conveyor belt or starwheel transports ampoules to the filling station, often connected to a sterilizing tunnel for continuous operation.

   • vThe system ensures smooth and precise movement of ampoules, accommodating various sizes and shapes.
2. Filling Station:
   • Equipped with high-precision dosing systems, such as:

     • Piston pumps (volumetric, servo-driven, or conventional) for accurate liquid filling.

     • Peristaltic pumps for gentle handling of sensitive liquids, with easy adjustment via HMI (Human-Machine Interface).

     • Mass-flow or time-pressure systems for customized filling.

   • Filling needles or nozzles (often AISI 316L stainless steel) discharge precise volumes (0.5 ml to 25 ml in single dosing).

   • Features like bottom-up filling or diving nozzles prevent foaming and ensure accuracy (±0.5% fill accuracy in some models).

3. Gas Flushing System:

   • Nitrogen purging stations flush ampoules with inert gas (e.g., nitrogen) before and/or after filling to remove atmospheric air and prevent chemical reactions or contamination.

   • This is critical for oxygen-sensitive or air-sensitive products like pharmaceuticals or radiopharmaceuticals.

4. Sealing Station:

   • Pre-warming and sealing stations use combustible gases (oxygen and LPG/propane) to heat and melt the thin glass neck of the ampoule for hermetic sealing.

   • Specially designed rollers rotate ampoules during sealing to ensure uniform closure.

   • Safety valves, pressure reducers, and flow meters regulate flame intensity for precise sealing.

   • A stainless steel hood channels out fumes during heating, maintaining a clean environment.

5. Collection and Rejection System:

   • Filled and sealed ampoules are automatically collected in trays.

   • Defective ampoules (e.g., improperly filled or sealed) are rejected and ejected into a separate container.

   • Waste ampoule tips are clipped and discarded to avoid contamination.

6. Control Systems:

   • PLC (Programmable Logic Controller) and HMI systems for real-time monitoring, parameter adjustment, and error detection.

   • In-process control (IPC) systems for 0–100% check-weighing to ensure accurate dosing and adjust pump settings automatically.

   • Optional integration with SCADA (Supervisory Control and Data Acquisition) or 21 CFR Part 11 compliance for data logging and regulatory adherence.

7. Frame and Materials:

   • Constructed with stainless steel (SS 316L for contact parts, SS 304 for non-contact parts) to meet cGMP standards.

   • Compact, monoblock design for space efficiency and easy maintenance.

   • Large openings and accessible parts for quick cleaning and minimal downtime.

8. Optional Features:

   • Laminar Air Flow (LAF) or Restricted Access Barrier Systems (RABS) for sterile class 100 environments.

   • Isolator enclosures for enhanced aseptic conditions.

   • CIP/SIP (Clean-in-Place/Sterilize-in-Place) systems for automated cleaning without disassembly.

   • Combination machines that handle both ampoules and vials for increased flexibility.

Working Principle

The operation of an ampoule filling machine follows a systematic, automated process to ensure sterility, precision, and efficiency:

1. Sterilization and Loading:

   • Empty ampoules are washed, sterilized (often in a depyrogenation tunnel), and loaded into the machine’s hopper or infeed system.

   • A starwheel or conveyor belt aligns and transports ampoules (1, 2, 4, 6, or 8 at a time, depending on the machine’s head configuration) to the processing stations.

2. Pre-Gassing (Optional):

   • Ampoules are flushed with nitrogen to displace atmospheric air, reducing the risk of oxidation or contamination.

3. Filling:

   • The filling station dispenses a precise volume of liquid or powder into each ampoule using piston or peristaltic pumps.

   • Neck centering ensures accurate filling, and diving nozzles minimize foaming.

   • In-process control (IPC) systems may weigh ampoules before and after filling to verify accuracy.

4. Post-Gassing (Optional):

   • Additional nitrogen flushing after filling to further protect the contents.

5. Pre-Warming and Sealing:

   • Ampoules move to a pre-warming station where a low-pressure flame warms the glass neck.

   • At the sealing station, a high-temperature flame (using oxygen and LPG) melts the thin glass top to create a hermetic seal.

   • Rollers rotate the ampoules during sealing for uniform closure, and waste glass tips are clipped and ejected.

6. Collection:

   • Sealed ampoules are collected on a tray, while defective units are rejected.

   • The process is continuous, with minimal manual intervention, ensuring high throughput and sterility.

The machine operates on the principle of slant traveling, where ampoules move at an inclined angle during filling and sealing to accommodate variations in neck size, thickness, and shape, ensuring consistent results.

Key Features

• High Precision: Utilizes volumetric piston pumps or servo-driven systems for accurate dosing, with fill accuracy up to ±0.5%.

• Versatility: Handles open or closed-mouth ampoules (1ml to 30ml) with adjustable settings for various neck dimensions, thicknesses, and ovalities.

• Sterility Compliance: Built with stainless steel 316L for contact parts and 304 for non-contact parts, adhering to cGMP and FDA standards.

• Automation: Offers PLC-based controls, touch-screen interfaces, and features like “No Ampoule – No Filling” to minimize waste and ensure safety.

• Production Capacity: Ranges from 15 to 400 ampoules per minute, with models like single, two, four, six, or eight-head fillers to suit small to large-scale production.

• Additional Features: Includes pre- and post-nitrogen flushing, laminar airflow options, and integration with washing, sterilization, and labeling systems for complete production lines.

• Durability: Constructed with robust stainless steel frames, designed for easy maintenance and long-term reliability.

Applications

Ampoule filling machines are widely used in:

• Pharmaceutical Industry: For filling injectable drugs, vaccines, and sterile solutions (e.g., antibiotics, analgesics).

• Biotech Industry: For packaging sensitive biological products like enzymes or antibodies.

• Cosmetic Industry: For filling serums, essential oils, or other liquid cosmetics.

• Chemical Industry: For storing air-sensitive reagents, agrochemicals, or analytical standards.

• Veterinary Industry: For animal vaccines and medications.

• Laboratory Settings: For small-scale filling of experimental or radiopharmaceutical products (e.g., Xenon-133).

Advantages

• Sterility and Protection: Ampoules protect contents from environmental dust, microorganisms, and air, ensuring product purity.

• High Efficiency: Automated systems produce thousands of ampoules per hour, meeting high demand.

• Precision: Accurate dosing eliminates wastage and ensures consistent drug delivery.

• Ease of Maintenance: Accessible parts and CIP/SIP systems simplify cleaning and upkeep.

• Regulatory Compliance: Designed to meet FDA, CE, ISO, and cGMP standards for pharmaceutical production.

• Versatility: Suitable for a wide range of ampoule sizes, product types, and industries.

• Long-Term Investment: Robust construction and efficient cooling systems extend machine lifespan.

Disadvantages

• Glass Fragility: Risk of glass shards during opening, posing contamination concerns for parenteral drugs.

• High Initial Cost: Advanced machines with automation and sterile features are expensive.

• Complex Operation: Requires trained operators for setup, calibration, and maintenance.

• Disposal Risks: Improper handling of glass ampoules may cause injury or environmental concerns.

• Changeover Time: While minimized in modern machines, switching between ampoule sizes or products may still require adjustments.

Types of Ampoule Filling Machines

• Laboratory Ampoule Filling Machine
• Closed Ampoule Filling Machine
• Single Head Ampoule Filling Machine
• Double Head Ampoule Filling Machine
• Four Head Ampoule Filling Machine
• Six Head Ampoule Filling Machine
• Eight Head Ampoule Filling Machine
• Onion Skin Ampoule Filling Machine

Salient Features of Ampoule Filling Machine

• Compact model as per cGMP standard.

• Higher production output up to 12000 Ampoules per hour.

• All contact parts made from High Quality Stainless Steel 316L & Non-contact parts made from Stainless Steel 304.

• Minimum change over parts from 1ml to 10ml ampoule size.

• “No Ampoule – No Filling” system.

• Ampoule neck centering during gas flushing and filling operations.

• Possibility of nitrogen gas flushing before, during and after filling.

• Full accessibility allows easy maintenance.

• Machine equipped with pre-warming station.

• Flow Meters for regulating flames easily.

• Minimum change over time, little maintenance, easy cleaning.

Process Operation of Automatic Ampoule Filling Machine

Empty washed & sterilized ampoules loaded onto infeed hopper of the machine. From where it has been received to receiving rack through starwheel/cassette. The moving rack which moves horizontally collect one/two/four/eight ampoules from the receiving rack and transfer the ampoule to the machine in left to right in an inclined position. During ampoule movement Pre-gassing, Filling, Post Gassing, Pre-heating & Sealing Station perform filling and sealing operations. At the end duly filled and sealed ampoules get collected automatically onto collection tray of the machine. For detailed working process please explore automatic ampoule filler video in top right section of this page.

Technical Specification of Ampoule Filling Machine

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
