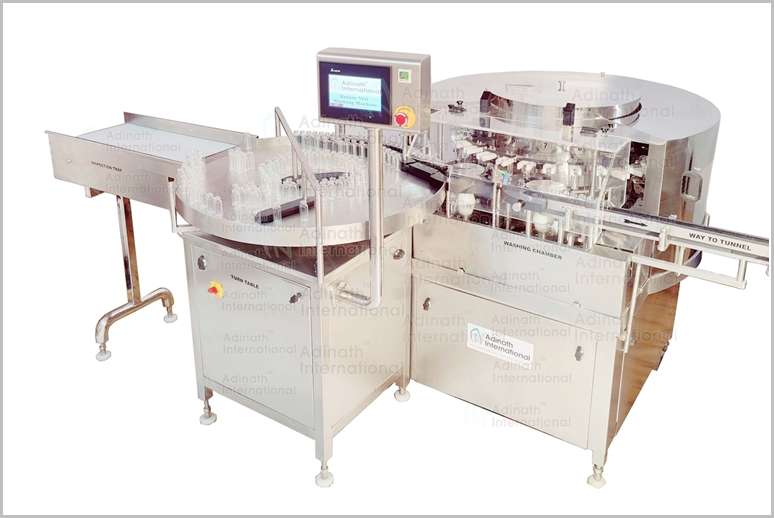

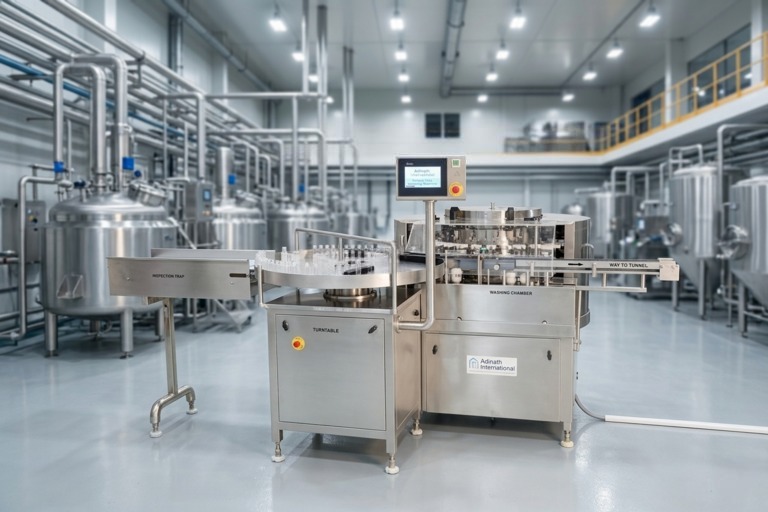

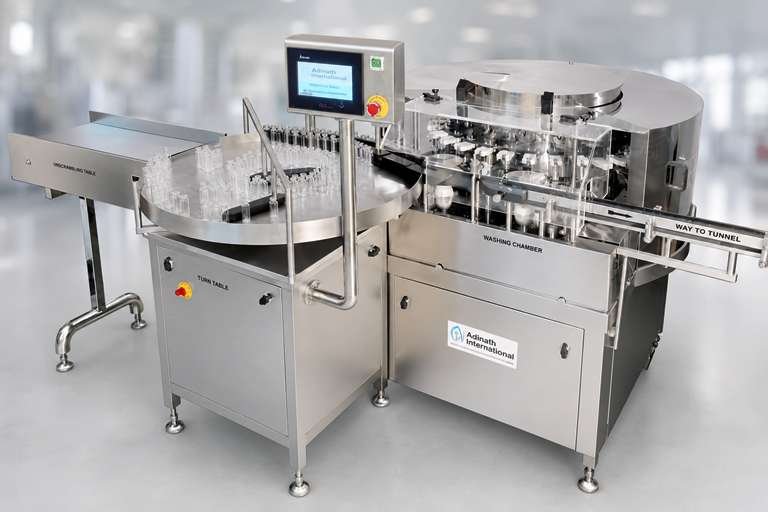

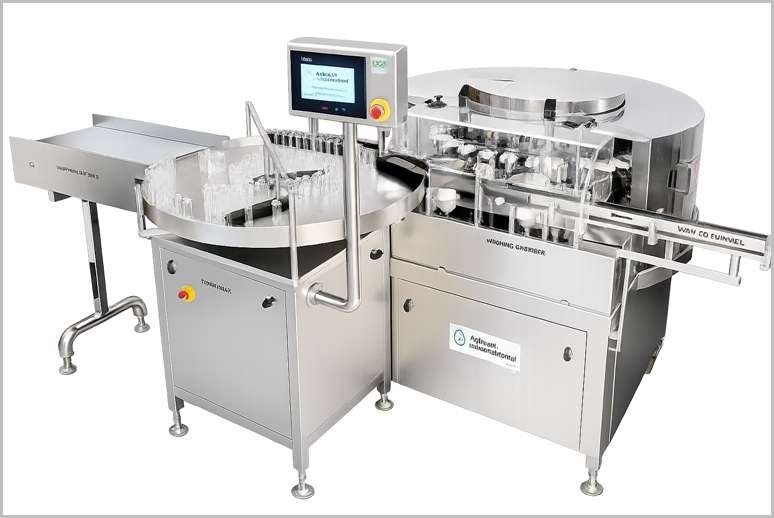

Ampoule Vial Washing Machine is specialized equipment used in pharmaceutical, biotechnology, and related industries to clean and sterilize ampoules (small sealed glass vials) and vials before they are filled with medications, vaccines, or other sensitive products. These machines ensure the removal of contaminants such as dust, particles, chemical residues, and endotoxins to meet stringent Good Manufacturing Practices (GMP) standards and ensure product safety and quality.
The primary purpose of an Ampoule Vial Washing Machine is to clean the internal and external surfaces of ampoules and vials to eliminate contaminants, including particulate matter, microorganisms, chemical traces, and endotoxins. This ensures the containers are sterile and safe for filling with injectable drugs, vaccines, or other sterile solutions, preventing contamination that could compromise product efficacy or patient safety.
Ampoule Vial Washing Machines are critical for ensuring the sterility and cleanliness of containers in pharmaceutical and biotech production. Available in rotary, linear, multijet, and high-speed variants, these machines use advanced jet-washing technology, multiple cleaning stations, and GMP-compliant materials to achieve high-quality cleaning. With features like automated control, low breakage rates, and efficient water/air usage, they meet the rigorous demands of sterile manufacturing while supporting validation and regulatory compliance.
Ampoules and vials feed from the Infeed tray are received on an Infeed Feed worm then moves on Infeed starwheel. The Grippers picks up the Ampoule from Infeed Star Wheel and invert it in neck down position over washing needles and move along with the needle bar for Washing. Ampoules traveling in neck down position above washing needles and moves along with the Needle bar ensures maximum time for washing once the needle enter in the Ampoule neck. Machine having six different washing stations each of 6 needles for optimum Washing and the sequence can be adjusted as per requirements. Washer also having external wash for optimum washing of ampoules and vials.
On completion of a cycle, washed Ampoules and vials are again inverted to neck upward position and feed to output star wheel. Washed Ampoules received from output starwheel can be collected on Output Tray or can be pushed to tunnel. A separate pumping station (optional) gives the right quantum of water at the desired pressure. In the absent of separate pumping station, we can provide the re-circulation & siliconization system on request.
INTERNAL CLEANING:
The AVRW is equipped with 6 internal cleaning stations and each station has 6 cleaning needles making up a total of 36 cleaning needles. Each cleaning station is supplied via a pipe connected to the cleaning media-making washing area. This not only reduces the risk of particle generation, but also simplifies maintenance and cleaning efforts while saving time.
EXTERNAL CLEANING
The 3 external cleaning stations mounted in a stationary position above the ampoule can be easily adjusted for a specific height, angle and lateral position. Each cleaning station receives cleaning media-making through a pipe connected to the cleaning media-making washing area.
CLEANING MEDIA PRINCIPAL:
WFI, Purified water and air cleaning station are synchronized with the ampoule by reciprocating motion. Design is such that these media are put to use only when needles motion in forward direction. WFI consumption is further reduced by collecting the WFI in re-circulating water tank to be used later on in the pre-washing station.
Model | AVRW 120 | AVRW 240 |
Production Output | Up to 100 per minute | Up to 200 per minute |
Ampoule Diameter | 9mm to 21.5mm | 9mm to 21.5mm |
Ampoule Height | 60mm to 140mm | 60mm to 140mm |
Power Load | 4 H.P. | 5.5 H.P. |
Power Voltage | 440 Volts, 3 Phase 50 Hertz, 4 wire system | 440 Volts, 3 Phase 50 Hertz, 4 wire system. |
Optional Accessories |
|
|
Utility |
|
|
Water Tank & Pump | 3 nos. each with 25 liters Capacity & Centrifugal pump | 3 nos. each with 25 liters Capacity & Centrifugal pump |
Overall Dimension: | 2050mm (L) X 2000mm (W) X 1210mm (H) approx. | 2450mm (L) X 2000mm (W) X 1300mm (H) approx. |
Net Weight | 700 kgs. approx. | 900 kgs. approx. |
Gross Weight | 1000 kgs. approx. | 1300 kgs. approx. |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
1st wash | Recycled Water (WFI) |
2nd wash | Compressed Air |
3rd wash | DM Water |
4th wash | Compressed Air |
5th wash | Water for Injection (WFI) |
6th wash | Compressed Air |
The machine is available in two main models:
Output is adjustable with a digital speed indicator, making it suitable for medium to large-scale production.
It handles:
The machine uses a gripper system that holds containers by the neck, allowing flexible washing of both ampoules and vials with quick changeover.
Containers are fed via an infeed tray and starwheel. Grippers hold them by the neck, invert them neck-down, and pass them over 6 internal washing stations (3 water washes + 3 air washes). External washing is done simultaneously with 3 adjustable stations. Each zone has independent circuits to prevent cross-contamination. A typical sequence includes Recycled Water → Air → DM Water → Air → WFI → Air. After washing, containers are re-inverted upright and discharged. Features like needle anti-shake and recirculation reduce breakage and media consumption.
All product-contact parts are made of AISI 316L Stainless Steel, while non-contact parts use AISI 304 Stainless Steel and FDA-approved engineering plastics for full cGMP compliance. Utilities required:
Optional features include PLC with HMI, separate pumping station with 3 tanks, recirculation system, siliconization, safety cabinet, and No-Vial-No-Wash system.
