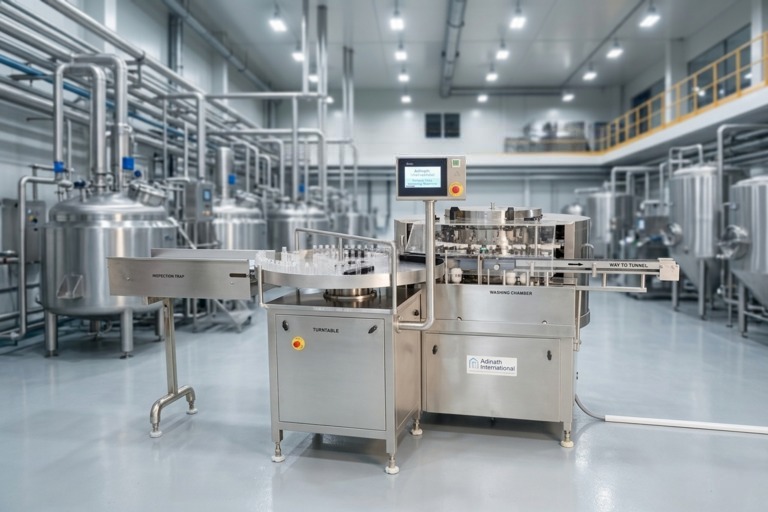

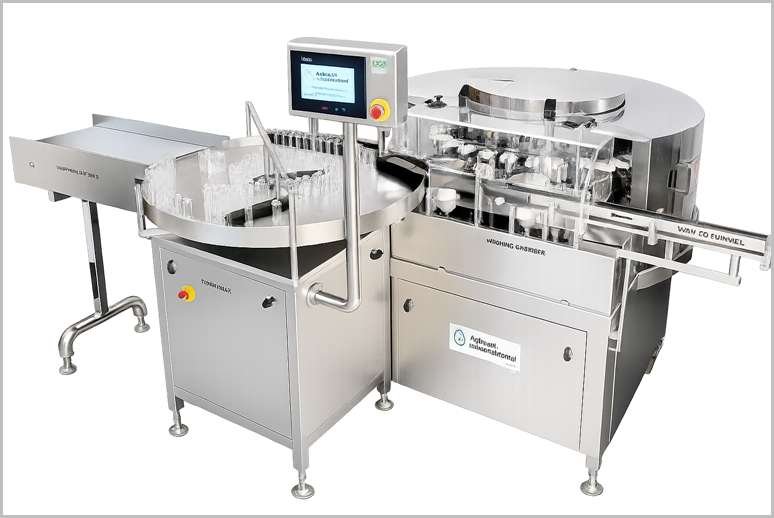

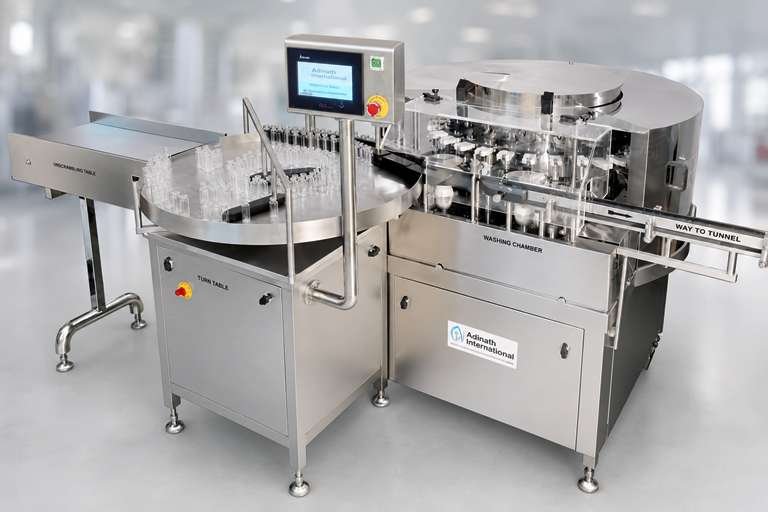

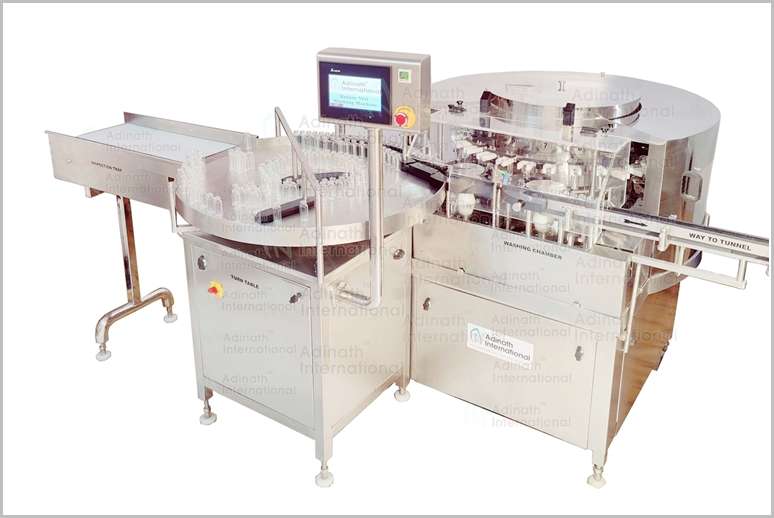

Sterile Ampoule Washing Machine

A Sterile Ampoule Washing Machine is specialized equipment used in pharmaceutical, biotechnology, and related industries to clean and sterilize ampoules (small sealed glass or plastic vials) before they are filled with injectable drugs, vaccines, or other sensitive products. These machines ensure the ampoules are free from contaminants such as dust, particles, microbes, and endotoxins, maintaining the sterility and safety required for pharmaceutical production.

The primary objective of a sterile ampoule washing machine is to remove impurities, particulate matter, and microorganisms from both the internal and external surfaces of ampoules. This ensures compliance with stringent regulatory standards, such as current Good Manufacturing Practices (cGMP) and FDA guidelines, preventing contamination of the final product and ensuring patient safety.

Sterile Ampoule Washing Machine Video

Key Features

1. Construction and Materials:

   • Made from high-quality stainless steel to ensure durability, corrosion resistance, and compliance with sanitary standards.

   • Non-contact parts are often made from FDA-approved engineering plastics or AISI SS 304.

   • Designed to minimize cross-contamination with smooth, easy-to-clean surfaces.

2. Cleaning Process:

   • Utilizes a multi-stage washing cycle that includes:

     • Pre-washing: Initial rinse to remove loose debris.

     • Main washing: Uses high-pressure jets of recycled water, purified water, or Water for Injection (WFI) to clean internal and external surfaces.

     • Rinsing: Purified water or WFI rinse to remove residual cleaning agents.

     • Drying: Filtered compressed air or hot air to eliminate residual moisture, preventing contamination or product degradation.

   • Some machines incorporate ultrasonic cleaning for enhanced removal of stubborn contaminants.

3. Sterilization Mechanisms:

   • Equipped with Clean-in-Place (CIP) and Steam-in-Place (SIP) systems to maintain a sterile environment within the machine.

   • Ensures ampoules meet aseptic standards, critical for injectable products.

4. Gripper System:

   • Many machines feature a specially designed gripper mechanism that holds ampoules by their necks, inverts them for thorough cleaning, and releases them post-washing.

   • Minimizes contact with machine parts, reducing the risk of damage or contamination.

5. Washing Parameters:

   • Adjustable settings for water temperature, pressure, cycle duration, and number of washes to meet specific cleaning requirements.

   • Precision control via Programmable Logic Controller systems for consistent performance.

6. Automation and Control:

   • Available in automatic, semi-automatic, or compact models to suit different production scales.

   • Automatic models require minimal operator intervention, ideal for high-volume production.

   • User-friendly interfaces with digital controls for monitoring and adjusting parameters.

   • Some models include data logging for validation and compliance with regulatory requirements.

7. Drying System:

   • Integrated air-drying systems using 0.22µm filtered compressed air to ensure no residual moisture remains, which could lead to contamination.

8. Regulatory Compliance:

   • Designed to meet cGMP, FDA, and ISO standards.

   • Supports validation processes with documentation for Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ).

9. Versatility:

   • Capable of handling various ampoule sizes (e.g., 1ml to 20ml) and materials (glass or plastic) with interchangeable parts.

   • Some models can clean both ampoules and vials, offering flexibility for manufacturers.

10. Safety Features:

    • Equipped with interlocks, alarms, and emergency switches to ensure operator safety.

    • Acrylic covers or Laminar Air Flow (LAF) systems to maintain a clean environment during operation.

Types of Sterile Ampoule Washing Machines

• Automatic Rotary Ampoule Washing Machine: High-speed, fully automated with multiple washing stations for large-scale production (e.g., 120–400 ampoules per minute). Uses a rotary mechanism to transport and clean ampoules.

• Semi-Automatic Ampoule Washing Machine: Requires manual loading/unloading, suitable for medium-scale operations.

• High-Speed Ampoule Washing Machine: Designed for rapid cleaning in high-demand facilities.

• Compact Ampoule Washing Machine: Space-efficient for smaller facilities or research labs.

• Aseptic Ampoule Washing Machine: Incorporates advanced sterilization features for the highest sterility standards.

• Multi-Station Ampoule Washing Machine: Features multiple cleaning stations for comprehensive washing.

Working Principle

1. Loading: Ampoules are manually or automatically loaded onto an in-feed tray or conveyor, often via a turntable or star wheel.

2. Transport: A gripper system or conveyor (rotary or linear) transports ampoules through cleaning stations, often inverting them for internal washing.

3. Washing Cycle: Ampoules undergo a sequence of cleaning steps, typically including:

   • Internal and External Wash: High-pressure jets of recycled water, purified water, or WFI clean both surfaces.

   • Compressed Air Blow: Removes water and debris with filtered air.

   • Final WFI Rinse: Ensures sterility with Water for Injection.

   • Drying: Filtered air dries the ampoules to remove residual moisture.

4. Discharge: Cleaned ampoules are released to an out-feed system (e.g., conveyor or tray) for sterilization, filling, or further processing under laminar airflow to maintain sterility.

Typical Washing Cycle Example

• Station 1: Internal and external wash with recycled water.

• Station 2: Internal blow with compressed air.

• Station 3: Internal wash with purified water.

• Station 4: Internal blow with compressed air.

• Station 5: Internal wash with WFI.

• Station 6: Internal and external drying with compressed air.

Applications

Sterile ampoule washing machines are used across various industries:

• Pharmaceutical Industry: Cleaning ampoules for injectable drugs, ensuring sterility and safety.

• Biotechnology: Preparing ampoules for biopharmaceuticals like monoclonal antibodies or cell culture media.

• Vaccine Manufacturing: Sterilizing ampoules for vaccine packaging to maintain efficacy.

• Healthcare and Hospitals: Cleaning ampoules for IV medications or diagnostic reagents.

• Veterinary Medicine: Sterilizing containers for animal healthcare products.

• Research and Development: Cleaning ampoules for experimental or chemical testing in labs.

• Cosmetics and Food Industries: Used for high-end serums or liquid additives requiring sterile packaging.

Validation and Quality Assurance

• Cleaning Validation: Machines undergo rigorous validation to ensure consistent cleanliness, including tests for endotoxin reduction (e.g., 3-log reduction), chemical decontamination (e.g., sodium chloride challenge), and particulate removal (e.g., talc or glass particle tests).

• Quality Control: Regular monitoring and documentation ensure compliance with regulatory standards.

• Maintenance: Routine maintenance minimizes downtime and extends machine lifespan.

• Operator Training: Essential for consistent operation and adherence to protocols.

Advantages

• Ensures high sterility and cleanliness, critical for injectable products.

• Reduces risk of contamination, protecting patient safety.

• Increases production efficiency with automated, high-speed options.

• Flexible designs cater to various ampoule sizes and production scales.

• Environmentally friendly with water recirculation systems to minimize waste.

Limitations

• High initial cost for advanced automated models.

• Requires regular maintenance and validation to ensure performance.

• Operator training is necessary to avoid errors in operation.

Conclusion

Sterile ampoule washing machines are critical for ensuring the cleanliness and sterility of ampoules in pharmaceutical and related industries. By combining advanced technology, precise cleaning processes, and regulatory compliance, these machines play a vital role in producing safe, high-quality injectable products. Their versatility, automation, and adherence to strict hygiene standards make them indispensable for modern pharmaceutical manufacturing.

For further details or specific models, refer to manufacturer Adinath International, which offer a range of sterile washing solutions tailored to industry needs.

Salient Features of Ampoule Washing Machine

• Complete cGMP model.

• Production output capacity up to 200 ampoules per minute.

• All contact parts with the internal surface of Container and the wash media are made from AISI 316L Stainless Steel.

• Non-contact parts are made from engineering plastic, AISI SS 304 materials.

• All finishes, welding joints are processed, treated & equipment selected in accordance with cGMP standards.

• Machine provides 3 water washes & 3 Air washes.

• Complete flexibility with user for washing cycle.

• 18 Jets for 6 internal washing zones.

• 15 Cassette of Grippers each having 2 Grippers.

• Suitable for 1ml to 10ml ampoules.

• Washing sequence can be adjusted as per customer’s requirements.

• 3 Pumps and 3 Tanks of 25 liters each. (Optional)

• Each washing zone with independent circuit to avoid contamination.

• Automatic Infeed and Exit of containers.

• Machine is equipped with PLC system & printing facility with passwords. (Optional)

• Container unit counter with display in the control panel

• Machine can use as a sole machine or inline.

• Digital speed indicator for current output

• IQ/OQ/DQ validation documentation can be provided.

• Programming and software validation as per 21 CFR Part 11 can be done on demand.

Process Operation of Ampoule Washing Machine

Ampoules feed from the Infeed tray are received on an Infeed Feed worm then moves on Infeed starwheel. The Grippers picks up the Ampoule from Infeed Star Wheel and invert it in neck down position over washing needles and move along with the needle bar for Washing. Ampoules traveling in neck down position above washing needles and moves along with the Needle bar ensures maximum time for washing once the needle enter in the Ampoule neck. Machine having six different washing stations each of 6 needles for optimum Washing and the sequence can be adjusted as per requirements. Washer also having external wash for optimum washing of ampoules.

On completion of a cycle, washed Ampoules are again inverted to neck upward position and feed to output star wheel. Washed Ampoules received from output starwheel can be collected on Output Tray or can be pushed to tunnel. A separate pumping station (optional) gives the right quantum of water at the desired pressure. In the absent of separate pumping station, we can provide the re-circulation & siliconization system on request.

INTERNAL CLEANING:

The AVRW is equipped with 6 internal cleaning stations and each station has 6 cleaning needles making up a total of 36 cleaning needles. Each cleaning station is supplied via a pipe connected to the cleaning media-making washing area. This not only reduces the risk of particle generation, but also simplifies maintenance and cleaning efforts while saving time.

EXTERNAL CLEANING

The 3 external cleaning stations mounted in a stationary position above the ampoule can be easily adjusted for a specific height, angle and lateral position. Each cleaning station receives cleaning media-making through a pipe connected to the cleaning media-making washing area.

CLEANING MEDIA PRINCIPAL:

WFI, Purified water and air cleaning station are synchronized with the ampoule by reciprocating motion. Design is such that these media are put to use only when needles motion in forward direction. WFI consumption is further reduced by collecting the WFI in re-circulating water tank to be used later on in the pre-washing station.

Technical Specification of Ampoule Washing Machine

Model	AVRW 120	AVRW 240
Production Output	Up to 100 per minute	Up to 200 per minute
Ampoule Diameter	9mm to 21.5mm	9mm to 21.5mm
Ampoule Height	60mm to 140mm	60mm to 140mm
Power Load	4 H.P.	5.5 H.P.
Power Voltage	440 Volts, 3 Phase 50 Hertz, 4 wire system	440 Volts, 3 Phase 50 Hertz, 4 wire system.
Optional Accessories	Programmable Logic Control (System) with HMI Safety Cabinet with doors	Programmable Logic Control (System) with HMI Safety Cabinet with doors
Utility	Air – 20 CFM Water – 200 to 500 liters per hour depend upon ampoule size.	Air – 20 CFM Water – 200 to 500 liters per hour depend upon ampoule size.
Water Tank & Pump	3 nos. each with 25 liters Capacity & Centrifugal pump	3 nos. each with 25 liters Capacity & Centrifugal pump
Overall Dimension:	2050mm (L) X 2000mm (W) X 1210mm (H) approx.	2450mm (L) X 2000mm (W) X 1300mm (H) approx.
Net Weight	700 kgs. approx.	900 kgs. approx.
Gross Weight	1000 kgs. approx.	1300 kgs. approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
