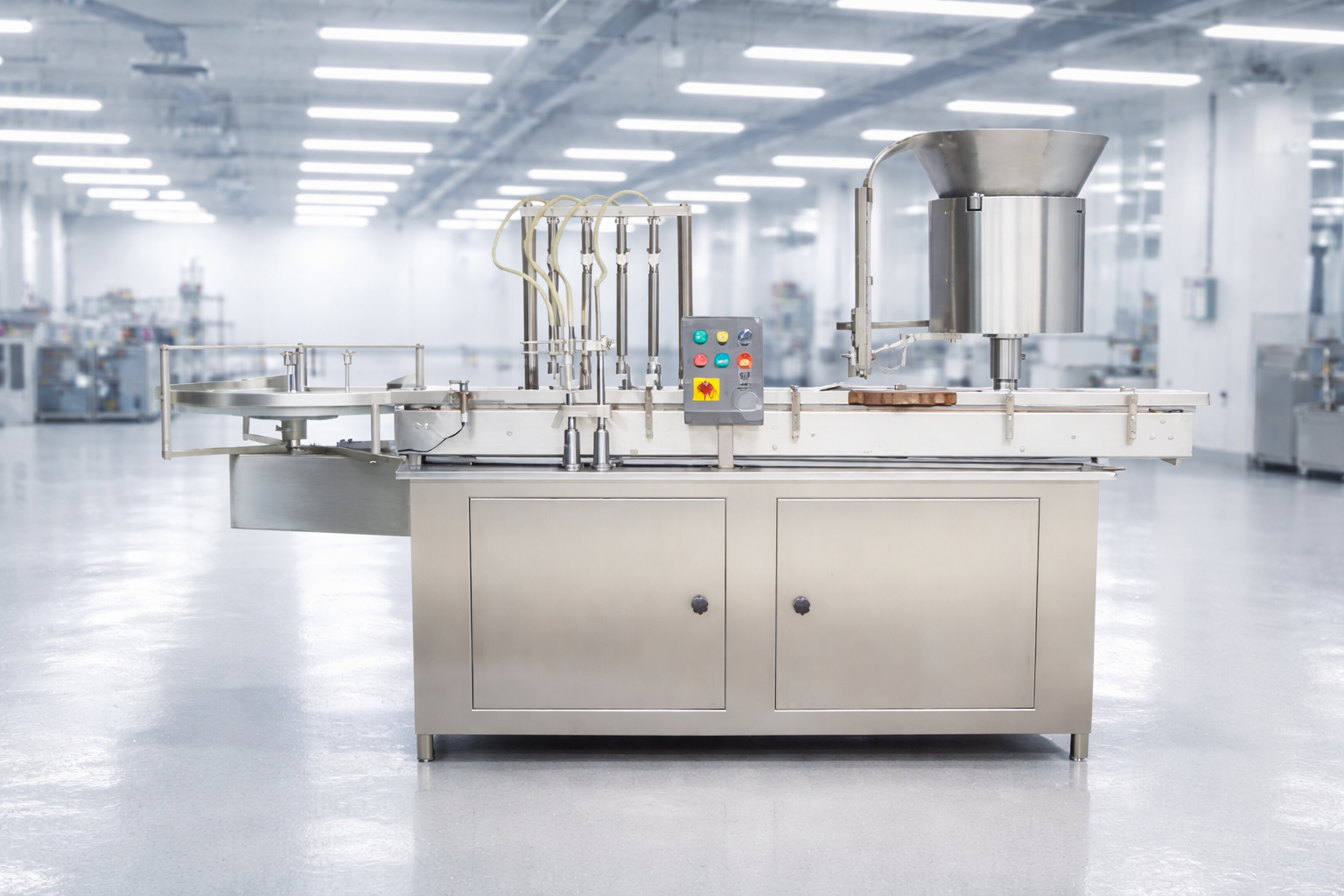

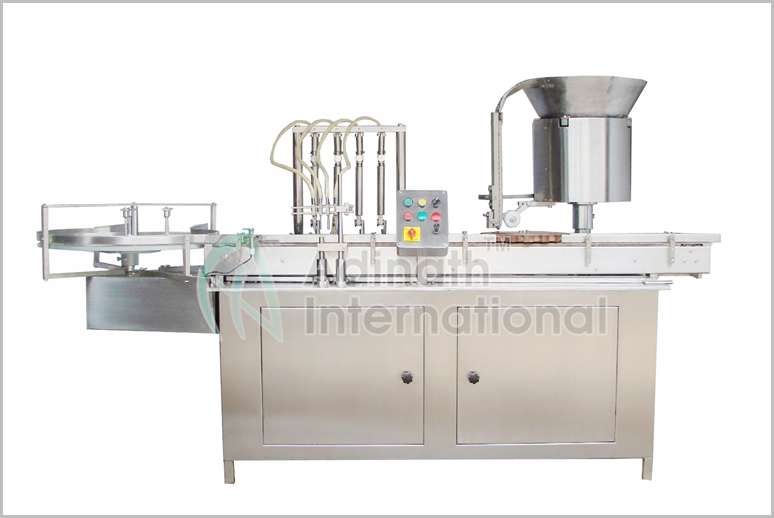

Aseptic Filling Capping Machine

An Aseptic Filling Capping Machine is a specialized piece of equipment used primarily in the pharmaceutical, biotech, food, and beverage industries to fill and seal containers with liquid or powder products in a sterile environment, ensuring no contamination by pathogens or microorganisms. These machines are critical for producing sterile products like injectable drugs, vaccines, dairy products, juices, and other sensitive beverages or pharmaceuticals that require extended shelf life without preservatives or refrigeration.

Aseptic Filling Capping Machine Video

Key Features and Components

1. Sterilization Systems:

   • Container Sterilization: Before filling, containers are sterilized using methods like hydrogen peroxide vapor, peracetic acid, steam, or electron-beam. For example, bottles may be rinsed with sterile water or treated with PAA to achieve a high sterilization effect.

   • Cap Sterilization: Caps or closures are sterilized separately using similar agents and dried with sterile air to ensure no contamination during sealing.

   • Aseptic Chamber/Zone: The filling and capping processes occur in a controlled, sterile environment maintained by HEPA-filtered air or positive pressure to prevent external microbial infiltration. Some machines use an aseptic isolator with unidirectional sterile airflow for enhanced protection.

2. Filling System:

   • The filling mechanism uses precise dosing technologies to accurately dispense liquids, semi-solids, or powders into containers. Common methods include gravity filling, pressure filling, or peristaltic pumps, depending on product viscosity and requirements.

   • Machines often feature “No Vial – No Fill” systems to prevent product waste and ensure only properly positioned containers are filled.

3. Capping/Sealing System:

   • After filling, containers are sealed with caps or stoppers (e.g., rubber stoppers for vials). Servo-driven cappers ensure precise torque and hygienic sealing, with mechanical parts often located outside the sterile zone to avoid contamination.

4. Cleaning and Sterilization in Place (CIP/SIP):

   • Integrated CIP/SIP systems clean and sterilize the machine’s components using hot water, steam, or disinfectants, ensuring no residual product or contaminants remain between batches. This reduces downtime and maintains sterility.

5. Automation and Control:

   • Fully or semi-automatic systems are equipped with programmable logic controllers (PLCs) and touch-screen interfaces for precise operation, monitoring, and fault detection. Real-time monitoring of critical parameters ensures compliance with cGMP standards.

6. Containment and Safety:

   • Machines are often integrated with isolators, Restricted Access Barrier Systems, or laminar airflow systems to maintain a sterile environment and protect operators from high-potency drugs.

   • Safety features like interlock systems with light barriers halt operations if breaches are detected, ensuring operator safety and product integrity.

7. Flexibility and Scalability:

   • Modular designs allow machines to handle various container types and sizes on the same line, with quick changeover times.

Operational Process

1. Container Preparation: Containers are cleaned and sterilized  to eliminate microorganisms.

2. Product Sterilization: The product is typically pre-sterilized using Ultra-High Temperature (UHT) processing before being transferred to the filling zone.

3. Filling: Containers are filled in a sterile environment using precise dosing systems. The filling head avoids contact with the container to prevent contamination.

4. Capping/Sealing: Sterilized caps or stoppers are applied and sealed, often using servo-driven systems for accuracy. Some machines use vacuumetric stoppering for vials.

5. Quality Control: In-process controls (IPC), such as 100% check-weighing, ensure filling accuracy. Batch reports and full traceability of sterilization and production parameters are generated automatically.

6. Output: Containers are transported out via conveyors or robotic arms, ready for packaging or distribution, often without needing cold chain logistics due to aseptic processing.

Applications

• Pharmaceuticals: Filling vials, syringes, or cartridges with injectable drugs, vaccines, biologics, or high-potency compounds.

• Food and Beverage: Packaging dairy, juices, or sensitive beverages in PET bottles, pouches, or bag-in-box formats.

• Biotech: Small-batch production for pre-clinical and clinical trials, often using ready-to-use (RTU) containers.

Advantages

• Contamination Prevention: Aseptic processing eliminates pathogen exposure, ensuring product safety and extended shelf life without preservatives.

• High Efficiency: High-speed machines maximize throughput while maintaining precision.

• Cost-Effectiveness: Reduced need for cold chain logistics, minimal product waste, and energy-efficient designs lower operational costs.

• Regulatory Compliance: Machines meet stringent standards like EU-GMP Annex 1, FDA, and cGMP, ensuring compliance for global markets.

Salient Features of Aseptic Filling Capping Machine

• Suitable for the filling Volume of 2ml to 250ml.

• Piston pump/Peristaltic pump aseptic filling.

• Filling accuracy of ±0.5% to ±1%.

• No cross contamination.

• Easy to validate filling system for small/large batch production.

• All Contact Parts Made from Stainless Steel 316L & framework by Stainless Steel 304.

• Variable A.C. frequency drive for speed adjustment.

• Digital Vial Counter for counting production output.

• In-feed Turn Table/ Unscrambler for automatic feeding of objects.

• On-line Mechanism.

• “No Vial – No Filling” System.

• “No Vial – Machine Stop” System.

• IQ/OQ documentation can be provided.

• PLC system with Graphical User Interface. (Optional)

Process Operation of Aseptic Filling Capping Machine

The incoming dry vial (sterilized & siliconised) are fed through the unscrambler and suitably guided on the moving delrin slat conveyor belt at the required speed of the correct placement below filling unit. The filling unit consists of Filling Head, Syringes & Nozzles which are used for liquid filling. The syringes are made of Stainless Steel 316L construction and both, glass as well as Stainless Steel syringes can be used. A Star Wheel is provided which holds the vial during filling operation. A sensor is provided for ”No Vial-No Filling” operation. Syringes are mounted on eccentric block and driving through bottom main gear box. Volume can be either increased or decreased by increasing or decreasing stroke length of piston as per filling size. Syringes is having non return valve for sucking and delivering situation to avoid volume variation. Liquid will reach to filling nozzles through silicon transparent pipe. Nozzle will be having Up and Down movement with help of cam mechanism and it will come down when vial will be hold by starwheel for filling operation and starts filling when it starts to move up and after completion of filling operation, starwheel delivers six vials together on conveyor for rubber stoppering operation. Stoppering unit consist of Starwheel, Vibrator unit and Bowl. The sterilized and siliconised rubber stoppers stored in the vibrator bowl moves vertically to the rubber stopper chute. The vial is hold firmly by starwheel, which will be in continuous rotary motion and vial which is coming from filling unit get in to starwheel and move in rotary direction along with starwheel, during movement it will pick up the rubber stopper from the exit end of the chute and rubber stopper will be pressed by fix single pressing roller, which is spring loaded. Then vial further move on conveyor and collected on out feed starwheel for next sealing operation.

Technical Specification of Aseptic Filling Capping Machine

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
