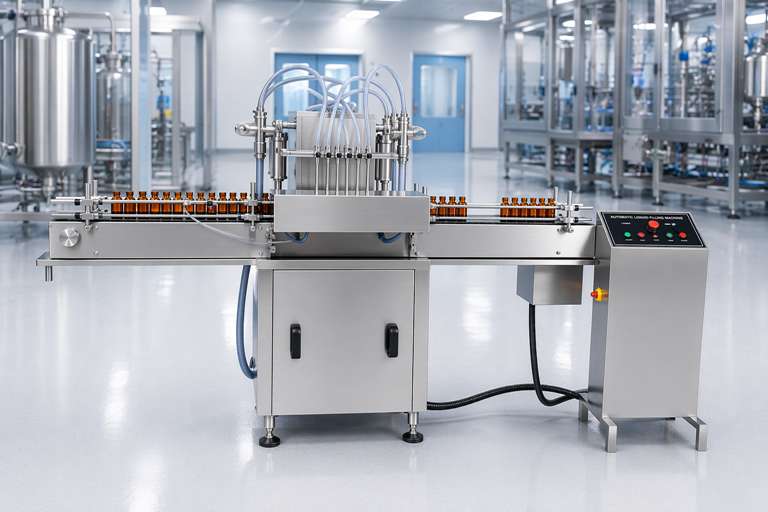

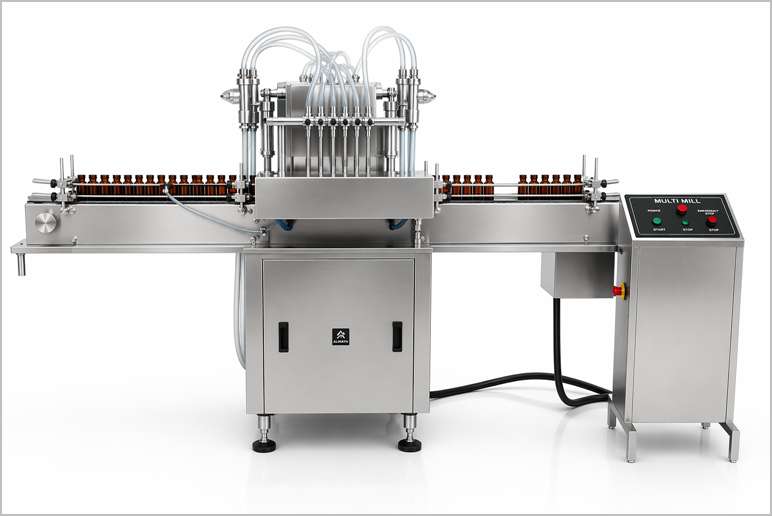

Food Products Bottle Filling Machine

A Food Products Bottle Filling Machine is specialized packaging equipment designed to automate the process of filling bottles with various food and beverage products, such as liquids, viscous substances, powders, or semi-solids. These machines are essential in the food processing and bottling industry to ensure precise, hygienic, and efficient filling, minimizing waste, maintaining product quality, and complying with food safety standards like those from the FDA or equivalent regulatory bodies. They are widely used in production lines for beverages, dairy, condiments, edible oils, and ready-to-eat sauces, handling containers like glass bottles, plastic PET bottles, jars, cans, or pouches.

Unlike general-purpose fillers, food-specific machines emphasize sanitation, using materials like stainless steel for corrosion resistance and easy cleaning. They often incorporate Clean-in-Place (CIP) systems for thorough sanitation without disassembly, preventing cross-contamination—critical for perishable or high-value food items. These machines can operate at speeds from 40 to 2,000 bottles per minute, depending on the model and product viscosity, and integrate with conveyors, cappers, labelers, and rinsers for complete bottling lines.

Bottle Filling Machine Video

Key Features

• Sanitary Design: Quick-disconnect valves, tri-clamp fittings, and autoclavable parts for easy sterilization. Reservoirs with flanged fittings allow rapid flushing.

• Accuracy and Control: Volumetric, gravimetric, or flow-based metering to achieve ±0.5% accuracy, reducing overfill and waste.

• Versatility: Handles diverse viscosities and container sizes. Modular designs support quick changeovers between products.

• Safety and Efficiency: Sensors for bottle detection, overflow prevention, and integration with HEPA filtration or steam injection for aseptic filling. Energy-efficient with low oxygen pickup to preserve freshness.

• Automation Levels: From semi-automatic to fully automatic inline or rotary systems.

• Durability: Built with high-quality components like HDPE, UHMW, or PVC for corrosive food acids; minimal downtime with simple maintenance.

How It Works

1. Bottle Preparation: Empty bottles are fed via conveyor; a rinser cleans interiors.

2. Filling Process: Bottles are positioned under nozzles. Product from a hopper or tank is dispensed using the chosen method (e.g., piston stroke for volume). Sensors detect fill levels or weights.

3. Overflow/Recirculation: Excess product returns to the tank in overflow systems.

4. Ejection and Next Steps: Filled bottles move to capping, sealing, labeling, and packaging stations.

5. Monitoring: Touchscreen interfaces display real-time data like fill count, rate, and errors; recipes can be saved for different products.

For example, in a rotary overflow filler for juices, bottles rotate under 40+ valves, filling at 900 bottles/min while measuring via flowmeters for consistency.

Applications in Food Industry

• Beverages: Juices, teas, milk, and carbonated drinks in PET or glass bottles.

• Condiments/Sauces: Ketchup, mayonnaise, hot sauces in jars or bottles.

• Oils and Dairy: Edible oils, syrups, or viscous creams.

• Powders and Granules: Spices, flour, or sugar in pouches or bottles.

• Specialty: Hot-fill for preserves or aseptic for extended shelf life without preservatives.

These machines support industries like dairy, sauces, and ready meals, with custom options for doypacks or cans.

Benefits

• Efficiency: Boosts output, reducing labor costs.

• Quality and Safety: Ensures consistent fills, hygiene, and compliance with food standards, minimizing recalls.

• Cost Savings: Reduces product waste and energy use; scalable for small to large operations.

• Flexibility: Quick setup/changeover; adaptable to foaming, particulate, or hot products.

Salient Features of Bottle Filling Machine

• “No Bottle – No Fill” system.

• All contact parts made of SS316 material with easy removal system for Autoclaving/Sterilization/Cleaning.

• Machine construction in SS 304 material.

• Diving Nozzle for Foam free filling.

• Very High Fill Accuracy.

• Automatic In-feed and Exit of Bottles.

• Minimum Change Over time.

• Unique Free Spinning Bottle Separator- No pneumatic operation.

• Built-in A.C. Variable Frequency Drive System.

Process Operation of Food Products Bottle Filling Machine

Bottles are feed on to in-built Infeed turn table, from where it delivered to SS conveyor belt. Conveyor belt transport bottles to filling station. Filling station has Pneumatic bottle stopper for exact bottle neck centering of bottles during filling operation. Nozzle goes upwards slowly from the bottom level of bottle towards neck during filling to minimize forming adjustable nozzle is reciprocating according to filling dose. The dosing block with a hexagonal bolt, this means different fill size can be set easily within minimum use of time. After liquid filling bottles are delivered to capping/labeling machine conveyor for further operations.

Technical Specification of Bottle Filler Machine

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
