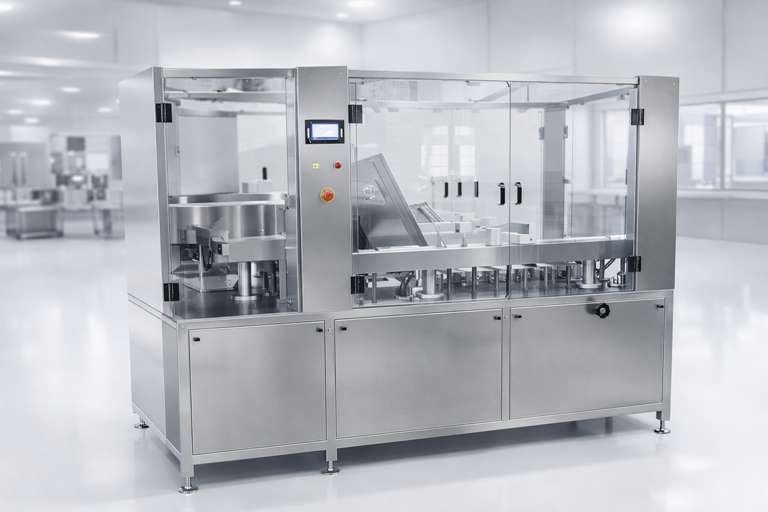

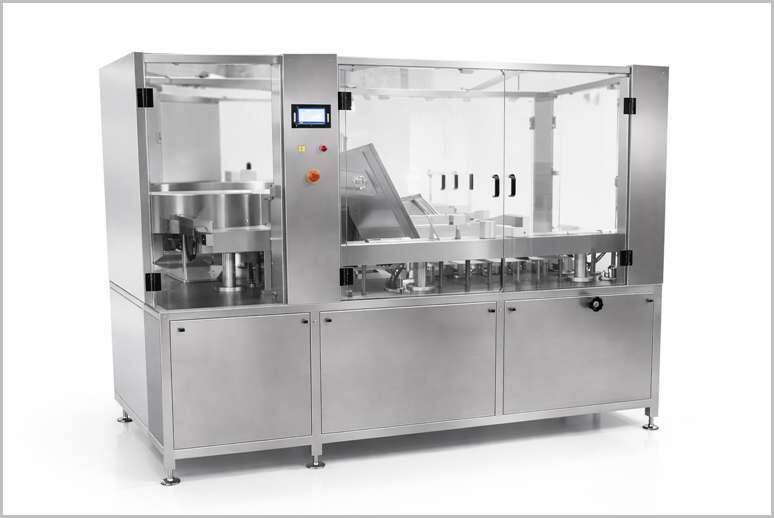

Fully Automatic Bottle Unscrambler

A Fully Automatic Bottle Unscrambler is an advanced machine used in packaging lines to automatically sort, orient, and feed bottles onto a conveyor belt for downstream processes like filling, capping, and labeling. It eliminates the need for manual labor, enhancing efficiency, speed, and precision in high-volume production environments. These machines are widely used in industries such as food and beverage, pharmaceuticals, cosmetics, and chemicals for handling plastic, metal, or non-fragile containers.

Automatic Bottle Unscrambler Video

Key Features and Components:

1. Hopper: A large container where bottles are loaded in random orientations. It can hold thousands of bottles, typically fed manually or via an elevator system.

2. Feeding Mechanism: An inclined conveyor or elevator transfers bottles from the hopper to the unscrambling unit, often using vibratory bowl feeders, belts, or escapement feeders.

3. Sorting and Orientation System:

   • Rotary Bowl or Disc: Bottles are spun by centripetal force or guided by lifters to align them into neck-leading or base-leading positions.

   • Hook or Pneumatic Actuator: Reorients bottles to ensure uniform alignment.

   • Belts or Starwheels: High-speed belts or starwheels position bottles upright on the conveyor, often with minimal change parts for different bottle sizes.

4. Rejection System: Automatically detects and ejects defective or misaligned bottles using sensors, cameras, or air jets to prevent production stoppages.

5. Control System: Equipped with PLC and touchscreen HMI for easy operation, recipe management, and format changes.

6. Construction: Typically made of stainless steel and FDA-approved materials for durability, hygiene, and compliance with GMP standards, especially in pharmaceutical applications.

7. Optional Features:

   • Ionized Air Rinsing: Cleans bottles with ionized air to remove debris or contaminants.

   • Low-Level Hopper Sensors: Automatically trigger bottle feeding when levels are low.

   • Tool-Less Changeovers: Allow quick adjustments for different bottle sizes and shapes, often in under 5-10 minutes.

   • Integration: Seamlessly connects with filling machines, cappers, labelers, or other packaging equipment.

Working Principle:

1. Bottle Loading: Bottles are randomly dumped into the hopper.

2. Feeding: An elevator or conveyor moves bottles to a rotary bowl or sorting mechanism.

3. Sorting and Orientation: Bottles are aligned using hooks, belts, or starwheels. Misaligned or defective bottles are rejected.

4. Transfer: Properly oriented bottles are placed upright on a conveyor for the next stage.

5. Automation: Sensors and cameras ensure precision, while the control system adjusts speed and settings based on bottle type and production needs.

Performance Specifications:

• Speed: Ranges from 5 to 300 bottles per minute, depending on bottle size and machine design. For example, a 2.5-inch diameter bottle might achieve 200 bottles per hour, while larger bottles may process 70 per hour.

• Bottle Compatibility: Handles various shapes and materials from 1 oz to gallons.

• Changeover Time: Typically 3-10 minutes, with some models offering fully automatic format changes via HMI.

• Efficiency: Achieves near 100% qualification rates with minimal human intervention.

Advantages:

• Labor Savings: Eliminates manual sorting, reducing labor costs and errors.

• High Efficiency: Increases production speed and throughput.

• Versatility: Accommodates diverse bottle sizes and shapes with minimal adjustments.

• Hygiene: Stainless steel and sterilizable components reduce contamination risks, critical for pharmaceutical and food industries.

• Low Maintenance: Simple, durable designs with minimal moving parts ensure long-term reliability.

• Space Efficiency: Compact models integrate easily into existing lines.

Limitations:

• Initial Cost: Higher upfront investment compared to manual or semi-automatic unscramblers.

• Material Constraints: Standard designs are optimized for plastic or non-fragile containers; glass or fragile bottles may require specialized machines like depalletizers.

• Space Requirements: Large hoppers and conveyors may need significant floor space.

• Maintenance Needs: Regular cleaning and lubrication are required to maintain performance, especially for food and pharmaceutical applications.

Industry Applications:

• Food and Beverage: Handles bottles for water, juices, sauces, and soft drinks.

• Pharmaceuticals: Orients medicine bottles with strict hygiene compliance.

• Cosmetics and Personal Care: Sorts containers for lotions, shampoos, and other products.

• Household and Chemical: Manages bottles for detergents, cleaners, and automotive fluids.
