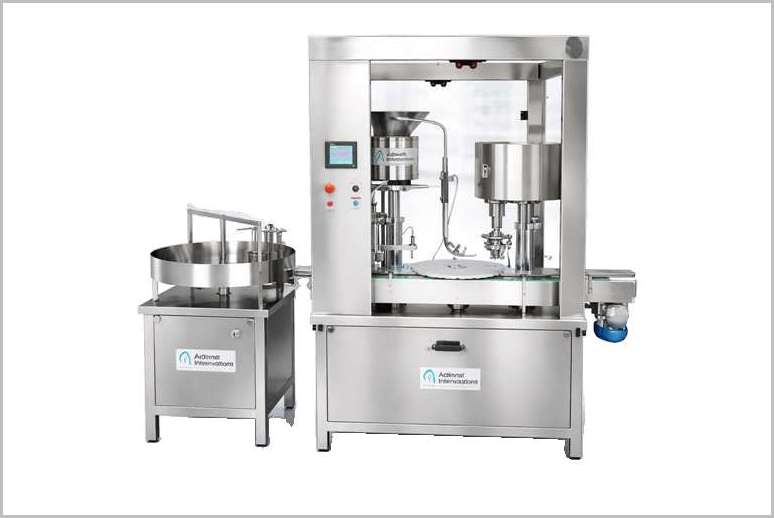

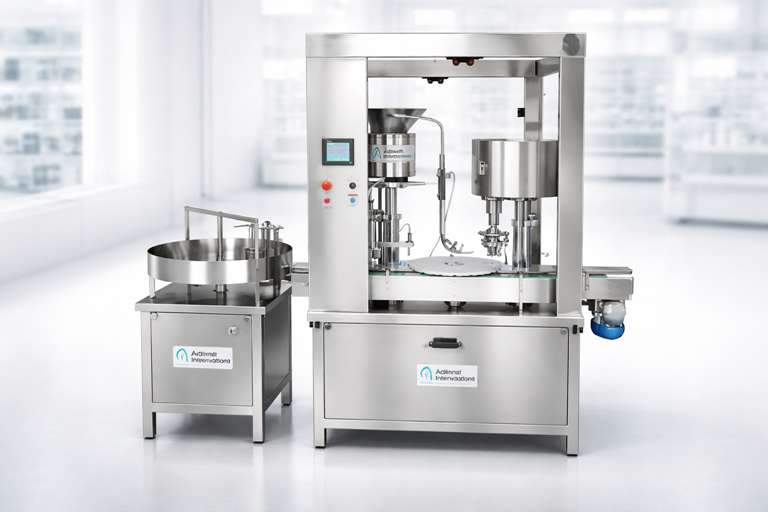

Sterile Filling and Capping Machine

Q: What models, capacities, and filling ranges are available?

The machine is available in four main models: ALVF-40 : 2 filling heads, up to 40 vials/min ALVF-80 : 4 filling heads, up to 80 vials/min ALVF-120 : 8 filling heads, up to 150 vials/min ALVF-250 : 12 filling heads, up to 250 vials/min Filling range : 2 ml to 250 ml with ±1% filling accuracy . It handles vial diameters of 15–70 mm and heights of 25–140 mm.

Q: What are the key features that ensure sterility and performance?

Key features include: Piston or Peristaltic pump aseptic filling with SS 316L contact parts (framework in SS 304). Integrated filling + capping with minimal distance between stations to reduce contamination risk. “No Vial – No Filling” and “No Vial – Machine Stop” systems. Variable AC frequency drive, digital vial counter, in-feed turntable/unscrambler, and easy validation. Optional PLC with GUI, IQ/OQ documentation, and advanced containment systems (RABS/isolators).

Q: Which industries use this machine and what are the main benefits?

It is primarily used in the Pharmaceutical, Biotechnology, Cosmetic, Food , and Veterinary industries. Main benefits include: Superior sterility assurance with no cross-contamination and integrated capping. High precision & efficiency — ±1% accuracy and output up to 250 vials/min. Regulatory compliance — cGMP design with full validation support. Reduced labor & waste — Automation and “No Vial – No Fill” system. Flexibility — Handles various container sizes and easy integration into sterile production lines.

Description

Sterile Filling and Capping Machine is specialized equipment used primarily in the pharmaceutical, biotech, and food industries to fill and seal containers with liquid or powder products under strict aseptic conditions. These machines ensure sterility, precision, and efficiency while minimizing contamination risks, adhering to stringent regulatory standards like cGMP.

Container Handling System: Includes unscramblers, conveyors, or robotic systems to orient and transport containers.

Sterilization Unit: Uses heat, chemicals, or UV to sterilize containers and caps.

Filling Station: Equipped with nozzles or pumps for precise product dispensing.

Capping Station: Applies and secures closures with consistent torque.

Control System: Features PLC, touch-screen interfaces, and recipe-driven operation for automation and monitoring.

Containment System: Incorporates isolators or Restricted Access Barrier Systems (RABS) for enhanced sterility.

If you need details on specific models and pricing, let me know!

Salient Features of Sterile Filling and Capping Machine

Suitable for the filling Volume of 2ml to 250ml.
Piston pump/Peristaltic pump aseptic filling.
Filling accuracy of ±1%.
No cross contamination.
Easy to validate filling system for small/large batch production.
All Contact Parts Made from Stainless Steel 316L & framework by Stainless Steel 304.
Variable A.C. frequency drive for speed adjustment.

Digital Vial Counter for counting production output.
In-feed Turn Table/ Unscrambler for automatic feeding of objects.
On-line Mechanism.
“No Vial – No Filling” System.
“No Vial – Machine Stop” System.
IQ/OQ documentation can be provided.
PLC system with Graphical User Interface. (Optional)

Working Principle of Sterile Filling and Capping Machine

Bottles are feed on to in-built Infeed turn table, from where it delivered to SS conveyor belt. Conveyor belt transport bottles to filling station. Filling station has Pneumatic bottle stopper for exact bottle neck centering of bottles during filling operation.

Nozzle goes upwards slowly from the bottom level of bottle towards neck during filling to minimize forming adjustable nozzle is reciprocating according to filling dose.

The dosing block with a hexagonal bolt, this means different fill size can be set easily within minimum use of time.

After liquid filling bottles are delivered to capping/labeling machine conveyor for further operations.

Technical Specification of Sterile Filling and Capping Machine

Model	ALVF-40	ALVF-80	ALVF-120	ALVF – 250
Filling Heads	Two	Four	Eight	Twelve
Production Rate	Up to 40 Vials/Minute	Up to 80 Vials/Minute	Up to 150 Vials/Minute	Up to 250 Vials/Minute
Vial Diameter	15mm to 70mm	15mm to 70mm	15mm to 70mm	15mm to 70mm
Vial Height	25mm to 140mm	25mm to 140mm	25mm to 140mm	25mm to 140mm
Filling Precision	±1%	±1%	±1%	±1%
Power Required	1 H.P.	1.5 H.P.	2 H.P.	2 H.P.
Electrical Characteristics	440 Volts, 3 Phase, 50 Hertz	440 Volts, 3 Phase, 50 Hertz	440 Volts, 3 Phase, 50 Hertz	440 Volts, 3 Phase, 50 Hertz
Overall Dimension	2050mm (L) x 850mm (W) x 1700mm (H)	2200mm (L) x 850mm (W) x 1700mm (H)	3000mm (L) x 945mm (W) x 1700mm (H)	3500mm (L) x 945mm (W) x 1700mm (H)

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Bottle Filling Machine

Automatic Bottle Filling Machine

Digital Liquid Filling Machine

Semi Automatic Liquid Filling Machine

Automatic Eye Drop Filling Machine

Motion Liquid Filling Machine

Monoblock Liquid Filling & Capping Machine

Aseptic Liquid Filling Machine

Servo Driven Liquid Filling Machine

Applications of Bottle Filling Machine

Advantages of Sterile Filling and Capping Machine

Sterility Assurance: Eliminates contamination risks, critical for patient safety.

High Precision: Ensures accurate dosing, reducing product waste.

Efficiency: Automates processes, increasing production speed and reducing labor costs.

Flexibility: Adapts to various container types, sizes, and product formulations.

Regulatory Compliance: Meets strict standards for sterile manufacturing.

Key Features of Sterile Filling and Capping Machine

Sterile Environment Maintenance:
- Operates in a controlled, sterile environment, often within cleanrooms, laminar flow cabinets, or isolator systems, to prevent microbial contamination.
- Incorporates sterilization technologies such as hydrogen peroxide, UV radiation, or dry heat to sterilize containers, caps, and the filling environment before and during the process.
- Uses aseptic chambers with sterile air overpressure to maintain a contaminant-free zone.

Filling Mechanism:
- Precisely dispenses liquid, semi-solid, or powder products into containers with high accuracy.
- Supports various filling technologies, including:
  - Peristaltic pumps: Gentle handling for sensitive biologics or vaccines.
  - Volumetric pumps: For precise dosing of viscous or non-viscous liquids.
  - Time-pressure filling: Ideal for high-speed, space-saving operations.
  - Piston or plunger pumps: For high-precision filling of liquids or powders.
- Can handle a wide range of container types and sizes.

Capping and Sealing:
- Automatically applies and secures closures such as screw caps, snap-on caps, child-resistant caps, tamper-evident seals, or stoppers to ensure product integrity and safety.
- Uses servo-driven cappers for consistent torque control, preventing over- or under-tightening.
- Supports various closure types, including aluminum caps, flip-off caps, or specialized closures like bio-set or add-vantage.
- Some machines feature robotic capping systems to minimize human intervention and enhance sterility.

Automation and Modularity:
- Fully or semi-automated systems reduce human contact, minimizing contamination risks and labor costs.
- Modular designs allow customization to handle multiple container formats and product types on the same machine.
- Equipped with conveyor systems to move containers seamlessly through cleaning, sterilizing, filling, and capping stages.

Sterilization and Cleaning:
- Containers are cleaned and sterilized (e.g., via washing, depyrogenation tunnels, or chemical sterilants like peracetic acid or hydrogen peroxide) before filling.
- Machines often include Clean-in-Place (CIP) and Sterilize-in-Place (SIP) systems for easy sanitation of internal components.
- Single-use systems eliminate the need for cleaning between batches, reducing cross-contamination risks.

Quality Control and Inspection:
- Integrated check-weighing or flow-meter systems ensure precise fill volumes and detect under- or over-filled containers.
- Automated inspection systems check for container defects, particulates, or improper sealing.
- Real-time monitoring and AI-driven process control detect anomalies and ensure compliance with industry standards.

Versatility and Scalability:
- Suitable for small-scale clinical trials to high-speed commercial production, with some machines capable of filling thousands of units per hour.
- Handles diverse products, including vaccines, biologics, blood serum, syrups, eye drops, and injectables.

FAQ for Sterile Filling and Capping Machine

What is a Sterile Filling and Capping Machine and why is it used?

A Sterile Filling and Capping Machine is specialized aseptic equipment designed to fill and seal vials, bottles, or containers with liquid or powder products under strict sterile conditions. It minimizes contamination risks by integrating filling, stoppering, and capping in a controlled environment (often with RABS or isolators). It is essential for the pharmaceutical, biotech, and food industries to ensure product safety, comply with cGMP/FDA standards, and maintain sterility for injectables, vaccines, biologics, and other sensitive products.

What models, capacities, and filling ranges are available?

The machine is available in four main models:

ALVF-40: 2 filling heads, up to 40 vials/min
ALVF-80: 4 filling heads, up to 80 vials/min
ALVF-120: 8 filling heads, up to 150 vials/min
ALVF-250: 12 filling heads, up to 250 vials/min

Filling range: 2 ml to 250 ml with ±1% filling accuracy. It handles vial diameters of 15–70 mm and heights of 25–140 mm.

What are the key features that ensure sterility and performance?

Key features include:

Piston or Peristaltic pump aseptic filling with SS 316L contact parts (framework in SS 304).
Integrated filling + capping with minimal distance between stations to reduce contamination risk.
“No Vial – No Filling” and “No Vial – Machine Stop” systems.
Variable AC frequency drive, digital vial counter, in-feed turntable/unscrambler, and easy validation.
Optional PLC with GUI, IQ/OQ documentation, and advanced containment systems (RABS/isolators).

How does the Sterile Filling and Capping Machine work?

Containers are fed via an infeed turntable onto the SS conveyor. A pneumatic stopper centers each vial under the filling nozzles. Nozzles descend and move upward (reciprocating motion) during filling to minimize foaming. After precise volumetric dosing, containers move to the stoppering and capping station where closures are applied with consistent torque. The integrated process occurs under laminar airflow or in a sterile chamber, followed by transfer to labeling.

Which industries use this machine and what are the main benefits?

It is primarily used in the Pharmaceutical, Biotechnology, Cosmetic, Food, and Veterinary industries. Main benefits include:

Superior sterility assurance with no cross-contamination and integrated capping.
High precision & efficiency — ±1% accuracy and output up to 250 vials/min.
Regulatory compliance — cGMP design with full validation support.
Reduced labor & waste — Automation and “No Vial – No Fill” system.
Flexibility — Handles various container sizes and easy integration into sterile production lines.
