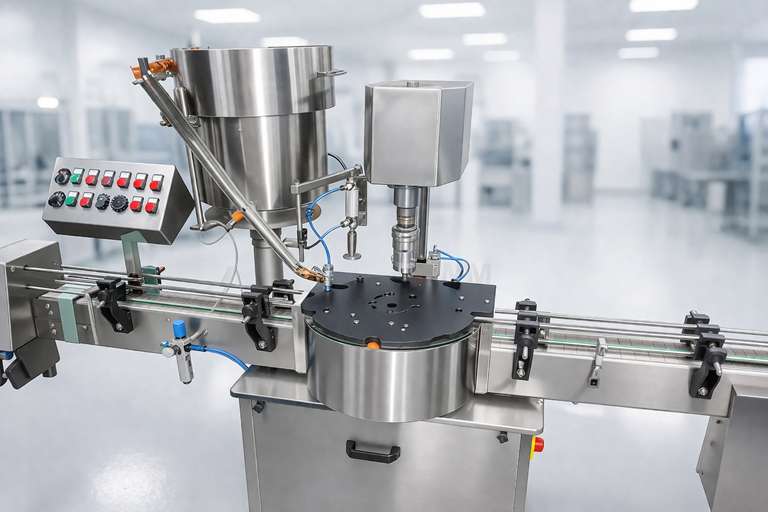

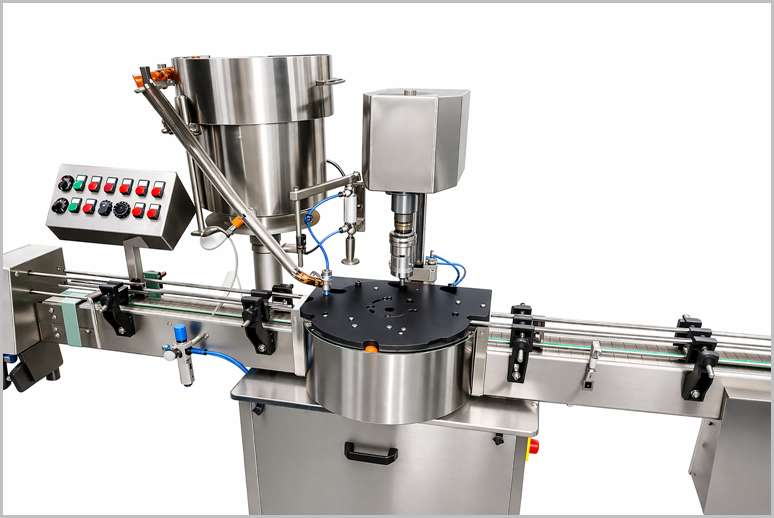

Automatic Bottle Screw Capping Machine

An Automatic Bottle Screw Capping Machine is a specialized piece of equipment designed to automatically apply and tighten screw caps onto bottles, streamlining the packaging process in industries such as food and beverage, pharmaceuticals, cosmetics, and chemicals. These machines enhance efficiency, ensure consistent torque application, and reduce manual labor, making them ideal for medium to high-volume production lines.

Automatic Bottle Screw Capping Machine Video

Key Features

1. Construction and Materials:

   • Typically built with stainless steel and anodized aluminum for durability, corrosion resistance, and compliance with sanitary standards, especially in food and pharmaceutical industries.

   • Robust frames ensure stability during high-speed operations.

2. Automation and Control:

   • Fully automated systems with Programmable Logic Controllers (PLCs) and Human-Machine Interfaces (HMIs), often featuring 7-inch color touchscreen displays for easy operation.

   • Supports up to 50 pre-programmable recipes for different bottle and cap configurations, with adjustable torque settings to prevent cap damage.

   • Advanced models include servo motors for precise torque control and frequency control drives for adjustable conveyor speed, acceleration, and deceleration.

3. Cap Handling:

   • Equipped with cap feeders to sort, orient, and deliver caps to the capping station.

   • Capable of handling various cap types, including plastic screw caps, metal lug caps, ROPP caps, and child-resistant caps, with sizes ranging from 10mm to 130mm.

   • Some models include cap chutes or pick-and-place systems for precise cap placement, reducing cross-threading issues.

4. Bottle Compatibility:

   • Accommodates a wide range of bottle sizes and materials.

   • Adjustable components, such as height-adjustable capping heads and change parts, allow for quick changeovers to suit different bottle and cap specifications.

5. Capping Mechanism:

   • Chuck Cappers: Use a chuck to grip and rotate the cap, applying precise torque for consistent sealing. Ideal for complex caps or high-speed rotary applications.

   • Spindle Cappers: Employ spinning discs to tighten caps as bottles pass through, suitable for high-speed lines and a variety of screw and lug caps.

   • Single-Head or Multi-Head Systems: Single-head machines are versatile for smaller runs, while multi-head systems handle higher throughput, up to 300 containers per minute.

6. Torque Control:

   • Features magnetic or pneumatic clutches to ensure repeatable torque accuracy, preventing over-tightening or cap damage.

   • Some models include digital torque monitors to prevent excessive torque, especially for lug caps.

7. Integration and Flexibility:

   • Can be integrated into existing production lines with filling and labeling machines for a seamless workflow.

   • Modular designs allow for customization to meet specific production needs, such as adding cap feeders or conveyors.

8. Safety and Maintenance:

   • Equipped with sensors for jam detection and automatic shutoff to protect caps and bottles.

   • CE-certified models with easy-to-clean designs and minimal maintenance requirements.

Operation

• Cap Feeding: Caps are sorted and oriented by a cap feeder and delivered via a chute or pick-and-place system to the capping station.

• Bottle Positioning: Bottles are fed via a conveyor system, often with a star wheel or circle disc splitter for precise positioning.

• Capping Process: The machine places the cap on the bottle and applies torque using a chuck or spindle mechanism. For ROPP caps, rollers may form threads on the cap after placement.

• Torque Application: Adjustable torque settings ensure a secure seal without damaging the cap or bottle.

• Output: Sealed bottles are discharged via the conveyor for further processing.

Applications

• Food and Beverage: Used for capping bottles of water, soft drinks, condiments, sauces, and edible oils.

• Pharmaceuticals: Secures caps on medicine bottles, vials, and oral liquid containers, often with tamper-evident seals.

• Cosmetics: Applies caps to shampoo, lotion, and perfume bottles, including trigger sprayers and pump heads.

• Chemicals: Handles containers for detergents, lubricants, and paints, ensuring leak-proof seals.

• Specialty Products: Suitable for unique caps like duckbill, sports, or push-pull caps, and containers like glass jars or PET bottles.

Advantages

• Efficiency: Speeds range from 30–300 bottles per minute, significantly reducing labor costs compared to manual capping.

• Precision: Consistent torque application ensures secure seals, minimizing leaks and maintaining product integrity.

• Versatility: Handles diverse cap and bottle types, with quick changeovers for different production runs.

• Scalability: Suitable for small to large-scale operations, with options for inline or rotary configurations.

Limitations

• Initial Cost: Fully automatic machines can be expensive, though they offer long-term savings through automation.

• Customization Needs: Specific cap or bottle types may require custom change parts, adding to setup time and cost.

• Maintenance: While minimal, regular maintenance is required to ensure optimal performance, especially for high-speed models.

Conclusion

Automatic Bottle Screw Capping Machines are essential for high-efficiency, reliable capping in various industries. Their robust construction, precise torque control, and ability to handle diverse cap and bottle types make them a valuable asset for optimizing production lines. When selecting a machine, consider factors like production speed, bottle and cap specifications, and integration with existing equipment to ensure the best fit for your needs.

Salient Features of Automatic Bottle Screw Capping Machine

• Compact GMP model.

• “No Bottle – No Cap” system.

• “Container Overturn – Machine Stop” mechanism.

• Quick and very easy change over and setting from one size of Container to another by a Single Ratchet.

• Parts coming in contact with the Container or the Aluminum cap or exposed to atmosphere are made out of stainless steel for long life.

• Single motor synchronizes Conveyor, star wheel and Platform Turret and speed can be varied by VFD.

• Star Wheel is equipped with safety clutch for automatic stoppage of machine in case of jamming or overloading.

• Quick and very easy change over and setting from one size of Container to another by a Single Ratchet.

• Digital counter for counting production output.

• Machine construction in Stainless Steel Finish

• Cap Feeder with Variable Speed System for feeding control of caps. (optional)

• Hopper can be completely dismantling for easy cleaning

• Various safety features including Clutch system to avoid Bottle Breakage or Jamming

• IQ/OQ documentation can be provided.

• PLC system with Graphical User Interface can be offered.

Process Operation of Bottle Screw Capping Machine

The filled bottles moving on conveyor belt and fed into an in feed star wheel by in-feed worm. While moving in feed star wheel, bottles pick up caps one by one from delivery chute. The descending rotary sealing heads hold bottle’s neck with desired pressure. The sealing is done in a programmed roll-on manner, accurate positioned of the caps is done mechanically by means of a rotating unscramble, to direct the caps correctly into the chute, when the chute is filled up the rotating unscramble drive is disengaged, hence, there is no chance to damage of caps. The sealing roller takes place due to rotating sealing head and transfer movement of sealing & threading rollers due to sealing cam. The sealed bottles are discharged by exist star wheel on conveyors.

Technical Specification of Bottle Screw Capping Machine

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
