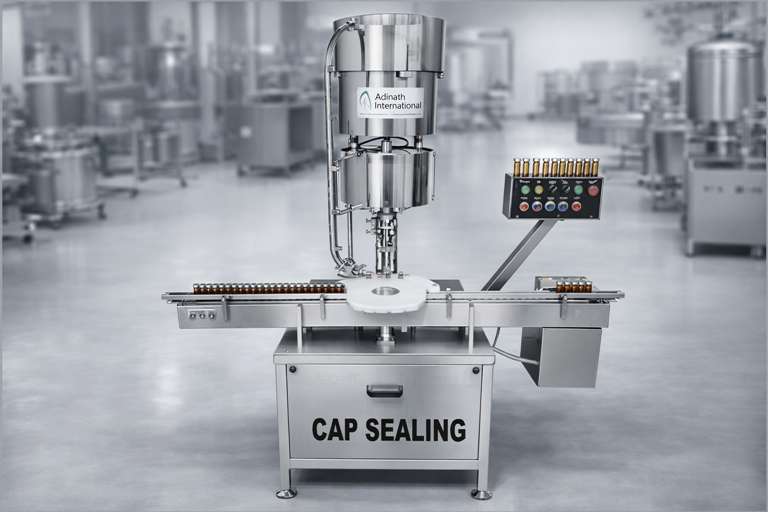

Automatic Screw Capping Machine

Q: What is the production capacity of the Automatic Screw Capping Machine?

The machine is available in three models: ACSR-60 (Single Head) : Up to 50 bottles per minute ACSR-120 (Four Head) : Up to 80 bottles per minute ACSR-200 (Eight Head) : Up to 180 bottles per minute Actual output depends on bottle size, cap type, and product characteristics.

Description

Automatic Screw Capping Machine is a specialized piece of equipment designed to automatically place and tighten screw caps, lug caps, or twist-off caps onto bottles, jars, or other containers. These machines are widely used in industries such as food and beverage, pharmaceuticals, cosmetics, chemicals, and more to enhance production efficiency, ensure consistent cap application, and maintain product integrity. Automatic Screw Capping Machines are essential for modern packaging lines, offering speed, precision, and versatility. They streamline production, ensure secure seals, and cater to a wide range of industries and container types. When selecting a machine, consider production volume, cap and bottle specifications, and integration needs.

Changeover Requirements: Some machines, especially chuck cappers, require change parts for different cap or bottle sizes, which can increase setup time.

Maintenance: Regular maintenance is needed to ensure torque accuracy and prevent wear on Capping

Industry-Specific Needs: Food and pharmaceutical applications may require machines meeting stringent sanitary standards.

If you need details on specific models, pricing, or comparisons with multi-head machines, let me know!

Salient Features of Automatic Screw Capping Machine

Compact GMP model.
Single motor synchronizes Conveyor, star wheel and Platform Turret and speed can be varied by VFD.
Quick and very easy change over and setting from one size of Container to another by a Single Ratchet.
Parts coming in contact with the Container or the Aluminum cap or exposed to atmosphere are made out of stainless steel for long life.
Quick and very easy change over and setting from one size of Container to another by a Single Ratchet.
Star Wheel is equipped with safety clutch for automatic stoppage of machine in case of jamming or overloading.
Various safety features including Clutch system to avoid Bottle Breakage or Jamming

“Container Overturn – Machine Stop” mechanism.
“No Bottle – No Cap” system.
PLC system with Graphical User Interface can be offered.
Digital counter for counting production output.
Machine construction in Stainless Steel Finish
Cap Feeder with Variable Speed System for feeding control of caps. (optional)
Hopper can be completely dismantling for easy cleaning
IQ/OQ documentation can be provided.

Working Principle of Automatic Screw Capping Machine

The filled bottles moving on conveyor belt and fed into an in feed star wheel by in-feed worm. While moving in feed star wheel, bottles pick up caps one by one from delivery chute. The descending rotary sealing heads hold bottle’s neck with desired pressure. The sealing is done in a programmed roll-on manner, accurate positioned of the caps is done mechanically by means of a rotating unscramble, to direct the caps correctly into the chute, when the chute is filled up the rotating unscramble drive is disengaged, hence, there is no chance to damage of caps. The sealing roller takes place due to rotating sealing head and transfer movement of sealing & threading rollers due to sealing cam. The sealed bottles are discharged by exist star wheel on conveyors.

Technical Specification of Automatic Screw Capping Machine

Model	ACSR-60	ACSR-120	ACSR-200
No. of Capping Heads	Single	Four	Eight
Production Rate	Up to 50 Containers/Minute	Up to 80 Containers/Minute	Up to 180 Containers/Minute
Container Diameter:	24mm to 90mm	24mm to 90mm	24mm to 90mm
Container Height:	50mm to 250mm	50mm to 250mm	50mm to 250mm
Cap Diameter:	20mm, 25mm & 28mm with the help of change parts	20mm, 25mm & 28mm with the help of change parts	20mm, 25mm & 28mm with the help of change parts
Power Specification:	1 H.P.	1 H.P.	2 H.P.
Electrical characteristics	440 Volts, 3 Phase, 50 Hertz, 4 Wire System	440 Volts, 3 Phase, 50 Hertz, 4 Wire System	440 Volts, 3 Phase, 50 Hertz, 4 Wire System
Conveyor Height	800mm to 900mm adjustable	800mm to 900mm adjustable	800mm to 900mm adjustable
Optional Accessories	Safety Cabinet Covering Machine	Safety Cabinet Covering Machine	Safety Cabinet Covering Machine
–	PLC with HMI	PLC with HMI	PLC with HMI
Overall Dimension	1500mm (L) X 850mm (W) X 1800mm (H) approx.	1675 (L) x 1000mm (W) x 1800mm (H) approx.	2000 (L) x 1000mm (W) x 1800mm (H) approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Capping and Sealing Machine

Automatic Ropp Screw Capping Machine

Automatic Bottle Screw Capping Machine

Automatic Bottle CRC Capping Machine

Automatic Bottle Lug Capping Machine

Automatic Vial Capping Machine

Automatic Jar Capping Machine

Automatic Linear Bottle Capping Machine

High Speed Vial Cap Sealing Machine

High Speed Bottle Capping Machine

Semi Automatic Bottle Capping Machine

Applications of Capping and Sealing Machine

Advantages of Automatic Screw Capping Machine

Increased Productivity: Automates repetitive tasks, significantly boosting output compared to Manual Capping.

Consistency and Quality: Ensures uniform torque application, reducing loose or overly tight caps and preventing product leaks or contamination.

Cost Efficiency: Reduces labor costs and minimizes product waste due to improper sealing.

Industry 4.0 Compatibility: Many models feature smart technology for remote monitoring, performance analytics, and integration with automated production lines.

Key Components of Automatic Screw Capping Machine

Automation and Efficiency:

- Fully automated systems handle cap sorting, placement, and tightening, minimizing manual intervention and reducing labor costs.
- Capable of high-speed operation, with some models processing up to 300 containers per minute.
- Production rates typically range from 20 to 180 bottles per minute, depending on the machine and configuration.

Versatility:

- Compatible with a wide variety of cap types, including plastic screw caps, metal threaded caps, ROPP (Roll-On Pilfer-Proof) caps, twist-off caps, pump caps, spray caps, and tamper-evident caps.
- Handles diverse container types and shapes.
- Adjustable to accommodate different bottle heights and cap diameters.

Construction and Materials:

- Typically made of durable, hygienic materials like 304 or 316 stainless steel and anodized aluminum, ensuring suitability for sanitary environments like food and pharmaceutical production.
- Polished surfaces and robust designs minimize maintenance and ensure longevity.

Torque Control:

- Equipped with precise torque control systems to apply consistent torque, preventing over-tightening or damage to caps.
- Digital torque adjustment via touch-screen HMIs allows for precise settings and repeatability.

Cap Feeding and Sorting:

- Integrated cap delivery systems, such as vibratory bowls, centrifugal feeders, or cap elevators, automatically sort and orient caps for placement.
- Advanced models feature photoelectric screening to ensure correct cap orientation, reducing errors.
- Pick-and-place systems or servo-driven mechanisms grab and position caps accurately.

Control Systems:

- Modern machines use PLC systems with touch-screen interfaces for easy operation, real-time monitoring, and storage of up to 50 programmable recipes.
- Features like bottle jam detection, production presets, and data logging enhance operational efficiency and maintenance tracking.

Integration and Customization:

- Designed to integrate seamlessly into existing packaging lines with filling and labeling machines.
- Tool-less changeover systems allow quick adjustments for different bottle and cap sizes, minimizing downtime.
- Customizable to meet specific industry needs, with options for specialized Capping heads or additional stations.

FAQ for Automatic Screw Capping Machine

What is an Automatic Screw Capping Machine?

The Automatic Screw Capping Machine is a high-speed rotary machine designed to automatically place and tighten screw caps, lug caps, and twist-off caps on bottles and containers. It is widely used in the pharmaceutical, cosmetic, chemical, food, and beverage industries for packaging oral liquids, syrups, tonics, and other liquid products. The machine ensures consistent torque, leak-proof sealing, and high production efficiency while meeting cGMP standards.

What is the production capacity of the Automatic Screw Capping Machine?

The machine is available in three models:

ACSR-60 (Single Head): Up to 50 bottles per minute
ACSR-120 (Four Head): Up to 80 bottles per minute
ACSR-200 (Eight Head): Up to 180 bottles per minute

Actual output depends on bottle size, cap type, and product characteristics.

What bottle and cap sizes does the machine support?

The Automatic Screw Capping Machine can handle a wide range of formats:

Bottle Diameter: 24 mm to 90 mm
Bottle Height: 50 mm to 250 mm
Cap Diameter: 20 mm, 25 mm, and 28 mm (with change parts)

It supports plastic screw caps, metal screw caps, lug caps, and twist-off caps on both glass and plastic bottles.

Does the machine provide precise torque control?

Yes. The machine features adjustable torque control to ensure consistent and accurate tightening of caps. This prevents over-tightening or under-tightening, resulting in reliable, leak-proof, and tamper-evident seals without damaging the cap or bottle threads.

What safety features are included in the Automatic Screw Capping Machine?

The machine is equipped with multiple safety interlocks for safe and reliable operation:

No Bottle – No Cap system
Container Overturn – Machine Stop
Star wheel with safety clutch (stops machine during jamming or overload)
Overload protection to prevent bottle breakage

These features help minimize product wastage and protect the machine and operator.
