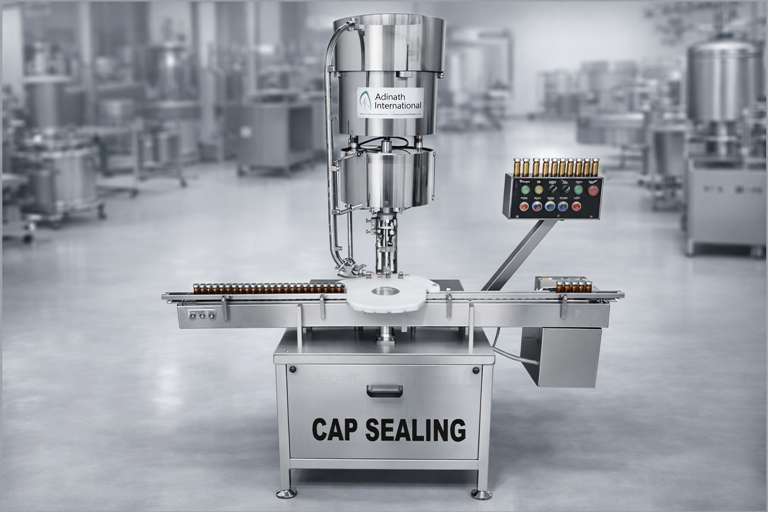

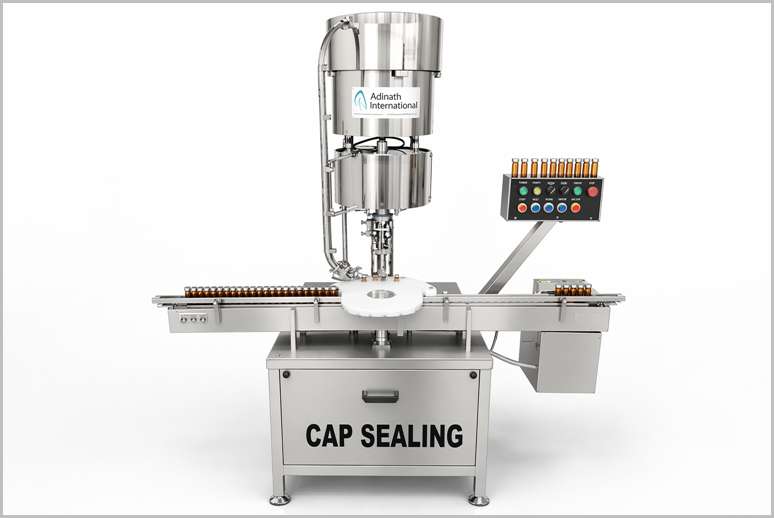

Bottle Screw Capping Machine

A Bottle Screw Capping Machine is a specialized piece of equipment designed to automate the process of applying and tightening screw-on caps onto bottles, ensuring a secure seal. These machines are widely used in industries such as food and beverage, pharmaceuticals, cosmetics, and chemicals to enhance packaging efficiency, consistency, and product safety. They come in various configurations, including manual, semi-automatic, and fully automatic models, to suit different production scales and requirements.

Automatic Bottle Screw Capping Machine Video

Key Features and Components:

1. Cap Feeder: Automatically sorts and aligns caps before placement on the bottle. The design of the feeder depends on the cap’s geometry.

2. Capping Head: Applies torque to tighten the cap onto the bottle’s threads, ensuring a damage-free, secure seal. Some machines feature adjustable torque settings for precise control.

3. Clutch System: Regulates torque to prevent over-tightening, protecting caps and ensuring optimal sealing. Magnetic or adjustable clutches are common for repeatable torque accuracy.

4. Bottle Gripper: Holds bottles steady during capping to prevent movement or tipping, accommodating various bottle sizes and shapes.

5. Conveyor Belt: Transports bottles through the capping process in automated systems, ensuring smooth and continuous operation.

6. Frame and Materials: Typically constructed from stainless steel or aluminum alloy for durability, corrosion resistance, and compliance with sanitary standards.

7. Control Systems: Modern machines often include PLC systems, touchscreens, or HMI panels for easy operation, torque adjustment, and recipe storage.

Types of Bottle Screw Capping Machines:

1. Manual/Handheld Capping Machines: Portable devices operated by hand, ideal for low-volume production or lab environments. They can tighten or loosen caps (10–50 mm diameter) with adjustable torque and are suitable for small businesses.

2. Semi-Automatic Capping Machines: Combine manual bottle placement with automated cap tightening.

3. Fully Automatic Capping Machines: Designed for high-volume production, these machines automate cap sorting, placement, and tightening.

4. Spindle Cappers: Use spinning discs to tighten caps as bottles pass through, ideal for continuous operation at speeds up to 300 bottles/min.

5. Chuck Cappers: Employ a rotating chuck head to apply precise torque, suitable for high-speed or specialized caps.

6. ROPP Cappers: Specifically designed for aluminum caps, forming threads and sealing them onto rigid containers.

Applications:

• Food and Beverage: Securing caps on bottles for water, soft drinks, condiments, and sauces.

• Pharmaceuticals: Sealing medicine bottles and oral liquid containers to ensure safety and tamper-evidence.

• Cosmetics: Capping skincare products, shampoos, and other personal care items.

• Chemicals: Packaging detergents, lubricants, and paints with secure, leak-proof seals.

• Home Brewing: Applying caps to beer or wine bottles for small-scale producers.

Benefits:

• Efficiency: Automatic machines can increase production speed by up to 30%, with high-end models capping up to 1200 bottles/min.

• Precision: Adjustable torque ensures consistent, leak-proof seals, reducing spoilage by approximately 5%.

• Versatility: Handles various cap sizes (5–130 mm), bottle materials (glass, plastic, metal), and shapes (round, cylindrical, irregular).

• Cost Savings: Reduces labor costs and minimizes product waste through automation.

• Durability: Stainless steel construction ensures long-term reliability and compliance with sanitary standards.

Considerations:

• Cap and Bottle Compatibility: Machines must be configured for specific cap and bottle types, with some requiring change parts for different sizes.

• Production Volume: Choose manual for low volumes, semi-automatic for medium, and automatic for high-speed lines.

• Customization: Some machines offer customizable capping heads or torque settings for unique applications.

• Maintenance: Regular maintenance is required to ensure consistent performance, especially for high-speed models.

Salient Features of Automatic Bottle Screw Capping Machine

• Compact GMP model.

• “No Bottle – No Cap” system.

• “Container Overturn – Machine Stop” mechanism.

• Quick and very easy change over and setting from one size of Container to another by a Single Ratchet.

• Parts coming in contact with the Container or the Aluminum cap or exposed to atmosphere are made out of stainless steel for long life.

• Single motor synchronizes Conveyor, star wheel and Platform Turret and speed can be varied by VFD.

• Star Wheel is equipped with safety clutch for automatic stoppage of machine in case of jamming or overloading.

• Quick and very easy change over and setting from one size of Container to another by a Single Ratchet.

• Digital counter for counting production output.

• Machine construction in Stainless Steel Finish

• Cap Feeder with Variable Speed System for feeding control of caps. (optional)

• Hopper can be completely dismantling for easy cleaning

• Various safety features including Clutch system to avoid Bottle Breakage or Jamming

• IQ/OQ documentation can be provided.

• PLC system with Graphical User Interface can be offered.

Process Operation of Bottle Screw Capping Machine

The filled bottles moving on conveyor belt and fed into an in feed star wheel by in-feed worm. While moving in feed star wheel, bottles pick up caps one by one from delivery chute. The descending rotary sealing heads hold bottle’s neck with desired pressure. The sealing is done in a programmed roll-on manner, accurate positioned of the caps is done mechanically by means of a rotating unscramble, to direct the caps correctly into the chute, when the chute is filled up the rotating unscramble drive is disengaged, hence, there is no chance to damage of caps. The sealing roller takes place due to rotating sealing head and transfer movement of sealing & threading rollers due to sealing cam. The sealed bottles are discharged by exist star wheel on conveyors.

Technical Specification of Bottle Screw Capping Machine

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
