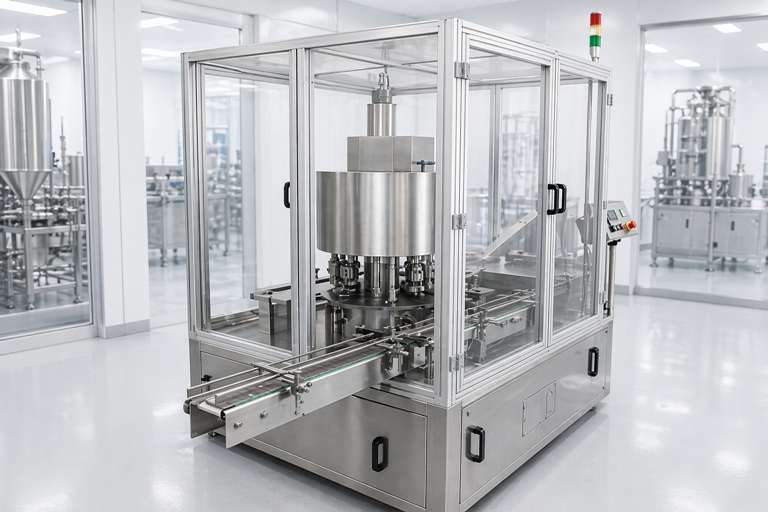

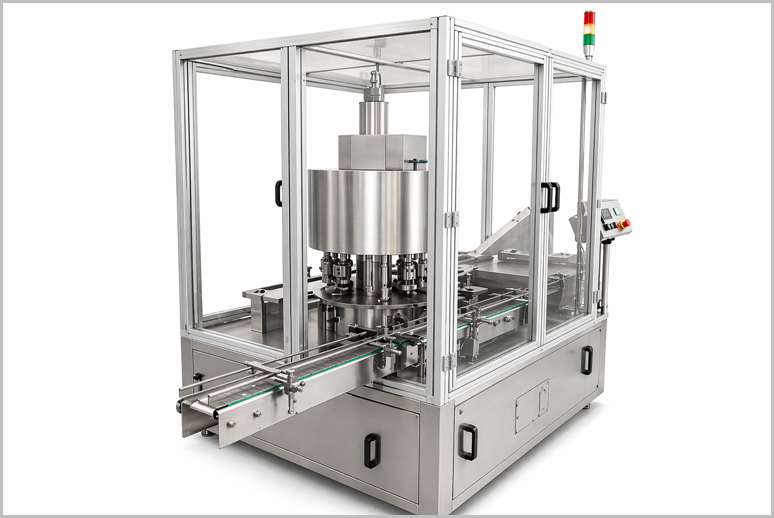

Eight Head Ropp Screw Capping Machine

Q: What is the production capacity of the Eight Head ROPP Screw Capping Machine?

The machine has a production capacity of up to 180 bottles per minute . The actual output depends on bottle size, cap type, and product characteristics. It is ideal for medium to large-scale production requirements.

Q: What bottle and cap sizes can the machine handle?

The machine supports a wide range of formats: Bottle Diameter : 24 mm to 90 mm Bottle Height : 50 mm to 250 mm Cap Sizes : 20 mm, 25 mm, and 28 mm (with change parts) It works efficiently with ROPP aluminum caps and plastic/metal screw caps on round, square, or specially shaped bottles made of glass, PET, HDPE, or LDPE.

Description

Eight Head ROPP Screw Capping Machine is a high-speed, precision-engineered piece of equipment designed for sealing Roll-On Pilfer Proof (ROPP) and screw caps onto a variety of bottles, including glass, PET, HDPE, LDPE, and plastic containers. Widely used in industries such as pharmaceuticals, food and beverages, cosmetics, chemicals, distilleries, and pesticides, this versatile machine is built for efficiency, durability, and compliance with Good Manufacturing Practices (GMP). Below is a detailed description of its features, operation, and specifications based on available information.

Cap Feeding: ROPP or screw caps are loaded into a vibratory bowl or orientation unit, which aligns them correctly and feeds them into the delivery chute.

Bottle Positioning: Bottles are fed via a conveyor belt to an in-feed star wheel, which aligns them under the eight capping heads.

Capping Process: Each capping head picks a cap from the chute, descends onto the bottle, and uses four rollers to skirt, spin, thread, and seal the cap. Two rollers form the tamper-evident skirt, while the other two create precise threads on the bottle neck.

Output: Sealed bottles are transferred to the exit star wheel and proceed along the conveyor for further processing.

If you need details on specific models, pricing, or comparisons with multi-head machines, let me know!

Salient Features of Eight Head Ropp Screw Capping Machine

Simple GMP model.
“No Bottle – No Cap” feature incorporated.
Fast and easy change over between different container sizes.
Contact parts of Container and caps are made out of stainless steel for long life.
One motor operates Conveyor, star wheel and Turret.
Machine speed control through variable frequency drive.
Clutch system provided in rotary starwheel to avoid bottle breakage.

Digital bottle counter provided for counting production output.
Stainless Steel Finish machine body.
Optional Cap Feeder can be provided with additional cost instead of bowl system.
Hopper and accessories can be completely dismantled for cleaning purpose.
IQ/OQ documentation can be provided on demand.
PLC system with Human Machine Interface can be provided optionally.
Laminar Air Flow can be offered for class 100 application. (optionally)

Working Principle of Eight Head Ropp Screw Capping Machine

The filled bottles moving on conveyor belt and fed into an in feed star wheel by in-feed worm. While moving in feed star wheel, bottles pick up caps one by one from delivery chute. The descending rotary sealing heads hold bottle’s neck with desired pressure. The sealing is done in a programmed roll-on manner, accurate positioned of the caps is done mechanically by means of a rotating unscramble, to direct the caps correctly into the chute, when the chute is filled up the rotating unscramble drive is disengaged, hence, there is no chance to damage of caps. The sealing roller takes place due to rotating sealing head and transfer movement of sealing & threading rollers due to sealing cam. The sealed bottles are discharged by exist star wheel on conveyors.

Technical Specification of Eight Head Ropp Screw Capping Machine

Model	ACSR-200
No. of Capping Heads	Eight
Production Rate	Up to 180 Containers/Minute
Container Diameter:	24mm to 90mm
Container Height:	50mm to 250mm
Cap Diameter:	20mm, 25mm & 28mm with the help of change parts
Power Specification:	2 H.P.
Electrical characteristics	440 Volts, 3 Phase, 50 Hertz, 4 Wire System
Conveyor Height	800mm to 900mm adjustable
Optional Accessories	Safety Cabinet Covering Machine

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Capping and Sealing Machine

Automatic Ropp Screw Capping Machine

Automatic Bottle Screw Capping Machine

Automatic Bottle CRC Capping Machine

Automatic Bottle Lug Capping Machine

Automatic Vial Capping Machine

Automatic Jar Capping Machine

Automatic Linear Bottle Capping Machine

High Speed Vial Cap Sealing Machine

High Speed Bottle Capping Machine

Semi Automatic Bottle Capping Machine

Applications of Capping and Sealing Machine

Advantages of Eight Head Ropp Screw Capping Machine

High Durability: Stainless steel construction ensures resistance to corrosion and compliance with hygiene standards.

Tamper-Evident Sealing: ROPP caps provide a secure, tamper-proof seal, critical for pharmaceuticals, beverages, and cosmetics.

Flexibility: Quick changeovers and adjustable settings allow the machine to handle various bottle and cap types.

Low Maintenance: Robust design and high-quality materials reduce wear and maintenance needs.

Safety Features: Systems like “No Bottle – No Cap” and jam detection enhance operational safety and efficiency.

Key Features of Eight Head Ropp Screw Capping Machine

High-Speed Operation:
- Capable of capping up to 160–240 bottles per minute, depending on bottle size, shape, and cap type.
- Eight capping heads ensure rapid and consistent sealing, ideal for high-volume production lines.

Versatile Design:
- Handles various bottle shapes and materials.
- Compatible with ROPP caps, screw caps, and other closure types, with quick changeover mechanisms to accommodate different bottle and cap sizes, minimizing downtime.

Construction and Materials:
- Built on a sturdy welded MS (mild steel) frame, fully enclosed in stainless steel (SS 304) for durability, corrosion resistance, and hygiene, meeting GMP standards.
- Contact parts are made of stainless steel or food-grade materials like Delrin, ensuring long life and compliance with food and pharmaceutical regulations.

Cap Feeding and Orientation:
- Equipped with an automatic cap feeder that aligns caps correctly before they enter the delivery chute.
- Features a “No Bottle – No Cap” system to prevent empty cycles, reducing waste and ensuring efficiency.

Capping Mechanism:
- Each of the eight capping heads includes four rollers: two for skirting, spinning, and sealing the cap, and two for threading the bottle neck, ensuring a secure, tamper-evident seal.
- Adjustable torque settings allow precise control to prevent cap damage and ensure a tight, leak-proof seal.

Operational Efficiency:
- Bottles move via a conveyor belt to an in-feed star wheel, which positions them precisely under the capping heads.
- A single motor synchronizes the conveyor, star wheel, and turret for seamless operation.
- Variable frequency drive (VFD) enables speed control for flexibility across production needs.

User-Friendly Interface:
- Features a digital touchscreen panel for easy operation, monitoring, and adjustments.
- Includes a digital bottle counter to track production output and safety features like jam detection and missing cap notifications.

Safety and Maintenance:
- Incorporates a clutch system in the star wheel to prevent bottle breakage.
- Cap feeder empty stop system and unsealed bottle rejection system enhance operational safety.
- Stainless steel construction ensures easy cleaning and minimal maintenance, with self-lubricating guides for smooth, noiseless conveying.

Integration and Customization:
- Designed to integrate seamlessly with existing production lines, including filling and labeling systems.
- Optional features include cap elevators, rotary feeders, or vibratory bowls for bulk cap feeding, and customizable settings for different bottle and cap sizes.

FAQ for Eight Head Ropp Screw Capping Machine

What is an Eight Head ROPP Screw Capping Machine?

The Eight Head ROPP Screw Capping Machine (Model: ACSR-200) is a fully automatic high-speed rotary capping machine designed to apply and seal Roll-On Pilfer Proof (ROPP) aluminum caps as well as plastic screw caps on glass and rigid plastic bottles. With eight capping heads, it delivers high output and provides a secure, tamper-evident, and leak-proof seal. It is widely used in the pharmaceutical, food & beverage, cosmetic, chemical, and distillery industries.

What is the production capacity of the Eight Head ROPP Screw Capping Machine?

The machine has a production capacity of up to 180 bottles per minute. The actual output depends on bottle size, cap type, and product characteristics. It is ideal for medium to large-scale production requirements.

What bottle and cap sizes can the machine handle?

The machine supports a wide range of formats:

Bottle Diameter: 24 mm to 90 mm
Bottle Height: 50 mm to 250 mm
Cap Sizes: 20 mm, 25 mm, and 28 mm (with change parts)

It works efficiently with ROPP aluminum caps and plastic/metal screw caps on round, square, or specially shaped bottles made of glass, PET, HDPE, or LDPE.

What safety features does the Eight Head ROPP Screw Capping Machine include?

The machine is equipped with multiple safety interlocks for safe and reliable operation:

No Bottle – No Cap system
Container Overturn – Machine Stop
Safety clutch mechanism in the star wheel to prevent jamming and bottle breakage
Overload protection

These features minimize product wastage and ensure smooth operation.

How does the Eight Head ROPP Screw Capping Machine work?

Filled bottles are fed via the conveyor to the infeed star wheel. Caps are oriented and fed through a vibratory bowl feeder or cap elevator into the delivery chute. Each of the eight capping heads picks a cap, descends onto the bottle, and uses four rollers to form threads and create a tamper-evident skirt in a programmed roll-on manner. Sealed bottles are then discharged through the exit star wheel and conveyor.
