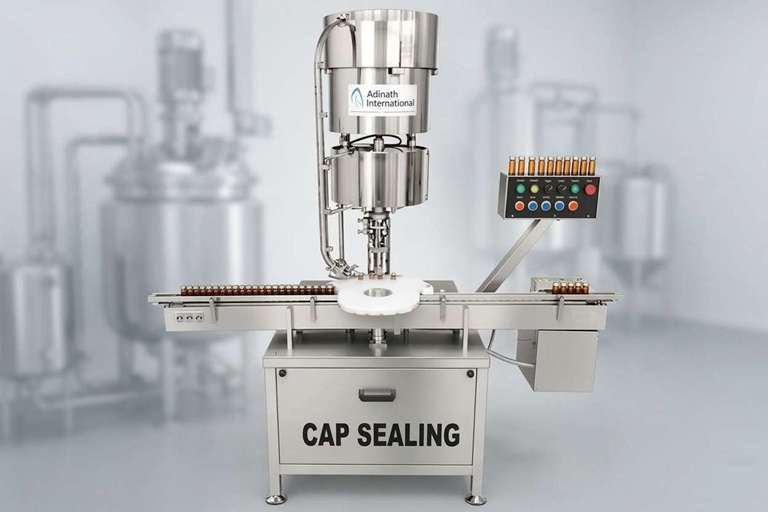

Plastic Bottle Capping Machine

A plastic bottle capping machine is a specialized device designed to securely tighten or apply caps onto plastic bottles, ensuring a reliable seal for various products such as beverages, pharmaceuticals, cosmetics, and chemicals. These machines are essential in packaging lines to enhance efficiency, consistency, and product integrity by preventing leaks, contamination, or tampering. They are used across industries like food and beverage, pharmaceuticals, cosmetics, and more, accommodating a wide range of bottle sizes, shapes, and cap types.

Plastic bottle capping machines are engineered to handle the process of sealing plastic bottles made from materials like PET, HDPE, LDPE, or PP, with various cap types, including screw caps, snap-on caps, flip-top caps, trigger sprayers, and tamper-evident caps. These machines can be manual, semi-automatic, or fully automatic, depending on the production scale and requirements. They are designed to apply precise torque or pressure to ensure a secure seal while minimizing damage to the cap or bottle.

Bottle Capping Machine Video

Types of Plastic Bottle Capping Machines

There are three primary types of capping systems for plastic bottles, each suited for specific cap types and production needs:

1. Chuck Cappers:

   • Description: These machines use a chuck head that descends over the cap and bottle to apply controlled torque, securing screw-on or threaded caps. They are highly precise and ideal for high-speed production lines.

   • Features:

     • Suitable for flat caps, oval caps, flip-top caps, pull spouts, safety caps, child-proof caps, and sport caps.

     • Adjustable torque control to prevent over-tightening or bottle deformation.

     • Often equipped with cap feeding systems like vibratory bowls or elevators for automation.

   • Applications: Widely used for beverages, pharmaceuticals, and cosmetics where precise torque is critical.

2. Spindle Cappers:

   • Description: Spindle cappers use spinning disks to tighten screw-on or lug-type caps as bottles pass through the machine. The disks progressively apply torque, ensuring a tight seal.

   • Features:

     • Compatible with a variety of cap sizes and bottle types.

     • Adjustable spindle speed and torque for flexibility.

     • Tool-less changeover for quick adaptation to different bottle and cap sizes.

     • Often integrated with conveyors for inline production.

   • Applications: Ideal for high-speed production lines in industries like bottled water, cleaning products, and food packaging.

3. Snap Cappers:

   • Description: These machines apply pressure to snap-on caps, pressing them onto the bottle without twisting. They use a declining belt or press-on head to secure the cap.

   • Features:

     • Suitable for snap-on caps, lids, over-caps, sifters, and plugs like orifice reducers or dropper inserts.

     • Silent and efficient operation, reducing manual effort and repetitive motion injuries.

     • Can handle plastic, metal, or glass containers.

   • Applications: Common in industries requiring snap-on closures, such as food, cosmetics, and pharmaceuticals.

Key Features of Plastic Bottle Capping Machines

• Versatility: Capable of handling various cap types and bottle shapes.

• Torque Control: Advanced models feature adjustable torque settings to ensure consistent sealing without damaging caps or bottles. Some machines allow torque adjustments during operation.

• Material Compatibility: Designed to work with plastic bottles and caps made of plastic or metal. Some machines also accommodate glass or metal containers.

• Cap Feeding Systems: Automated systems like vibratory bowls, cap elevators, or centrifugal feeders sort and align caps for high-speed capping.

• Construction: Typically made from durable materials like 304 or 316L stainless steel for corrosion resistance and compliance with sanitary standards.

• Adjustability: Machines offer adjustable settings for bottle height, cap diameter, and production speed.

• Ease of Use: Manual and semi-automatic models require minimal training, while automatic models feature PLC intelligent control systems for precise operation and real-time monitoring.

• Safety and Efficiency: Features like adjustable clutches prevent cap damage, and safety covers ensure operator protection. Some models include photoelectric sensors for cap rejection and demand control.

• Energy Efficiency: Optimized designs reduce energy consumption, supporting sustainable production goals.

Operational Modes

• Manual Capping Machines:

  • Hand-operated or benchtop devices, ideal for small-scale production or home use.

  • Example: Handheld electric cappers with adjustable clutches for 10–50 mm caps, capable of sealing 15–90 bottles per minute depending on operator proficiency.

  • Pros: Portable, cost-effective, minimal training required.

  • Cons: Slower, prone to human error, not suitable for high-volume production.

• Semi-Automatic Capping Machines:

  • Combine manual container placement with automated cap tightening or pressing.

  • Example: Semi-automatic spindle cappers or snap cappers, requiring operators to position bottles while the machine applies caps.

  • Pros: Balances cost and efficiency, suitable for medium-scale production.

  • Cons: Limited speed compared to fully automatic systems.

• Automatic Capping Machines:

  • Fully automated systems for high-speed, large-scale production, often integrated into complete bottling lines.

  • Example: 8-head rotary cappers or inline spindle cappers with cap feeders, capable of handling up to 300 bottles per minute.

  • Pros: High speed, consistent sealing, minimal labor required.

  • Cons: Higher initial cost, requires regular maintenance.

Applications

Plastic bottle capping machines are widely used in industries such as:

• Food and Beverage: Bottled water, soft drinks, sauces, condiments, and edible oils.

• Pharmaceuticals: Medicines, syrups, and dropper bottles.

• Cosmetics: Shampoos, lotions, perfumes, and essential oils.

• Chemicals: Cleaning products, detergents, and industrial liquids.

• Agriculture: Fertilizers and pesticides in plastic containers.

Customization Considerations

When selecting a capping machine, key factors include:

• Bottle Specifications: Shape, size, neck diameter, and material.

• Cap Specifications: Type (screw, snap, ROPP, pump), size (10–130 mm), and material (plastic or metal).

• Production Rate: Desired speed in bottles per minute (BPM), ranging from 15–20 BPM for manual machines to 200–300 BPM for automatic systems.

• Torque Requirements: Ensuring the machine prevents bottle deformation while applying adequate torque.

Advantages

• Consistency: Ensures uniform sealing, reducing waste and maintaining product integrity.

• Efficiency: Automates tedious manual processes, increasing production speed and reducing labor costs.

• Product Safety: Secure seals prevent leaks, contamination, and tampering, extending shelf life.

• Flexibility: Adjustable settings and cap-feeding systems accommodate diverse bottle and cap types.

• Sustainability: Consistent capping reduces product waste, and energy-efficient designs support green production.

Challenges

• Bottle Deformation: Plastic bottles may deform under excessive torque, requiring careful calibration.

• Initial Cost: Automatic systems can be expensive, though they offer long-term savings.

• Maintenance: Regular cleaning and maintenance are needed to ensure peak performance and compliance with sanitary standards.

Conclusion

Plastic bottle capping machines are critical for efficient and reliable sealing in packaging operations. They come in semi-automatic, and automatic variants, with chuck, spindle, and snap cappers catering to different cap types and production scales. By offering precise torque control, compatibility with various bottle and cap types, and automation features, these machines enhance productivity, reduce waste, and ensure product safety. When choosing a capping machine, consider bottle and cap specifications, production speed, and torque requirements to select the most suitable model for your needs.

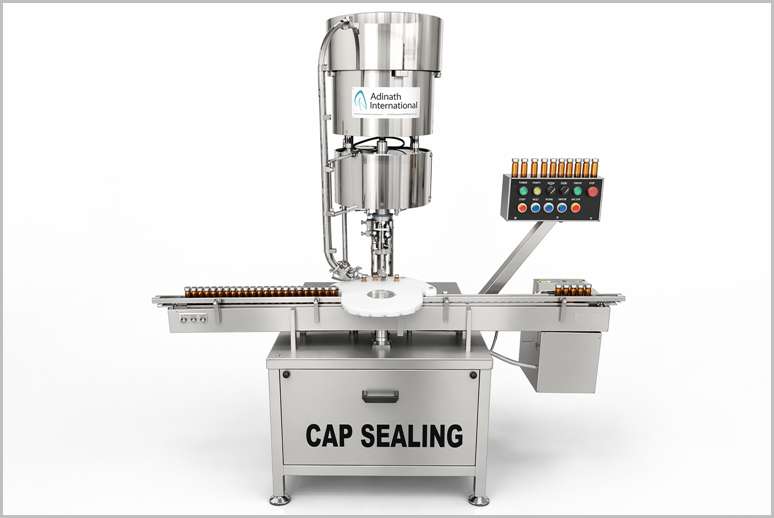

Salient Features of Plastic Bottle Capping Machine

• Compact GMP model.

• “No Bottle – No Cap” system.

• “Container Overturn – Machine Stop” mechanism.

• Quick and very easy change over and setting from one size of Container to another by a Single Ratchet.

• Parts coming in contact with the Container or the Aluminum cap or exposed to atmosphere are made out of stainless steel for long life.

• Single motor synchronizes Conveyor, star wheel and Platform Turret and speed can be varied by VFD.

• Star Wheel is equipped with safety clutch for automatic stoppage of machine in case of jamming or overloading.

• Quick and very easy change over and setting from one size of Container to another by a Single Ratchet.

• Digital counter for counting production output.

• Machine construction in Stainless Steel Finish

• Cap Feeder with Variable Speed System for feeding control of caps. (optional)

• Hopper can be completely dismantling for easy cleaning

• Various safety features including Clutch system to avoid Bottle Breakage or Jamming

• IQ/OQ documentation can be provided.

• PLC system with Graphical User Interface can be offered.

• Inbuilt Laminar Air Flow can be offered for sterile class 100 filling.

• Sampling and Rejection system can be provided on demand.

Process Operation of Bottle Capping Machine

The filled bottles moving on conveyor belt and fed into an in feed star wheel by in-feed worm. While moving in feed star wheel, bottles pick up caps one by one from delivery chute. The descending rotary sealing heads hold bottle’s neck with desired pressure. The sealing is done in a programmed roll-on manner, accurate positioned of the caps is done mechanically by means of a rotating unscramble, to direct the caps correctly into the chute, when the chute is filled up the rotating unscramble drive is disengaged, hence, there is no chance to damage of caps. The sealing roller takes place due to rotating sealing head and transfer movement of sealing & threading rollers due to sealing cam. The sealed bottles are discharged by exist star wheel on conveyors.

Technical Specification of Bottle Capper Machine

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
