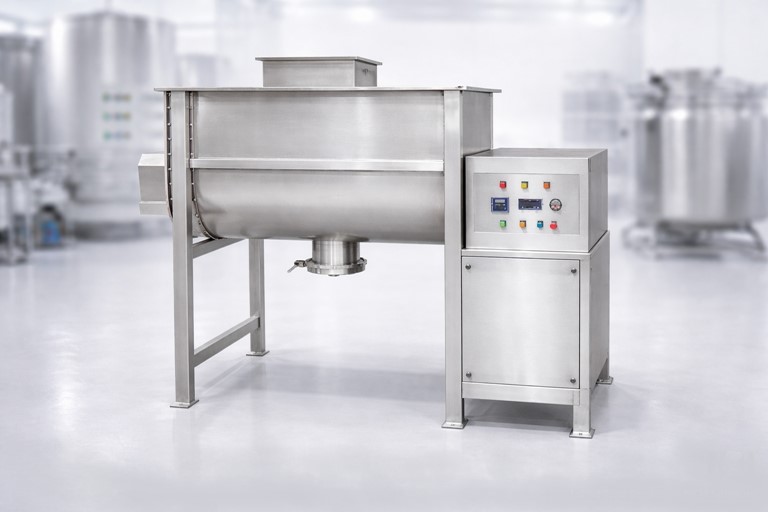

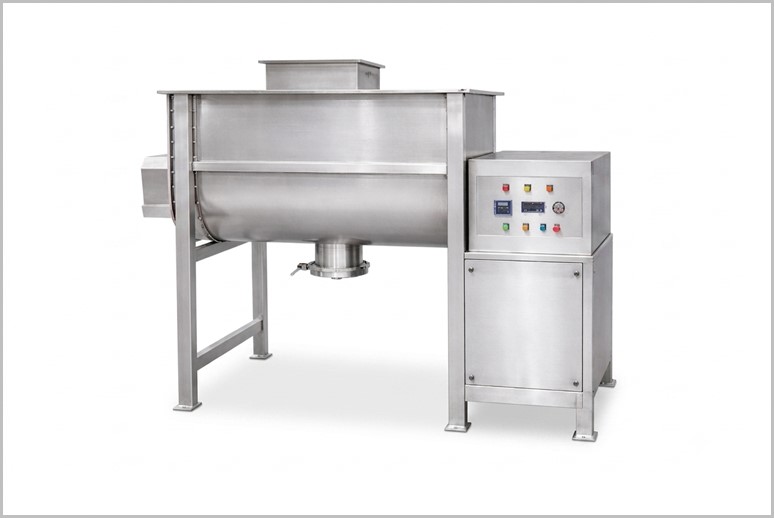

Ribbon Blender

A Ribbon Blender is a versatile, low-shear mixing equipment used for blending dry powders, granules, and sometimes liquids or pastes in industries like pharmaceuticals, food, chemicals, and cosmetics. It is designed for gentle, uniform mixing of bulk solids with similar or varying densities, ensuring homogeneity without excessive particle breakdown. The blender’s signature feature is its ribbon-shaped agitator, which moves materials in a counter-current flow to achieve consistent blending.

Ribbon Blender Video

Key Components

• Mixing Vessel: Typically a U-shaped trough with a capacity ranging from 5 to 25,000 liters, depending on the model.

• Ribbon Agitator: A double-helical or spiral ribbon mounted on a central shaft. The outer ribbon moves material toward the center, while the inner ribbon moves it outward, creating a convective mixing pattern.

• Drive System: Consists of a motor (0.5-100 HP) and gearbox to rotate the agitator at controlled speeds.

• Discharge Valve: Located at the bottom for efficient unloading, often a slide gate or butterfly valve.

• Lid and Ports: Top cover with inlets for loading materials and optional spray nozzles for liquid addition.

• Control Panel: Includes variable speed drives, timers, and safety interlocks for operation.

Working Principle

The Ribbon Blender operates by mechanically agitating materials in a U-shaped trough using the ribbon agitator. The process involves:

1. Loading: Materials are loaded into the trough, typically filling 40-70% of the capacity to allow proper mixing.

2. Mixing: The agitator rotates, driven by the motor, creating a dual-flow pattern. The outer ribbon pushes material toward the center, while the inner ribbon moves it toward the ends, ensuring three-dimensional mixing. Mixing time is usually 5-15 minutes, depending on material properties.

3. Discharge: After achieving homogeneity, the discharge valve opens to release the blended material, often into containers or downstream equipment.

Applications

• Pharmaceuticals: Blending active ingredients with excipients for tablets, capsules, or powders.

• Food: Mixing spices, flour, sugar, or instant drink mixes; suitable for snacks and seasoning blends.

• Chemicals: Combining fertilizers, detergents, pigments, or polymers.

• Cosmetics: Homogenizing powders for makeup or creams with minimal shear.

• Other: Used in agriculture (pesticide blends) and plastics (resin mixing).

Advantages

• Versatility: Handles a wide range of materials and can incorporate liquids via spray systems.

• Uniform Mixing: Achieves high blend uniformity due to the counter-current flow of ribbons.

• Scalability: Available in lab-scale to industrial-scale models.

• Ease of Cleaning: Smooth, polished surfaces and accessible design comply with GMP standards, reducing contamination risks.

Safety and Validation

• Safety Features: Interlocks prevent operation when the lid is open; overload protection ensures motor safety.

• Validation: Involves IQ/OQ/PQ to verify blend uniformity, mixing time, and equipment performance at varying loads.

• Cleaning: GMP-compliant designs with polished surfaces and optional CIP systems ensure hygiene, especially in pharma and food industries.

Ribbon Blending Design

Industrial Ribbon Blender Mixer is an efficient and versatile blending machine for mixing of dry granules & powders homogeneously. Approximately two third of the volume of the container of Ribbon Blender is filled to ensure proper mixing. The Ribbon Blender gives best result for mixing of dry powder & granules due to the design and shape of the mixing ribbon and product container. The outer ribbon displaces the material from the ends to the centre while the inner ribbon moves the material from the center to the ends. This counter-current action results in homogenous blending. The ribbons rotate at approximately 70 – 100 meters per minute and move the material both radially and laterally to ensure thorough blends in short cycle times.

Salient Features of Ribbon Blender Mixer

• Available in working capacity of 5 liters – 25,000 liters.

• Available in all grades of stainless steel, carbon steel and special alloy steels.

• Ribbon agitator for center discharge.

• Designed for atmospheric operation.

• Top cover depending on the length of the blender.

• Centrally located Flush bottom discharge valve.

• Stuffing boxes with easily disassembled housings. Pure Teflon gland packing provided.

• Stainless steel surfaces are polished to desired standards. All exterior non-stainless surfaces are painted with enamel paint.

• Squirrel Cage, Three Phase Induction Motors suitable for 415 Volts, 50 Hz.

• Worm Reduction Gearbox.

• Single Speed Drive.

• Blender is mounted on supports providing adequate discharge clearance.

• We have shaft sealing options of Mechanical Seal, Gland Packing or Double Mechanical Seal as per requirements.

Applications of Ribbon Blade Mixer

Ribbon type Blenders are uses in wide range of industrial applications in pharmaceutical, cosmetic, chemical, food, nutraceutical, herbal, agriculture and allied industry. The ribbon mixer’s flexibility for blending powders with its ability to perform heating, cooling, coating, and other processes make it very popular blender. The following are the major applications of the Ribbon Blender:

Pharmaceuticals Application: Bulk Drugs, API and Nutraceuticals

Cosmetics Application: Talcum Powder, Eye shadow, Face powders, laundry detergents

Chemicals Application:

Dyes, Intermediates, Pigments, Pesticides, Fine Chemicals, Rubber Chemicals, Abrasives, engineered plastic resins, Epoxy resins, Carbon black, Fire retardants, Polyethylene, Chemicals, Gypsum, PVC compounding, cleaning compounds, Plastic powders.

Food Applications:

Infant formula, Cocoa mix, Instant salad dressing, Cake mixes, Seasonings, Flavorings, Gelatin, Milk Powder, Pet foods, Bakery premixes, Cake mixes, Instant breakfast cereals, Spice blends, Dietary supplements, Instant drink blends, Spices, Dried food products

Agriculture Application:

Insecticides, Pesticides, Fertilizers, Pesticides and herbicides, Bird seeds

Other Applications:

Handling large Dry and wet powder volume, Crystalline products, Low viscosity paste and liquid in chemicals.

Process Operation of Ribbon Blender

Material is charged in the blender through nozzles or feed-hoppers mounted on the top cover of the blender. Suppose if screw feeder is opted with mixer, then material to be load onto screw feeder and it will feed powder into blender. Filling to be done about 70 percent of the total volume of the container. This is generally up to the level of the outer ribbon’s tip. After feeding completes then please close the top cover of the blender and tighten the latches. Now start the machine form the control panel.

During the blending operation, the outer ribbons of the agitator interchange the material from the ends to the center while the inner ribbons transfer the material from the center to ends. Radial movement is achieved because of the rotational motion of the ribbons. The difference in the peripheral speeds of the outer and inner ribbons results in axial movement of the material along the horizontal axis of the blender. As a result of the radial and the counter-current axial movement, homogenous blending is achieved in short time. Blending is generally performed in 15 to 20 minutes cycle time. Mixing efficiency of ribbon blender depends upon particle size and its bulk density. Generally, ribbon mixer blender with 95% efficiency in most of the cases. Ingredients with similar particle size and bulk densities tend to mix faster as compared to ingredients with variation in these attributes.

After mixing, material is discharged from a discharge valve located at center bottom of container. The discharge can be fitted with any of these valves like slide-gate, butterfly, flush bottom, spherical and other types depending on the application. The operation of the valves can be manual or pneumatically actuated as per requirements. Sifter can be installed at discharge of the blender for sieving the output materials.  Ribbon blenders can be designed for multiple discharge ports. Unlike tumbling blenders where 100% discharge of material is achieved by gravity, in a ribbon blender the material is discharged by rotation of the ribbon agitator. Finished powder can be collected directly on mobile container or can discharge onto conveyor for further operations.

Technical Specification of Ribbon Blender

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
