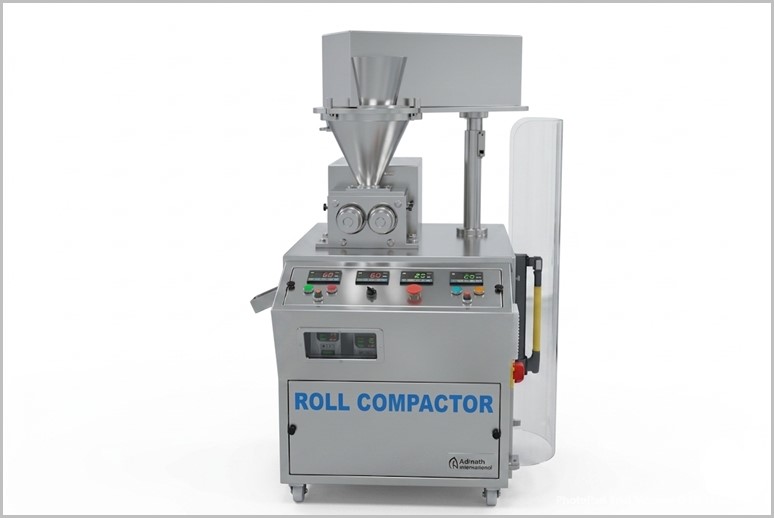

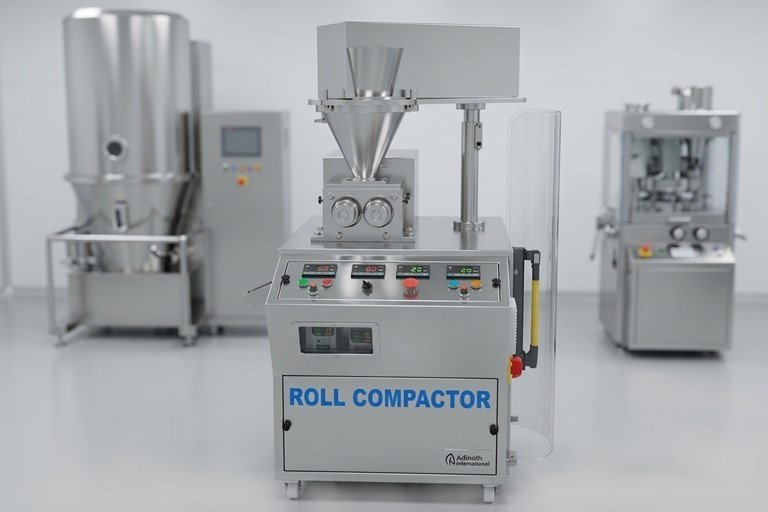

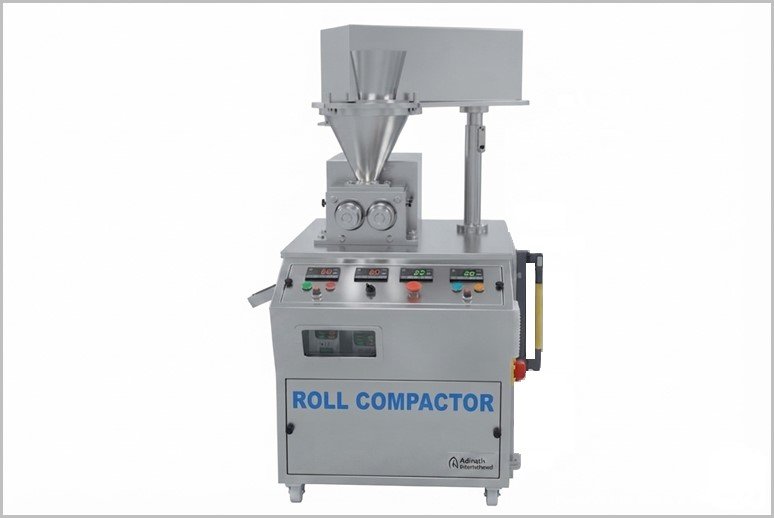

A Silica Roll Compactor (also known as a roller compactor or roll press for silica) is a specialized industrial machine used in the dry granulation process to compact fine silica powders—such as precipitated silica or amorphous silica—into denser flakes, ribbons, or granules. This enhances the material’s bulk density, flowability, and handling properties, making it suitable for downstream applications like packaging, tableting, or further processing. It’s particularly vital in industries dealing with silica, which is often used as an anti-caking agent, excipient in pharmaceuticals, food additive, or raw material in chemicals, rubber, and agriculture.
Unlike wet granulation methods that require binders or liquids, roll compaction is a dry process that avoids moisture and heat, preserving the material’s purity and reducing risks of degradation for sensitive powders like silica.
Roll Compactor Video
Key Process Steps
-
Feeding: Fine silica powder is fed into the machine via a vertical or auger-based feeder system, which conveys it evenly to the compaction zone.
-
Compaction: The powder passes between two counter-rotating rollers under high pressure. This squeezes the powder into a solid “ribbon” or flake sheet, reducing volume and increasing density. Rollers may use a floating gap control to maintain consistent force despite feed variations.
-
Granulation/Milling: The compacted ribbon is then milled into uniform granules of desired size, minimizing fines and ensuring granule uniformity.
-
Output: Results in high-density granules with improved flow characteristics, often achieving outputs from 50 kg/hour (lab-scale) to 18 tons/hour (industrial-scale).
Applications in Silica Processing
-
Pharmaceuticals: As an excipient or anti-caking agent in tablets and vitamins.
-
Food Industry: Clarifying beverages, controlling viscosity, or as dough modifiers.
-
Chemicals: Granulating precipitated silica for rubber reinforcement or catalysts.
-
Other: Agriculture (e.g., herbicides), electronics, and industrial reagents.
Typical Specifications
-
Capacity: Output of compacted granules
-
Roller Diameter: Size of compaction rollers
-
Roller Speed: Adjustable for control
-
Pressure: Force applied for densification
-
Applications: Silica grades for food, pharma, electronics, agriculture
-
Benefits: Higher bulk density (e.g., for easier transport); no liquids needed; scalable from lab to production
- * Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
