V Cone Blender

Q: Which industries is the V Cone Blender suitable for?

It is widely used in: Pharmaceutical Industry Biotech Industry Ayurvedic & Herbal Industry Nutraceutical Industry Cosmetic Industry Food Processing and Chemical Industries It is perfect for mixing free-flowing powders and granules requiring low shearing force while maintaining particle integrity.

Q: What are the key features and benefits of the V Cone Blender?

Key Features : Compact cGMP model with SS 316/304 contact parts Conical shape for uniform mixing and easy discharge via butterfly valve Fixed baffles, safety guards with limit switch (optional) Worm reduction gearbox and polished surfaces Food-grade gaskets and easy-to-clean design Benefits : Gentle low-shear mixing, excellent homogeneity, minimal maintenance, compact footprint, and high hygiene standards suitable for sensitive materials.

Description

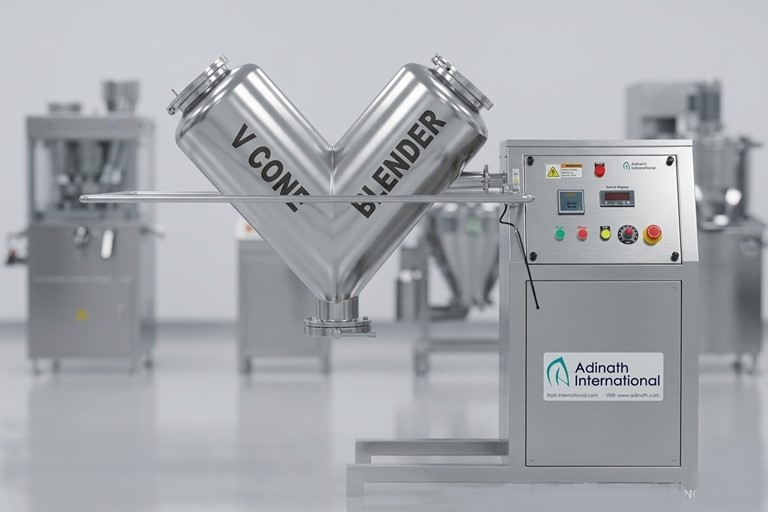

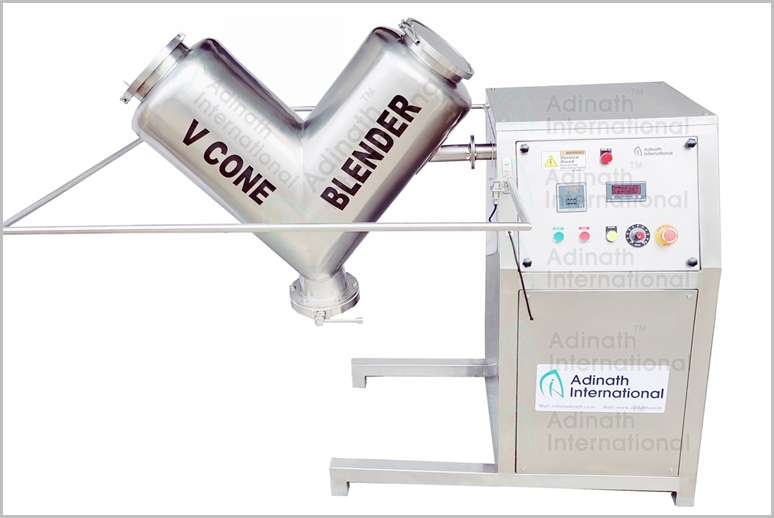

A Stainless Steel 316 V Cone Blender also known as a V-Type or V-Shaped Blender is a specialized mixing machine designed for gentle, uniform blending of dry powders and granules, constructed from high-grade SS316 stainless steel. Its V-shaped chamber rotates to tumble materials, leveraging gravity for low-shear mixing, making it ideal for fragile or sensitive materials in pharmaceutical, food, chemical, and nutraceutical applications. SS316 ensures corrosion resistance, hygiene, and compliance with GMP standards, suitable for acidic or saline ingredients.

Capacity Constraints: Less efficient for very large batches (>1000L) compared to ribbon or planetary blenders.

Cohesive Materials: May require intensifier bars for sticky or cohesive powders, increasing costs.

Loading/Discharge: Manual loading can be time-consuming for larger models; vacuum systems add expense.

If you need details on specific models and pricing, let me know!

Salient Features of V Cone Blender

Compact GMP Model.
Capacity available from 5 Liters to 5000 Liters.
The conical shape at both ends enables uniform mixing and easy discharge.
All contact parts are made out of Stainless Steel 316 / 304 / MS quality material as per requirements.
Two nos. of safety road will be provided at back side. (One LH side & one RH side)
One shaft with 3 / 4 nos. of fixed baffles provided inside the cone.
Safety guards provided with limit switch to not start the machine when safety guards are not in proper position. (optional)

All moving parts with suitable covers.
Control Panel having three phase indication, D.O.L. starter, digital timer & Amp. Meter. (optional)
The conical shape at both ends enables uniform mixing and easy discharge.
Worm reduction gear use for speed reduction.
Food grade rubber gasket will be used on both end of cone as well as in butterfly valve.
General structure made out of SS 304 and Polished to the matt/mirror finish (as required by you).

Working Principle of V Cone Blender

The V shape blenders have long two corner of product container for more rubbing and tumbler effect to the material for fast and homogenizing mixing. It can perform homogenously dry mixing of free-flowing powders, granules requiring low shearing force, Mixing and Blending of particles with rapid intermixing of particles irrespective of varying specific gravities. The material is loaded into the double cone blender drum. The double blender is tumbling the material in the container and spread out. The mixing is achieved in 5 to 15 minutes with better homogeneity.

Loading: Powders/granules are loaded into the V-shaped chamber, typically filled to 50-60% capacity.

Mixing: The chamber rotates, causing materials to tumble and split between the two legs of the V, promoting diffusion-based blending.

Discharge: Material exits via a bottom butterfly valve or manual outlet, often integrated with downstream processes like tableting or packaging.

Technical Specification of V Cone Blender

Model No.	Gross Capacity approx.	Working Capacity approx.	Overall Dimensions (in mm) (L) x (W) x (H) approx.	Discharge Height	Charge Opening	Power Supply
VCB-5	16 Ltrs	10 Ltrs	750x580x650	300mm	100mm	0.5 H.P.
VCB-10	35 Ltrs	20 Ltrs	1100x450x1200	300mm	100mm	0.5 H.P.
VCB-25	80 Ltrs	50 Ltrs	1200x600x300	450mm	150mm	1.0 H.P.
VCB-50	150 Ltrs	100 Ltrs	1400x800x1500	450mm	150mm	2.0 H.P.
VCB-100	300 Ltrs	200 Ltrs	1850x900x1900	450mm	200mm	2.0 H.P.
VCB-150	470 Ltrs	300 Ltrs	2000x1100x2000	450mm	200mm	5.0 H.P.
VCB-200	615 Ltrs	400 Ltrs	2100x1200x2100	450mm	200mm	6.0 H.P.
VCB-250	770 Ltrs	500 Ltrs	2200x1300x2200	450mm	200mm	7.5 H.P.
VCB-300	1000 Ltrs	600 Ltrs	2300x1400x2300	450mm	200mm	7.5 H.P.
VCB-400	1340 Ltrs	800 Ltrs	2350x1800x2350	600mm	250mm	7.5 H.P.
VCB-500	1500 Ltrs	1000 Ltrs	2400x1900x2400	800mm	250mm	10 H.P.
VCB-650	2000 Ltrs	1300 Ltrs	2800x2100x2700	800mm	250/400 mm	10 H.P.
VCB-750	2500 Ltrs	1500 Ltrs	3000x2200x2600	800mm	250/400 mm	10 H.P.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Mixer, Blender and Dryer

Multi Mill

Octagonal Blender

Double Cone Blender

V Cone Blender

Ribbon Blender Mixer

Tray Dryer

Vibro Sifter

Rapid Mixer Granulator

Jacketed Mixing Vessel

Heavy Duty Toothpaste Mixer

Applications of Mixer, Blender and Dryer

Advantages of V Cone Blender

Gentle Mixing: Low-shear tumbling action preserves particle integrity, ideal for fragile granules or heat-sensitive materials.

High Uniformity: V-shape eliminates dead zones, ensuring consistent blends, even for low-dose additives (1-2%).

Hygiene: SS316’s smooth, polished surfaces prevent contamination and simplify cleaning, critical for pharma/food industries.

Compact Design: Smaller footprint than ribbon blenders, suitable for labs or space-constrained facilities.

Key Features of V Cone Blender

Material: SS316 (inner surfaces, mirror-polished for easy cleaning); SS304 often used for outer frame to reduce costs.

Design: V-shaped chamber rotates 360° on a horizontal axis, creating a tumbling action for homogeneous mixing.

Capacities: Ranges from 2L (lab-scale) to 1000L (industrial), typically 5-500 kg per batch.

Customizations: Variable frequency drive (VFD) for speed control (10-30 RPM), vacuum loading, intensifier bars for cohesive powders, or explosion-proof motors.

Applications: Mixing pharmaceutical powders, food ingredients, chemicals, and cosmetics.

FAQ for V Cone Blender

What is a V Cone Blender?

A V Cone Blender (also known as V-Type Blender or V-Shaped Blender) is a specialized low-shear tumbling mixer designed for gentle and uniform blending of dry powders, granules, and free-flowing solids. It features a distinctive V-shaped chamber made from high-grade Stainless Steel 316/304, which rotates to create a tumbling action using gravity. This makes it ideal for fragile, heat-sensitive, or abrasive materials in pharmaceutical, nutraceutical, food, and chemical industries.

How does the V Cone Blender work?

The material is loaded into the V-shaped chamber (typically filled to 50-60% capacity). As the blender rotates slowly on a horizontal axis, the product splits and recombines between the two legs of the V, creating a diffusion-based mixing action with excellent intermixing. The long conical ends provide enhanced tumbling and rubbing effect. Homogeneous mixing is usually achieved in 5 to 15 minutes.

What are the available models and capacities?

We offer a wide range of models from lab to production scale:

VCB-5: 10 Ltrs working capacity
VCB-50: 100 Ltrs working capacity
VCB-100: 200 Ltrs working capacity
VCB-200: 400 Ltrs working capacity
VCB-500: 1000 Ltrs working capacity

Gross capacities range from 5 Liters to 5000 Liters. Custom sizes are available as per requirement.

Which industries is the V Cone Blender suitable for?

It is widely used in:

Pharmaceutical Industry
Biotech Industry
Ayurvedic & Herbal Industry
Nutraceutical Industry
Cosmetic Industry
Food Processing and Chemical Industries

It is perfect for mixing free-flowing powders and granules requiring low shearing force while maintaining particle integrity.

What are the key features and benefits of the V Cone Blender?

Key Features:

Compact cGMP model with SS 316/304 contact parts
Conical shape for uniform mixing and easy discharge via butterfly valve
Fixed baffles, safety guards with limit switch (optional)
Worm reduction gearbox and polished surfaces
Food-grade gaskets and easy-to-clean design

Benefits: Gentle low-shear mixing, excellent homogeneity, minimal maintenance, compact footprint, and high hygiene standards suitable for sensitive materials.
