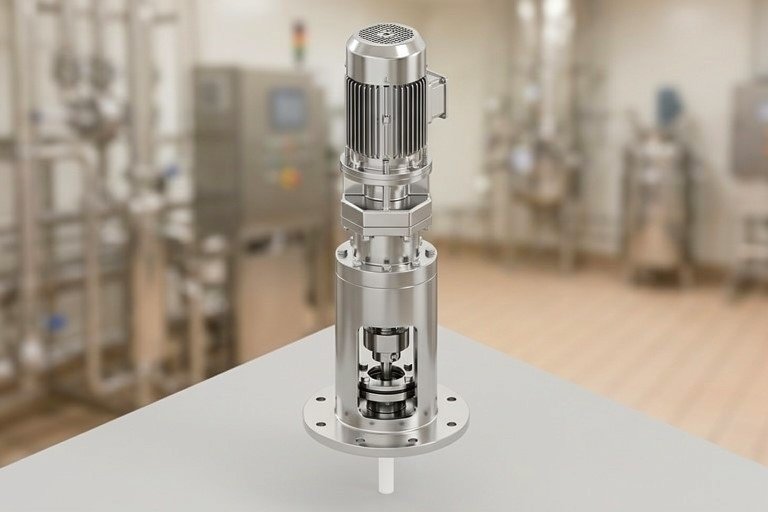

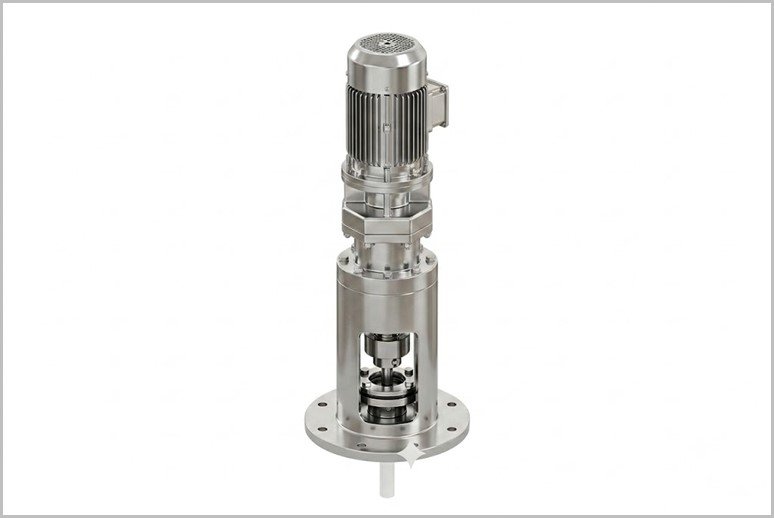

A Liquid Agitator (also known as an industrial agitator, mixer, or stirrer vessel) is a mechanical device used to stir, mix, or blend liquids, often with solids, gases, or other liquids in tanks or vessels. It works by rotating an impeller attached to a shaft, which imparts energy to the fluid, creating flow patterns for homogenization, suspension, heat transfer, or chemical reactions.
These are essential in industries like chemical processing, pharmaceuticals, food and beverage, wastewater treatment, paints, and mining.
Agitator Video
Common Types of Impellers
The impeller design determines the flow pattern (axial, radial, or tangential) and suitability for viscosity or task:
-
Propeller: Axial flow, efficient for low-viscosity liquids and solid suspension.
-
Turbine (flat or pitched blades): Radial flow, high shear for emulsions or gas dispersion.
-
Paddle: Low shear, gentle mixing for viscous fluids.
-
Anchor/Helical: Tangential flow, for high-viscosity or scraping tank walls.
-
Hydrofoil: Energy-efficient axial flow for blending.
Key Applications
-
Blending miscible liquids
-
Suspending solids
-
Dispersing gases
-
Promoting heat transfer
-
Maintaining uniformity in storage tanks
Agitators can be top-entry, side-entry, or bottom-entry, with options for portable, fixed, or magnetic drives (for sealed, hygienic uses).
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
