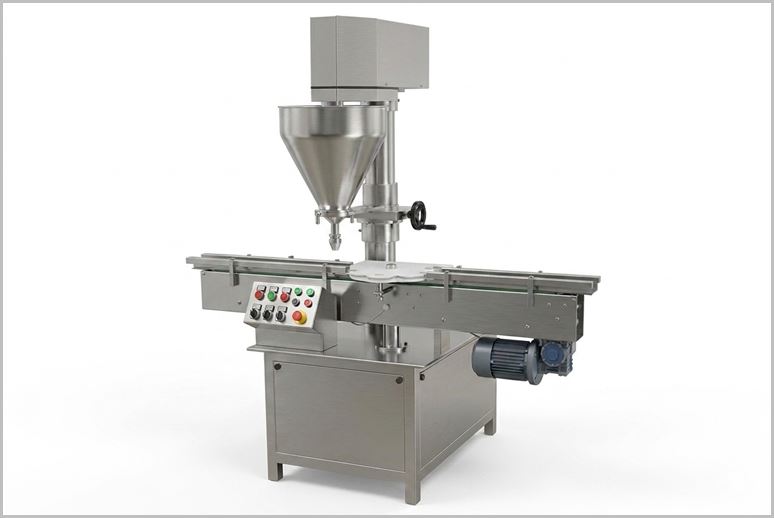

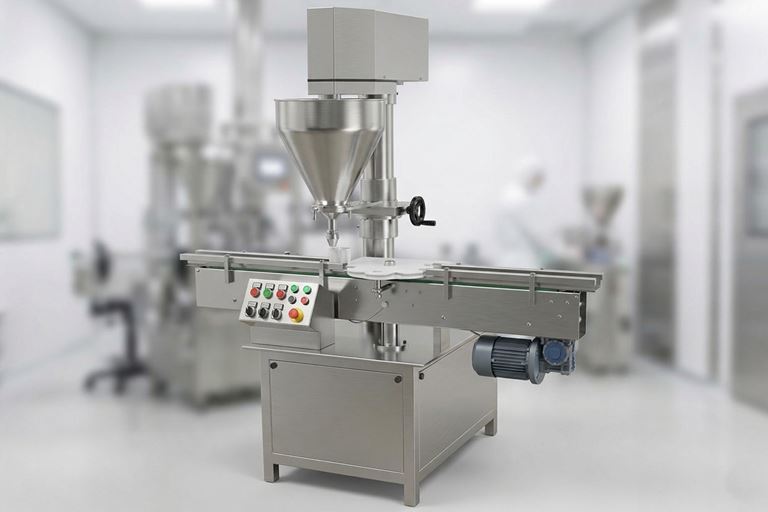

Auger Powder Filling Machine is a specialized piece of packaging equipment designed for accurately dispensing and filling dry powders, granules, or non-free-flowing products into containers, such as bottles, jars, bags, or pouches. It operates using a rotating helical screw (auger) inside a tube or cylinder, which measures and transfers a precise volume of material from a hopper to the container. This volumetric filling method is ideal for products that are prone to clumping, aerating, or uneven flow, ensuring consistent fill weights with minimal waste. Auger Powder Filling Machine are widely used in industries like food and beverage, pharmaceuticals, cosmetics, chemicals, and nutraceuticals. They can handle both free-flowing powders and challenging ones.
If you need details on specific models and pricing, let me know!
Duly cleaned containers are placed to the filling machine platform. From there containers transport towards the filling station with the help of conveyor belt. As soon as the bottle is sensed by bottle sensor, magnetic clutch starts to rotate which is mounted on the auger shaft. It fills the desired volume of powder to the container through Auger. After completion of filling process bottle transfers on conveyor for next capping operations.
Speeds can reach up to 120 cycles per minute, depending on the product and machine configuration.
Models | AI-APF 1 | AI-APF 2 | AI-APF 3 |
Production Output | Up to 30 bottles/minute | Up to 60 bottles/minute | Up to 90 bottles/minute |
Fill Volume | 5gms. to 60gms. in Single Dose System | 5gms. to 60gms. in Single Dose System | 5gms. to 60gms. in Single Dose System |
Container Size | Custom made as per required container size | Custom made as per required container size | Custom made as per required container size |
Filling Accuracy | ± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Powder | ± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Powder | ± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Powder |
Power Load | 2 H. P. | 3 H. P. | 4.5 H. P. |
Overall Dimension | 1810 mm (L) x 905 mm (W) x 1900 mm approx. | 2300 mm (L) x 905 mm (W) x 1900 mm approx. | 3000 mm (L) x 905 mm (W) x 1900 mm approx. |
Conveyor Height | 850 – 950 mm adjustable | 850 – 950 mm adjustable | 850 – 950 mm adjustable |
Electrical | 415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive | 415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive | 415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
The machine offers a filling accuracy of ±2–3% (depending on powder characteristics and environmental conditions). Production output varies by model: up to 30 bottles/min (single head), 60 bottles/min (double head), and 90 bottles/min (triple head). Fill volumes typically range from 5g to 60g per dose.
It is ideal for both free-flowing and non-free-flowing powders, granules, and challenging materials that tend to clump or aerate. It is widely used in the Pharmaceutical, Cosmetic, Chemical, Food & Beverage, Nutraceutical, and Biotech industries.
