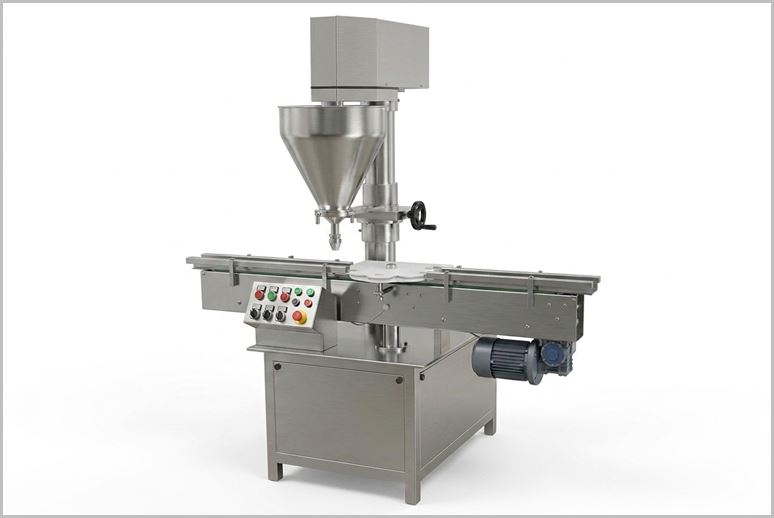

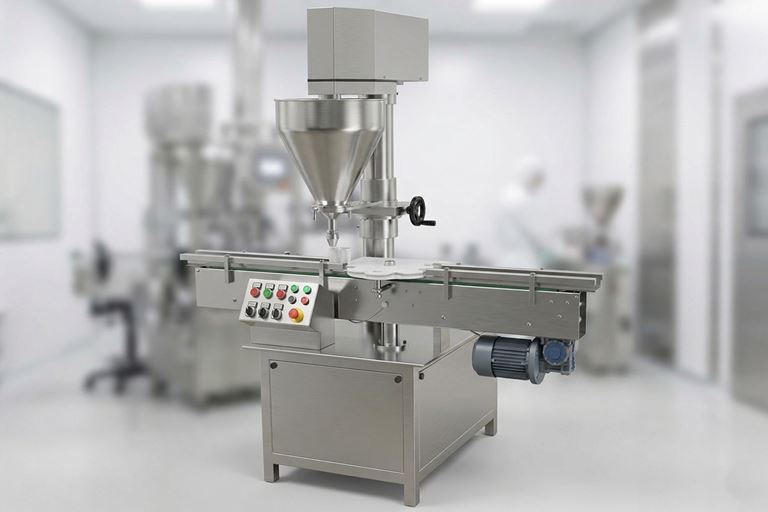

Automatic Auger Powder Filling Machine

Q: What is the filling accuracy and production speed of the Automatic Auger Powder Filling Machine?

The machine offers a filling accuracy of ±2–3% depending on powder characteristics, bulk density uniformity, and environmental conditions. AI-APF 1 (Single Head) : Up to 30 bottles/min AI-APF 2 (Double Head) : Up to 60 bottles/min AI-APF 3 (Triple Head) : Up to 90 bottles/min Fill volume range is typically 5g to 60g per dose.

Description

Automatic Auger Powder Filling Machine is a specialized packaging equipment designed to accurately and efficiently dispense powdered products into containers such as bottles, jars, pouches, or bags. It uses a rotating helical screw inside a tube or cylinder to measure and transfer precise volumes of powder from a hopper to the filling nozzle. This technology is ideal for both free-flowing powders and non-free-flowing ones, ensuring minimal waste, dust, and product degradation. Auger Powder Filling Machine automate the filling process, often integrating with vertical form-fill-seal (VFFS) systems, conveyors, or rotary packagers for high-speed production lines. They differ from volumetric or weight-based fillers by providing superior control over tricky, aerated, or sticky powders.

Drive Assembly: Consist motor, transmission and the switching mechanism to start and stop machine.

Hopper: It stored the material as a quarantine before filling. Through tooling it discharge material onto filling station.

Tooling: Tooling section consists auger agitator, funnels and other filling components to finetune the machine depending on the type of material being filled.

Structure Body: This is basic structure that supports the entire system.

Controls: This is the main mechanism to operate the machine parameters.

If you need details on specific models and pricing, let me know!

Salient Features of Automatic Auger Powder Filling Machine

“No Bottle – No Fill” System.
Standard as well as Optional Servo Driven Filling Head.
Multiple auger head system as per customer requirements.
IQ/OQ documentation can be provided.
Machine construction in SS304 material.
A.C. Variable Frequency Drive Speed Control

Filling Accuracy of +/- 3% depending upon powder characteristics and environmental conditions.
Built in Turn Tables with Separate Drive for speed control.
All contact parts made of SS316 and Nylon/HDPE material with easy removal system for Cleaning.
PLC system with Graphical User Interface can be offered.
Inbuilt Laminar Air Flow can be offered for sterile class 100 filling.

Working Principle of Automatic Auger Powder Filling Machine

Duly cleaned containers are placed to the filling machine platform. From there containers transport towards the filling station with the help of conveyor belt. As soon as the bottle is sensed by bottle sensor, magnetic clutch starts to rotate which is mounted on the auger shaft. It fills the desired volume of powder to the container through Auger. After completion of filling process bottle transfers on conveyor for next capping operations.

Hopper Loading: Powder is loaded into a vibrating or gravity-fed hopper to ensure even distribution.

Auger Activation: A servo or stepper motor rotates the auger at a controlled speed, drawing a set volume of powder based on the auger’s pitch and length.

Dispensing: The measured powder is ejected through the nozzle into the container. Some models use “fill-by-weight” sensors for added precision.

Cycle Completion: The machine indexes to the next container, repeating at rates up to 120 cycles per minute, depending on the model and product.

Cleanup and Maintenance: Tool-free auger disassembly allows quick cleaning to prevent cross-contamination, especially in food or pharma applications.

Key advantages include high accuracy, dust containment, and compatibility with sticky or fine powders that clog other fillers.

These machines handle fill weights from 5g to 100lbs, making them versatile for sachets, tubs, or bulk packaging.

Technical Specification of Automatic Auger Powder Filling Machine

Models	AI-APF 1	AI-APF 2	AI-APF 3
Production Output	Up to 30 bottles/minute	Up to 60 bottles/minute	Up to 90 bottles/minute
Fill Volume	5gms. to 60gms. in Single Dose System	5gms. to 60gms. in Single Dose System	5gms. to 60gms. in Single Dose System
Container Size	Custom made as per required container size	Custom made as per required container size	Custom made as per required container size
Filling Accuracy	± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Powder	± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Powder	± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Powder
Power Load	2 H. P.	3 H. P.	4.5 H. P.
Overall Dimension	1810 mm (L) x 905 mm (W) x 1900 mm approx.	2300 mm (L) x 905 mm (W) x 1900 mm approx.	3000 mm (L) x 905 mm (W) x 1900 mm approx.
Conveyor Height	850 – 950 mm adjustable	850 – 950 mm adjustable	850 – 950 mm adjustable
Electrical	415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive	415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive	415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Powder Filling Machines

Antibiotic Powder Filling Machine

Injectable Powder Filling Machine

Auger Powder Filling Machine

Bottle Dry Injectable Filling Machine

Automatic Dry Syrup Powder Filling Machine

Dry Syrup Powder Filler Capper

Dry Syrup Powder Filling Machine

Double Head Auger Powder Filling Machine

Applications of Powder Filling Machines

Advantages of Automatic Auger Powder Filling Machine

Versatile for Different Powders and Containers

High-Speed Automated Production

Hygienic Design and Easy Maintenance

Reduced Waste, Dust, and Contamination

Key Features of Automatic Auger Powder Filling Machine

Standard & Optional Servo-Driven Filling Head — Precise control over auger rotation for accurate volumetric dosing.

Multiple Auger Head System — Available in single, double, and triple head configurations to meet varying production demands.

High-Quality Material Construction:
- All product contact parts made of SS316 and Nylon/HDPE with easy removal for cleaning.
- Machine frame constructed from SS304 for durability and corrosion resistance.

Excellent Filling Accuracy — Achieves ±2–3% accuracy (depending on powder characteristics, bulk density uniformity, and environmental conditions).

Variable Speed Control — A.C. Variable Frequency Drive for adjustable speed and smooth operation.

Built-in Turn Tables — With separate drives for reliable container handling and speed synchronization.

Advanced Control Options:
- PLC system with Graphical User Interface (HMI).
- “No Bottle – No Fill” sensor system.

Sterile Operation Option — Inbuilt Laminar Air Flow for Class 100 sterile filling.

Easy Maintenance & Compliance — Quick-release tooling, fast changeover, low maintenance design, and IQ/OQ documentation support.

Robust Drive Assembly — Includes motor, transmission, and magnetic clutch mechanism for reliable start/stop operation.

FAQ for Automatic Auger Powder Filling Machine

What is an Automatic Auger Powder Filling Machine and how does it work?

An Automatic Auger Powder Filling Machine is a specialized packaging equipment that accurately dispenses powdered products into containers such as bottles, jars, pouches, or bags using a rotating helical screw (auger). Powder is loaded into a hopper, and as containers move via conveyor and are sensed, a magnetic clutch activates the auger to dispense a precise volume through the nozzle. It handles both free-flowing and non-free-flowing powders efficiently with minimal waste and dust.

What is the filling accuracy and production speed of the Automatic Auger Powder Filling Machine?

The machine offers a filling accuracy of ±2–3% depending on powder characteristics, bulk density uniformity, and environmental conditions.

AI-APF 1 (Single Head): Up to 30 bottles/min
AI-APF 2 (Double Head): Up to 60 bottles/min
AI-APF 3 (Triple Head): Up to 90 bottles/min Fill volume range is typically 5g to 60g per dose.

What types of powders and containers can the Automatic Auger Powder Filling Machine handle?

It is ideal for free-flowing as well as non-free-flowing, sticky, aerated, or difficult powders. The machine is widely used in the Pharmaceutical, Cosmetic, Chemical, Agriculture, Herbal, and Nutraceutical industries. Containers are custom-made according to requirements (bottles, jars, etc.).

What are the key features of the Automatic Auger Powder Filling Machine?

“No Bottle – No Fill” system and built-in turn tables with separate drives.
SS304 machine frame with all contact parts in SS316, Nylon/HDPE (easy removal for cleaning).
Standard or optional servo-driven filling head, multiple auger heads, and A.C. Variable Frequency Drive.
PLC with HMI option, IQ/OQ documentation, and inbuilt Laminar Air Flow for Class 100 sterile filling.

What are the main advantages of using an Automatic Auger Powder Filling Machine?

High precision and repeatability with minimal product wastage and dust generation.
Excellent performance with challenging non-free-flowing powders.
Fast changeover, easy cleaning, and low maintenance.
Scalable production with reliable automation and integration into complete filling-capping lines.
cGMP-compliant design suitable for regulated industries.
