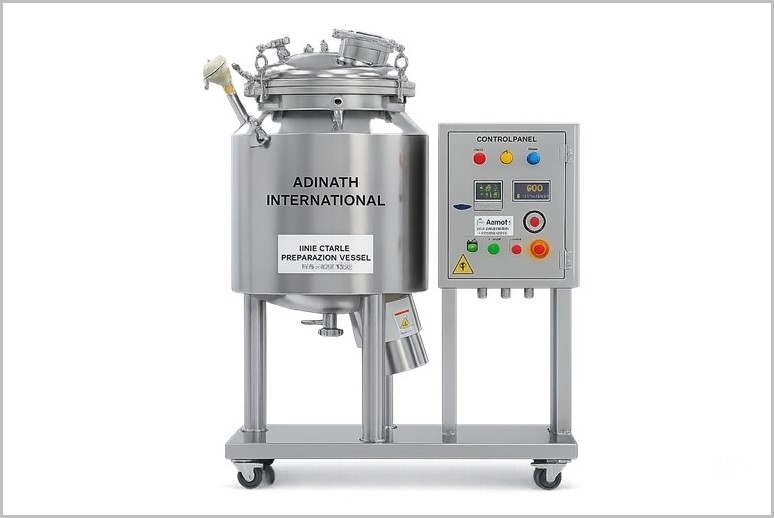

Injectable Preparation Vessel

Description

Injectable Preparation Vessel, also known as an Injectable Mixing Vessel or Sterile Mixing Vessel, is specialized equipment used in the pharmaceutical industry for the preparation, mixing, and storage of sterile injectable liquids. These vessels ensure the production of high-quality, contamination-free solutions for parenteral administration. They are designed to meet stringent regulatory standards like cGMP, WHO, USFDA, and MHRA guidelines, emphasizing sterility, homogeneity, and safety.

If you need details on specific models and pricing, let me know!

Salient Features of Injectable Preparation Vessel

Product contact parts made of SS 316 and jackets in SS 304 for excellent corrosion resistance, durability, and easy cleaning.
Rounded dish ends and smooth edges minimize dead zones, eliminate contamination risks, and ensure complete drainability.
Integrated nitrogen purging system for safe transfer of materials after mixing, maintaining sterility and preventing oxidation.

Top and bottom dish equipped with necessary nozzles, valves, and ports tailored to individual process requirements.
Equipped with suitable agitators (standard stirrer or magnetic stirrer options) for homogeneous mixing of sterile injectable solutions.
Designed for zero hold-up, easy sterilization, and suitability for both single and multiple-dose parenteral preparations.

Types of Preparation Vessel

Sterile Manufacturing Vessel

Sterile Preparation Vessel

Injectable Preparation Vessel

Jacketed Mixing Vessel

WFI Storage Tank

Oral Liquid Preparation Vessel

Applications of Preparation Vessel

Advantages of Injectable Preparation Vessel

Sterility Assurance: Zero-dead-leg designs and smooth surfaces reduce contamination risks.

Efficiency: Homogeneous mixing and temperature control optimize formulation stability.

Compliance and Scalability: Adheres to global standards, scalable for R&D to commercial production.

Safety: Non-reactive materials ensure drug integrity without leaching.

Key Features of Injectable Preparation Vessel

Injectable Preparation Vessels are typically constructed from high-grade stainless steel to resist corrosion, abrasion, and staining. Common design aspects include:

Shape and Structure: Cylindrical or conical shells with top and bottom dished ends. Capacities range from 30L to 10,000L, suitable for small-volume parenterals (SVP) or large-volume parenterals (LVP).

Mixing System: Equipped with low-shear or high-shear magnetic stirrers (bottom-mounted, speed range: 20–350 RPM) for hygienic, non-contact agitation. Some models include propeller, anchor, or mechanical agitators.

Jacket and Insulation: Dimple, full, or coil jackets for heating/cooling and insulation with rock wool, polyurethane, or pearl cotton to maintain precise temperatures.

Sterilization and Cleaning: Supports Clean-in-Place (CIP) and Sterilize-in-Place (SIP) systems. Features like flush bottom outlet valves, sterile flange connections, and nitrogen purging for material transfer.

Pressure/Vacuum Capability: Withstands vacuum up to 650–700 mm Hg and pressures up to 3 bar for degassing or filtration processes.

Controls: Standard panels or advanced touch-screen HMI/PLC systems for monitoring speed, temperature, and pressure.

These features prevent microbial contamination and ensure uniform blending of active pharmaceutical ingredients (APIs), excipients, solvents, and buffers.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

FAQ for Injectable Preparation Vessel

What is an Injectable Preparation Vessel?

An Injectable Preparation Vessel (also known as Injectable Mixing Vessel or Sterile Mixing Vessel) is specialized cGMP-compliant equipment used in the pharmaceutical industry for the preparation, mixing, and storage of sterile injectable liquids. It ensures high-quality, contamination-free solutions for parenteral products such as IV fluids, vaccines, and sterile injections while meeting stringent regulatory standards like WHO, USFDA, MHRA, and cGMP.

How does the Injectable Preparation Vessel work?

The vessel features a cylindrical or conical shell with dished ends, equipped with an agitator (magnetic stirrer, propeller, or anchor type) for homogeneous mixing. Jackets provide heating/cooling, while nitrogen purging maintains sterility during material transfer. It supports CIP/SIP for cleaning and sterilization, with precise control over speed, temperature, and pressure for uniform blending of APIs, excipients, and solvents.

What are the key features of the Injectable Preparation Vessel?

SS 316 contact parts and SS 304 jacket for corrosion resistance and hygiene.
Rounded dish ends with zero dead-leg design for complete drainability and minimal contamination risk.
Integrated nitrogen purging, CIP/SIP compatibility, and flush bottom valves.
Jacketed design with insulation for precise temperature control.
Magnetic or mechanical agitators (20–350 RPM) and options for HMI/PLC automation.
Capacities from 30L to 10,000L with pressure/vacuum capability.

What are the main advantages of using an Injectable Preparation Vessel?

Ensures sterility with zero-dead-leg designs and smooth surfaces.
Provides homogeneous mixing and temperature control for formulation stability.
Fully compliant with global regulatory standards and scalable from R&D to commercial production.
Non-reactive materials prevent leaching and maintain drug integrity.
Easy sterilization, cleaning, and safe material transfer via nitrogen purging.

Which industries use the Injectable Preparation Vessel?

It is primarily used in the Pharmaceutical industry for sterile injectable production. It is also suitable for Cosmetic, Chemical, Ayurvedic, and Herbal & Nutraceutical industries where high-purity mixing and sterile preparation of liquids are required.
