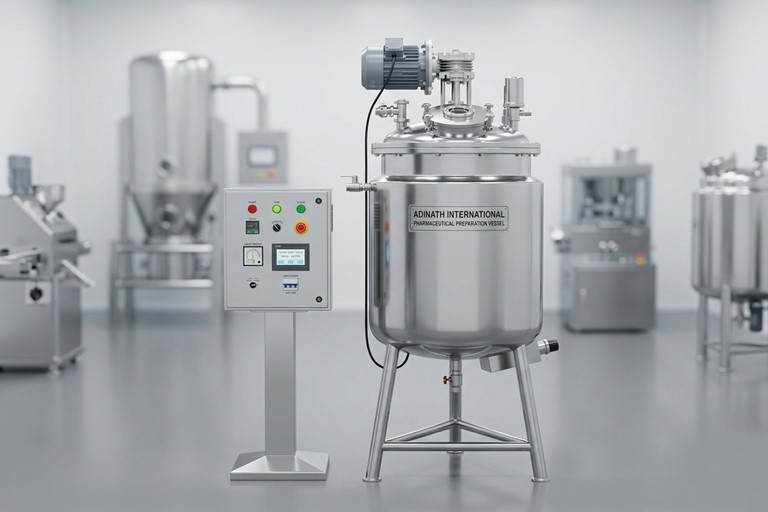

Pharmaceutical Preparation Vessel

Description

Pharmaceutical Preparation Vessel is a specialized type of process equipment used in the pharmaceutical, biotech, and healthcare industries for the safe handling, mixing, blending, storage, and preparation of sterile or non-sterile liquid formulations. These vessels are essentially tanks or containers made from high-quality materials like 316L stainless steel, duplex, or Hastelloy, designed to meet stringent regulatory standards such as cGMP, ASME BPE, and EHEDG guidelines. They ensure product integrity by preventing contamination, maintaining precise temperature and pressure controls, and facilitating clean-in-place (CIP) and sterilization processes. Unlike general storage tanks, preparation vessels are equipped with accessories like agitators, heating/cooling jackets, magnetic mixers, safety valves, and sensors to support specific manufacturing steps. They are critical in producing injectables, oral liquids, syrups, eye drops, infusions, and other dosage forms.

If you need details on specific models and pricing, let me know!

Salient Features of Pharmaceutical Preparation Vessel

Vessel constructed as per ASME standards for pressure vessels, ensuring safety and durability.
Zero dead-leg construction with flush bottom outlet diaphragm valve (SIP-able) and zero dead-leg sampling valves.
Fully designed for Clean-in-Place and Sterilization-in-Place with spray balls for automated cleaning and sterilization.
Double or triple jacketed for efficient heating/cooling using steam, hot water, or chilled fluids, with insulation and SS 304 cladding.

Volume monitoring by load cells, optional pH and conductivity sensors for real-time monitoring.
No stagnant points, domed top and bottom for complete drainage, nitrogen blanketing/sparging capability, and sterile filtration integration.
Available from 5 liters (R&D/lab scale) to 20,000 liters (production scale).
PLC-based automation, IQ/OQ documentation, inbuilt sensors, and various valve/discharge configurations as per user requirements.

Types of Preparation Vessel

Sterile Manufacturing Vessel

Sterile Preparation Vessel

Injectable Preparation Vessel

Jacketed Mixing Vessel

WFI Storage Tank

Oral Liquid Preparation Vessel

Applications of Preparation Vessel

Advantages of Pharmaceutical Preparation Vessel

Superior Sterility & Contamination Control

Excellent Temperature Control

High Mixing Efficiency

Regulatory Compliance & Validation

Easy Cleaning & Maintenance

Key Features of Pharmaceutical Preparation Vessel

Pharmaceutical preparation vessels are customized based on the application but typically include:

Materials: Corrosion-resistant alloys with electropolished surfaces for easy cleaning and minimal microbial adhesion.

Agitation Systems: Top or bottom-mounted stirrers, magnetic mixers, or high-shear homogenizers for uniform blending.

Temperature/Pressure Control: Jacketed designs for heating, cooling, or sterilization; pressure ratings per ASME Section VIII standards.

Safety Features: Safety valves to release excess pressure, level sensors to prevent overfilling, and rupture disks.

Cleaning and Sterilization: Integrated CIP modules and SIP (sterilize-in-place) capabilities, often tested via riboflavin or dye penetration methods.

Sizes and Configurations: Range from small mobile units (e.g., 50-500 liters) to large static tanks (up to several thousand liters), available in static or portable designs.

These vessels undergo rigorous testing, including hydrostatic pressure tests, positive material identification (PMI), and hardness checks, to ensure compliance with FDA and other global regulations.

FAQ for Pharmaceutical Preparation Vessel

What is a Pharmaceutical Preparation Vessel?

A Pharmaceutical Preparation Vessel is a specialized stainless steel tank (typically SS 316L) used for mixing, blending, heating, cooling, and preparing liquid formulations in the pharmaceutical and biotech industries. It supports both sterile and non-sterile processes for producing injectables, oral liquids, syrups, eye drops, and other dosage forms while maintaining strict cGMP compliance.

What are the key features of the Pharmaceutical Preparation Vessel?

ASME-compliant design with zero dead-leg construction and flush bottom valves.
Double or triple jacketed for precise temperature control.
CIP/SIP compatible with spray balls for automated cleaning and sterilization.
Advanced agitation systems (pitch-type stirrer, magnetic mixer) with VFD speed control.
Load cells for volume monitoring, optional pH/conductivity sensors, and nitrogen blanketing.

What capacities are available for Pharmaceutical Preparation Vessels?

These vessels are available in a wide range from 5 liters (lab/R&D scale) to 20,000 liters (large-scale production). This flexibility makes them suitable for pilot batches as well as commercial manufacturing.

How does a Pharmaceutical Preparation Vessel ensure product quality and sterility?

The vessel features an aseptic design with electropolished surfaces, no stagnant points, and full CIP/SIP capability. It maintains precise temperature and pressure control, supports sterile filtration and nitrogen purging, and uses high-grade materials to prevent contamination and preserve product integrity.

Which industries use Pharmaceutical Preparation Vessels?

They are primarily used in the Pharmaceutical, Biotechnology, Cosmetic, Chemical, Ayurvedic, Herbal, and Nutraceutical industries. They are ideal for preparing injectables, suspensions, solutions, pastes, and other sensitive formulations under controlled conditions.
