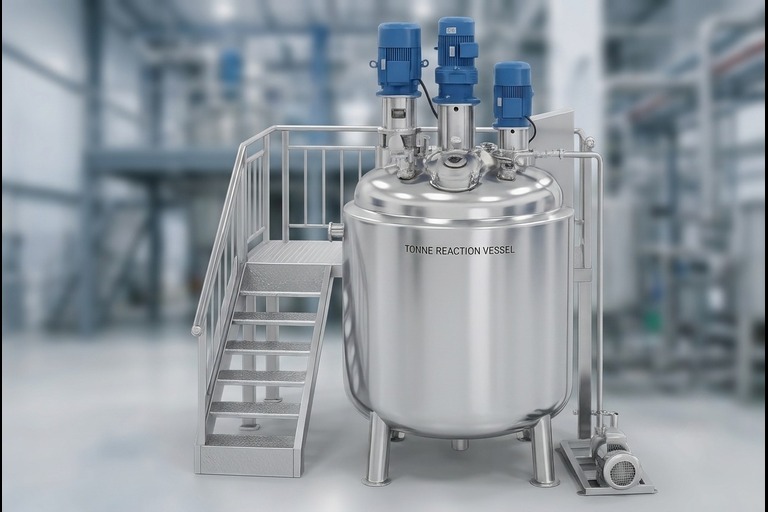

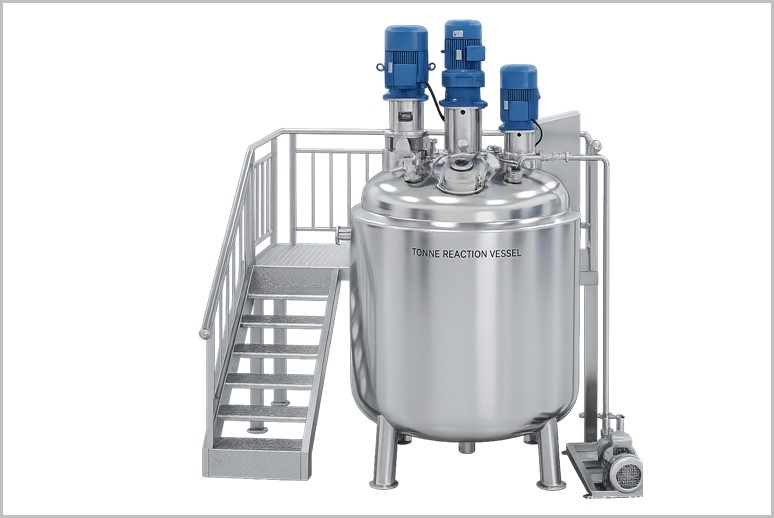

A Reaction Vessel is a specialized container designed to hold chemical reactants during a reaction, ensuring controlled conditions such as temperature, pressure, and mixing. It prevents interference from external factors and allows for safe monitoring and manipulation of the process. Unlike standard lab flasks, reaction vessels are often thick-walled to withstand vacuum, high pressure, or extreme temperatures.
Reaction Vessel Video
Types and Designs
Reaction vessels vary by scale, material, and application. Here’s a breakdown:
-
Laboratory Reaction Vessel: Cylindrical or pear-shaped flask with a flat or round bottom; features a glass cover with multiple ground glass joints (3–5 or more) for attachments like stirrers, condensers, or inlets. Thick-walled for vacuum/pressure resistance.
-
Jacketed Reactor: Primary vessel surrounded by a secondary jacket or coil for heat exchange. Includes baffles for efficient fluid flow.
-
Bespoke/Custom Vessel: Tailored designs with specific ports, valves, thermostatic jackets, or extreme durability.
-
Industrial Reactor: Large-scale, sealed vessels (often called reactors) with internal coils or external jackets; fully enclosed from atmosphere.
Key Features
-
Joints and Ports: Multiple female ground glass joints or large central joints for connecting apparatus; options for taps, valves, and O-ring seals per DIN12214 standards.
-
Heat Exchange: Jackets or coils for uniform heating/cooling; no dead volume in outlets for clean drainage.
-
Pressure Handling: Normal, positive, or negative pressure; evacuated setups for pure gas reactions.
-
Safety and Control: Often integrated with digital controllers for temperature, stirring, pressure, and timing. Thick walls prevent breakage under stress.
-
Additional Options: Spherical ground joints (S40), internal baffles, or dip tubes for controlled reagent addition.
Applications
-
Lab Settings: Conducting reactions under inert atmospheres, high mixing, or vacuum.
-
Industrial Scale: Producing new compounds via chemical transformation; sealed to contain gases or prevent contamination.
-
Specialized: Extreme conditions like cryogenic temperatures or corrosive environments.
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
