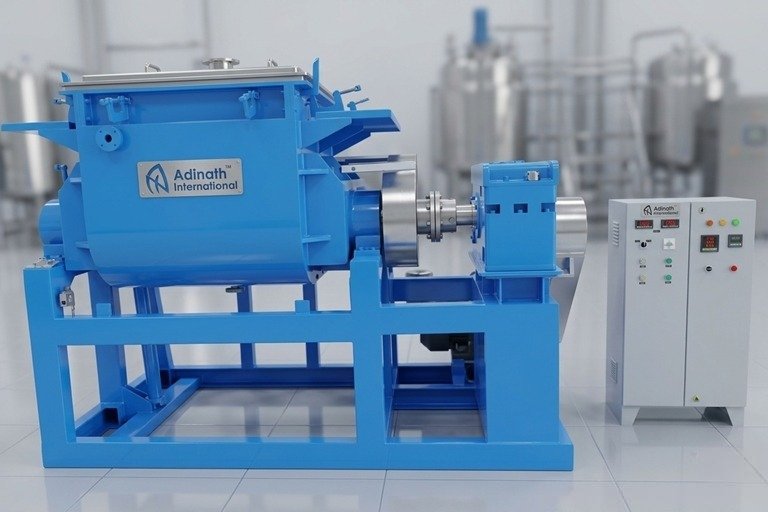

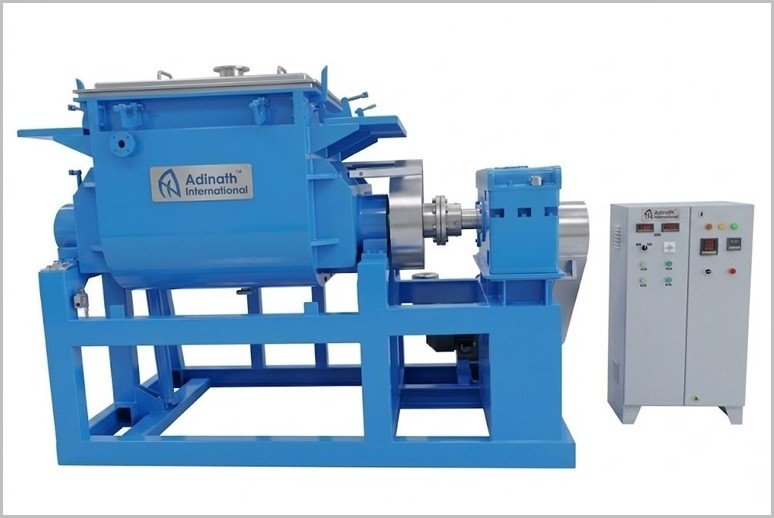

BMC Compound Sigma Mixer

Description

A BMC Compound Sigma Mixer, also known as a Sigma Blade Kneader or Z-Arm Kneader, is a high-performance industrial mixing machine specifically engineered for processing high-viscosity, sticky, and dough-like materials. It is widely used for the efficient production of Bulk Molding Compound (BMC) — a thermoset composite material reinforced with glass fibers.

This heavy-duty sigma blade mixer excels at thorough kneading, shearing, and homogenization of BMC formulations, which typically consist of unsaturated polyester resin, mineral fillers, glass fibers, catalysts, and various additives. The result is a uniform, high-quality compound ideal for manufacturing electrical enclosures, automotive components, manhole covers, insulators, and other durable composite products used across construction, automotive, and electrical industries.

Salient Features of BMC Compound Sigma Mixer

Fabricated using premium metal selections, comprising SS 304, SS 316, and carbon steel.
Stainless steel assemblies can be tailored with either a brushed satin texture or a high-reflectivity mirror polish to meet exact client specifications.
Carbon steel frames are protected against oxidation through a foundational red oxide primer layer topped with dual layers of epoxy paint.
Unloading choices feature manual hand-wheel controls or fully mechanized hydraulic operations.
Built with tight tolerances between the internal trough shell and rotating blades to completely eliminate material buildup or stagnant pockets.

External heating/cooling jackets securely enveloped in mineral wool thermal insulation and sealed with protective outer sheet metal cladding.
Integrated with specialized tangential 'Z'-profile impellers to guarantee consistent, homogeneous blending outcomes.
Fitted with PTFE shaft packings to ensure absolute safety, hygiene, and food-grade compatibility.
Optional temperature-regulation chambers (jackets) built to support external heating or chilling processes.
Specialized add-on packages available on request, featuring targeted liquid spray injection networks and hermetically sealed vacuum processing capabilities.

Working Principle of BMC Compound Sigma Mixer

Fundamental Operating Mechanics & Thermodynamics

Agitation Cycle: The system relies on dual ‘Z’-shaped rotors turning inward at precise, uneven speeds. This motion shuttles the batch end-to-end, thoroughly blending it through a continuous loop of mass shifting, stretching, folding, parting, and merging.
Milling Effect: As the material is squeezed and dragged against the trough walls and the rotors themselves, intense shear and rip forces physically pulverize and reduce the size of solid chunks.
Temperature Sequencing: Upon completion of the required sterilization timeframe, the equipment auto-transitions: the heating circuit powers down, pneumatic vents open up, and the chilling phase kicks in.

Product Extraction Methods

Harvesting the finalized batch can be executed via one of three distinct systems:

Pivoting the main chamber (tilt discharge)
Draining through under-vessel valves
Pushing out via a side-mounted auger/screw

Rotor Geometries & Material Suitability

Side-by-Side (Tangential) Setup

Kinetics: The rotors turn adjacent to one another without their paths intersecting. To optimize the mix, the front rotor spins faster than the back, most commonly locked at a 3:2 speed ratio.
Ideal Applications: Heavy-duty, highly viscous masses such as industrial pigments, color flushes, rubberized compounds, and tough adhesives.

Intersecting (Overlapping) Setup

Kinetics: The rotors physically cross paths directly over the center saddle of the bowl. To prevent collision, they must maintain a fixed alignment and run at the exact same speed, which allows for a highly rapid material swap between the two mixing zones.
Ideal Applications: Softer, free-flowing, or creeping mixtures such as clay slips, carbon pastes, cosmetic lotions, and pharmaceutical ointments.
Shear Profile: Naturally exerts a much gentler tearing and kneading force compared to the side-by-side layout.

Technical Specification of BMC Compound Sigma Mixer

Model	Capacity – Liters		Motor (H.P.)
Model	Working Capacity approx.	Gross Capacity approx.	General	Heavy Duty
ASM – 50	50 Liters	80 Liters	5 H.P.	7.5 H.P.
ASM – 75	75 Liters	110 Liters	7.5 H.P.	10 H.P.
ASM – 100	100 Liters	150 Liters	10 H.P.	15 H.P.
ASM – 150	150 Liters	200 Liters	15 H.P.	20 H.P.
ASM – 200	200 Liters	300 Liters	20 H.P.	25 H.P.
ASM – 400	400 Liters	550 Liters	30 H.P.	40 H.P.
ASM – 500	500 Liters	750 Liters	40 H.P.	50 H.P.
ASM – 750	750 Liters	1150 Liters	50 H.P.	60 H.P.
ASM – 1000	1000 Liters	1500 Liters	60 H.P.	70 H.P.
ASM – 1500	1500 Liters	2100 Liters	75 H.P.	80 H.P.
ASM – 2000	2000 Liters	2600 Liters	80 H.P.	90 H.P.
ASM – 3000	3000 Liters	3800 Liters	100 H.P.	120 H.P.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Sigma Mixer

Sigma Mixer Machine

Sigma Mixer Extruder

Lab Sigma Mixer

Food Grade Sigma Mixer

Heavy Duty Sigma Mixer Machine

Z Type Sigma Mixer

Applications of Sigma Mixer

Pharmaceutical Industry
Nutraceutical Industry
Herbal Industry
Ayurvedic Industry
Biotech Industry
Cosmetic Industry
Chemical Industry

Benefits of BMC Compound Sigma Mixer

Superior for fibrous, high-viscosity materials where standard mixers fail.

Energy-efficient for thorough dispersion.

Durable construction ensures longevity and easy cleaning.

Key Features of BMC Compound Sigma Mixer

Structure: It features a double-arm configuration with two interlocking Z-shaped (Sigma) blades mounted horizontally in a W- or U-shaped trough/container. The blades rotate toward each other at the same or differential speeds (typically 30-60 RPM), creating close clearances (1-2 mm) against the trough walls and each other.

Mixing Action: The process involves smearing, stretching, folding, compressing, dividing, and recombining the material. This tangential or overlapping blade motion pulls, shears, and kneads the viscous mass, achieving up to 99% homogeneity without dead zones.

Capacity Range: From laboratory scale to production scale, with working capacity at ~60% of total volume.

Jacketed Design: The trough is often jacketed for heating or cooling to control temperature during mixing.

Discharge Options: Hydraulic tilting, bottom valve, or integrated screw extruder for efficient unloading of the heavy paste.

FAQ for BMC Compound Sigma Mixer

What is a BMC Compound Sigma Mixer?

A BMC Compound Sigma Mixer, also known as a Sigma Blade Kneader or Z-Arm Kneader, is a heavy-duty industrial mixing machine designed for processing high-viscosity, sticky, and dough-like materials. It is specifically engineered for the efficient production of Bulk Molding Compound (BMC), a thermoset composite reinforced with glass fibers, used in electrical enclosures, automotive parts, manhole covers, insulators, and other durable products.

What materials can the BMC Compound Sigma Mixer process?

It excels at kneading, shearing, and homogenizing BMC formulations, which typically include unsaturated polyester resin, mineral fillers, glass fibers, catalysts, and various additives. It is ideal for fibrous, high-viscosity materials where standard mixers often fail.

What are the key features of the BMC Compound Sigma Mixer?

Salient features include construction in SS 316, SS 304, or Mild Steel; optional jacket for heating/cooling with mineral wool insulation; tangential Z-shaped blades for uniform mixing; PTFE shaft seals; minimal blade-to-trough gaps to prevent sticking; and options for manual/hydraulic discharge, spray systems, and vacuum systems.

How does the working principle of the Sigma Mixer support BMC production?

The tangential action of counter-rotating Z-shaped (Sigma) blades at different speeds (typically 3:2 ratio) creates intensive shearing, folding, stretching, and recombining motions. This achieves thorough homogenization (up to 99% uniformity) without dead zones, with discharge via tilting, bottom valves, or extrusion screw.

What capacities and motor options are available?

Models range from ASM-50 (50L working / 80L gross, 5–7.5 HP) to ASM-3000 (3000L working / 3800L gross, 100–120 HP). Working capacity is typically around 60% of total volume, with general and heavy-duty motor options. Power voltage can be customized.

What discharge and temperature control options does it offer?

Discharge options include hand-wheel (manual) or hydraulic (automatic) tilting, bottom valves, or extrusion screw. An optional jacketed design with insulation supports heating or cooling to maintain optimal temperatures during mixing of viscous compounds.

What industries commonly use the BMC Compound Sigma Mixer?

It is primarily used in the production of BMC composites for construction, automotive, and electrical industries. The versatile Sigma Mixer design also finds applications in Pharmaceutical, Nutraceutical, Herbal, Ayurvedic, Biotech, Cosmetic, and Chemical industries for high-viscosity materials.

What are the main benefits of using a BMC Compound Sigma Mixer?

It provides superior performance for fibrous, high-viscosity materials, energy-efficient thorough dispersion, durable construction for longevity, easy cleaning, and consistent high-quality homogeneous compounds ideal for demanding composite manufacturing.

What materials of construction are available and their finishes?

Available in Stainless Steel 316 or 304 (with matt or mirror polish as required) for hygiene and corrosion resistance, or Mild Steel with red oxide and epoxy paint finish. PTFE seals ensure compatibility, and hard chrome plating options enhance wear resistance.

Is the BMC Compound Sigma Mixer customizable?

Yes. Options include different blade designs (tangential/overlapping), jacketed heating/cooling, vacuum or spray systems, VFD for speed control, custom capacities, and material finishes to meet specific production needs and cGMP standards.
