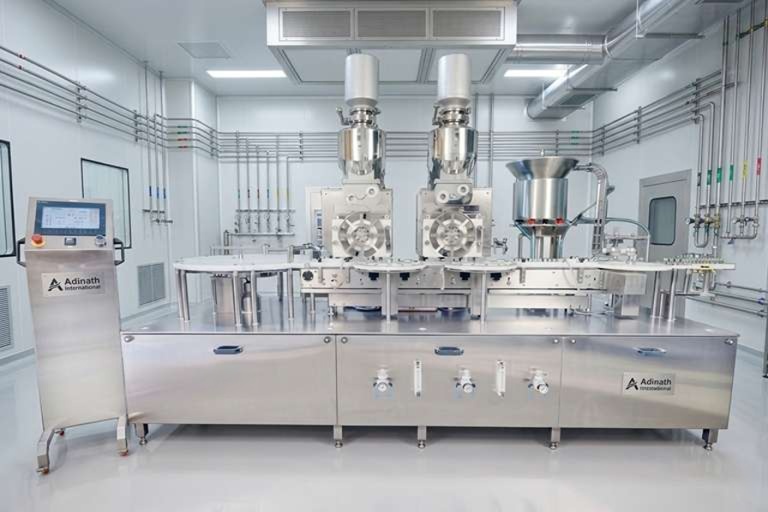

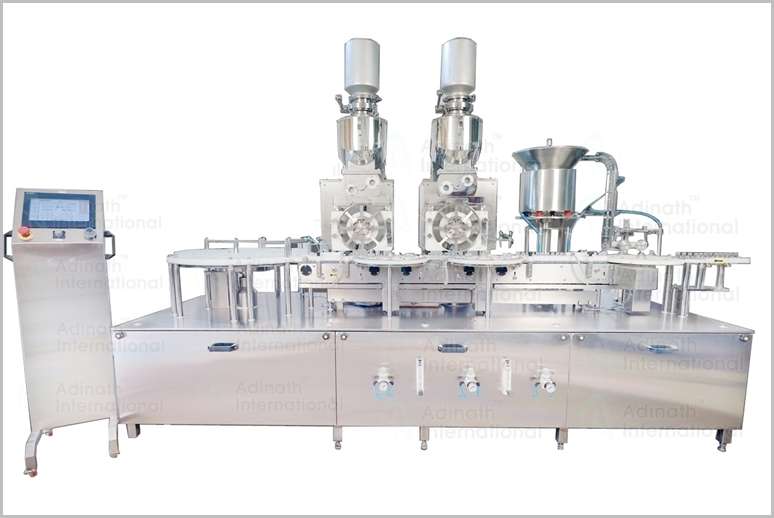

High Speed Vial Powder Filling Machine

Q: How does the High Speed Vial Powder Filling Machine ensure accuracy and sterility?

The machine ensures high accuracy of ±2% to ±3% through its vacuum-pressure powder wheel and adjustable doctor blade. Sterility is maintained by: “No Vial – No Filling” system Built-in rubber stoppering unit that minimizes exposure time Agitated hopper for uniform powder bulk density All product contact parts in SS 316L (easily removable for sterilization) Operation under Laminar Air Flow (Class 100) It fully complies with USFDA, WHO, and cGMP guidelines.

Q: What are the power requirements and key features of the High Speed Vial Powder Filling Machine?

Power requirements are model-specific: Single Track : 3.5 HP Double Track : 4.5 HP (Voltage is customizable as per your country’s requirements.) Key features include: High-speed double-track option for maximum output Agitated powder hopper with mechanical agitators Safety clutch to prevent vial breakage Variable AC frequency drive for speed control Digital production counter Easy integration with vial washing, depyrogenation, capping, and labeling machines for a complete production line.

Description

High Speed Vial Powder Filling Machine is an advanced automated system designed primarily for the pharmaceutical, biotech, nutraceutical, and cosmetic industries. It specializes in the precise, sterile filling of dry powders into glass or plastic vials, followed by immediate sealing to maintain product integrity. Vial Powder Filling Machine address key challenges in high-volume production, including dosage accuracy, contamination prevention, and regulatory compliance, while enabling rapid output to meet large-scale demands. It is ideal for large-scale production of injectable antibiotics, vaccines, lyophilized drugs, and other sterile powder formulations in the pharmaceutical and biotech industries.

This high-performance machine uses an advanced vacuum-pressure powder wheel system with an agitated hopper and adjustable doctor blade to ensure uniform powder dosing and consistent bulk density. The built-in stoppering unit minimizes exposure time, reduces the Laminar Air Flow area, and maintains strict aseptic conditions.

Salient Features of High Speed Vial Powder Filling Machine

High Production Speed
Vacuum-Pressure Powder Filling System
Agitated Powder Hopper
Built-in Rubber Stoppering Unit
“No Vial – No Filling” System

High Filling Accuracy
Compact cGMP Design
Safety Features
Variable Speed Control
Easy Line Integration

Working Principle of High Speed Vial Powder Filling Machine

Vial Feeding: Sterilized vials are fed via an in-feed turntable or unscrambler onto a conveyor or rotary table.

Powder Dosing: Powder is dispensed using auger screws or vacuum/pressure systems, with pre- and post-gassing to reduce oxygen exposure.

Filling and Sealing: Precise volumetric filling occurs, followed by immediate rubber stopper insertion (sterile stoppering) and optional crimping/capping.

Quality Checks: Inline inspection for fill levels, stopper position, and defects, with rejection of non-conforming vials.

Output: Filled and sealed vials exit for further processing, with production rates tracked digitally.

Technical Specification of High Speed Vial Powder Filling Machine

Model	AI-DPFM
Filling Accuracy	±1% (with uniform powder and controlled humidity)
Fill Range	250mg to 1.5g (single dose) 1.5g to 6g (double, triple, or quadruple dose depending on setup)
Rubber Stopper Diameter	20mm
Vial Diameter	25mm to 38mm
Vial Height	Up to 75mm
Humidity Requirement	Below 28% RH (to be maintained by customer)
Power Supply	415VAC (3-Phase) & 220VAC (Single Phase), 50 Hz with A.C. Drive
Power Consumption	4 H.P.
Compressed Air	Filtered, oil-free at 4 kg/cm²
Vacuum Requirement	28” Hg at 500–600 LPM
Conveyor Height	Adjustable between 815mm to 940mm
Overall Dimensions	3000mm (L) x 1000mm (W) x 1675mm (H) (approx.)

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Vial Filling Machine

Automatic Vial Filling Machine

High Speed Vial Filling Machine

Vial Liquid Filling Machine

Vial Powder Filling Machine

Automatic Vial Filling and Rubber Stoppering Machine

Lab Scale Vial Filling Stoppering & Cap Sealing Machine

Injectable Vial Powder Filling & Stoppering Machine

Peristaltic Pump based Vial Filling Machine

Applications of Vial Filling Machine

Benefits of High Speed Vial Powder Filling Machine

Efficiency Gains: Reduces manual labor, speeds up workflows, and lowers production costs through high throughput and low waste.

Compliance and Safety: Meets aseptic standards, with features like IPC (in-process control) to avoid residual toxicity or batch errors.

Customization: Models manufacturing by us offer tailored options, such as multi-head (6–8 heads) for even faster rates.

Key Components of High Speed Vial Powder Filling Machine

No Vial No Fill system- no wastage of product.

Hygienic and GMP-Compliant Operation with SS316 Contact Parts

304 stainless steel structural frame, corrosion resistant.

Precision dosing with Variable Hopper Speed Control

The contamination-free powder hopper is designed to be used in combination with the Bin & Cone Discharge System to prevent cross-contamination while transferring powder from the bin to the machine.

Break down the entire hopper to clean it quickly and maintain it.

Batch completion with minimal powder residue

Tool-less adjustments doctor blade wiper blade.

Fast, tool-less conversion of hopper and agitator.

Well-controlled humidity for high dosing precision of ±1%.

It features a specially designed integrated stoppering unit for static sealing.

Flexibility for Multi-Dose with optional change parts.

Integrated Vial Drives for smooth tube manipulations.

Storage of vials in a Cryogenic storehouse.

Easy to clean with 4-inch ground clearance.

Sanitary operations thanks to raised conveyor track

Automatic Infeed and Outfeed reduces manual ergonomic handling.

Stopper Detection checks if the stopper is missing and stops the machine. (optional)

Machine Air & Vacuum Monitoring for low pressure or vacuum. (optional)

FAQ for High Speed Vial Powder Filling Machine

What is a High Speed Vial Powder Filling Machine and what does it do?

The High Speed Vial Powder Filling Machine is a fully automatic, cGMP-compliant monoblock system designed for high-speed filling of sterile dry powders into glass vials, followed by immediate rubber stoppering. It is ideal for large-scale production of injectable antibiotics, vaccines, lyophilized drugs, and other sterile powder formulations. The machine uses a vacuum-pressure powder wheel system with an agitated hopper for precise and uniform dosing while maintaining strict aseptic conditions.

What is the production capacity of the High Speed Vial Powder Filling Machine?

The High Speed Vial Powder Filling Machine is available in two models:

Single Track: Up to 100 vials per minute (~6,000 vials/hour)
Double Track: Up to 200 vials per minute (~12,000 vials/hour)

Actual output depends on vial size, powder characteristics, fill weight, and bulk density. It is one of the fastest solutions for sterile powder injectable production.

Which vial sizes and fill weights can the High Speed Vial Powder Filling Machine handle?

The machine supports vial sizes from 5ml to 250ml and can accurately fill powder doses from 50 mg to 10 grams per vial (single or multiple dosing). Changeover between different vial sizes is quick with minimum change parts, making it highly versatile for pharmaceutical manufacturers producing various powder injectables.

How does the High Speed Vial Powder Filling Machine ensure accuracy and sterility?

The machine ensures high accuracy of ±2% to ±3% through its vacuum-pressure powder wheel and adjustable doctor blade. Sterility is maintained by:

“No Vial – No Filling” system
Built-in rubber stoppering unit that minimizes exposure time
Agitated hopper for uniform powder bulk density
All product contact parts in SS 316L (easily removable for sterilization)
Operation under Laminar Air Flow (Class 100)

It fully complies with USFDA, WHO, and cGMP guidelines.

What are the power requirements and key features of the High Speed Vial Powder Filling Machine?

Power requirements are model-specific:

Single Track: 3.5 HP
Double Track: 4.5 HP

(Voltage is customizable as per your country’s requirements.)

Key features include:

High-speed double-track option for maximum output
Agitated powder hopper with mechanical agitators
Safety clutch to prevent vial breakage
Variable AC frequency drive for speed control
Digital production counter
Easy integration with vial washing, depyrogenation, capping, and labeling machines for a complete production line.
