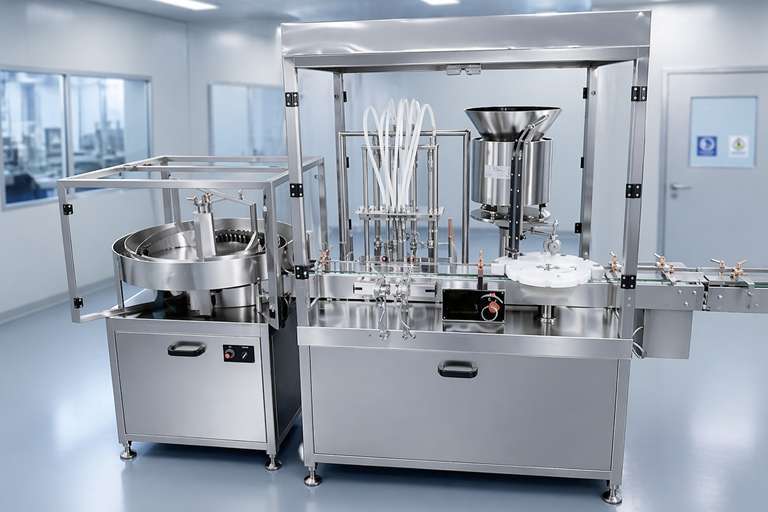

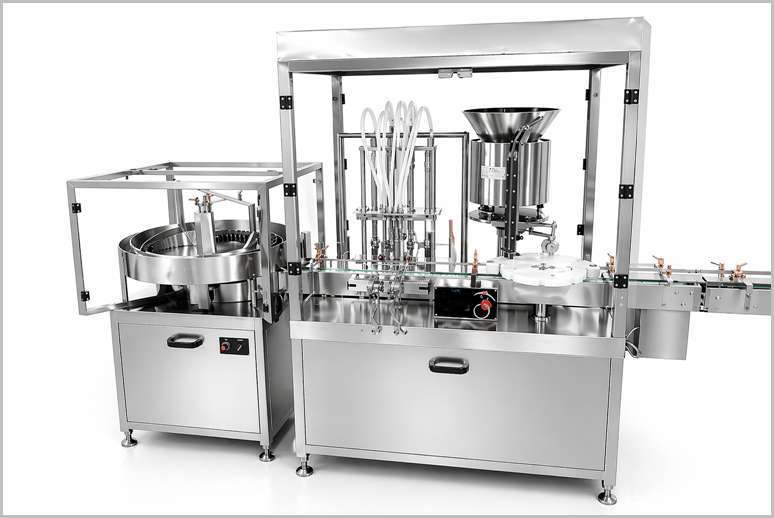

PLC Based Vial Filler

Description

PLC Based Vial Filler is a fully automated, high-precision liquid filling system designed for pharmaceutical, biotechnology, and cosmetic industries to fill sterile or non-sterile liquids into glass or plastic vials with exceptional accuracy, repeatability, and compliance with cGMP, FDA, and 21 CFR Part 11 standards. Engineered for the pharmaceutical industry, the PLC Based Vial Filler is ideal for filling vaccines, biologics, antibiotics, oncology drugs, and other parenteral preparations. It minimizes human intervention, reduces contamination risks, and delivers excellent batch-to-batch repeatability.

This machine ensures compliance with cGMP standards for sterile injectable filling. If you need details on specific models, pricing, or comparisons with multi-head machines, let me know!

Salient Features of PLC Based Vial Filler

Advanced PLC Control System with HMI Touchscreen
High Filling Accuracy and Repeatability
High-Speed Production Capability
GMP-Compliant Design and Sterile Operation

Flexibility and Easy Changeover
Automation and Safety Features
User-Friendly Operation and Low Maintenance
Compliance and Integration

Types of Vial Filling Machine

Automatic Vial Filling Machine

High Speed Vial Filling Machine

Vial Liquid Filling Machine

Vial Powder Filling Machine

Automatic Vial Filling and Rubber Stoppering Machine

Lab Scale Vial Filling Stoppering & Cap Sealing Machine

Injectable Vial Powder Filling & Stoppering Machine

Peristaltic Pump based Vial Filling Machine

Applications of Vial Filling Machine

Benefits of PLC Based Vial Filler

Easy recipe storage and recall (up to hundreds of products)

Precise servo synchronization

Remote diagnostics and troubleshooting

Data logging and compliance with Annex 11 & 21 CFR Part 11

High uptime and minimal changeover time

Key Components of PLC Based Vial Filler

Control System: Advanced Programmable Logic Controller (PLC) combined with Human Machine Interface (HMI) or SCADA for real-time monitoring, recipe management, precise control of filling volume, speed, and process parameters.

Filling Principle: Peristaltic pumps, servo-driven piston pumps, or time-pressure technology ensuring ±0.5% or better filling accuracy.

Nozzle System: Diving nozzle or bottom-up filling mechanism to minimize foaming and contamination, with no-vial-no-fill and no-stopper-no-fill sensors.

Sterility & Cleanliness: Designed for laminar air flow compatibility, available with isolator or RABS integration, CIP/SIP-capable options.

Vial Transport: Servo-controlled or mechanical starwheel indexing for gentle and precise vial handling.

Safety & Interlocks: Automatic rejection of under/over-filled, missing stopper, or damaged vials; full audit trail and electronic batch reporting.

Speed: 30–400 vials per minute depending on configuration.

Optional Modules: Integrated stoppering, capping/crimping, labeling, and tray loading stations.

FAQ for PLC Based Vial Filler

What is a PLC Based Vial Filler?

A PLC Based Vial Filler is an advanced aseptic vial filling machine equipped with a Programmable Logic Controller (PLC) and a user-friendly touchscreen HMI. It automatically handles filling, stoppering (and often capping) of sterile liquids into pharmaceutical injection vials. The PLC system ensures precise control over fill volume, speed, and operations, making it ideal for GMP-compliant production of vaccines, biologics, and other parenterals with minimal human intervention.

What are the main advantages of a PLC Based Vial Filler?

Key advantages include:

High dosing accuracy and repeatability (±0.5% to ±1%)
Easy parameter adjustment and real-time monitoring via touchscreen HMI
Reduced human error and improved process consistency
Data logging, batch reporting, and optional 21 CFR Part 11 compliance for better traceability
Faster changeovers and lower downtime compared to mechanically controlled machines
Seamless integration with complete injectable lines (washing → sterilization → filling → sealing)

It significantly boosts production efficiency while meeting stringent regulatory standards.

What is the typical filling accuracy and production capacity of a PLC Based Vial Filler?

Most PLC Based Vial Fillers deliver excellent filling accuracy of ±0.5% to ±1% across a wide volume range (0.5 ml to 100 ml or more). Production capacity typically ranges from 30–120 vials per minute (or higher in multi-head configurations), depending on the number of filling heads, vial size, and product viscosity. The PLC enables precise servo or pump control for consistent output even at high speeds.

How does the PLC control system improve the performance of a Vial Filler?

The PLC system acts as the “brain” of the machine, offering:

Intuitive HMI touchscreen for setting fill volumes, speeds, and recipes
Real-time monitoring with alarms for faults, low product level, or missing vials (“No Vial – No Fill”)
Automated interlocks and safety features for reliable operation
Password protection, production counters, and data logging for audit readiness
Easy integration with SCADA systems for advanced plant-level control

This results in higher Overall Equipment Effectiveness (OEE), reduced operator training time, and consistent quality across batches.

What factors should I consider when choosing a PLC Based Vial Filler?

Important factors include:

Required output capacity and number of filling heads
Compatibility with your vial size range (2 ml to 100 ml) and product type (liquid/viscous)
Level of automation and integration with RABS or isolators for sterility
PLC brand (Siemens, Mitsubishi, etc.) and HMI features
Compliance with cGMP, FDA, and 21 CFR Part 11 requirements
Ease of cleaning, changeover time, and after-sales support

Our team can recommend the right model based on your batch size and regulatory needs.
