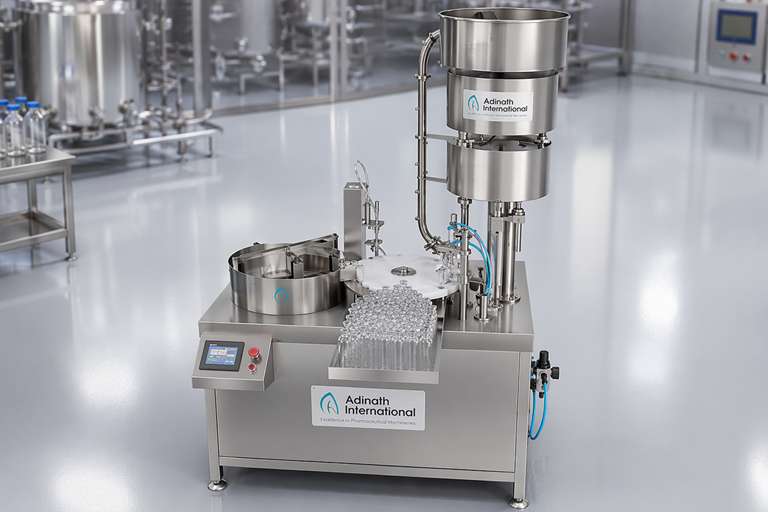

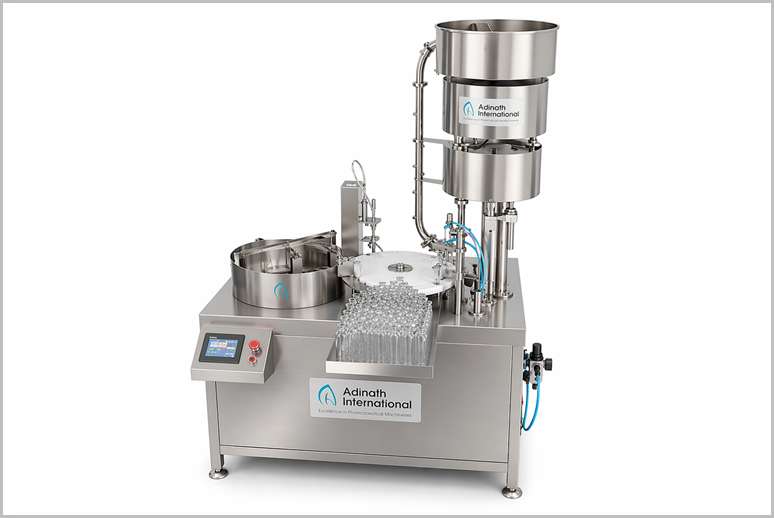

Single Syringe Vial Filler

A Single Syringe Vial Filler is a specialized piece of equipment or a manual process used in pharmaceutical, laboratory, or medical settings to accurately dispense and fill a single vial with liquid medication, solution, or substance using one syringe. This is commonly applied in small-batch production, clinical trials, research, or patient self-administration scenarios where precision, sterility, and minimal waste are critical. Unlike automated multi-syringe systems designed for high-volume manufacturing, a single syringe approach prioritizes flexibility for low-volume or one-off fillings, often integrating with benchtop or semi-automatic machines.

Single Syringe Vial Filler Video

Key Features and Components

• Syringe Mechanism: Employs a single syringe equipped with a needle or spike for drawing and injecting fluid. Peristaltic or rotary piston pumps may be integrated for controlled dispensing, ensuring accuracy within ±1% volume tolerance.

• Vial Compatibility: Designed for pre-sterilized vials, often ready-to-use (RTU) formats. Includes vacuum-assisted stoppering to prevent contamination and maintain seal integrity.

• Sterility and Safety: Features single-use fluid paths, alcohol wipe compatibility for vial septums, and needle-free adapters to reduce needlestick risks. Systems like vented vial adapters allow air displacement without bubbles.

• Operation Mode: Manual for simple draws or semi-automatic for repeatable fills. In manual mode, air is injected into the vial first to equalize pressure, followed by drawing the exact dose.

Applications and Benefits

• Pharma and Biotech: Ideal for filling vials with APIs, vaccines, or biologics in R&D/clinical phases, reducing overfill waste compared to multi-dose vials.

• Medical Use: Enables safe home or clinic preparation of single-dose injections, improving patient convenience over traditional vial-to-syringe draws.

• Advantages:

  • High precision and low shear for sensitive fluids.

  • Cost-effective for low volumes; quick changeovers.

  • Enhances yield by minimizing dead volume in the syringe needle.

Salient Features of Vial Filling Machine

• Small footprint cGMP complied machine.

• 2ml to 250ml fill dosage in one machine.

• Filling accuracy of ±1% depends upon liquid characteristics & vial size.

• “No Vial – No Filling” feature incorporated.

• In-feed Turn Table attached with the machine for automatic feeding of vials.

• All Contact Parts Made from AISI SS 316L & framework by AISI SS 304.

• No cross contamination.

• Easy to validate filling system for small/large batch production.

• Variable A.C. frequency drive for speed adjustment.

• Digital Vial Counter for counting production output.

• On-line Filling mechanism.

• IQ/OQ validation documents can be offered.

• PLC system with Graphical User Interface. (Optional)

Working Principle of Vial Filler Machine

Our vial filling machines comprise of a stainless steel slat conveyor and vials are transferred using this conveyor. Once the vials reach the filling station from the conveyor, the next phase of operation begins. Filling station is equipped with a number of heads for quicker operations. Here precise filling of vials takes place and they are now moved for the stoppering process. This is a very crucial part of the entire process as this ensures the vials remain immaculate and the product inside the vials also remains preserved. Pharmaceutical products must always remain free of external contaminants and other factors. The medicinal value may get compromised otherwise and hence vial filling and capping machines are indispensable to the pharmaceutical industry.

Technical Specification of Small Vial Filling Machine

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
