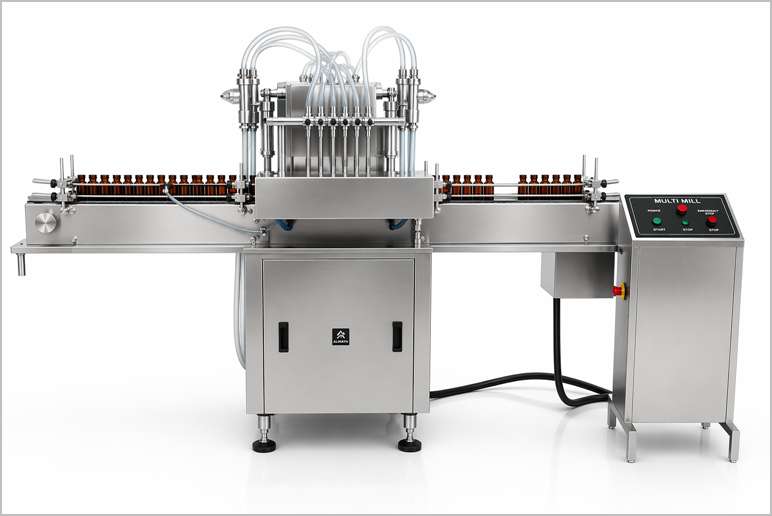

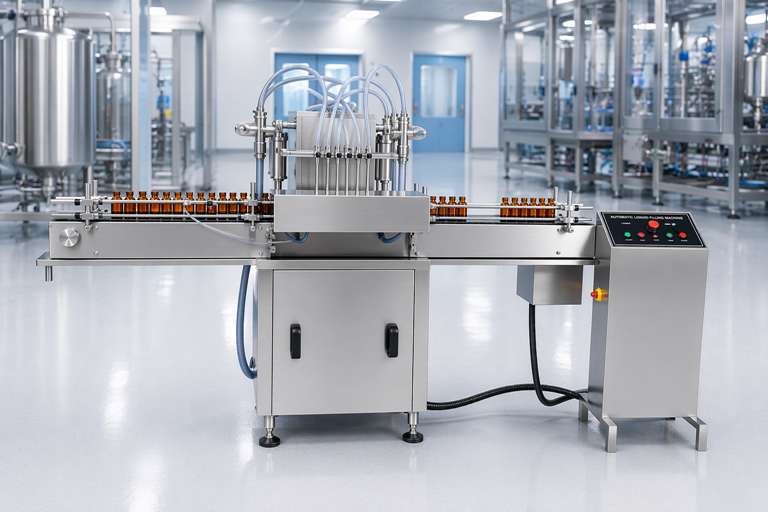

Automatic Bottle Filler

An automatic bottle filler is a specialized machine designed to streamline the process of filling bottles with liquid products in various industries, including food and beverage, pharmaceuticals, cosmetics, and chemicals. These machines automate the filling process, ensuring precision, efficiency, and hygiene while minimizing human intervention and product waste.

Automatic Bottle Filler Video

Key Features of Automatic Bottle Fillers

1. Automation and Precision:

   • Automatic bottle fillers guide, organize, fill, and release bottles as part of an automated packaging line, often integrated with capping and labeling systems. They use advanced technologies like PLC (Programmable Logic Controller) systems, servo motors, or sensors to ensure accurate filling with minimal errors, achieving precision levels as high as ±0.5% for volume or weight-based filling.

   • They can fill bottles based on volume (volumetric), weight (net weigh), or level (overflow), depending on the machine type and product requirements.

2. High-Speed Operation:

   • Capable of filling anywhere from 1,000 to 90,000 bottles per hour, depending on the model and production scale. For example:

     • Small-scale machines like the Spagni 2-Nozzle Gravity Filler can fill 425+ bottles per hour.

     • High-capacity machines like Comac’s Master RS Glass/PET can handle up to 90,000 bottles per hour.

   • Speed is adjustable, allowing flexibility for different bottle sizes and production needs.

3. Versatility in Liquid Types:

   • Designed to handle a wide range of liquids, including:

     • Free-flowing liquids (e.g., water, juices, alcohol).

     • Viscous liquids (e.g., oils, syrups, creams, sauces).

     • Foaming or carbonated beverages (using back-pressure or anti-foam nozzles).

     • Corrosive or caustic liquids (with specialized materials like HDPE or stainless steel).

   • Some machines can also handle liquids with particulates, such as sauces or adhesives.

4. Construction and Hygiene:

   • Typically constructed from stainless steel or corrosion-resistant materials like HDPE to meet hygiene standards, particularly in food, pharmaceutical, and cosmetic industries.

   • Features like quick-disassembly valves, flanged fittings, and anti-drip/anti-foam nozzles ensure easy cleaning and compliance with GMP (Good Manufacturing Practice) standards.

   • Contamination-free filling is achieved in some models by ensuring only the filling tube contacts the liquid, reducing cross-contamination risks.

5. Flexible Bottle Handling:

   • Accommodates various bottle types (glass, PET plastic, metal cans, jars) and sizes, ranging from 5ml to 50L.

   • Adjustable settings for bottle height, nozzle spacing, and fill volume allow seamless changeovers between different container sizes without requiring additional parts.

6. User-Friendly Interface:

   • Equipped with touchscreen displays and PLC controls for easy operation, real-time monitoring, and storing filling programs for future use.

   • Features like bottle counters, production rate displays (bottles per minute), and emergency stop buttons enhance usability and safety.

7. Filling Technologies:

   • Volumetric Filling: Uses pistons or pumps to dispense a precise volume of liquid, ideal for low to medium viscosity liquids.

   • Vacuum-Level Filling: Fills bottles to a specific level, often used for oils or foaming liquids to prevent emulsification.

   • Gravity Filling: Relies on gravity to fill free-flowing liquids, suitable for water or thin liquids.

   • Overflow Filling: Recirculates excess liquid back to a holding tank, ensuring consistent fill levels for transparent bottles.

   • Flowmeter or Load Cell Filling: Used for high-value or expensive liquids like oils or pharmaceuticals for maximum accuracy.

8. Integration with Production Lines:

   • Often part of a larger bottling line, integrating with conveyors, capping machines, and labeling systems for a fully automated process.

   • Some models, like SMF’s SYNCRO UNIT, eliminate air conveyors by directly transferring bottles from blowers to fillers.

Types of Automatic Bottle Fillers

• Inline Fillers: Linear systems with 1 to 20+ filling heads, suitable for small to medium production (up to 120 bottles per minute).

• Rotary Fillers: High-speed systems for large-scale production, capable of filling up to 300 bottles per minute.

• Piston Fillers: Ideal for viscous liquids, offering high accuracy for products like sauces or pastes.

• Overflow Fillers: Best for consistent fill levels in clear bottles, often used for beverages or cosmetics.

• Specialized Fillers: Designed for specific applications, such as corrosive fillers for chemicals or molten fillers for heated products.

Applications

Automatic bottle fillers are widely used in:

• Food and Beverage: Filling water, juices, milk, oils, sauces, and carbonated drinks.

• Pharmaceuticals: Precise filling of tinctures, reagents, and oral liquids with strict hygiene requirements.

• Cosmetics: Packaging shampoos, lotions, and essential oils.

• Chemicals: Handling detergents, lubricants, and corrosive liquids.

• E-liquids and Specialty Products: High-precision filling for small vials or cartridges.

Benefits

• Efficiency: Automates repetitive tasks, freeing operators for other duties and increasing production speed.

• Accuracy: Reduces overfill and waste, especially for high-value products.

• Hygiene: Minimizes manual handling, ensuring compliance with industry standards.

• Flexibility: Adjustable settings and modular designs accommodate diverse products and bottle types.

• Cost-Effectiveness: Upgrading existing semi-automatic systems with automation modules like the Auto-Fill™ can save costs compared to purchasing new machines.

Considerations for Selection

When choosing an automatic bottle filler, consider:

• Product Viscosity: Determines the filling technology (e.g., piston for thick liquids, gravity for thin liquids).

• Production Volume: Small-scale operations may need compact inline fillers, while large industries require high-capacity rotary fillers.

• Bottle Type and Size: Ensure compatibility with your container materials and dimensions.

• Hygiene Requirements: Stainless steel or HDPE construction for corrosive or sanitary applications.

• Budget and Scalability: Modular systems allow future upgrades as production grows.

Automatic bottle fillers are essential for modern production lines, offering speed, precision, and hygiene for a wide range of liquid products. Their versatility, robust construction, and integration capabilities make them suitable for businesses of all sizes, from small startups to large-scale industries. By selecting a machine tailored to your product type, production volume, and industry requirements, you can significantly enhance efficiency and product quality.

Salient Features of Automatic Bottle Filler

• “No Bottle – No Fill” system.

• All contact parts made of SS316 material with easy removal system for Autoclaving/Sterilization/Cleaning.

• Machine construction in SS 304 material.

• Diving Nozzle for Foam free filling.

• Very High Fill Accuracy.

• Automatic In-feed and Exit of Bottles.

• Minimum Change Over time.

• Unique Free Spinning Bottle Separator- No pneumatic operation.

• Built-in A.C. Variable Frequency Drive System.

Process Operation of Automatic Bottle Filling Machine

Bottles are feed on to in-built Infeed turn table, from where it delivered to SS conveyor belt. Conveyor belt transport bottles to filling station. Filling station has Pneumatic bottle stopper for exact bottle neck centering of bottles during filling operation. Nozzle goes upwards slowly from the bottom level of bottle towards neck during filling to minimize forming adjustable nozzle is reciprocating according to filling dose. The dosing block with a hexagonal bolt, this means different fill size can be set easily within minimum use of time. After liquid filling bottles are delivered to capping/labeling machine conveyor for further operations.

Technical Specification of Automatic Bottle Filler Machine

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
