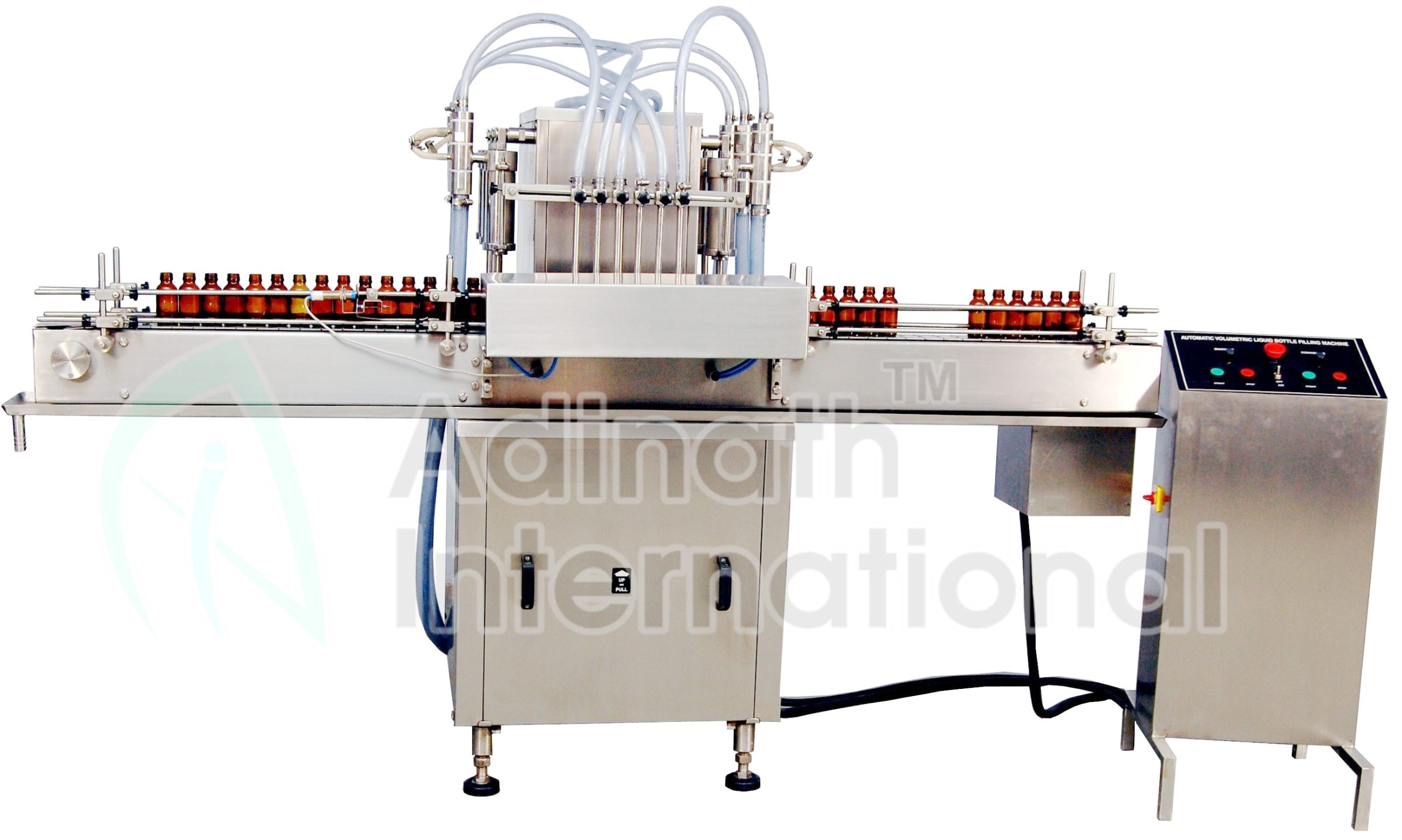

Automatic Funnel Type Bottle Filling Machine

An Automatic Funnel Type Bottle Filling Machine is a specialized piece of industrial packaging equipment designed for high-volume, precise filling of bottles with liquids, powders, or granular materials. It incorporates a funnel mechanism as a key component to guide and direct the product into the bottle’s opening, ensuring minimal spillage, consistent fill levels, and efficient throughput. This type of machine is particularly useful in industries like food and beverage, pharmaceuticals, cosmetics, and chemicals, where accuracy and hygiene are critical. Unlike manual funnels, the automatic version integrates conveyor systems, sensors, and automated controls to handle bottles continuously without human intervention, boosting productivity while reducing labor costs and error rates.

Bottle Filling Machine Video

Key Components

• Funnel System: The core feature, often a wide-mouthed, tapered hopper or chute that funnels the product (e.g., liquid, powder, or granules) directly into the bottle neck. For powders or granules, it may include vibratory channels or auger screws to prevent clumping and ensure even flow. In liquid applications, it pairs with valves to control flow via gravity or pressure.

• Conveyor and Indexing Mechanism: Bottles are fed via a conveyor belt, positioned under the funnel using indexing devices (e.g., linear or star-wheel systems) for precise alignment.

• Filling Heads/Nozzles: Multiple heads (e.g., 2–8) allow simultaneous filling of several bottles. For funnel-type designs, these are often positive displacement pumps or vibratory fillers that deposit product into the funnel.

• Sensors and Controls: Includes photoelectric sensors for bottle detection, level sensors to stop filling at the desired volume, and PLC (Programmable Logic Controller) systems for automation. Features like servo motors ensure accurate dosing.

• Hopper and Agitator: A reservoir above the funnel holds the product, with an agitator to maintain flow (especially for viscous or powdery substances).

• Safety and Hygiene Features: Constructed from stainless steel (e.g., 304 grade) for easy cleaning and compliance with GMP standards. Includes automatic shut-off valves and enclosed designs to prevent contamination.

How It Works

1. Bottle Feeding: Empty bottles are loaded onto a conveyor and transported to the filling station. Sensors detect the bottle’s position and size, sorting or aligning them if needed (e.g., using IR sensors for size-based sorting in advanced models).

2. Product Dispensing: The product is released from the hopper into the funnel above the bottle. For liquids, gravity or pump pressure pushes it through; for powders/granules, an auger or vibratory system meters it volumetrically or by weight.

3. Filling Process: The funnel directs the product into the bottle. Automated valves open for a set time/volume (e.g., 0.1–200 ml per fill), monitored by load cells, flow meters, or timers. Overflow or bottom-up filling prevents foaming or spills.

4. Completion and Ejection: Once filled (e.g., to a pre-set level like 25 ml from the top), sensors trigger shut-off. The bottle moves to capping/labeling stations via conveyor.

5. Cycle Repeat: The process repeats at speeds up to 80–90 bottles per minute, depending on model and product viscosity.

This funnel-based automation minimizes air bubbles, ensures uniform fills (accurate to within 1–2% variance), and handles various bottle shapes/sizes (e.g., PET, glass, 100 ml–5 L).

Types and Applications

• Liquid-Focused: Gravity or pump-driven funnels for water, oils, beverages, or creams. Ideal for non-viscous products like juices or cleaners.

• Powder/Granular-Focused: Auger or vibratory funnels for dry mixes (e.g., flour, spices, pharmaceuticals). Suited for 5–5000 g fills in jars or tins.

• Hybrid: Handles both, with adjustable funnels for viscous pastes or foamy liquids.

Common applications include bottling beverages, filling cosmetic lotions, or packaging chemical powders. It’s scalable for small breweries (3,000 bph) to large plants (90,000 bph).

Advantages

• Efficiency: Fills 60–120 bottles/minute, reducing manual labor and production time by up to 30 minutes per batch compared to hand-filling.

• Accuracy and Hygiene: Precise metering (e.g., via volumetric or net-weight methods) minimizes waste (under/over-filling by <10%) and contamination risks, crucial for pharmaceuticals or food.

• Versatility: Adjustable for different viscosities (thin liquids to thick pastes) and container types; easy changeovers for cleaning.

• Cost-Effectiveness: Low maintenance, energy-efficient (some models electricity-free), and customizable to avoid expensive overhauls.

• Safety: Automated controls reduce operator fatigue and errors; features like anti-tamper integration for secure packaging.

Salient Features of Bottle Filling Machine

• “No Bottle – No Fill” system.

• All contact parts made of SS316 material with easy removal system for Autoclaving/Sterilization/Cleaning.

• Machine construction in SS 304 material.

• Diving Nozzle for Foam free filling.

• Very High Fill Accuracy.

• Automatic In-feed and Exit of Bottles.

• Minimum Change Over time.

• Unique Free Spinning Bottle Separator- No pneumatic operation.

• Built-in A.C. Variable Frequency Drive System.

Process Operation of Bottle Filling Machine

Bottles are feed on to in-built Infeed turn table, from where it delivered to SS conveyor belt. Conveyor belt transport bottles to filling station. Filling station has Pneumatic bottle stopper for exact bottle neck centering of bottles during filling operation. Nozzle goes upwards slowly from the bottom level of bottle towards neck during filling to minimize forming adjustable nozzle is reciprocating according to filling dose. The dosing block with a hexagonal bolt, this means different fill size can be set easily within minimum use of time. After liquid filling bottles are delivered to capping/labeling machine conveyor for further operations.
