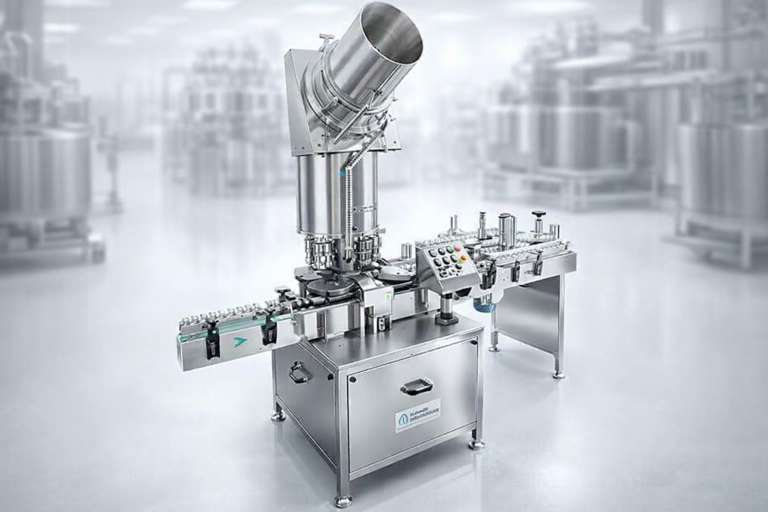

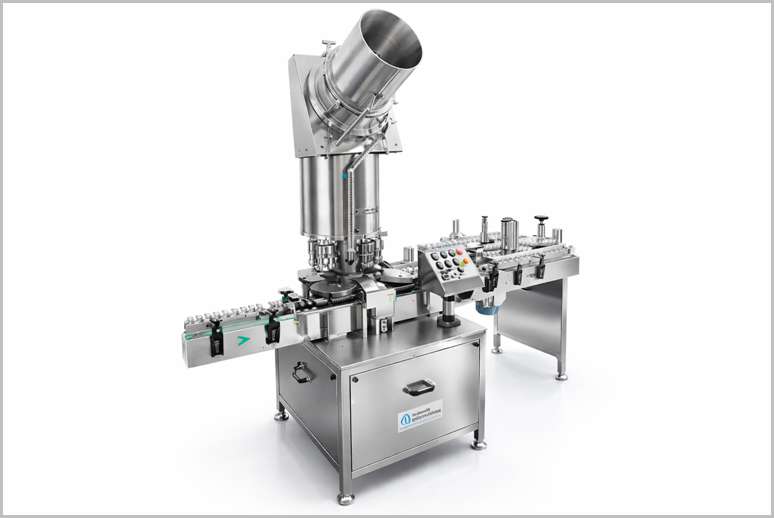

Four Head Ropp Screw Capping Machine

Q: What is the production capacity of the Four Head ROPP Screw Capping Machine?

This machine has a production capacity of up to 80 bottles per minute (ACSR-120). The actual output depends on bottle size, cap type, and product characteristics. It is well-suited for medium-scale production requirements.

Q: What bottle and cap sizes can the machine handle?

The machine supports a wide range of formats: Bottle Diameter : 24 mm to 90 mm Bottle Height : 50 mm to 250 mm Cap Sizes : 20 mm, 25 mm, and 28 mm (with change parts) It works efficiently with round, square, or flat glass and hard plastic bottles.

Description

Four Head ROPP Screw Capping Machine is an automated packaging machine designed for high-speed, precise sealing of bottles with aluminum ROPP or screw caps. It is widely used in industries such as pharmaceuticals, food and beverages, cosmetics, chemicals, and distilleries for capping bottles containing products like dry syrups, edible oils, shampoos, hand sanitizers, and spirits. The Four Head ROPP Screw Capping Machine is a versatile, precision-engineered machine built to apply tamper-evident ROPP caps or screw caps to glass, plastic, or LDPE bottles of various shapes and sizes. It is constructed with a sturdy stainless steel (often SS304) frame, ensuring durability, hygiene, and compliance with Good Manufacturing Practices (GMP). The machine is fully automatic, minimizing operator intervention, and is designed for integration into high-speed production lines.

The Four Head ROPP Screw Capping Machine is a high-efficiency, automated solution for sealing bottles with tamper-evident caps. Its robust stainless steel construction, adjustable settings, and compatibility with various industries make it a reliable choice for medium to high-volume production lines. With advanced features like PLC controls and safety mechanisms, it ensures precision, safety, and compliance with industry standards.

Material Requirements: ROPP capping requires bottles with hard necks to withstand the pressure of thread formation.

Setup Complexity: While changeovers are quick, initial setup for different cap sizes may require a qualified engineer.

If you need details on specific models, pricing, or comparisons with multi-head machines, let me know!

Salient Features of Four Head Ropp Screw Capping Machine

Compact GMP model.
Single motor synchronizes Conveyor, star wheel and Platform Turret and speed can be varied by VFD.
Quick and very easy change over and setting from one size of Container to another by a Single Ratchet.
Parts coming in contact with the Container or the Aluminum cap or exposed to atmosphere are made out of stainless steel for long life.
Quick and very easy change over and setting from one size of Container to another by a Single Ratchet.
Star Wheel is equipped with safety clutch for automatic stoppage of machine in case of jamming or overloading.
Various safety features including Clutch system to avoid Bottle Breakage or Jamming

“Container Overturn – Machine Stop” mechanism.
“No Bottle – No Cap” system.
PLC system with Graphical User Interface can be offered.
Digital counter for counting production output.
Machine construction in Stainless Steel Finish
Cap Feeder with Variable Speed System for feeding control of caps. (optional)
Hopper can be completely dismantling for easy cleaning
IQ/OQ documentation can be provided.

Working Principle of Four Head Ropp Screw Capping Machine

The filled bottles moving on conveyor belt and fed into an in feed star wheel by in-feed worm. While moving in feed star wheel, bottles pick up caps one by one from delivery chute. The descending rotary sealing heads hold bottle’s neck with desired pressure. The sealing is done in a programmed roll-on manner, accurate positioned of the caps is done mechanically by means of a rotating unscramble, to direct the caps correctly into the chute, when the chute is filled up the rotating unscramble drive is disengaged, hence, there is no chance to damage of caps. The sealing roller takes place due to rotating sealing head and transfer movement of sealing & threading rollers due to sealing cam. The sealed bottles are discharged by exist star wheel on conveyors.

Technical Specification of Four Head Ropp Screw Capping Machine

Model	ACSR-120
No. of Capping Heads	Four
Production Rate	Up to 80 Containers/Minute
Container Diameter:	24mm to 90mm
Container Height:	50mm to 250mm
Cap Diameter:	20mm, 25mm & 28mm with the help of change parts
Power Specification:	1 H.P.
Electrical characteristics	440 Volts, 3 Phase, 50 Hertz, 4 Wire System
Conveyor Height	800mm to 900mm adjustable
Optional Accessories	Safety Cabinet Covering Machine
–	PLC with HMI
Overall Dimension	1675 (L) x 1000mm (W) x 1800mm (H) approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Capping and Sealing Machine

Automatic Ropp Screw Capping Machine

Automatic Bottle Screw Capping Machine

Automatic Bottle CRC Capping Machine

Automatic Bottle Lug Capping Machine

Automatic Vial Capping Machine

Automatic Jar Capping Machine

Automatic Linear Bottle Capping Machine

High Speed Vial Cap Sealing Machine

High Speed Bottle Capping Machine

Semi Automatic Bottle Capping Machine

Applications of Capping and Sealing Machine

Advantages of Four Head Ropp Screw Capping Machine

High Efficiency: Four-head design increases capping speed compared to single-head machines.

Tamper-Evident Security: ROPP caps provide visible proof of tampering, enhancing consumer safety.

Versatility: Handles a wide range of bottle and cap sizes with minimal adjustments.

Durability: Stainless steel construction ensures long life and resistance to corrosion.

Ease of Use: Intuitive controls and quick setup reduce operator training time.

Key Components of Four Head Ropp Screw Capping Machine

Construction and Design:
- Material: Made of stainless steel (SS304) with a matte finish for corrosion resistance and easy cleaning. Exposed parts may also include aluminum, Delrin, or silicon for durability.
- Adjustable Height: Equipped with an adjustable height system to accommodate different bottle sizes.
- Compact and Modular: The machine is self-supported with a compact design, featuring a conveyor, star wheels, and a cap-feeding system for seamless operation.

Capping Mechanism:
- Four Capping Heads: The machine has four rotating capping heads, each equipped with rollers to apply ROPP or screw caps with precise torque.
- Tamper-Evident Sealing: ROPP caps are crimped around the bottle neck, forming threads and a tamper-evident band that breaks upon opening, ensuring product security.
- Torque Control: Adjustable torque settings allow customization for different cap materials and bottle types, preventing cap damage or over-tightening.

Operation Process:
- Bottle Feeding: Bottles are fed from a filling machine or unscramble onto a stainless steel slat conveyor.
- Cap Placement: Bottles pick up caps from a delivery chute or cap-feeding bowl as they move into an in-feed star wheel.
- Capping: The star wheel aligns bottles under the four Capping heads, where rollers press and form the cap onto the bottle neck, creating threads and a secure seal.
- Exit: Sealed bottles move to an exit star wheel and proceed to the next process.
- No Bottle, No Cap System: A sensor stops the machine if no bottle is present, preventing cap wastage.

Performance:
- Speed: Capable of capping 65 to 80 bottles per minute, depending on bottle and cap size. Some models claim up to 100–120 bottles per minute with optimized settings.
- Cap Size: Supports ROPP or screw caps ranging from 19 mm to 38 mm in diameter and 15 to 18.3 mm in height.
- Container Compatibility: Suitable for round, square, or flat bottles made of glass, plastic, or LDPE.

Advanced Features:
- PLC and HMI: Optional programmable logic controller (PLC) with a 7-inch color touchscreen for error messaging and control.
- Cap Feeder Options: Vibratory bowl, mechanical orientator, or waterfall-type elevator for continuous cap feeding.
- Safety Features: Includes safety clutches on star wheels to prevent bottle breakage, emergency stop buttons, and optional toughened glass or acrylic safety cabinets.
- Quick Changeover: Minimal downtime for switching between bottle and cap sizes, with adjustable conveyor guides and universal couplings.
- GMP Compliance: Designed for hygienic operation, with easy-to-dismantle parts for cleaning.

Optional Add-Ons:
- Laminar Air Flow for class 100 cleanroom applications.
- Magnetic hysteresis clutch for precise torque control.
- Digital bottle counter for production tracking.
- Synchronized A/C drives for conveyor, star wheel, and turret coordination.

FAQ for Four Head Ropp Screw Capping Machine

What is a Four Head ROPP Screw Capping Machine?

The Four Head ROPP Screw Capping Machine (Model: ACSR-120) is a fully automatic rotary capping machine designed to apply and seal Roll-On Pilfer Proof (ROPP) aluminum caps as well as plastic screw caps on glass and rigid plastic bottles. It provides a secure, tamper-evident, and leak-proof seal, making it ideal for medium-volume production in the pharmaceutical, cosmetic, chemical, food, and beverage industries.

What is the production capacity of the Four Head ROPP Screw Capping Machine?

This machine has a production capacity of up to 80 bottles per minute (ACSR-120). The actual output depends on bottle size, cap type, and product characteristics. It is well-suited for medium-scale production requirements.

What bottle and cap sizes can the machine handle?

The machine supports a wide range of formats:

Bottle Diameter: 24 mm to 90 mm
Bottle Height: 50 mm to 250 mm
Cap Sizes: 20 mm, 25 mm, and 28 mm (with change parts)

It works efficiently with round, square, or flat glass and hard plastic bottles.

What safety features does the Four Head ROPP Screw Capping Machine include?

The machine is equipped with multiple safety interlocks for safe and reliable operation:

No Bottle – No Cap system
Container Overturn – Machine Stop
Safety clutch on the star wheel to prevent jamming and bottle breakage
Overload protection

These features minimize product wastage and protect both the operator and the machine.

What are the key benefits and optional features?

Key benefits include compact GMP design, stainless steel contact parts, quick size changeover with a single ratchet, consistent tamper-evident sealing, low maintenance, and easy cleaning. Optional features include:

PLC with HMI and touchscreen
Laminar Air Flow (LAF) unit
Full safety cabinet enclosure
Variable speed cap feeder
IQ/OQ documentation
