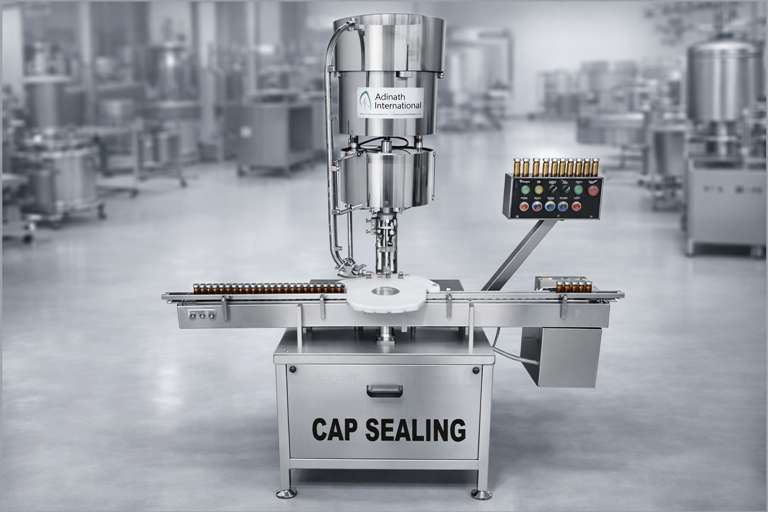

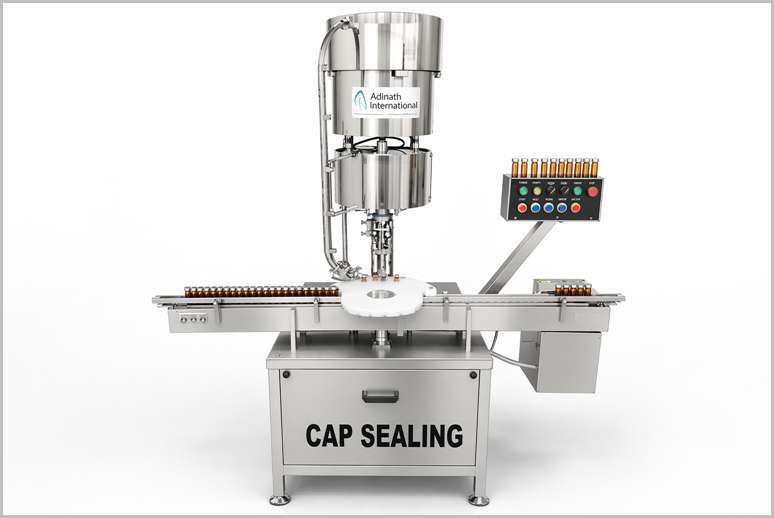

Single Head Vial Cap Sealing Machine

Q: Can the machine handle different types of caps and vial sizes?

Yes, the machine is highly versatile. It can process round vials ranging from 2 ml to 100 ml in volume, with a diameter of 15mm to 80mm and a height of 20mm to 180mm. It is compatible with both plain aluminum caps and flip-off seals (13mm to 33mm diameter) using specific change parts for each size.

Q: How does the machine prevent damage to vials during the sealing process?

The machine features a spring-loaded free-spinning sealing assembly that provides flexibility for variations in the container neck diameter. Additionally, a safety clutch system is incorporated to stop the machine immediately if it encounters a vial with an odd diameter, effectively preventing breakage.

Q: Is this machine suitable for sterile cleanroom environments?

Yes, the machine is built to full cGMP standards . All parts that come into contact with the vials or caps are made from stainless steel or other food-grade materials. For sterile Class 100 filling, optional features like a Laminar Air Flow (LAF) unit and a safety cabinet with acrylic doors can be integrated.

Description

Single Head Vial Cap Sealing Machine is a compact, precision-engineered piece of equipment designed for sealing injectable glass vials with aluminum flip-off or plain caps, primarily used in the pharmaceutical, veterinary, and biotech industries. It is ideal for small to medium-scale production, offering a maximum output of around 40-50 vials per minute, depending on vial size, cap type, and machine configuration. An Automatic Single Head Vial Cap Sealing Machine is a compact, pharmaceutical-grade unit designed to apply aluminum or “flip-off” seals to injectable glass vials. It is the ideal solution for R&D labs, pilot plants, and small-batch production facilities that require high precision within a limited workspace.

If you need details on specific models, pricing, or comparisons with multi-head machines, let me know!

Salient Features of Single Head Vial Cap Sealing Machine

Contact parts of main area made of Stainless Steel or other food grade materials.
Spring loaded free spinning sealing assembly provide flexibility of variation in the container neck diameter.
Differential Sealing Pressure adjustment option for variation in cap types.
Photo sensing device stop machine automatically in the event of no aluminium cap in delivery chute. (optional)
Clutch system provided to stop machine in case of odd diameter of vials hence avoiding vial breakage.
Laminar Air Flow can be offered optionally for sterile class 100 filling.
Safety cabinet with doors provided for closed operation. (Optional)

Compact machine complies as per cGMP.
“No Stopper on Vial – Machine Stop” system.
“No Seal in Chute – equipment stop” feature.
One motor synchronizes key operations of machine.
Speed control with Variable A.C. frequency drive.
Produced vials counted with inbuilt digital counter.
IQ/OQ/DQ documentation on demand.
PLC system with Human Machine Interface can offer optionally.

Working Principle of Single Head Vial Cap Sealing Machine

Our Automatic Vial Sealing Machine has a conveyor belt that moves the feed container to the star wheel. Now the star wheel sets the container below the sealing head for the indexing bit. Caps are picked by bottles from the delivery chute of the cap feeding bowl of the machine. The body and neck of the container are placed below the rotating head of the machine. The sealing head of the machine performs threading and sealing with precision. Designed with stainless steel matt finish, the machine comprises of no container, no cap arrangement.

Adinath International is a leading Single Head Vial Capping Machine manufacturer in India with a substantial portfolio. For detailed information about Vial Capping Machines offered by us, feel free to drop us a line.

Technical Specification of Single Head Vial Cap Sealing Machine

Model	ACS-60
No. of Sealing Head	Single
Production Rate	Up to 50 Vials/Minute
Container Diameter:	15mm to 80mm
Container Height:	20mm to 180mm
Cap Diameter:	13mm, 20mm, 28mm, 30mm & 33mm with the help of change parts.
Power Supply	0.5 H.P.
Electrical characteristics	440 Volts, 3 Phase, 50 Hertz, 4 Wire System
Optional Accessories	Aluminum profile cabinet covering full machine
	Chuck for flip-off seal
	PLC with HMI
Overall Dimension	1300mm X 800mm (W) X 1800mm (H) approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Capping and Sealing Machine

Automatic Ropp Screw Capping Machine

Automatic Bottle Screw Capping Machine

Automatic Bottle CRC Capping Machine

Automatic Bottle Lug Capping Machine

Automatic Vial Capping Machine

Automatic Jar Capping Machine

Automatic Linear Bottle Capping Machine

High Speed Vial Cap Sealing Machine

High Speed Bottle Capping Machine

Semi Automatic Bottle Capping Machine

Applications of Capping and Sealing Machine

Benefits of Single Head Vial Cap Sealing Machine

Precision for Small Batches

Compact Footprint

Cost-Effective Versatility

Smart Waste Control

Key Components of Single Head Vial Cap Sealing Machine

Construction: Built with a stainless steel finish and a mild steel frame with stainless steel cladding, ensuring durability, compliance with cGMP standards, and suitability for cleanroom environments.

Operation: Fully automatic with a vibratory bowl feeder for continuous cap feeding, ensuring seamless integration with liquid or powder filling lines. The machine uses a single spinning roller sealing mechanism for precise, crease-free sealing.

Process: Vials are fed via a conveyor belt to a star wheel, which positions them under the sealing head. Caps are automatically picked from the delivery chute, placed on the vial, and sealed by a rotating head with adjustable sealing pressure to accommodate various cap gauges and sizes.

Versatility: Suitable for round vials (2 ml to 100 ml) and both flip-off and plain aluminum caps, with change parts for different vial and cap sizes.

Safety Features: Includes a “No Vial – No Cap” system, a clutch device to prevent vial breakage, and a photo-sensing device to stop the machine if no caps are detected in the chute.

Speed Control: Equipped with a variable AC frequency drive and gear motor, allowing operators to adjust speed based on production needs.

Additional Features: Some models offer a digital counter for tracking sealed vials, a hopper that can be dismantled for easy cleaning, and optional features like PLC with HMI, laminar airflow, or safety cabinets for sterile operations.

FAQ for Single Head Vial Cap Sealing Machine

What is the production capacity of the Single Head Vial Cap Sealing Machine?

The Single Head model (ACS-60) is designed for lower production requirements, offering a maximum output of up to 50 vials per minute. The actual speed depends on the vial size, the type of cap being used, and the overall machine configuration.

Can the machine handle different types of caps and vial sizes?

Yes, the machine is highly versatile. It can process round vials ranging from 2 ml to 100 ml in volume, with a diameter of 15mm to 80mm and a height of 20mm to 180mm. It is compatible with both plain aluminum caps and flip-off seals (13mm to 33mm diameter) using specific change parts for each size.

How does the machine prevent damage to vials during the sealing process?

The machine features a spring-loaded free-spinning sealing assembly that provides flexibility for variations in the container neck diameter. Additionally, a safety clutch system is incorporated to stop the machine immediately if it encounters a vial with an odd diameter, effectively preventing breakage.

What automation features are included for quality control?

To ensure high-quality output and reduce waste, the ACS-60 includes several intelligent systems:

“No Vial – No Cap” System: Prevents the release of a cap if no vial is detected.
“No Stopper on Vial – Machine Stop”: Halts the machine if a vial is missing its rubber stopper.
“No Seal in Chute – Machine Stop”: Automatically stops the equipment if the cap supply is exhausted.

Is this machine suitable for sterile cleanroom environments?

Yes, the machine is built to full cGMP standards. All parts that come into contact with the vials or caps are made from stainless steel or other food-grade materials. For sterile Class 100 filling, optional features like a Laminar Air Flow (LAF) unit and a safety cabinet with acrylic doors can be integrated.
