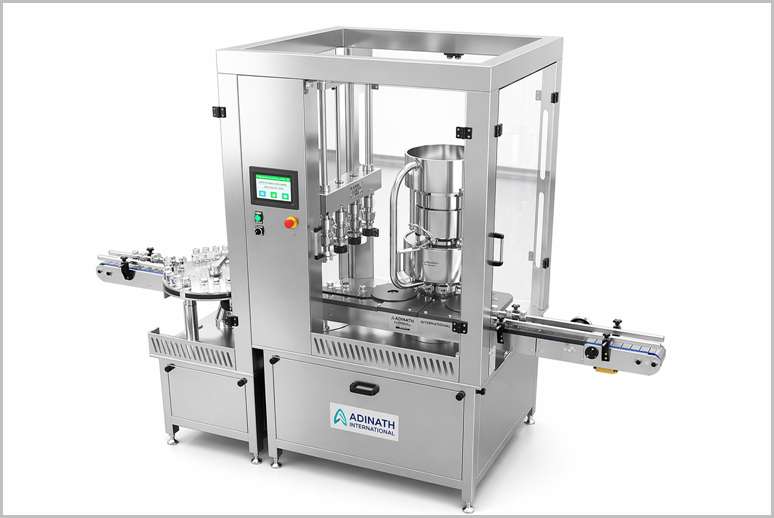

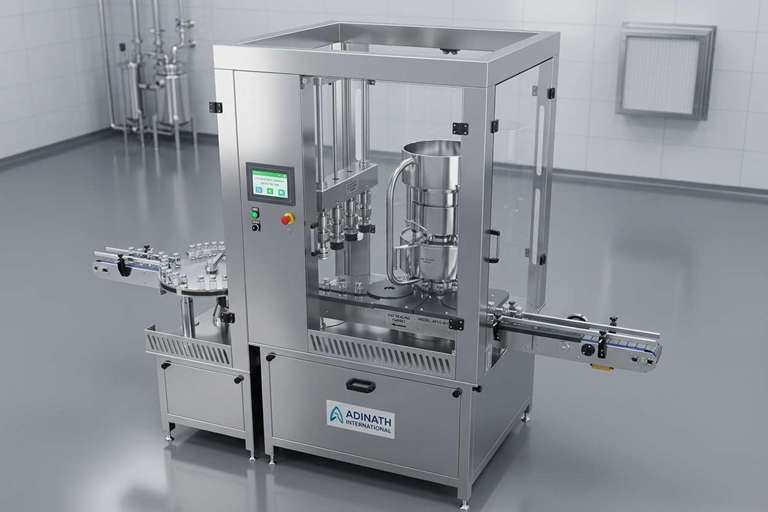

Six Head Vial Cap Sealing Machine

Q: How does the machine achieve a "wrinkle-free" hermetic seal?

The machine utilizes a Gradual Pressure Sealing (GPS) system. Instead of applying force all at once, specially designed cams and spring-loaded free-spinning rollers apply calibrated, consistent pressure during the rotation. This ensures a qualitative, leak-proof seal without damaging the vial neck or the aluminum gauge.

Q: Is the machine suitable for sterile cleanroom environments?

Absolutely. The machine is a complete cGMP model featuring: Stainless Steel Construction: SS 304 frame with SS 316L for all contact parts. Low Particle Generation: Designed for minimal friction and easy sanitization. Safety Enclosure: It comes standard with an acrylic cabinet and can be integrated under Laminar Air Flow (LAF) or RABS (Restricted Access Barrier Systems).

Description

Six Head Vial Cap Sealing Machine is an advanced, Fully Automatic Rotary Capping Machine designed primarily for the pharmaceutical, veterinary, and biotech industries. It is used to apply and seal flip-off or tear-off aluminum caps onto pre-filled and stoppered glass vials, ensuring a hermetic seal to maintain the integrity of injectable products. This machine is a critical component in Sterile Vial Filling Lines, often integrated with Vial Filling and Labeling Machines for seamless production. It complies with cGMP standards and is suitable for both molded and tubular glass vials of various sizes, with change parts allowing adaptability to different vial diameters and heights.

Stoppered vials enter via conveyor and infeed worm for precise spacing.

Vials transfer to the rotary turret, where caps are picked from the chute.

At the capping station, heads descend, apply the cap, and rollers crimp it while rotating clockwise.

Sealed vials exit via outfeed star wheel to the discharge conveyor.

Optional infeed/outfeed rejection systems remove defective vials.

This machine minimizes maintenance with its user-friendly, modular design and ensures consistent quality, making it a reliable choice for Pharmaceutical Packaging Lines.

If you need details on specific models, pricing, or comparisons with multi-head machines, let me know!

Salient Features of Six Head Vial Cap Sealing Machine

A complete cGMP model.
“No Stopper on Vial Before Sealing – Machine Stop” system.
Single motor synchronises conveyor, starwheels and platform turret and speed can be varied by the speed pot on operating panel.
Parts coming in contact with the vial / aluminium cap / exposed to the atmosphere are made out of stainless steel for good house keeping & GMP accordance.
Spring loaded free spinning sealing rollers eliminates any damage to aluminiumcaps and also allows greater flexibility of variation in the container neck diameter.
A Special clutch device is incorporated on the infeed worm and Starwheel system for stoppage of machine in the event, vial is over turned or over diameter.

“No Seal in Chute – Machine stop” system.
Variable A.C. frequency drive for speed adjustment.
Sealing Pressure can be varied to suit different gauges and sizes of aluminium caps.
Photo sensing device stop machine automatically in the event of no aluminium cap in delivery chute.
Digital Counter for counting number of sealed vials.
Acrylic Cabinet with Aluminium Structure for Machine. (Optional)
Programmable Logic Control with GUI. (Optional)

Working Principle of Six Head Vial Cap Sealing Machine

Duly Stoppered vials are continuously fed from the convetor of filling machine to the flat conveyor belt of sealing machine and move further through infeed worm for correct spacing and transferred to the infeed starwheel. Aluminium caps kept in vibratory bowl automatically orient caps in right direction before entering the delivery chute. Vial during its rotation movement with infeed starwheel picks up aluminum seal from the retaining finger of delivery chute and correctly position on the vial before entering sealing turret. Vial now moves on the spring loaded sealing platform, where free spinning sealing rollers moves gradually inside to complete the sealing operation during rotational movement of sealing platform turret. Now sealed vials are transferred to exit starwheel pocket and further moves out on to the flat conveyor belt. Duly sealed vials are collected on out-feed collection tray.

Technical Specification of Six Head Vial Cap Sealing Machine

Model	AI-VCSM 6
Vial Diameter	Up to 45 mm *
Vial Height	75 mm *
Aluminium / Flip-Off Cap Size	Applicable for 13mm, 20mm, 32mm or 38mm*
Power Supply	Usual industrial voltage (i.e., 220-240V AC, 50/60Hz)
Power	2.0 H.P.
Conveyor Height	800-850 mm
Overall Dimensions	1500 mm (L) x 700 mm (W) x 1800 mm (H)
Vial Sealing Speed	Up to 200 vials/min.
Material Used in Manufacturing	High-quality stainless steel.
Control System	Data Logging PLC Based Digital Panel (optional)
Footprint	Slim design enables easy deployment in existing production lines.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Capping and Sealing Machine

Automatic Ropp Screw Capping Machine

Automatic Bottle Screw Capping Machine

Automatic Bottle CRC Capping Machine

Automatic Bottle Lug Capping Machine

Automatic Vial Capping Machine

Automatic Jar Capping Machine

Automatic Linear Bottle Capping Machine

High Speed Vial Cap Sealing Machine

High Speed Bottle Capping Machine

Semi Automatic Bottle Capping Machine

Applications of Capping and Sealing Machine

Advantages of Six Head Vial Cap Sealing Machine

Precision for Small Batches

Compact Footprint

Cost-Effective Versatility

Smart Waste Control

Key Components of Six Head Vial Cap Sealing Machine

Rotary Design with Six Capping Heads: Operates in a continuous motion rotary system, where vials are fed via an infeed star wheel and conveyor. Each of the six heads simultaneously picks, applies, and seals caps using cam-operated chucks and rollers, enabling efficient high-volume production.

Cap Feeding System: Equipped with a vibratory bowl feeder or gravity-fed chute for continuous, oriented cap supply. A fiber optic “No Cap” sensor halts the machine if caps are insufficient, preventing downtime.

Sealing Mechanism: Utilizes a unique single roller sealing system or gradual pressure sealing (GPS) technology, where spinning rollers crimp the aluminum cap’s skirt around the vial neck. Sealing pressure is adjustable to accommodate varying cap gauges and sizes, ensuring defect-free seals without damaging vials or caps.

Safety and Control Features:
- “No Vial – No Capping” and “No Stopper – Machine Stop” systems use sensors to detect missing vials or stoppers, avoiding improper sealing.
- An extraordinary safety clutch on the star wheel stops the machine during jams or overturns.
- Digital counter tracks sealed vials; variable AC frequency drive allows speed adjustment.

Construction and Hygiene: Made from AISI 304 stainless steel for parts contacting vials and caps, with optional Viton rollers for enhanced durability. The frame includes stainless steel cladding or acrylic safety cabinets for easy cleaning and low particle generation. All electronics, gear motors, and gearboxes are CE-certified.

Production Capacity: Up to 180 vials per minute, depending on vial size, cap type, and product viscosity. This makes it ideal for medium- to large-scale operations.

FAQ for Six Head Vial Cap Sealing Machine

What is the maximum production speed of the Six Head Vial Cap Sealing Machine?

This machine is designed for high-speed pharmaceutical lines, offering an output of up to 180 vials per minute. The actual speed is synchronized with your filling line and depends on the specific vial diameter, height, and the type of aluminum or flip-off cap being processed.

Can the machine handle different vial and cap sizes?

Yes, the machine is highly adaptable. It typically handles:

Vial Diameters: Up to 45 mm.
Vial Heights: Up to 75 mm.
Cap Sizes: 13 mm, 20 mm, 32 mm, or 38 mm. The system uses “Quick-Release” change parts, allowing operators to switch between different vial and cap formats in just a few minutes.

What are the key safety interlocks included in this model?

To ensure zero-waste and protect the machinery, the Six Head model includes several “No-Check” safety systems:

No Vial – No Capping: The machine will not release a cap if a vial is not present.
No Stopper – No Sealing: If a vial is missing its rubber stopper, the sealing head will not operate, preventing contamination and roller damage.
No Cap in Chute – Machine Stop: A photo-sensing device automatically pauses the machine if the cap supply is interrupted.

How does the machine achieve a “wrinkle-free” hermetic seal?

The machine utilizes a Gradual Pressure Sealing (GPS) system. Instead of applying force all at once, specially designed cams and spring-loaded free-spinning rollers apply calibrated, consistent pressure during the rotation. This ensures a qualitative, leak-proof seal without damaging the vial neck or the aluminum gauge.

Is the machine suitable for sterile cleanroom environments?

Absolutely. The machine is a complete cGMP model featuring:

Stainless Steel Construction: SS 304 frame with SS 316L for all contact parts.
Low Particle Generation: Designed for minimal friction and easy sanitization.
Safety Enclosure: It comes standard with an acrylic cabinet and can be integrated under Laminar Air Flow (LAF) or RABS (Restricted Access Barrier Systems).
