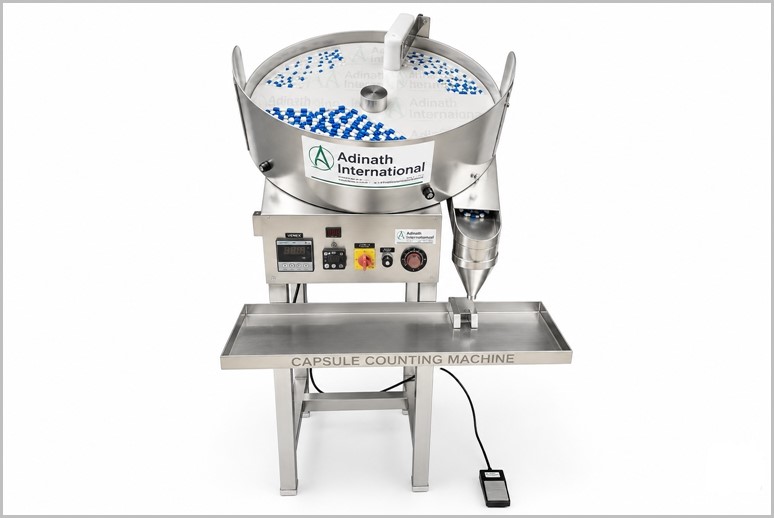

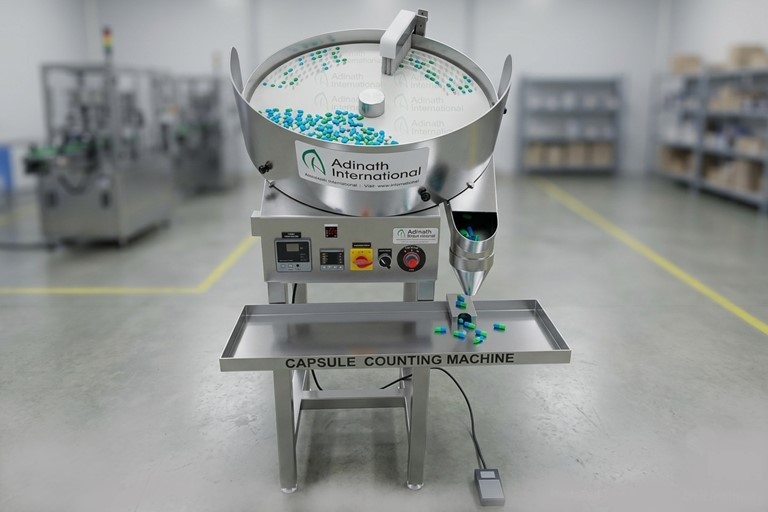

Pre-determined capsules are counted and filled into bottles, jars, and pouches using a disc-based capsule counting machine with a semi-automatic capsule counter. Depending on the needs of each particular user, alternative counts for various capsule sizes may be provided. It’s interesting to note that, with an extra disk, this capsule counting machine can also count and fill tablets. This machine is also known as a semi-automatic tablet counting machine because of this.
The Capsule Counting and Filling equipment is a disc-based capsule counting equipment that conforms with cGMP regulations because the disk is made of food-grade materials. The possibility of contamination is extremely low. A specially made vibrator assembly is available in a dish to fully settle capsules into the disc’s holes. It’s interesting that the machine has both a foot pedal-operated manual mode and an auto option for multitasking. Adinath is among India’s top producers of capsule counting machines thanks to its cutting-edge technology, robust construction, and affordable costs.
Disc Based Capsule Counting Machine Video
Salient Features of Disc Based Capsule Counter Machine
-
Suitable to pack tablets and capsules both.
-
“No Container – No Fill” operations.
-
Micro Processor base highly efficient.
-
User friendly and easy to clean.
-
30″ diameter disc providing highest filling capacity.
-
Custom designed disc to match specific needs.
-
Special dust extractor to remove dust particles from the passage to the container (optional if required)
-
Fitted with heavy duty gear box.
Working Principle of Disc Based Capsule Counting Machine
Product is feed on a rotating disc, and is channel in guided opening as per the shape and size of the product for counting & filling. As per the count set in the counting MMI unit no. of count is maintained and released by pneumatic closer for the counting and filling operation. Product Containers/Pouches are kept manually at the release end to fill the counted product.
Technical Specification of Capsule Counting Machine
| Specification | Description |
| Contact Parts | Stainless Steel 316 or other Food Grade materials |
| Diameter of Counting Disc | 30” |
| Feed Disc Material of Constructions | Delrin / Cast Nylon / Similar food grade material |
| Power Consumption | 1 H.P. |
| Air Consumption | 40 liters/minute@ 6 bar pr. |
| Electrical Characteristics | 220 volts, single phase, 50 hertz |
| Overall Dimension | 1345mm (L) X 1170mm (W) 990mm (H) approx. |
| Packing Box Dimension | 1981mm (L) X 1219mm (W) 1016mm (H) approx. |
| Net Weight | 200 Kgs. approx. |
| Gross Weight | 350 Kgs. approx. |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
