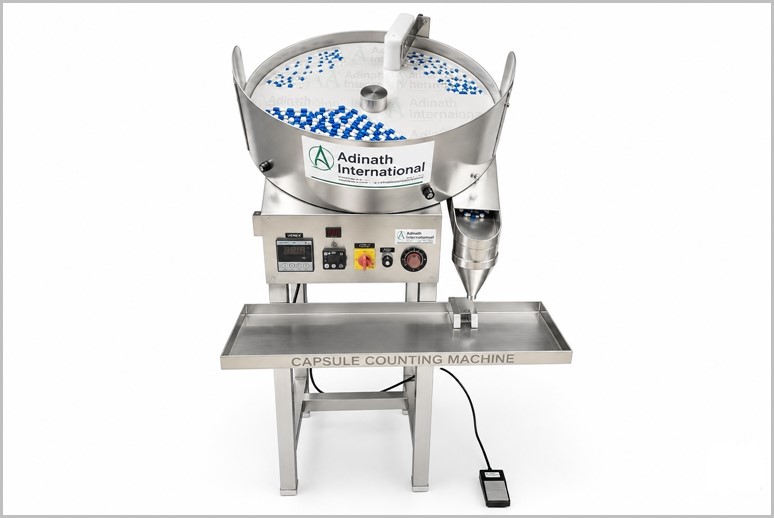

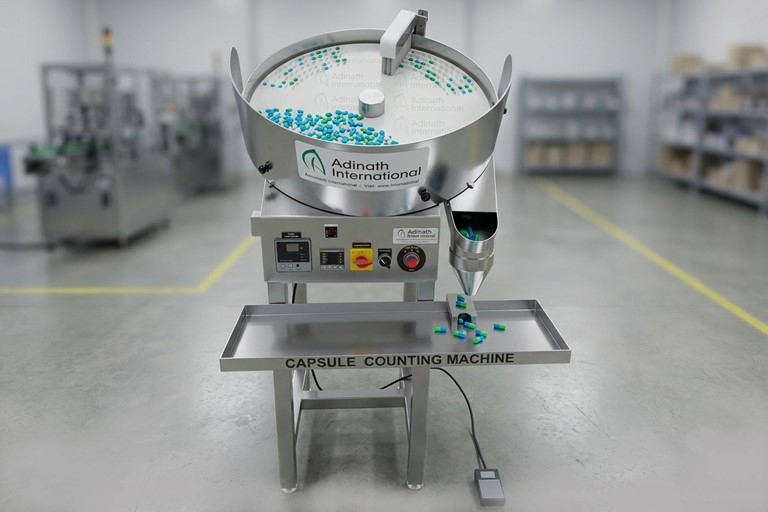

Semi Automatic Capsule Counter Machine

Q: What are the key features and salient highlights of this machine?

Key features include: Adjustable filler (elevated 20°–35° tilt) for smooth product flow. Vibrator system to ensure capsules settle completely into disc holes. Heavy-duty gearbox (50:1 ratio) with 0.5 HP motor and variable speed drive. Dual operation: Automatic mode + Manual foot-switch mode. GMP-compliant compact design with small footprint. Custom-designed large counting discs for optimum capacity. Optional DQ/IQ/OQ documentation.

Description

Semi-Automatic Capsule Counter Machine (also known as a semi-automatic capsule/tablet counting machine or pill counter) is a compact, tabletop or small-scale packaging equipment widely used in pharmaceutical, nutraceutical, herbal, ayurvedic, food supplement, and small production industries. It accurately counts and fills hard gelatin capsules, softgel capsules, tablets, pills, or similar solid products into bottles, jars, containers, or pouches with high precision and minimal manual effort. It automates the tedious manual counting process for small to medium batches, ensuring consistent fill quantities (e.g., 30, 60, or 100 capsules per bottle) while reducing errors, improving hygiene, and boosting efficiency compared to hand-counting.

ADJUSTABLE FILLER:

The filler can be elevated from 20 to 35 degrees to facilitate entry of every product into the disc holes. All contact parts are fabricated out of stainless steel.

GEAR BOX AND DRIVE:

Heavy duty Gear box 50:1 ratio connected to 0.5 H.P. 440 volts, 3 phase motor 1440 RPM with variable speed drive. The RPM of the disc varies from 3 to 7 depending upon the product.

DELIVERY CHUTES:

Delivery chutes direct the product from the counting disc into telescoping stainless-steel filler tubes of various sizes. For accurate filling, tubes and adaptors of various sizes are supplied to suit different containers. Special delivery chutes will be supplied for counting and filling capsules in narrow mouth container such as vials.

LARGE COUNTING DISCS:

Suitable diameter disc gives optimum capacity. Each disc is custom designed and manufactured to meet your individual filling requirements. Machine is versatile enough to count coated/uncoated tablets, hard or soft gelatin capsules of any shape and size such as pearls, oblong and round capsules.

If you need details on specific models and pricing, let me know!

Salient Features of Semi Automatic Capsule Counter Machine

Small footprint machine.
GMP compliance model.
Works on single phase home electricity.
Vibrator system to settle down capsules completely in holes.

Auto mode as well as manual foot switch operation mode.
Equipment capable of counting HPMC, veg, and hard gelatin capsules.
Capsules and tablets can be count on same machine.
Documentation on DQ, IQ, OQ available. (optional)

Working Principle of Semi Automatic Capsule Counter Machine

Product is feed on a rotating disc and is channel in guided opening as per the shape and size of the product for counting & filling. As per the count set in the counting MMI unit no. of count is maintained and released by pneumatic closer for the counting and filling operation. Product Containers/Pouches are kept manually at the release end to fill the counted product.

The machine combines vibration feeding, mechanical alignment, and electronic/optical counting:

Loading — Capsules or tablets are manually poured into a hopper (feeding tank, often 5–10 liters or more).

Vibration & Alignment — A vibratory feeder (electromagnetic or rotary) gently shakes and separates the capsules, guiding them into single-file channels, tracks, rails, or perforated/rotary discs/slots. This prevents jamming and ensures even flow.

Counting — As capsules pass through designated paths:
- Photoelectric/infrared/optical sensors detect each piece individually (non-contact, high accuracy).
- Some models use rotary disc holes or channels where items drop one by one.
- The digital control panel tracks the count.

Filling — When the preset number (e.g., 1–9999 pieces) is reached, the counted batch is released through one or dual nozzles/chutes directly into a bottle placed below by the operator.

Operator Role — Semi-automatic means the operator manually loads the hopper, places/removes bottles under the nozzle(s), and starts/stops cycles. The counting and dispensing are automatic.

This results in very high accuracy (often 99.5–100%) with no damage to fragile capsules.

Technical Specification of Semi Automatic Capsule Counter Machine

Model	CCM 24
Production Output	Depends upon capsule size & counts.
Capsule Combinations	Size 00, 0, 1, 2, 3 and 4 (through different disc)
Diameter of Counting Disc	24″, 30″ and 36″ models
Feed Disc Material of Constructions	Delrin / Cast Nylon / Similar food grade material
Overall Dimension	630mm X 430mm X 780mm approx.
Power Voltage	220 Volts, Single Phase, 50 Hertz
Overall Dimension	1345mm (L) X 1170mm (W) 990mm (H) approx.
Packing Box Dimension	1981mm (L) X 1219mm (W) 1016mm (H) approx.
Net Weight	70 Kgs. approx.
Gross Weight	150 Kgs. approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Counting Filling Machine

Automatic Disc Based Capsule Counting Machine

Automatic Tablet Counting Machine

Digital Capsule Counting Machine

Disc Based Capsule Counting Machine

Manual Capsule Counter

Semi Automatic Capsule Counter Machine

Applications of Counting Filling Machine

Advantages of Semi Automatic Capsule Counter Machine

Cost-effective for small/medium production (lower investment than fully automatic lines).

Simple operation and quick changeover (5–10 minutes for different sizes).

Ideal for startups, pharmacies, contract manufacturers, or R&D labs.

Reduces labor while maintaining flexibility.

Key Features of Semi Automatic Capsule Counter Machine

Compact and tabletop design — easy to move and clean (suitable for small spaces or labs).

Digital control panel — set count, vibration speed, and sometimes batch settings.

Vibratory feeding system — adjustable speed to handle different sizes/shapes without jamming.

One or dual nozzles — allows continuous operation (fill one bottle while preparing the next).

Dust collection/accumulator — keeps sensors clean for long-term accuracy.

GMP-compliant models — stainless steel contact parts (SS 304/316), easy disassembly for cleaning.

No bottle – no fill detection (in advanced models) — prevents spillage.

Versatile — counts capsules (#000 to #5), softgels, tablets, pills, candies, etc.

Low noise, lightweight, and low power consumption.

FAQ for Semi Automatic Capsule Counter Machine

What is a Semi Automatic Capsule Counter Machine and what are its primary uses?

The Semi Automatic Capsule Counter Machine is a compact, disc-based counting and filling system that accurately counts and dispenses capsules (and tablets) into bottles, jars, pouches, or containers. It is ideal for small to medium-scale production in the pharmaceutical, nutraceutical, Ayurvedic, herbal, biotech, food supplement, and pharmacy industries. It offers a cost-effective balance between manual counting and full automation while maintaining high precision and GMP compliance.

What is the production capacity and specifications of the Semi Automatic Capsule Counter Machine?

Production output depends on capsule size, count per container, and operator efficiency. The machine uses large custom counting discs (24″, 30″, or 36″ diameter) and supports capsule sizes 00, 0, 1, 2, 3, and 4. Disc RPM is adjustable from 3 to 7, with dual operation modes (automatic and manual foot-switch). It is suitable for flexible batch sizes in pharmacies, R&D labs, and growing manufacturing units.

Which products and container types can the Semi Automatic Capsule Counter Machine handle?

It is highly versatile and can count/fill hard gelatin, soft gelatin, HPMC, veg capsules, as well as coated/uncoated tablets of various shapes (round, oblong, pearls). It works with different containers including bottles, jars, pouches, and narrow-mouth vials (via special chutes). All product contact parts are Stainless Steel, and discs are made of food-grade materials like Delrin/Cast Nylon.

What are the key features and salient highlights of this machine?

Key features include:

Adjustable filler (elevated 20°–35° tilt) for smooth product flow.
Vibrator system to ensure capsules settle completely into disc holes.
Heavy-duty gearbox (50:1 ratio) with 0.5 HP motor and variable speed drive.
Dual operation: Automatic mode + Manual foot-switch mode.
GMP-compliant compact design with small footprint.
Custom-designed large counting discs for optimum capacity.
Optional DQ/IQ/OQ documentation.

What are the power and technical requirements for the Semi Automatic Capsule Counter Machine?

The machine operates on standard 220 Volts, Single Phase, 50 Hz power (works on home electricity; adjustable as per customer requirements). Overall dimensions are approximately 1345mm (L) × 1170mm (W) × 990mm (H) with a net weight of ~70 kg. It features delivery chutes with telescoping Stainless Steel filler tubes adaptable to various container sizes.
