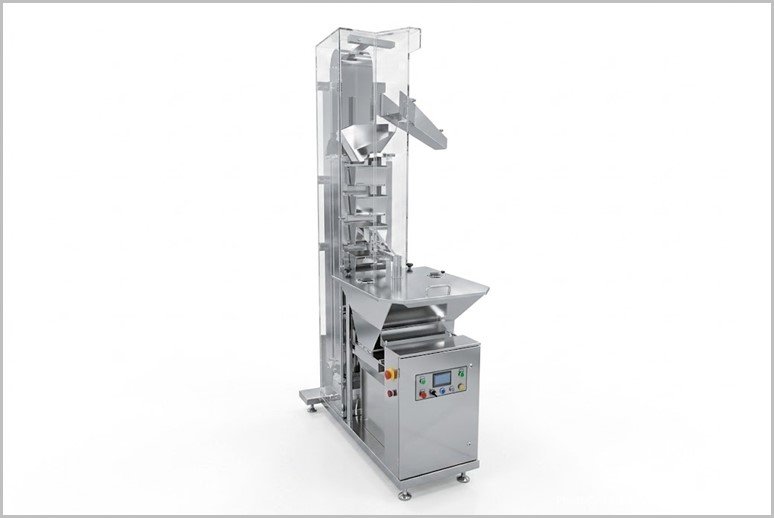

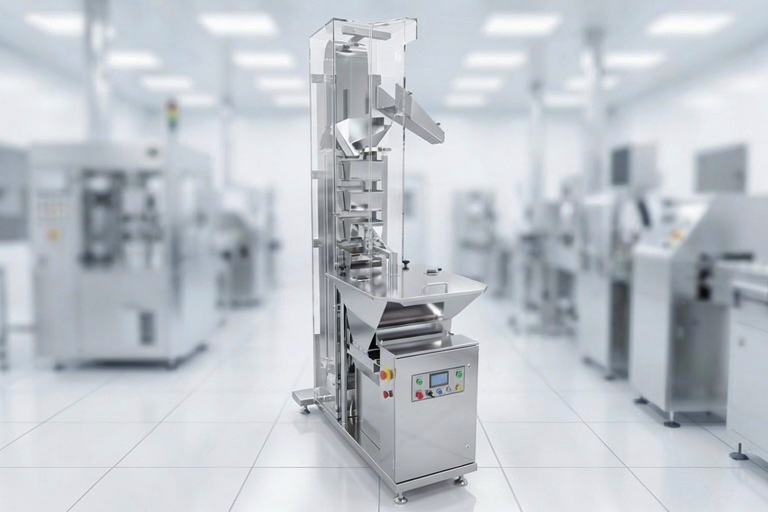

Automatic Capsule Tablet Elevator

Description

An Automatic Capsule Tablet Elevator, also commonly referred to as a tablet feeder, capsule feeder, pre-feeder, or bulk product elevator, is a specialized piece of equipment designed to streamline material handling in the pharmaceutical and nutraceutical industries. This advanced automation solution efficiently lifts, conveys, and feeds tablets, capsules, soft gels, and other solid dosage forms from bulk storage to processing machines, significantly improving production efficiency and reducing manual labor.

In high-volume manufacturing environments, manually loading tablets or capsules into filling machines, blister packaging lines, or sorting systems can be time-consuming and prone to errors. An automatic tablet elevator solves this challenge by providing a continuous, gentle, and controlled flow of product. It minimizes product damage, reduces contamination risks, and ensures consistent feeding rates that align with the speed of downstream equipment.

Salient Features of Automatic Capsule Tablet Elevator

Designed with smooth interior surfaces, gentle vacuum suction profiles, or slow-moving cleat designs to prevent chipping, breakage, or scratching of fragile tablets and empty or filled capsules.
Capable of lifting products to significant heights to feed elevated hoppers, optimizing cleanroom vertical space and eliminating the need for manual scooping or ladder usage.
Fully enclosed transfer tubes and sealed receiving hoppers prevent active pharmaceutical ingredients (APIs) from escaping into the cleanroom atmosphere, protecting operators and preventing cross-contamination.
Built-in safety relays and motor overload protection safeguard the drive systems or vacuum pumps from stalling or overheating during sudden line jams.
All product-contact parts (hoppers, contact tubes, contact plates) are manufactured from high-grade polished stainless steel (SS 316 / SS 304) with mirror finishes to prevent powder or residue adherence.

Designed for rapid, tool-less dismantling of hoses, bends, and receiver vessels, facilitating quick washdowns and product changeovers between different batches to avoid cross-contamination.
Utilizes FDA-approved, non-toxic silicone or Teflon gaskets and seals throughout the pneumatic and mechanical circuits.
Features intuitive control panels with programmable logic controllers (PLCs) allowing operators to adjust transfer cycles, suction times, and discharge intervals easily.
Equipped with level sensors (capacitive or optical) installed in the discharge hopper. The elevator automatically starts when the downstream machine hopper runs low and stops when it reaches maximum capacity, ensuring seamless, hands-free operation.
Engineered with sound-dampening enclosures for vacuum blowers or optimized mechanical drives to maintain a quiet, ergonomic working environment inside pharmaceutical production halls.

Working Principle of Automatic Capsule Tablet Elevator

Modern capsule and tablet elevators typically use a combination of vertical conveying mechanisms, such as bucket elevators, spiral conveyors, or vacuum-assisted systems. The process begins when bulk product is loaded into a hopper at the base. Sensors detect the material level and automatically activate the elevator to transport items upward to the desired height. From there, the product is discharged into feeders, hoppers, or directly into packaging or inspection machines.

These systems are engineered with pharmaceutical-grade materials like stainless steel (SS 316) and food-safe components to meet stringent GMP (Good Manufacturing Practice) and FDA compliance standards. Many models feature adjustable speeds, anti-vibration designs, and dust extraction systems to maintain cleanliness and product integrity.

Choosing the Right Automatic Tablet Elevator

When selecting a capsule tablet elevator, consider factors such as capacity (kg/hour), maximum lifting height, product compatibility, ease of cleaning, and integration capabilities with existing lines. Reputable manufacturers offer customizable options, including PLC controls, touch-screen interfaces, and IoT-enabled monitoring for real-time performance tracking.

In today’s competitive pharmaceutical landscape, adopting advanced automation equipment like automatic capsule tablet elevators is no longer optional — it’s essential for maintaining quality, compliance, and profitability. Whether you operate a small-scale nutraceutical facility or a large pharmaceutical plant, this reliable pre-feeder technology helps future-proof your production process.

By implementing high-quality tablet and capsule feeding solutions, manufacturers can achieve higher throughput, superior product quality, and reduced operational costs — making the automatic capsule tablet elevator a smart investment for sustainable growth in the industry.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Capsule Tablet Elevator

Vacuum Capsule & Tablet Elevators (Pneumatic Conveyors)

Tablet Elevator

Capsule and Tablet Elevator

Automatic Capsule Elevator

Applications of Other Machines

Pharmaceutical Industry
Nutraceutical Industry
Herbal Industry
Ayurvedic Industry
Biotech Industry
Cosmetic Industry
Chemical Industry

Benefits of Automatic Capsule Tablet Elevator

Often uses bucket lifts, vibratory feeders, cleated belts, or pneumatic systems to minimize breakage, chipping, or dust.

Contact parts in SS 316L stainless steel, tool-free disassembly for quick cleaning, dust extraction ports, and full cGMP compliance.

Level sensors in the downstream hopper trigger on-demand feeding; adjustable height, timers, and safety interlocks.

Low-profile loading at operator level (~900mm), enclosed guards, and no heavy lifting required.

Key Features of Automatic Capsule Tablet Elevator

Investing in an automatic capsule tablet elevator delivers numerous operational advantages:

Increased Productivity: Automates bulk feeding, allowing production lines to run continuously with minimal operator intervention.

Gentle Product Handling: Reduces breakage, chipping, or deformation of fragile tablets and capsules through controlled elevation and low-impact discharge.

Improved Hygiene and Safety: Minimizes human contact, lowering cross-contamination risks in cleanroom environments.

Space Optimization: Compact vertical design saves valuable floor space compared to traditional horizontal conveyors.

Cost Efficiency: Lowers labor costs while reducing material waste and downtime associated with manual loading.

Flexibility: Suitable for various product sizes and shapes, with quick changeover features for different batch requirements.

FAQ for Automatic Capsule Tablet Elevator

What is an Automatic Capsule Tablet Elevator?

An Automatic Capsule Tablet Elevator (also called a tablet feeder, capsule feeder, pre-feeder, or bulk product elevator) is specialized equipment that lifts, conveys, and feeds tablets, capsules, soft gels, and other solid dosage forms from bulk storage to processing or packaging machines. It provides continuous, gentle, and controlled product flow to improve efficiency and reduce manual labor in pharmaceutical and nutraceutical production.

How does an Automatic Capsule Tablet Elevator work?

Bulk product is loaded into a base hopper. Level sensors detect the material and automatically activate the system (bucket elevator, spiral conveyor, or vacuum-assisted mechanism). The product is gently transported upward to the required height and discharged into downstream hoppers, feeders, or machines. The elevator starts when the downstream hopper is low and stops at maximum capacity for hands-free operation.

What products can the Automatic Capsule Tablet Elevator handle?

It is designed for tablets, capsules (empty or filled), soft gels, and similar solid dosage forms. Gentle handling features (smooth interiors, vacuum suction, or slow-moving cleats) help prevent chipping, breakage, or scratching of fragile products.

What are the key construction and hygiene features?

Product-contact parts are made from high-grade polished stainless steel (SS 316 or SS 304) with mirror finishes. The system uses fully enclosed transfer tubes, sealed hoppers, and FDA-approved non-toxic silicone or Teflon gaskets/seals. It supports rapid, tool-less dismantling for easy cleaning and changeovers while meeting GMP and FDA standards.

How does the machine ensure gentle product handling and prevent damage?

It employs smooth interior surfaces, controlled vacuum profiles or slow-moving cleats, anti-vibration designs, and low-impact discharge. These features minimize breakage, chipping, deformation, and product damage during elevation and transfer.

What safety and automation features are included?

The elevator includes level sensors (capacitive or optical) for automatic start/stop, safety relays, motor overload protection, PLC-based controls for adjusting cycles and intervals, and sound-dampening enclosures. Enclosed designs also help contain APIs and reduce contamination risks.

In which industries is the Automatic Capsule Tablet Elevator used?

It is commonly applied in the pharmaceutical, nutraceutical, herbal, Ayurvedic, biotech, cosmetic, and chemical industries for efficient bulk feeding of solid dosage forms.

What are the main benefits of using an Automatic Capsule Tablet Elevator?

Key benefits include higher productivity through continuous automated feeding, reduced labor and material waste, improved hygiene and lower cross-contamination risk, space-saving vertical design, gentle product handling, flexibility for different product sizes/shapes with quick changeovers, and overall cost efficiency.

What factors should be considered when choosing an Automatic Capsule Tablet Elevator?

Important considerations include capacity (kg/hour), maximum lifting height, product compatibility, ease of cleaning and changeover, and integration with existing lines. Customizable options often include PLC controls, touch-screen interfaces, and IoT monitoring.

Can the Automatic Capsule Tablet Elevator integrate with existing production lines?

Yes. It is designed for seamless integration with filling machines, blister packaging lines, sorting systems, and other downstream equipment. Level sensors and adjustable speeds help match the elevator’s output to the requirements of connected machines for continuous, efficient operation.
