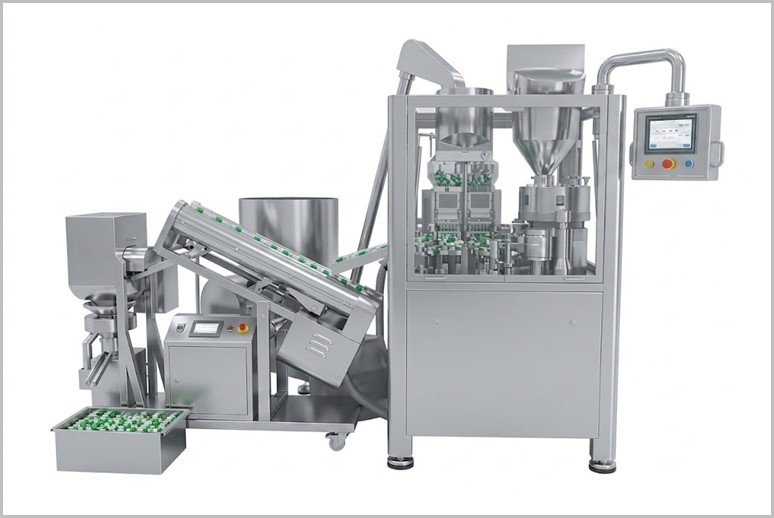

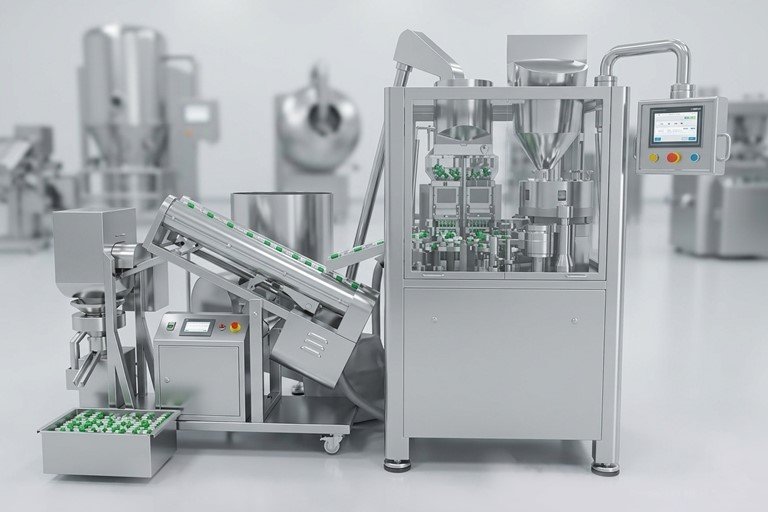

Powder blending, capsule filling, polishing, sorting, inspection, and packaging machinery make up the capsule production line (also known as the capsule filling line), which includes the capsule packaging line. Every machine complies with cGMP regulations. Herbal, nutraceutical, food supplement, and cosmetic industries also use pharmaceutical capsule filling lines.
The Adinath range includes both fully automatic and semi-automated capsule filling lines.
We are giving here below information of each individual machine in Capsule Filling Line:
Capsule Production Line Video
Adinath range of capsules production machines consist Manual Capsule Filling Line, Semi Automatic Capsule Filling Line and Fully Automatic Capsule Production Line. There are different production lines ranging from 5000 capsules per hour to 150000 capsules per hour. For detailed information on each individual machines please click here

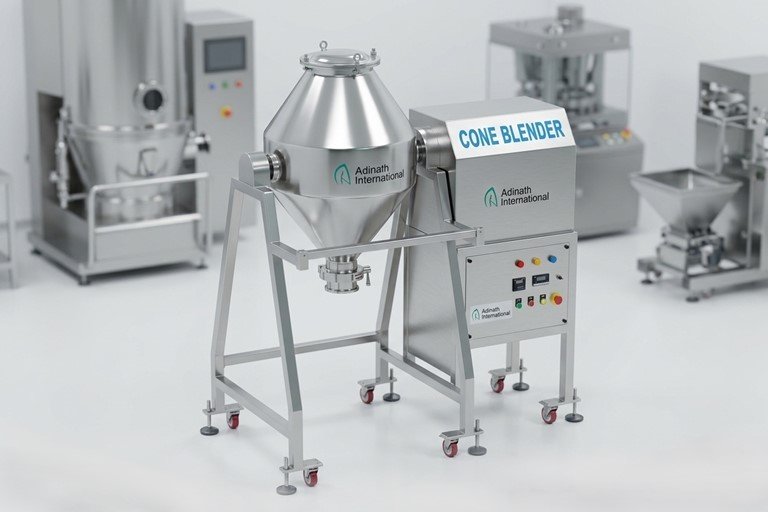

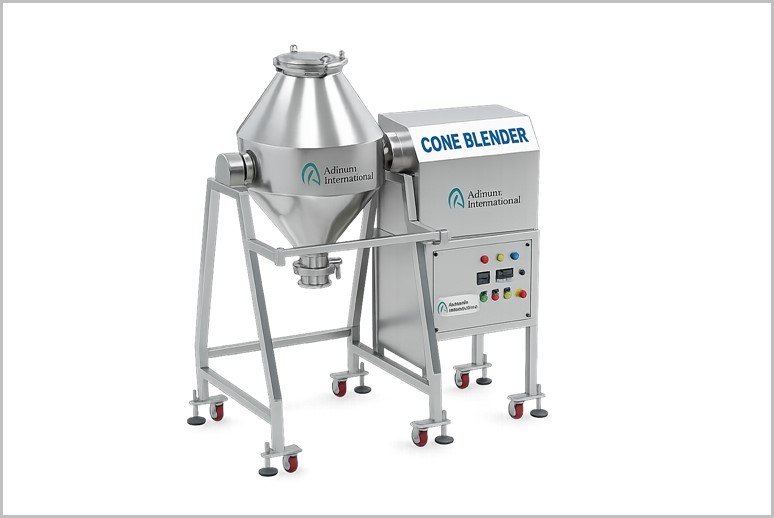

Double Cone Blender
A double cone blender, sometimes known as a double cone mixer, is a medicinal powder mixer that can be used to combine various types of powders. The vessel is continuously rotated to tumble disperse the products. Depending on the specifications, blenders can be built of mild steel, 304 stainless steel, or 316 stainless steel. The vessel has two conical frustums on either side of its shell, with a manual butterfly valve on one side for discharge and a lid on the other for charging with fast closing and opening clamps. Both the vessel’s interior and the cylindrical shell’s wall include central baffles. The vessel has a zero retention design. The vessel is mounted on a Plummer block and a specially made chain sprocket, and the machine runs on a motor with a reduction gearbox. The limit switch on the safety guard is linked with the motor to guarantee safe operations.

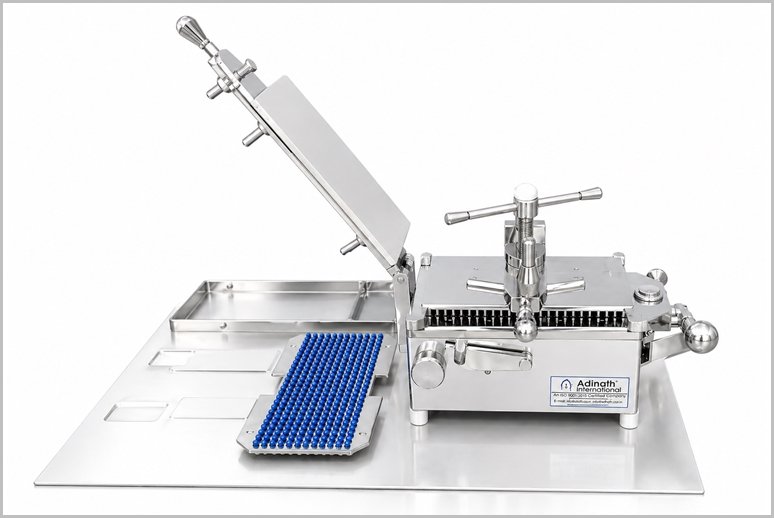

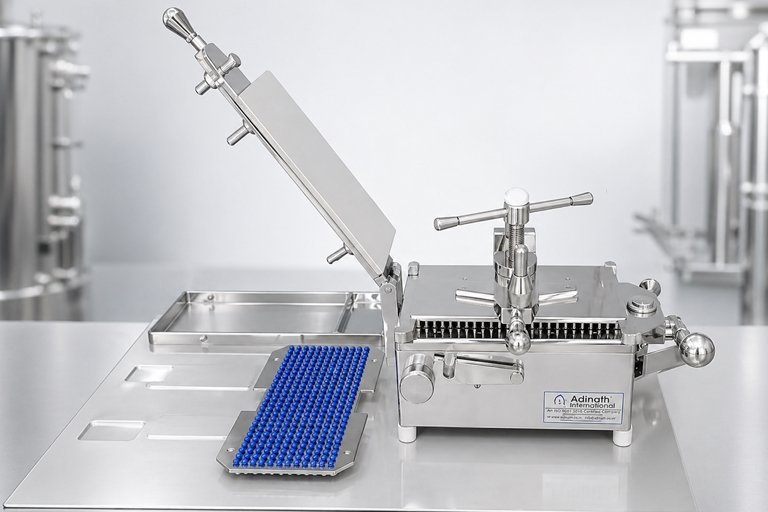

Manual Capsule Filling Machine
Made of high-quality stainless steel, the manual capsule filling machine, sometimes referred to as the manual capsule filler, is a sturdy and user-friendly apparatus. The machine is made of GMP-compliant SS 304/316 constructions and has 300 holes in 25 x 12 combinations. The machine can fill capsules with sizes ranging from #00 to #5 by using multiple machines and replaceable parts. The assembling procedure is made to be easily disassembled for cleaning. Despite being entirely manual, the machine’s precision-machined parts must be assembled by highly skilled workers. extensively utilised equipment in research institutions, R&D labs, pilot batch production, herbal and nutraceutical formulations, Unani and Ayurvedic drugs, etc.

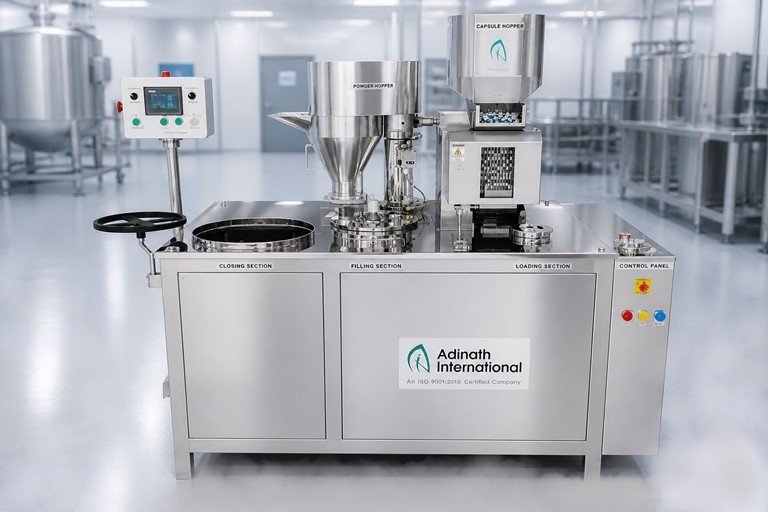

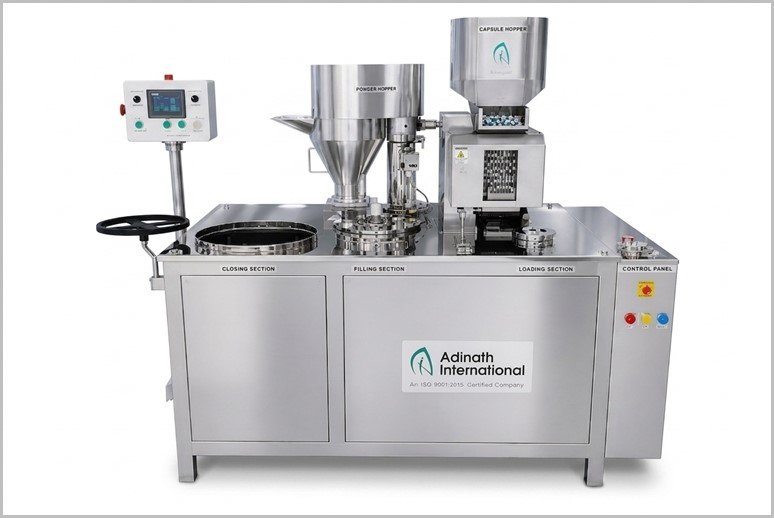

Semi Automatic Capsule Filling Machine
The Semi Automatic Capsule Filling Machine, sometimes referred to as the Semi Automatic Capsule Filler, was created especially to satisfy the exact manufacturing requirements of modern pharmaceutical processes. A ring-style capsule filling machine is part of it. Along with more accurate filling weight measurements, the equipment delivers a high level of automation. Powder, granules, or pellets of any size can be added to capsules using the capsule filling machine. Depending on the size of the capsule and the operator’s level of expertise, the machine may create between 25000 and 47000 capsules per hour. It is constructed in compliance with GMP rules and has a stainless steel exterior.

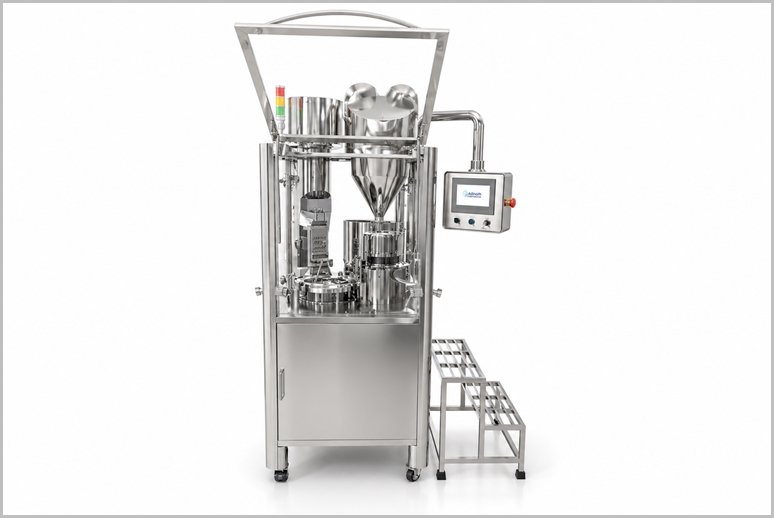

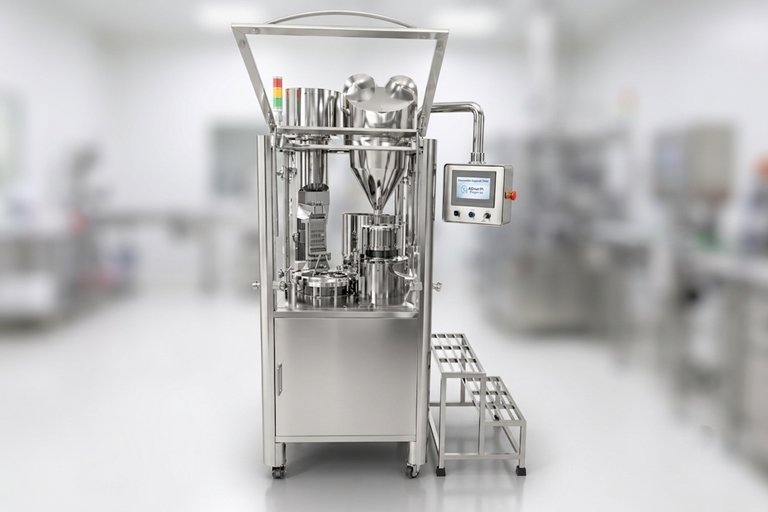

Automatic Capsule Filling Machine
An automatic capsule filling machine, which also comprises a fully automated capsule filling machine, can fill up to 150,000 capsules per hour utilising a variety of powder formulations. This machine model can fill the entire range of hard gelatin capsule sizes 00 to 5 with powder, pellets, and granules, either separately or in any combination of powder and pallets, with remarkable accuracy. The Automatic Capsule Filler uses tamping pin technology to create a slug that is inserted into a hard gelatin capsule for increased precision.

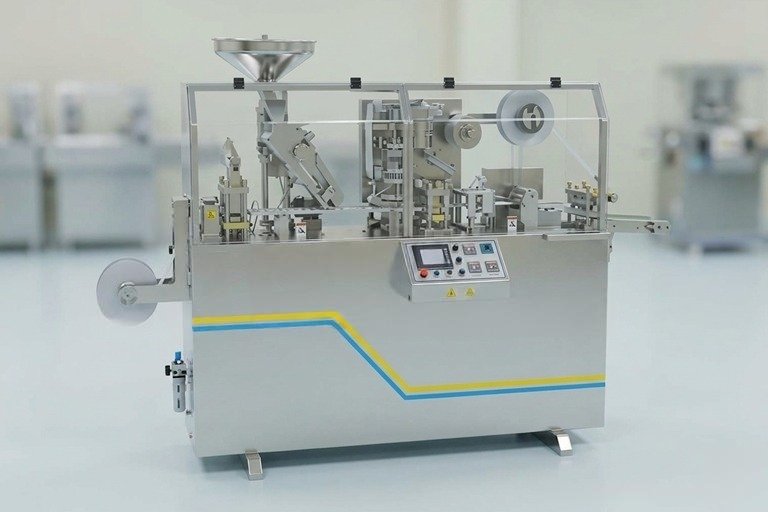

Capsule Blistering Machine
A capsule blister packing machine, often called a pharma blistering machine, is used to package tablets and capsules in blister packs. Because of our machines’ outstanding quality, durability, performance, and cost, the pharmaceutical industry, regardless of size, can tremendously benefit from them.

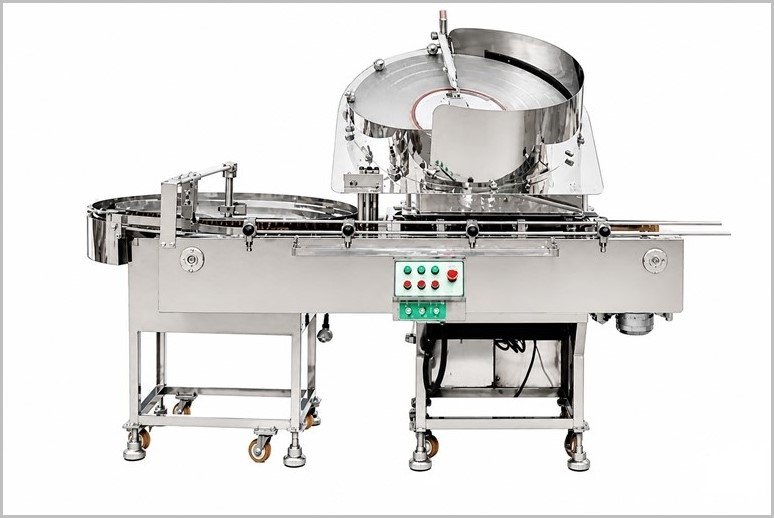

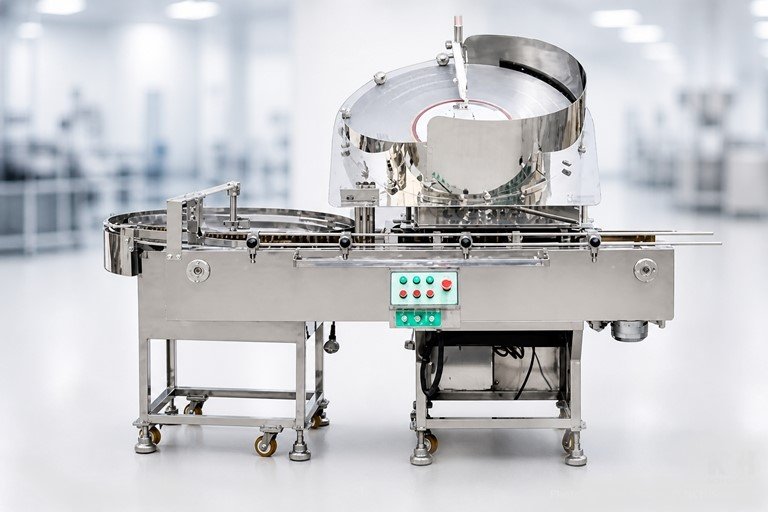

Capsule Counting Machine
Capsules are filled and counted in rigid containers and poly bags using capsule counting devices, also called capsule counters. The dish type is one sort of capsule counter. Each disc is manufactured on demand in compliance with the client’s exact specifications. An optional dust extractor is provided to remove dust particles from the pathway to the container, ensuring that tablets and capsules are filled without dust. One to a thousand capsules can be filled and counted into bags or containers using a capsule counting machine. extensively utilised equipment in research institutions, R&D labs, pilot batch production, herbal and nutraceutical formulations, Unani and Ayurvedic drugs, etc.
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
