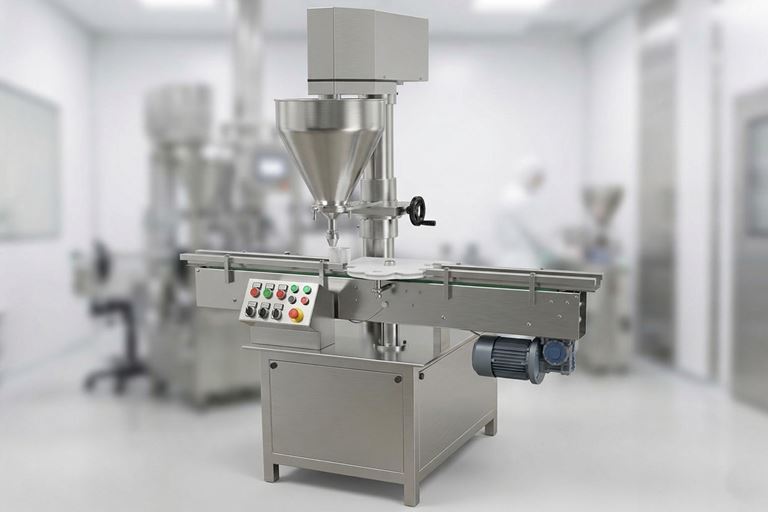

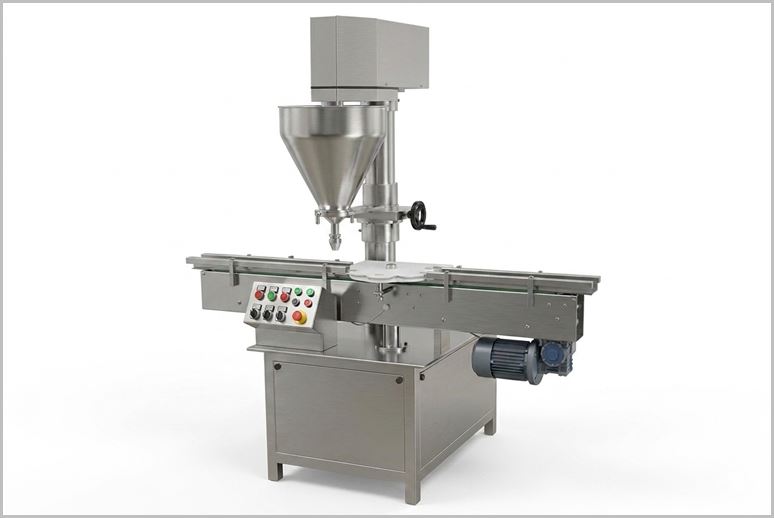

Biotech Powder Filling Machine for Bottles

Q: What is the filling accuracy and production speed of the machine?

The machine offers a filling accuracy of ±2–3% (depending on powder characteristics and environmental conditions). Production output varies by model: Single Head: Up to 30 bottles/min Double Head: Up to 60 bottles/min Triple Head: Up to 90 bottles/min Fill range is typically 5gms to 60gms per dose.

Description

Biotech Powder Filling Machine for Bottles is a specialized automated system designed for the precise, high-volume filling of fine powders into pharmaceutical-grade bottles, vials, jars, or other rigid containers. Engineered primarily for the biotechnology and pharmaceutical industries, it ensures sterile, accurate dosing of sensitive biological powders, such as active pharmaceutical ingredients (APIs), vaccines, antibiotics, and therapeutic compounds. This machine supports aseptic filling processes in cleanroom environments, minimizing contamination risks while accommodating batch sizes from small R&D runs to large-scale production. It typically integrates auger-based or gravimetric dosing technology for superior accuracy, with output rates up to 450 containers per minute depending on the model.

Drive Assembly: Consist motor, transmission and the switching mechanism to start and stop machine.

Hopper: It stored the material as a quarantine before filling. Through tooling it discharge material onto filling station.

Tooling: Tooling section consists auger agitator, funnels and other filling components to finetune the machine depending on the type of material being filled.

Structure Body: This is basic structure that supports the entire system.

Controls: This is the main mechanism to operate the machine parameters.

If you need details on specific models and pricing, let me know!

Salient Features of Biotech Powder Filling Machine for Bottles

Standard as well as Optional Servo Driven Filling Head.
Multiple auger head system as per customer requirements.
All contact parts made of SS316 and Nylon/HDPE material with easy removal system for Cleaning.
Machine construction in SS304 material.
Filling Accuracy of +/- 3% depending upon powder characteristics and environmental conditions.

A.C. Variable Frequency Drive Speed Control
Built in Turn Tables with Separate Drive for speed control.
IQ/OQ documentation can be provided.
PLC system with Graphical User Interface can be offered.
Inbuilt Laminar Air Flow can be offered for sterile class 100 filling.

Working Principle of Biotech Powder Filling Machine for Bottles

Duly cleaned containers are placed to the filling machine platform. From there containers transport towards the filling station with the help of conveyor belt. As soon as the bottle is sensed by bottle sensor, magnetic clutch starts to rotate which is mounted on the auger shaft. It fills the desired volume of powder to the container through Auger. After completion of filling process bottle transfers on conveyor for next capping operations.

Technical Specification of Biotech Powder Filling Machine for Bottles

Models	AI-APF 1	AI-APF 2	AI-APF 3
Production Output	Up to 30 bottles/minute	Up to 60 bottles/minute	Up to 90 bottles/minute
Fill Volume	5gms. to 60gms. in Single Dose System	5gms. to 60gms. in Single Dose System	5gms. to 60gms. in Single Dose System
Container Size	Custom made as per required container size	Custom made as per required container size	Custom made as per required container size
Filling Accuracy	± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Powder	± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Powder	± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Powder
Power Load	2 H. P.	3 H. P.	4.5 H. P.
Overall Dimension	1810 mm (L) x 905 mm (W) x 1900 mm approx.	2300 mm (L) x 905 mm (W) x 1900 mm approx.	3000 mm (L) x 905 mm (W) x 1900 mm approx.
Conveyor Height	850 – 950 mm adjustable	850 – 950 mm adjustable	850 – 950 mm adjustable
Electrical	415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive	415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive	415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Powder Filling Machines

Antibiotic Powder Filling Machine

Injectable Powder Filling Machine

Auger Powder Filling Machine

Bottle Dry Injectable Filling Machine

Automatic Dry Syrup Powder Filling Machine

Dry Syrup Powder Filler Capper

Dry Syrup Powder Filling Machine

Double Head Auger Powder Filling Machine

Applications of Powder Filling Machines

Advantages of Biotech Powder Filling Machine for Bottles

Increased Efficiency and Speed

Reduced Product Waste and Cost Savings

Improved Hygiene, Sterility, and Safety

Dust-Free Operation and Operator Safety

Regulatory Compliance and Reliability

Key Features of Biotech Powder Filling Machine for Bottles

Precision Dosing Mechanisms: Utilizes servo-driven auger fillers or gravimetric weigh cells for volumetric or weight-based filling, achieving ±0.5% accuracy even for micro-doses as low as 1 mg. This is critical for high-potency biotech powders that require exact measurements to maintain efficacy and safety.

Aseptic and Sterile Design: Features 100% in-process control (IPC) with real-time weighing and rejection of under/over-filled units, reducing product loss. Includes isolator-compatible enclosures, HEPA filtration, and easy-to-sterilize components to prevent microbial contamination.

Versatile Container Handling: Compatible with glass, plastic, or metal bottles/vials ranging from 2 mL to 500 mL. Supports formats like single-use syringes, cartridges, and dual-chamber systems for biotech applications.

Modular Integration: Can operate standalone or inline with upstream and downstream processes. Adjustable speed during filling, weighing, and stoppering optimizes workflow.

User-Friendly Controls: Touchscreen HMI with recipe management for quick changeovers between powder types. Includes safety interlocks, dust extraction, and vibration/stirring systems to handle challenging powders.

Compliance and Safety: Fully cGMP, FDA, and EU-compliant, with full traceability for audit trails. Protects operators from potent/toxic powders via containment options like RABS.

FAQ for Biotech Powder Filling Machine for Bottles

What is a Biotech Powder Filling Machine for Bottles?

The Biotech Powder Filling Machine is a high-precision, automated auger-based filling system designed for sterile and accurate filling of sensitive biological powders (such as APIs, vaccines, antibiotics, and therapeutic compounds) into bottles, vials, and jars. It is built for pharmaceutical and biotechnology industries, supporting aseptic processing in cleanroom environments with minimal contamination risk.

What is the filling accuracy and production speed of the machine?

The machine offers a filling accuracy of ±2–3% (depending on powder characteristics and environmental conditions). Production output varies by model:

Single Head: Up to 30 bottles/min
Double Head: Up to 60 bottles/min
Triple Head: Up to 90 bottles/min Fill range is typically 5gms to 60gms per dose.

Which types of powders and containers can this machine handle?

It is suitable for both free-flowing and non-free-flowing powders, including clumpy or aerated biotech powders. The machine handles a wide range of rigid containers (glass, plastic, or metal bottles/vials) with custom tooling for different sizes (from small vials to larger bottles).

What materials are used in the construction and how easy is it to clean?

All product contact parts are made of SS316 and Nylon/HDPE for superior corrosion resistance and hygiene. The machine frame is constructed from SS304. It features quick-release tooling and easy-removal systems for fast cleaning and changeover, making it ideal for GMP-compliant operations.

What optional features are available for sterile biotech production?

Optional features include:

Servo-driven filling heads
PLC with HMI and recipe management
Inbuilt Laminar Air Flow for Class 100 sterile filling
IQ/OQ documentation
Multiple auger heads
Dust extraction and containment systems (RABS)

These ensure full regulatory compliance (cGMP, FDA, EU) and enhanced operator safety.
