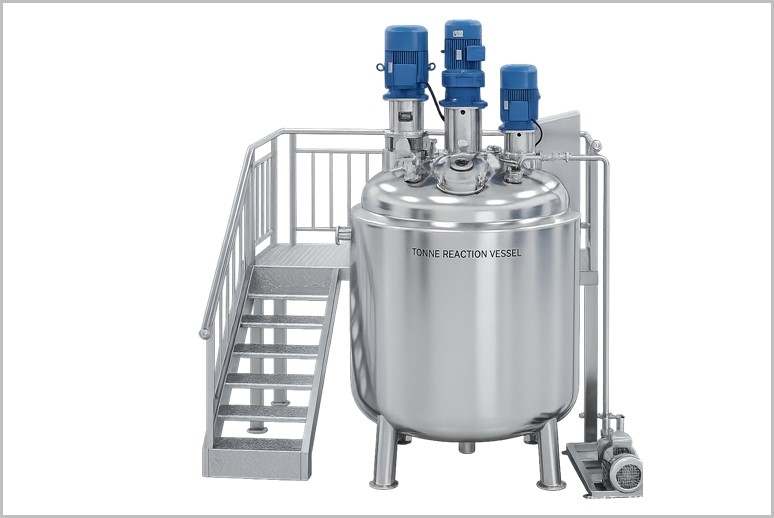

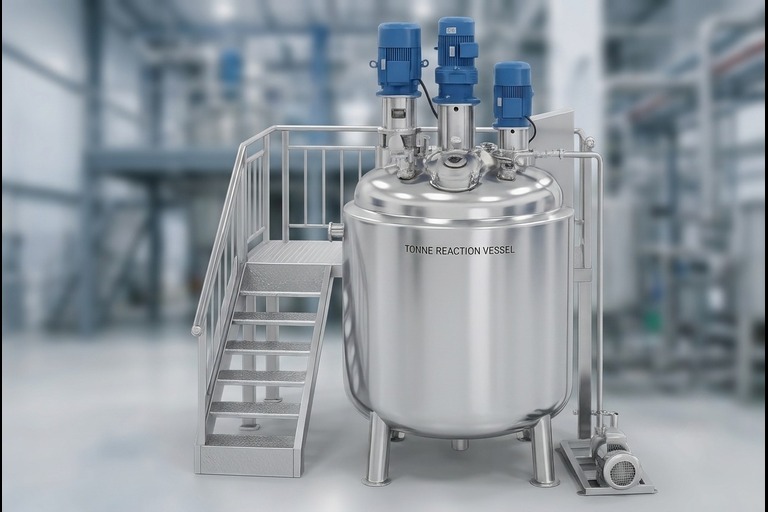

Acid Reaction Vessel

Description

Acid Reaction Vessel often simply called a reaction vessel or chemical reactor, is a specialized container designed to hold and facilitate chemical reactions involving acidic substances. These vessels are essential in laboratories, chemical processing plants, and industrial settings where acids are used as reactants or catalysts. They provide a controlled environment to manage temperature, pressure, pH, and mixing while preventing corrosion or contamination. The design and material of the vessel depend on the reaction’s scale, the acid’s corrosiveness, and safety requirements. For acidic conditions, vessels must resist degradation to avoid leaks, contamination, or hazardous releases.

Neutralization Example: In a typical setup, acids like acetic acid (CH₃COOH) react with bases like sodium hydroxide (NaOH) in a stirred vessel: CH₃COOH(aq) + NaOH(aq) → CH₃COONa(aq) + H₂O(l) pH is monitored via probes, with pumps dosing reagents to maintain control. Retention tanks store inputs, and the vessel ensures ideal mixing for consistent residence time .

Vessel Effects: The container material can influence outcomes. For instance, in reactions with hydrogen fluoride (HF), glass vessels react to form Lewis acids (e.g., BF₃), altering catalysis and yields. HF-resistant plastics like PTFE avoid this .

Safety Considerations: Acidic reactions are often exothermic, requiring cooling jackets or coils. Vessels must comply with standards like ASME for pressure-rated designs. Always use PPE, ventilation, and spill containment.

If you need details on specific models and pricing, let me know!

Salient Features of Acid Reaction Vessel

Thick-walled cylindrical shell with torispherical or ellipsoidal dish ends, strong welded seams, and reinforced nozzles for enhanced mechanical strength and safety.
Double jacketed, limpet coil, or half-coil designs for efficient heating/cooling even under high-pressure conditions using steam, thermal oil, or chilled fluids.
Heavy-duty acid-resistant agitators (anchor, turbine, paddle, or magnetic drive) with VFD speed control and leak-proof seals to ensure thorough mixing without corrosion or contamination.

Multiple pressure relief valves, rupture discs, temperature/pressure sensors, pH monitoring options, and burst protection systems for safe operation with hazardous acids.
Designed for Clean-in-Place and Sterilization-in-Place with smooth electropolished or glass-lined surfaces, flush bottom valves, and sanitary fittings for easy cleaning and minimal residue.
PLC/HMI automation, load cells, level indicators, sampling ports, baffles, and integration with filters or pumps tailored to specific acid reaction processes.

Types of Preparation Vessel

Sterile Manufacturing Vessel

Sterile Preparation Vessel

Injectable Preparation Vessel

Jacketed Mixing Vessel

WFI Storage Tank

Oral Liquid Preparation Vessel

Applications of Preparation Vessel

Advantages of Acid Reaction Vessel

Exceptional Corrosion Resistance

Safe Handling of Hazardous Processes

Compliance with Regulatory Standards

Easy Cleaning & Low Contamination Risk

Improved Operational Safety & Efficiency

Key Features of Acid Reaction Vessel

Corrosion-Resistant Materials: Built with SS 316L, Hastelloy C-276, Inconel, Titanium, Duplex Steel, or glass-lined carbon steel to provide exceptional resistance against strong acids, halides, and corrosive media.

High-Pressure & Temperature Capability: Designed as per ASME Section VIII for safe operation under high pressure (up to several hundred bar) and elevated temperatures, with thick walls and reinforced construction.

Efficient Jacket System: Double jacketed, limpet coil, or half-coil designs for uniform heating and cooling using steam, thermal oil, or chilled fluids, ensuring precise temperature control even with corrosive contents.

Specialized Agitation: Heavy-duty, acid-resistant agitators (anchor, turbine, paddle, or magnetic drive) with VFD for variable speed and leak-proof mechanical/magnetic seals to prevent fugitive emissions.

Sanitary & Cleanable Design: Electropolished or glass-lined smooth surfaces, flush bottom outlet valves, and CIP/SIP compatibility for easy cleaning and minimal cross-contamination.

Comprehensive Safety Systems: Multiple pressure relief valves, rupture discs, burst protection, temperature/pressure sensors, and optional pH monitoring for safe handling of hazardous acids.

Automation & Monitoring: PLC/HMI-based control panels, load cells for volume measurement, level indicators, and data logging for precise process control and compliance.

Custom Ports & Accessories: Reinforced nozzles, sampling ports, baffles, sight glasses, and integration options with condensers, filters, or dosing systems.

Wide Capacity Range: From laboratory scale (5–500 liters) to industrial production sizes (thousands of liters), fully customizable to specific acid reaction requirements.

Regulatory Compliance: Meets cGMP, ASME, PED, and other standards with full validation documentation support for pharmaceutical and chemical industries.

FAQ for Acid Reaction Vessel

What is an Acid Reaction Vessel?

An Acid Reaction Vessel is a specialized corrosion-resistant container designed to safely hold and facilitate chemical reactions involving strong acids or corrosive substances. It provides a controlled environment for temperature, pressure, mixing, and pH while preventing material degradation, leaks, or contamination.

What materials are used in Acid Reaction Vessels?

They are typically constructed from high-performance materials such as Stainless Steel 316L, Hastelloy C-276, Inconel, Titanium, Duplex Steel, or glass-lined steel to ensure excellent resistance against aggressive acids like HCl, H₂SO₄, HNO₃, and other corrosive media.

What are the key features of the Acid Reaction Vessel?

Thick-walled ASME-compliant construction with reinforced nozzles.
Jacketed or limpet coil designs for precise heating/cooling.
Heavy-duty acid-resistant agitators with VFD and leak-proof seals.
Comprehensive safety systems including relief valves and rupture discs.
CIP/SIP compatibility, PLC automation, and smooth electropolished/glass-lined surfaces.

How does an Acid Reaction Vessel ensure safety and longevity?

It features robust corrosion-resistant materials, multiple safety devices (pressure relief valves, sensors), leak-proof seals, and easy-to-clean designs. This combination minimizes risks, prevents corrosion-related failures, and extends equipment life in harsh acidic environments.

Which industries use Acid Reaction Vessels?

They are widely used in the Pharmaceutical, Chemical, Petrochemical, Cosmetic, Nutraceutical, and Specialty Chemical industries for acid-catalyzed reactions, neutralization, hydrolysis, sulfonation, and other processes involving corrosive substances.
