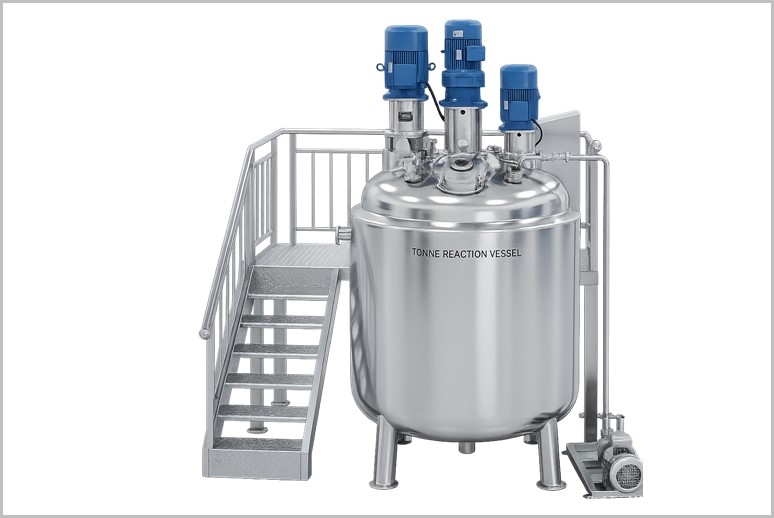

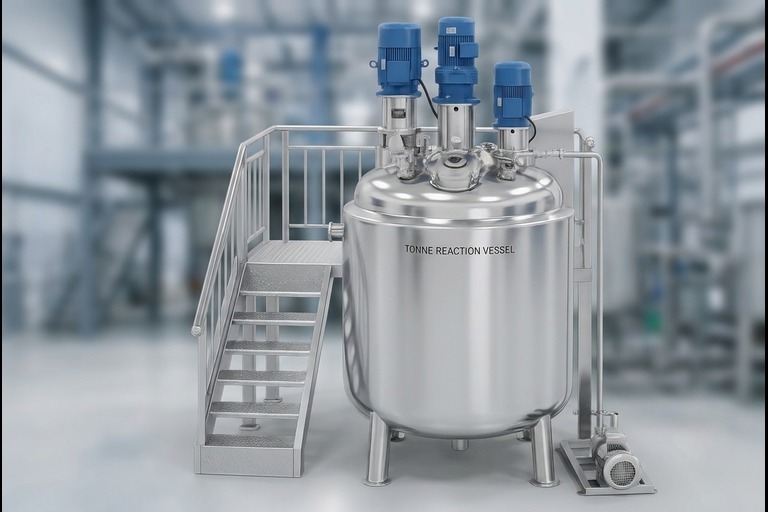

Stainless Steel Reaction Vessel

Description

Stainless Steel Reaction Vessel, also known as a stainless steel reactor or kettle, is a specialized container used in chemical, pharmaceutical, and industrial processes to facilitate physical or chemical reactions. It is typically cylindrical with dished ends, designed to withstand high pressures, temperatures, and corrosive environments. Stainless Steel Reaction Vessel are essential for processes like mixing, heating, cooling, evaporation, synthesis, and distillation, ensuring safe and efficient handling of reactive substances. Stainless steel is the preferred material due to its excellent corrosion resistance, durability, and compatibility with a wide range of chemicals, making it ideal for hygienic and long-term applications in industries such as pharmaceuticals, food processing, and petrochemicals.

If you need details on specific models and pricing, let me know!

Salient Features of Stainless Steel Reaction Vessel

Fabricated from premium Stainless Steel 304, 316, or 316L (pharmaceutical/food grade) for excellent corrosion resistance, durability, and hygiene.
Available in double jacketed, half limpet coil, full limpet coil, or welded types for efficient heating/cooling using steam, hot water, oil, or chilled fluids.
PLC automation, insulation & cladding, various discharge valves, and integration with other process equipment.
Designed for Clean-in-Place and Sterilization-in-Place with spray balls, flush bottom valves, and sanitary fittings for easy cleaning and sterility maintenance.

Top & bottom dish end or open types, with strong legs/lugs for dimensional stability. Temperature and pressure resistant for various chemical processes.
Safety valves, pressure gauges, level indicators, load cells (optional), and temperature sensors for safe and precise operation.
From lab-scale (50–500 liters) to large production vessels (up to 25,000 liters or more), customizable as per process requirements.
Equipped with central agitator (anchor, turbine, paddle, propeller, helical, or high-shear) with optional emulsifier/homogenizer for uniform mixing, recirculation, and reaction control. Variable speed via VFD.

Types of Preparation Vessel

Sterile Manufacturing Vessel

Sterile Preparation Vessel

Injectable Preparation Vessel

Jacketed Mixing Vessel

WFI Storage Tank

Oral Liquid Preparation Vessel

Applications of Preparation Vessel

Advantages of Stainless Steel Reaction Vessel

Superior Corrosion Resistance

Excellent Hygienic Performance

Efficient Heat Transfer

Versatile Mixing Capabilities

Durability & Low Maintenance

Key Features of Stainless Steel Reaction Vessel

Construction: Vertical cylindrical shell with torispherical or ellipsoidal heads. Often includes a jacket (for temperature control via circulating steam, hot oil, or cooling water) or limpet coils (external helical coils for heating/cooling).

Agitation: Equipped with mechanical stirrers, impellers, or turbines for uniform mixing and to prevent settling.

Sealing and Safety: Shaft seals, pressure relief valves, and sight glasses. Designed per ASME or GMP standards for pressure vessels.

Capacity Range: From small lab-scale (10 liters) to large industrial.

Customization: Can include baffles, ports for additions, or insulation. Materials like mild steel or carbon steel are alternatives for less corrosive uses, but SS is standard for purity.

FAQ for Stainless Steel Reaction Vessel

What is a Stainless Steel Reaction Vessel?

A Stainless Steel Reaction Vessel (also known as a stainless steel reactor or kettle) is a specialized cylindrical vessel with dished ends used for carrying out chemical or physical reactions under controlled conditions. It is designed to handle mixing, heating, cooling, synthesis, and other processes in pharmaceutical, chemical, and industrial applications.

What are the key features of the Stainless Steel Reaction Vessel?

Fabricated from SS 304, 316, or 316L for superior corrosion resistance and hygiene.
Available with double jacket, limpet coil, or welded designs for efficient temperature control.
Equipped with variable-speed agitators (anchor, turbine, propeller, etc.) for uniform mixing.
CIP/SIP compatible with safety valves, pressure gauges, and sanitary fittings.
Customizable from lab-scale (50–500 L) to large production capacities (up to 25,000 L+).

What materials and jacket options are available?

Vessels are primarily made from pharmaceutical-grade Stainless Steel 316/316L. Jacket options include double jacketed, half limpet coil, full limpet coil, or welded types, allowing efficient heating/cooling using steam, hot oil, water, or chilled fluids.

How does the Stainless Steel Reaction Vessel ensure safe and efficient operation?

It features robust construction with pressure and temperature resistance, safety valves, level indicators, and precise agitators with VFD control. The design supports CIP/SIP for easy cleaning, insulation for energy efficiency, and customization for specific process needs while meeting ASME/GMP standards.

Which industries use Stainless Steel Reaction Vessels?

They are widely used in the Pharmaceutical, Chemical, Cosmetic, Ayurvedic, Herbal, Nutraceutical, Food Processing, Petrochemical, Resin, and Polymer industries for synthesis, blending, crystallization, and other reaction processes.
