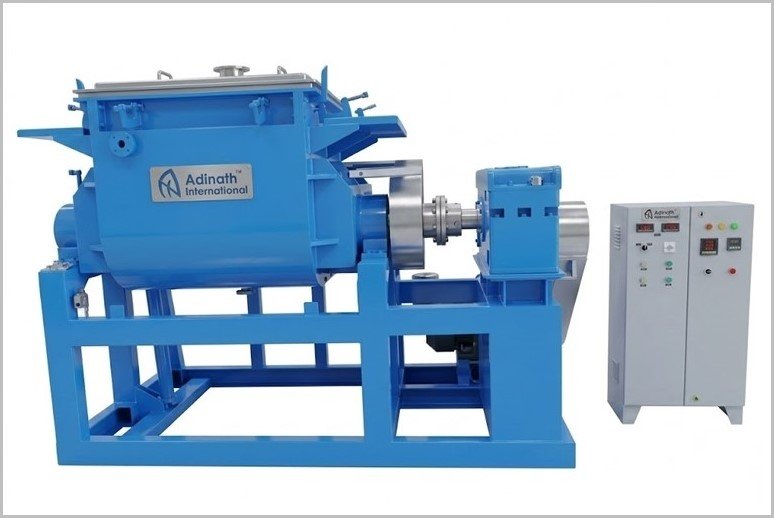

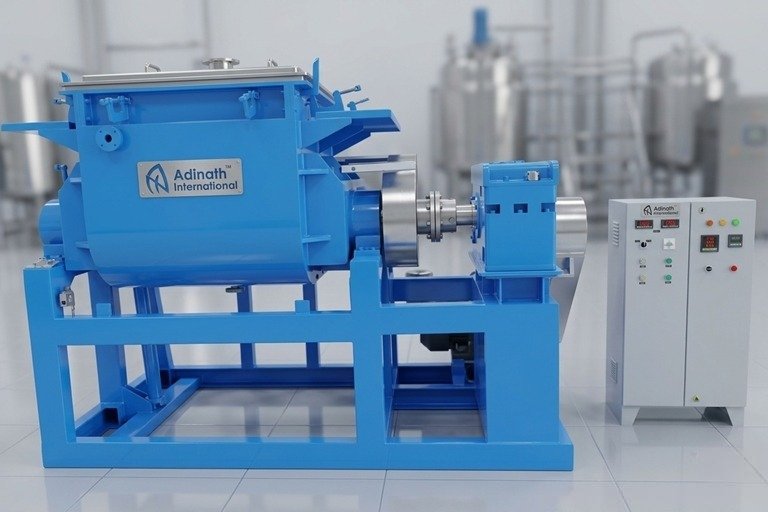

Sigma Blade Kneader

Description

A Sigma Blade Kneader, also widely known as a Sigma Mixer, Z-Blade Mixer, or Double Arm Kneader, is a robust, high-performance industrial mixing machine specifically engineered for handling highly viscous, sticky, and dough-like materials. This powerful equipment has become an essential asset across various manufacturing sectors that require intensive mixing, kneading, blending, and dispersing of challenging substances that standard mixers simply cannot process effectively.

At its core, the Sigma Blade Kneader features two counter-rotating sigma-shaped (or Z-shaped) blades mounted on parallel shafts. These specially designed blades intermesh within a trough, creating a highly efficient kneading action that thoroughly folds, stretches, and shears the material. The unique geometry of the sigma blades ensures excellent material displacement, preventing dead zones and delivering uniform consistency even with extremely thick compounds.

Sigma mixers are typically constructed from high-grade stainless steel or other durable alloys to withstand heavy loads, corrosion, and intensive use. They often come equipped with powerful motors, variable speed drives, jacketed troughs for temperature control (heating or cooling), and hydraulic tilting mechanisms for easy discharge of the final product.

Salient Features of Sigma Blade Kneader

Built utilizing industrial-grade metal selections, including SS 304, high-spec SS 316, and carbon-based Mild Steel.
Stainless steel exteriors can be tailored with either a non-reflective satin brush or a high-luster reflective mirror polish based on specific client requests.
Mild steel frameworks are protected against oxidation through a foundational red oxide primer layer coated over with dual layers of epoxy paint.
Batch evacuation can be executed via manual hand-wheel setups or fully automated hydraulic operations.
Optional temperature-control jackets can be integrated to handle external heating or chilling tasks.

Outer jackets are safely blanketed in mineral wool thermal insulation and sealed shut with protective metal sheet cladding.
Fitted with precision-calibrated tangential 'Z'-format blades to achieve consistent, uniform product blending.
Utilizes PTFE shaft seals to guarantee total safety, hygiene, and food-industry compliance.
Engineered with micro-tolerances between the container inner shell and mixing arms to completely eliminate dead zones or material buildup.
Specialized add-on packages available upon request, comprising pressurized liquid spray networks and hermetically sealed vacuum processing chambers.

Working Principle of Sigma Blade Kneader

Agitation Kinematics & Thermal Automation

Counter-Rotational Amalgamation: Twin Sigma (‘Z’) geometry agitators spin synchronously at calibrated differential velocities toward one another, continuously conveying media longitudinally through an intricate cycle of mass displacement, elongation, folding, splitting, and re-fusion.
Particle Diminution: Solid particle reduction is driven by intensive shear stress, tearing friction, and mechanical tearing created as the substance rubs against the moving impellers and interior container boundaries.
Automated Thermal Transitions: Once the mandatory batch sterilization timeframe concludes, the heating circuit powers down, the pneumatic exhaust vent opens automatically, and the chilling sequence initiates.

Product Evacuation Pathways

Completed batches can be unloaded through three distinct ejection methods:

Tilting the entire mixing trough
Draining via bottom-situated dump valves
Extruding through a lateral side-mounted screw mechanism

Rotor Geometries & Viscosity Matrix

Tangential Blade Layout

Operational Setup: Non-intersecting rotors revolving adjacently at unequal velocities, typically maintaining a 3:2 speed proportion (with the lead blade traveling faster than the rear).
Ideal Applications: Heavy, high-viscosity formulations including industrial adhesives, heavy rubberized compounds, flush colors, chemical dyes, and dense pigments.

Overlapping Blade Layout

Operational Setup: Blades that cross paths directly above the central vessel ridge, requiring absolute phase synchronization and matching rotational speeds to accelerate cross-compartment transfer.
Ideal Applications: Free-flowing, fluid, or creeping substances such as carbon pastes, ceramic clay coatings, cosmetic creams, and pharmaceutical ointments.
Shear Characteristic: Yields a significantly milder kneading and tearing intensity relative to the tangential configuration.

Technical Specification of Sigma Blade Kneader

Model	Capacity – Liters		Motor (H.P.)
Model	Working Capacity approx.	Gross Capacity approx.	General	Heavy Duty
ASM – 50	50 Liters	80 Liters	5 H.P.	7.5 H.P.
ASM – 75	75 Liters	110 Liters	7.5 H.P.	10 H.P.
ASM – 100	100 Liters	150 Liters	10 H.P.	15 H.P.
ASM – 150	150 Liters	200 Liters	15 H.P.	20 H.P.
ASM – 200	200 Liters	300 Liters	20 H.P.	25 H.P.
ASM – 400	400 Liters	550 Liters	30 H.P.	40 H.P.
ASM – 500	500 Liters	750 Liters	40 H.P.	50 H.P.
ASM – 750	750 Liters	1150 Liters	50 H.P.	60 H.P.
ASM – 1000	1000 Liters	1500 Liters	60 H.P.	70 H.P.
ASM – 1500	1500 Liters	2100 Liters	75 H.P.	80 H.P.
ASM – 2000	2000 Liters	2600 Liters	80 H.P.	90 H.P.
ASM – 3000	3000 Liters	3800 Liters	100 H.P.	120 H.P.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Sigma Mixer

Sigma Mixer Machine

Sigma Mixer Extruder

Lab Sigma Mixer

Food Grade Sigma Mixer

Heavy Duty Sigma Mixer Machine

Z Type Sigma Mixer

Applications of Sigma Mixer

Pharmaceutical Industry
Nutraceutical Industry
Herbal Industry
Ayurvedic Industry
Biotech Industry
Cosmetic Industry
Chemical Industry

Optional Features/Accessories of Sigma Blade Kneader

Liquid Spray System

Vacuum System

Screw System

Blades Cooling Arrangement

Automatic Valve Discharge System

Key Features of Sigma Blade Kneader

Design: It features a W-shaped (or double U-shaped) trough with two counter-rotating Z-shaped (Sigma-shaped) blades mounted horizontally. The blades rotate toward each other at the same or different speeds, creating a strong tangential or overlapping action that pulls, shears, compresses, folds, and kneads the material against the trough walls.

Mixing Action: This produces intensive shearing and kneading, ensuring thorough homogenization even for thick pastes or slurries. The blades maintain close clearances for optimal efficiency.

Construction: Typically made from mild steel or stainless steel (304/316 grades), with options for jacketing (for heating/cooling), vacuum operation, hydraulic tilting for discharge, and extrusion screws in advanced models.

Capacities: Ranges from lab-scale (e.g., 5-10 liters) to large production units (up to 5000 liters or more).

FAQ for Sigma Blade Kneader

What industries primarily benefit from using a Sigma Blade Kneader?

The Sigma Blade Kneader is widely used in the Pharmaceutical, Nutraceutical, Herbal, Ayurvedic, Biotech, Cosmetic, and Chemical industries. It excels at processing high-viscosity materials such as ointments, creams, pastes, adhesives, rubber compounds, dyes, pigments, and specialty formulations that require intensive kneading and uniform mixing.

What is the difference between the tangential and overlapping blade designs in a Sigma Blade Kneader?

Tangential blades rotate at different speeds (typically 3:2 ratio) and are ideal for higher-viscosity materials like adhesives, rubber compounds, and pigments, providing strong kneading and shearing. Overlapping blades rotate at the same speed, offer faster material interchange, and suit lighter viscosities such as creams, ointments, and carbon pastes, though with comparatively lower kneading intensity.

How is the finished product discharged from the Sigma Blade Kneader?

Discharge options include manual hand-wheel operation, hydraulic tilting of the trough (automatic), bottom valves, or an extrusion screw. These mechanisms ensure efficient and complete removal of the mixed material with minimal operator effort.

Can the Sigma Blade Kneader handle temperature-sensitive materials?

Yes. It features jacketed troughs for heating or cooling applications, along with optional mineral wool insulation and cladding. Blades cooling arrangements are also available as an accessory, allowing precise temperature control during mixing of sensitive compounds.

What construction materials and finishes are available for the Sigma Blade Kneader?

It is available in Stainless Steel 316, Stainless Steel 304, or Mild Steel. Stainless steel options come with matt or mirror polish finishes per customer requirements, while Mild Steel models receive red oxide and epoxy paint. PTFE shaft seals support food-grade compatibility.

What is the typical capacity range for Sigma Blade Kneader models?

Models range from lab/pilot scale to large production units. Working capacities start at 50 liters (ASM-50) and go up to 3000 liters (ASM-3000), with corresponding gross capacities and motor powers from 5 HP to 120 HP depending on general or heavy-duty requirements.

What optional features can enhance the performance of a Sigma Blade Kneader?

Available options include Liquid Spray System, Vacuum System, Screw System, Blades Cooling Arrangement, Automatic Valve Discharge, variable speed drives (VFD), and custom sealing or feeding mechanisms to suit specific process needs.

How does the Sigma Blade Kneader ensure uniform mixing of high-viscosity materials?

The counter-rotating Z-shaped (Sigma) blades create intensive shearing, folding, stretching, dividing, and recombining actions within a W-shaped or double U-shaped trough. Close blade-to-trough clearances and tangential/overlapping designs prevent dead zones and deliver consistent homogenization.

Is the Sigma Blade Kneader suitable for GMP-compliant and food-grade production?

Yes. It supports GMP standards through high-grade stainless steel construction, easy-to-clean designs with minimal product stagnation gaps, mirror polish finishes, PTFE/silicon seals, jacketed bowls, and hydraulic tilting for hygienic operation.

Can the Sigma Blade Kneader be customized for specific production requirements?

Absolutely. Customization options include material of construction, trough thickness (3mm–30mm), motor horsepower (1.5–250 HP), fixed or variable speeds, discharge methods, heating/cooling systems, sealing types, finishes, and additional feeding or vacuum capabilities.
