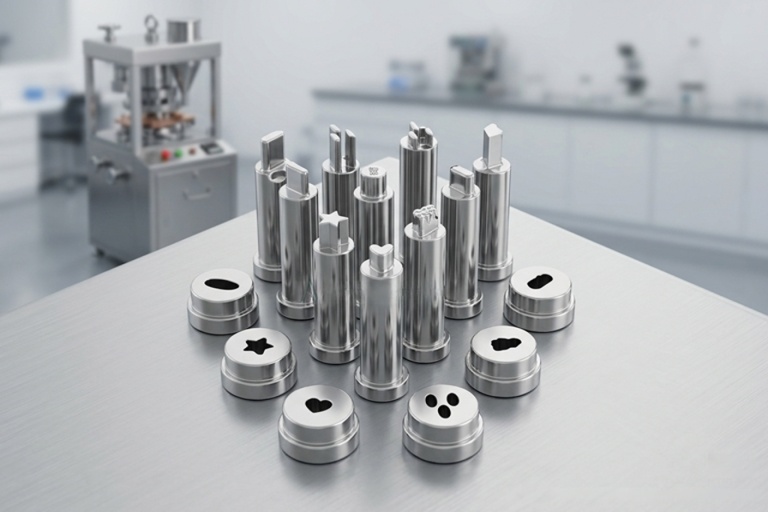

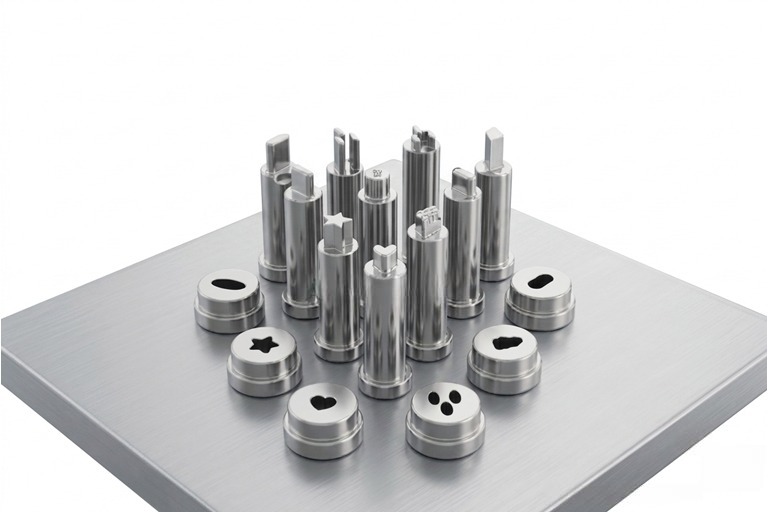

Irregular Shape Tablet Dies Punches

Q: What are the key advantages of Irregular Shape Tablet Dies & Punches?

Unique Branding & Differentiation : Create eye-catching, memorable tablets for better market visibility. Improved Patient Compliance : Fun or ergonomic shapes (e.g., animals or fruits) make tablets easier to take, especially for children and pets. Design Versatility : Support intricate details like bisects, logos, engravings, flat/convex/bevelled faces, and tapered dies. Precision & Durability : Tight tolerances ensure consistent weight, thickness, and quality with long tool life. High Production Efficiency : Suitable for complex shapes while maintaining high-speed output and reducing defects.

Description

In pharmaceutical, confectionery, chemical, and powder metallurgy industries, tablet dies and punches are essential components of tablet presses. These tools shape granulated material into uniform tablets by compressing it under high pressure. While round shapes are the most common, Irregular Shape Tablet Dies Punches are custom-designed for non-standard forms, allowing manufacturers to create unique tablets for branding, ease of swallowing, or specific applications. Irregular shapes refer to custom or non-geometric designs beyond basic rounds, ovals, or capsules, such as fruits, animals, vehicle icons, human body parts, or abstract motifs.

If you need details on specific models and pricing, let me know!

Salient Features of Irregular Shape Tablet Dies Punches

Made from high-quality pharmaceutical-grade steel
Oil Hardened Nitride Steel (OHNS), High Carbon High Chromium Steel (HCHC), or S7/D2 tool steel.
Produced on CNC machines with tight tolerances for accurate, consistent punching. Careful matching of material and hardness for trouble-free operation.
This ensures durability, wear resistance, hardness, and compliance with pharma standards.

Easily attachable to any tablet punching/compression machine.
Suitable for medium and high-speed production. Available in standard tooling types like “D”, “B”, “BB”, “DB”.
Coatings or plating available on request for better release and corrosion resistance.
Support for various tablet shapes and features such as flat/convex/bevelled faces, bisects, logos, engravings, and tapered dies.

Types of Tablet Press Machine

Rotary Tablet Press Machine

Lab Scale Tablet Press Machine

Single Rotary Tablet Press Machine

Double Rotary Tablet Press Machine

Heavy Duty Salt Tablet Press Machine

Heavy Duty Bolus Tablet Press Machine

High Speed Tablet Press Machine

Bi Layer Tablet Making Machine

Applications of Tablet Press Machine

Advantages of Irregular Shape Tablet Dies Punches

Unique Branding & Product Differentiation

Improved Patient/Pet Compliance

Versatility in Design & Functionality

Durability & Production Efficiency

Reduced Defects with Proper Design

Key Components of Irregular Shape Tablet Dies Punches

Design and Customization: These tools are precision-engineered to produce tablets with intricate details, including embossing and break lines for splitting. The die forms the outer cavity, while upper and lower punches compress the material and impart surface features.

Materials: Typically made from high-carbon high-chromium (HCHC) or oil-hardened non-shrinking (OHNS) steel for durability against abrasion and corrosion. Options include carbide-tipped punches for longer life or coatings like Teflon to prevent sticking.

Compatibility: Suitable for rotary or single-punch presses, with options for multi-tip designs (e.g., 3-head) to increase output. They support various concavities: flat for plain tablets, shallow for biconvex, or deep for coated varieties.

Production Benefits: Enable high-speed output while ensuring consistent size, weight, and shape. Tapered dies aid ejection and reduce defects like capping.

FAQ for Irregular Shape Tablet Dies Punches

What are Irregular Shape Tablet Dies & Punches?

Irregular Shape Tablet Dies & Punches are custom-designed tooling used in tablet compression machines to produce non-standard tablet shapes beyond basic rounds, ovals, or capsules. They enable unique designs such as fruits, animals, vehicles, human body parts, abstract motifs, or brand-specific icons. These are ideal for pharmaceutical, nutraceutical, confectionery, and veterinary applications to enhance branding, patient compliance, and market appeal.

What materials are Irregular Shape Tablet Dies & Punches made from?

These punches and dies are manufactured from high-quality pharmaceutical-grade steels including Oil Hardened Nitride Steel (OHNS), High Carbon High Chromium Steel (HCHC), or S7/D2 tool steel. They are CNC-machined with tight tolerances, heat-treated for superior hardness, durability, and wear resistance, and fully comply with cGMP standards. Optional coatings (such as PTFE/Teflon) or plating are available for better tablet release and corrosion resistance.

Which tablet press machines are compatible with Irregular Shape Tablet Dies & Punches?

They are compatible with a wide range of tablet compression machines, including single rotary, double rotary, high-speed rotary, lab-scale, and heavy-duty models. Available in standard tooling configurations such as D, B, BB, and DB types, they can be easily attached and support both medium and high-speed production.

What are the key advantages of Irregular Shape Tablet Dies & Punches?

Unique Branding & Differentiation: Create eye-catching, memorable tablets for better market visibility.
Improved Patient Compliance: Fun or ergonomic shapes (e.g., animals or fruits) make tablets easier to take, especially for children and pets.
Design Versatility: Support intricate details like bisects, logos, engravings, flat/convex/bevelled faces, and tapered dies.
Precision & Durability: Tight tolerances ensure consistent weight, thickness, and quality with long tool life.
High Production Efficiency: Suitable for complex shapes while maintaining high-speed output and reducing defects.

Can Irregular Shape Tablet Dies & Punches be customized?

Yes. Irregular Shape Tablet Dies & Punches can be fully customized according to your specific requirements, including unique shapes, sizes, surface finishes, bisects, deep engravings, logos, multi-tip designs, and special coatings. Provide your formulation details, tablet specifications, and machine type for tailored, high-precision solutions that meet TSM or EU pharmacopeia standards.
