Regular Shape Tablet Dies Punches

Q: What are the key advantages of Regular Shape Tablet Dies & Punches?

Uniformity : Excellent consistency in tablet weight, thickness, and hardness. Higher Speed : No anti-rotation key needed on upper punches, enabling faster production. Durability : High-grade materials ensure long tool life and reduced wear. Ease of Maintenance : Simpler cleaning and lower maintenance compared to complex shapes. Versatility : Supports flat/convex/bevelled faces, bisects, logos, engravings, and tapered dies. Suitable for pharmaceuticals, nutraceuticals, and high-volume manufacturing.

Description

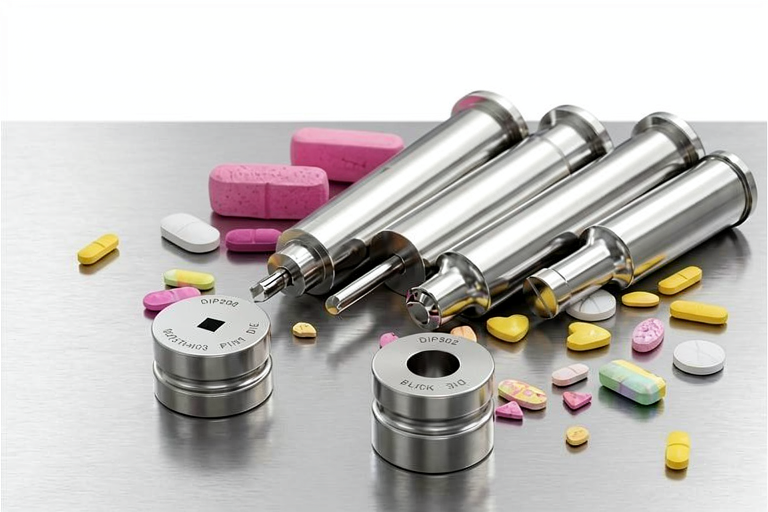

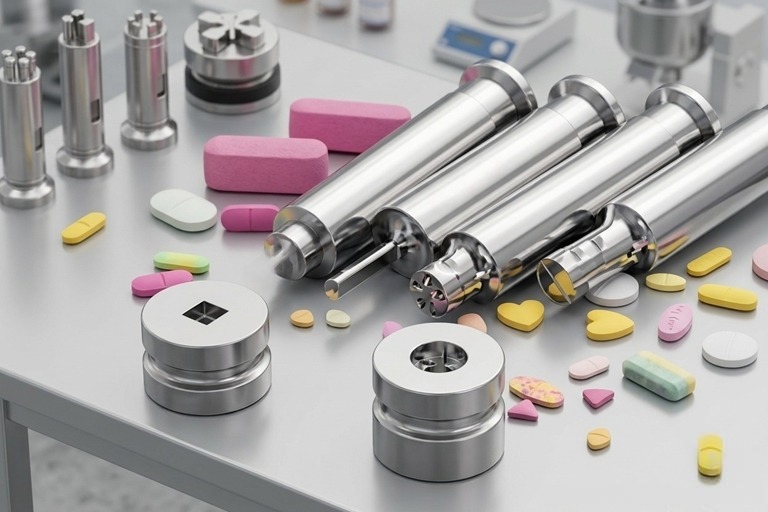

Regular Shape Tablet Dies Punches (also called standard tooling) are precision-engineered components used in rotary tablet presses to compress powder or granules into tablets of consistent size, shape, weight, and hardness. “Regular” refers to standard geometric shapes compliant with global pharmacopeia standards.

If you need details on specific models and pricing, let me know!

Salient Features of Regular Shape Tablet Dies Punches

Made from high-quality pharmaceutical-grade steel
Oil Hardened Nitride Steel (OHNS), High Carbon High Chromium Steel (HCHC), or S7/D2 tool steel.
Produced on CNC machines with tight tolerances for accurate, consistent punching. Careful matching of material and hardness for trouble-free operation.
This ensures durability, wear resistance, hardness, and compliance with pharma standards.

Easily attachable to any tablet punching/compression machine.
Suitable for medium and high-speed production. Available in standard tooling types like “D”, “B”, “BB”, “DB”.
Coatings or plating available on request for better release and corrosion resistance.
Support for various tablet shapes and features such as flat/convex/bevelled faces, bisects, logos, engravings, and tapered dies.

Types of Tablet Press Machine

Rotary Tablet Press Machine

Lab Scale Tablet Press Machine

Single Rotary Tablet Press Machine

Double Rotary Tablet Press Machine

Heavy Duty Salt Tablet Press Machine

Heavy Duty Bolus Tablet Press Machine

High Speed Tablet Press Machine

Bi Layer Tablet Making Machine

Applications of Tablet Press Machine

Advantages of Regular Shape Tablet Dies Punches

Excellent uniformity in weight, thickness, and hardness.

No anti-rotation key needed on upper punches

Higher production speeds, easier cleaning, and lower wear.

High durability and long tool life.

Suitable for pharmaceuticals, nutraceuticals, and high-volume production.

Key Components of Regular Shape Tablet Dies Punches

Upper Punch: Enters the die from the top to apply compression force. Its tip determines the top surface (flat, bevelled, concave, convex, with or without logos/bisects).

Lower Punch: Supports the powder from below, controls fill depth/weight, and rises to eject the finished tablet.

Die: The hardened steel cavity that holds the powder and defines the tablet’s diameter and perimeter shape (e.g., round). The bore is precision-machined for tight fit with punches.

Round: Circular with flat or beveled edges

Oval (Capsule): Elongated with rounded ends

Oblong: Rectangular with rounded ends

Square: Four equal sides, sharp or rounded corners

Triangle: Equilateral or modified

Rectangle: Longer than wide, rounded ends

FAQ for Regular Shape Tablet Dies Punches

What are Regular Shape Tablet Dies & Punches?

Regular Shape Tablet Dies & Punches (also known as standard tooling) are precision-engineered components used in rotary tablet presses. They compress powder or granules into uniform tablets of consistent size, shape, weight, and hardness. “Regular” refers to standard geometric shapes (such as round, oval, etc.) that comply with global pharmacopeia standards, making them ideal for high-volume pharmaceutical and nutraceutical production.

What materials are Regular Shape Tablet Dies & Punches made from?

These punches and dies are manufactured from high-quality pharmaceutical-grade steels, including Oil Hardened Nitride Steel (OHNS), High Carbon High Chromium Steel (HCHC), or S7/D2 tool steel. They are CNC-machined with tight tolerances, heat-treated for optimal hardness, durability, and wear resistance, and fully comply with cGMP standards. Optional coatings or plating are available for improved tablet release and corrosion resistance.

Which tablet press machines are compatible with Regular Shape Tablet Dies & Punches?

They are compatible with a wide range of tablet compression machines, including single rotary, double rotary, high-speed rotary, lab-scale, and heavy-duty models. Available in standard tooling configurations such as D, B, BB, and DB types, they are easily attachable and suitable for both medium and high-speed production.

What are the key advantages of Regular Shape Tablet Dies & Punches?

Uniformity: Excellent consistency in tablet weight, thickness, and hardness.
Higher Speed: No anti-rotation key needed on upper punches, enabling faster production.
Durability: High-grade materials ensure long tool life and reduced wear.
Ease of Maintenance: Simpler cleaning and lower maintenance compared to complex shapes.
Versatility: Supports flat/convex/bevelled faces, bisects, logos, engravings, and tapered dies. Suitable for pharmaceuticals, nutraceuticals, and high-volume manufacturing.

Can Regular Shape Tablet Dies & Punches be customized?

Yes. Regular Shape Tablet Dies & Punches can be customized to meet specific requirements, including tablet dimensions, surface finishes (flat, bevelled, concave, convex), bisects, logos, engravings, and special coatings. Provide your formulation details, desired tablet specifications, and machine type to receive tailored, high-precision tooling solutions.
