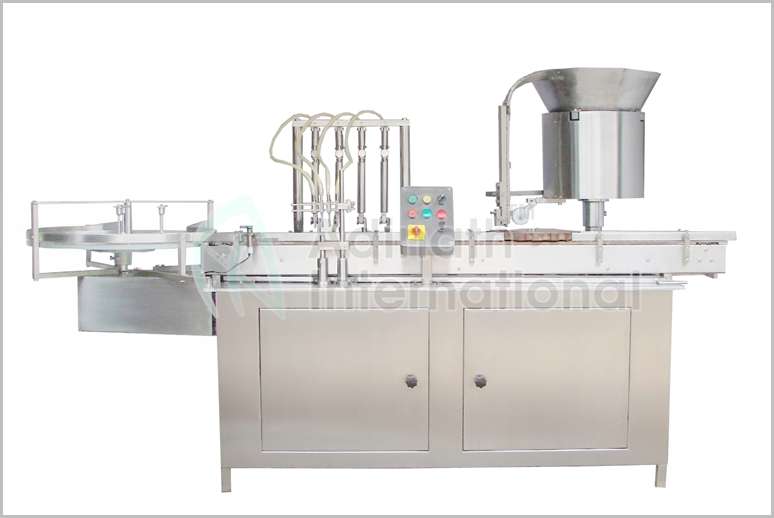

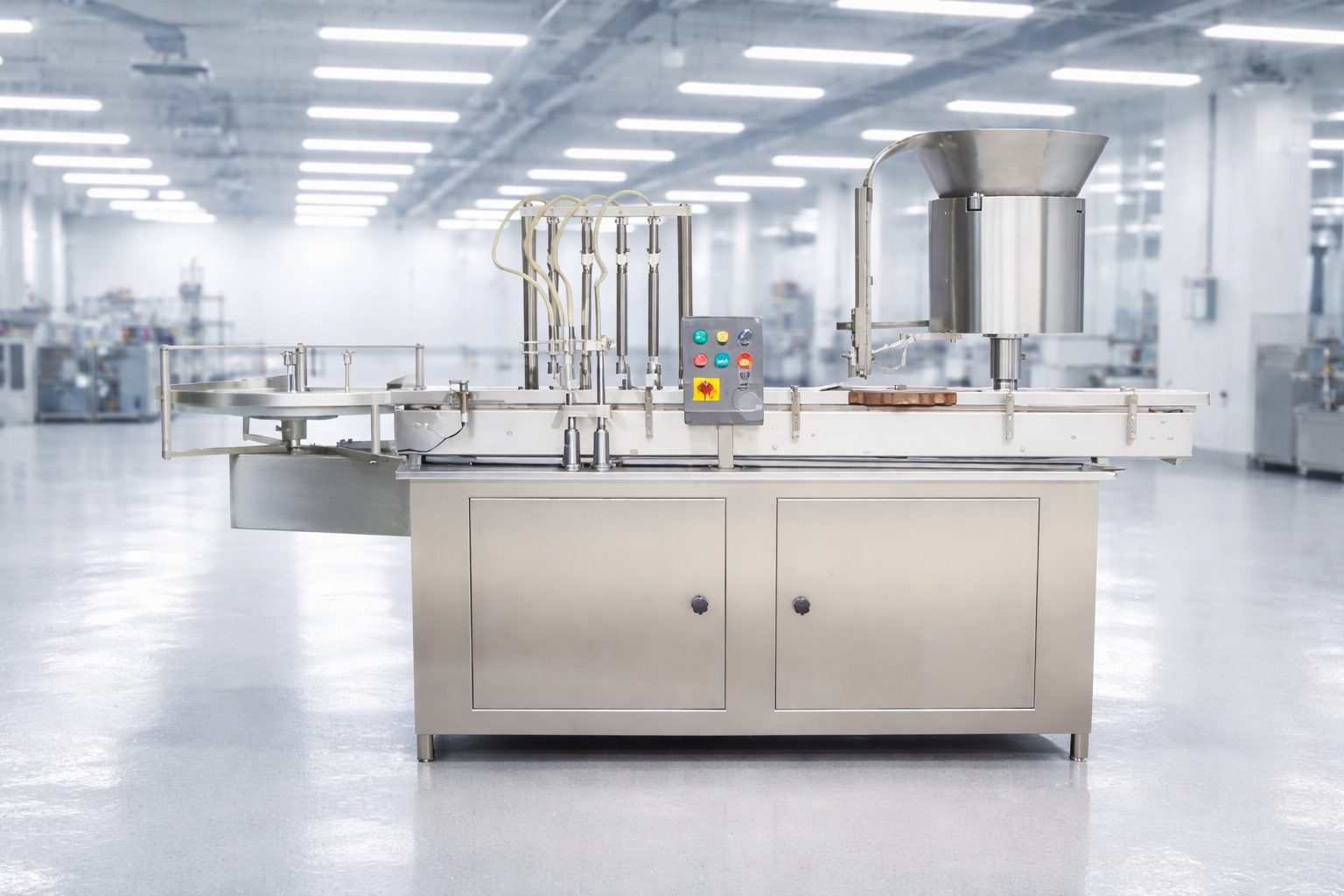

Automatic Vial Filling Machine is a high-precision, automated pharmaceutical packaging equipment designed to fill liquid or semi-liquid medications into glass or plastic vials with extreme accuracy, sterility, and speed. Automatic Vial Filling Machine are essential in pharmaceutical, biotech, and cosmetic industries for aseptic filling of injectables, vaccines, eye drops, and other sensitive products.
This cGMP-compliant machine ensures high filling accuracy, minimal contamination risk, and seamless integration with upstream (vial washing & sterilizing) and downstream (rubber stoppering, capping & labeling) equipment to form a complete sterile production line.
The Automatic Vial Filling Machine delivers consistent quality, high throughput, reduced labor, and full regulatory compliance (USFDA, WHO, cGMP). It is ideal for manufacturers looking for reliable, efficient, and sterile liquid vial filling solutions.
The incoming dry vials (sterilized and siliconized) are fed through the unscrambler and suitably guided on the moving Delrin slat conveyor belt at the required speed of the correct placement below filling unit.
The filling unit consists of Filling Head, Syringes & Nozzles; Syringes & Nozzles are made of AISI SS 316L materials. A Star Wheel is provided which holds the vial during filling operation. A sensor is provided for ”No Vial-No Filling” operation. Syringes are mounted on eccentric block and driving through bottom main gear box. Volume can be increase & decrease by increasing or decreasing stroke length of piston as per filling size. Syringes is having non return valve for sucking and delivering situation to avoid volume variation. Liquid reaches to filling nozzles through silicon transparent pipe. Nozzles having up & down movement with help of cam mechanism, and it come down when vial hold by starwheel for filling operation and starts filling when it starts to move up and after completion of filling operation, starwheel delivers two vials together on conveyor for rubber stoppering operation.
Stoppering unit consist of Star wheel, Vibrator unit and Bowl. The sterilized and siliconized rubber stoppers stored in the vibrator bowl moves vertically to the rubber stopper chute. The vial is hold firmly by starwheel, which will be in continuous rotary motion and vial which is coming from filling unit get in to starwheel and move in rotary direction along with starwheel, during movement it picks up the rubber stopper from the exit end of the chute and rubber stopper pressed by fix single pressing roller, which is spring loaded. Then vial further move on conveyor and collected on out feed starwheel for next sealing operation.
Model | ALVF-40 | ALVF-80 | ALVF-120 | ALVF – 250 |
Filling Heads | Two | Four | Eight | Twelve |
Production Rate | Up to 40 Vials/Minute | Up to 80 Vials/Minute | Up to 150 Vials/Minute | Up to 250 Vials/Minute |
Input Specification | ||||
Vial Diameter | 15mm to 70mm | 15mm to 70mm | 15mm to 70mm | 15mm to 70mm |
Vial Height | 25mm to 140mm | 25mm to 140mm | 25mm to 140mm | 25mm to 140mm |
Filling Precision | ±1% | ±1% | ±1% | ±1% |
Power Required | 1 H.P. | 1.5 H.P. | 2 H.P. | 2 H.P. |
Electrical Characteristics | 440 Volts, 3 Phase, 50 Hertz | 440 Volts, 3 Phase, 50 Hertz | 440 Volts, 3 Phase, 50 Hertz | 440 Volts, 3 Phase, 50 Hertz |
Overall Dimension | 2050mm (L) x 850mm (W) x 1700mm (H) | 2200mm (L) x 850mm (W) x 1700mm (H) | 3000mm (L) x 945mm (W) x 1700mm (H) | 3500mm (L) x 945mm (W) x 1700mm (H) |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
Our Automatic Vial Filling Machine is available in four models with the following outputs:
The actual speed depends on vial size, fill volume (2ml to 250ml), and liquid viscosity. All models provide consistent filling accuracy of ±1%.
The machine handles a wide range of vial sizes:
It supports fill volumes from 2ml to 250ml. Changeover between different vial sizes is quick and requires minimum change parts. The versatile design makes it suitable for both small-batch and large-scale sterile liquid filling in pharmaceutical production.
Sterility and accuracy are maintained through:
The compact monoblock design and advanced safety features ensure compliance with USFDA, WHO, and cGMP guidelines for sterile injectable production.
Power requirements are model-specific:
(All models operate on 440 Volts, 3 Phase, 50 Hz – customizable as per your country’s voltage.)
Key features include:
