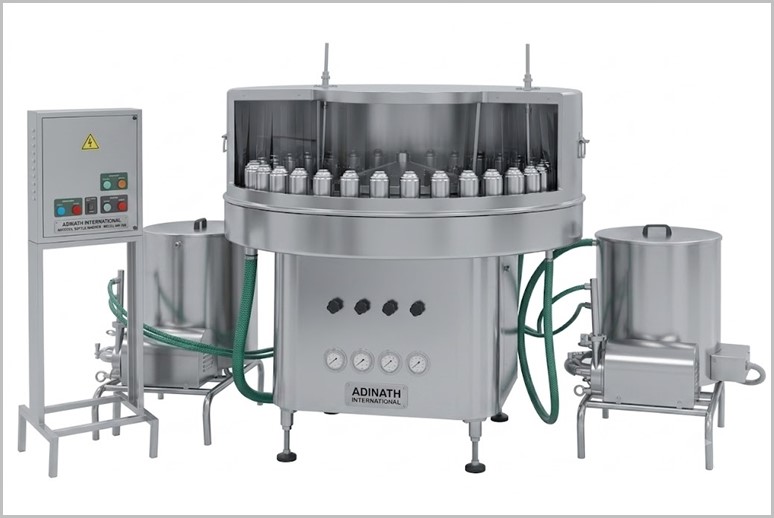

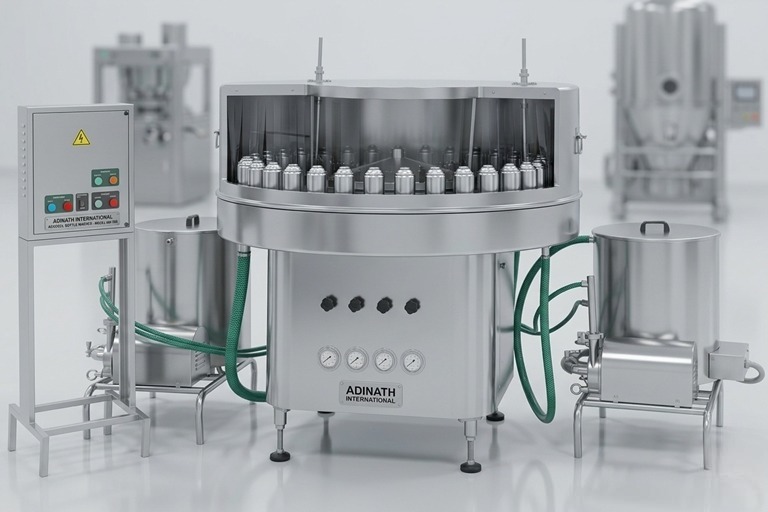

Automatic Glass Bottle Washing Machine

Description

Automatic Glass Bottle Washing Machine is an industrial-grade appliance designed primarily for the beverage, dairy, food, pharmaceutical, and cosmetic industries to efficiently clean reusable or returnable glass bottles. These machines automate the cleaning process, handling high volumes of bottles while ensuring thorough removal of contaminants, labels, residues, and foils. They are built to meet hygiene standards like GMP (Good Manufacturing Practices) and are constructed from durable, corrosion-resistant materials such as stainless steel (SS 304 or higher) to withstand harsh cleaning agents and high-pressure operations.

If you need details on specific models and pricing, let me know!

Salient Features of Automatic Glass Bottle Washing Machine

Geneva mechanism.
Four inner, one outer and one air wash.
Sequence of washes of washes to customer’s choice
Stationary nozzles eliminate contamination of water cycles.
Easy loading and unloading with two rows.
Individual solenoid valve for each washing sequence.
Pumps and tanks are mounted on parable stand for easy maintenance.

Easy operation.
Higher capacity centrifugal pumps to wash bigger bottles.
The stationary nozzles avoid chipping of bottle necks.
Bottle guide system especially for lightweight bottle.
Pumps and Tanks are mounted on portable stand for easy maintenance.
Separate panel control to avoid any short circuit due to spraying of water.
S.S. glycerin fill pressure meter.

Working Principle of Automatic Glass Bottle Washing Machine

The bottles are loaded on the subsequent indexing part of rotating platform and are cleared in series of operations. Specially designed bottle holders are provided to hold bottles with neck diameter. The bottles are placed in an inverted position in these cup shaped holders. Spraying showers does the external cleaning of the bottles. Solenoid valves are provided to enable the regulation of wash timings, it also spraying water when bottle are stopped means ensure saving of water and sequence of various washing media to suit specific requirement.

Automatic Glass Bottle Washing Machine follows a multi-stage cycle tailored for new, returnable, or labeled bottles:

Pre-Washing: 1–3 initial baths or jets to remove loose debris using recycled or fresh water.

Soaking: Immersion in 1–4 caustic or detergent tanks to loosen labels and stubborn residues. Temperatures and chemical dosing are automatically regulated.

Label Removal: Dedicated extraction stations for paper, aluminum, or foil labels.

Detergent Jetting: High-pressure sprays (inside and outside) with alkaline solutions for deep cleaning.

Rinsing: 2–3 stages of recycled and final fresh water jets to neutralize and flush out residues, often with external top sprays for comprehensive coverage.

Drying/Sanitizing (Optional): Air drying or integrated drying modules to prepare bottles for filling.

Technical Specification of Automatic Glass Bottle Washing Machine

Model No	ARBW – 64	ARBW – 100
Production Output	Up to 60 Bottles / Minute (Depending on Bottle Size)	Up to 100 Bottles / Minute (Depending on Bottle Size)
Input Specification	Diameter of the container: 25 mm to 100mm Outside Diameter of Neck: 20 mm to 38 mm (with the help of change parts) Height of the container: Up to 280 mm (with the help of change parts)	Diameter of the container: 25 mm to 100mm Outside Diameter of Neck: 20 mm to 38 mm (with the help of change parts) Height of the container: Up to 280 mm (with the help of change parts)
Power Supply	Main Unit: 0.75 H.P., 380 Volt, 3 Phase, 4 Wire System, 50 Hz Optional Accessories (2 Pumps – Pumping Station) 0.75 H.P., 380 Volt, 3 Phase, 4 Wires System, 50 Hz Electric Heater Tank: 2 K.W.	Main Unit: 0.75 H.P., 380 Volt, 3 Phase, 4 Wire System, 50 Hz Optional Accessories (2 Pumps – Pumping Station) 0.75 H.P., 380 Volt, 3 Phase, 4 Wires System, 50 Hz Electric Heater Tank: 2 K.W.
Overall Dimension	1550 mm (L) x 1700 mm (W) x 1300 mm (H) approx.	1800 mm (L) x 1700 mm (W) x 1300 mm (H) approx.
Air Consumption	30 CFM @ 5 bar	30 CFM @ 5 bar
Net Weight	650 kgs. approx.	750 kgs. approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Washing and Cleaning Machine

Automatic Airjet Bottle Cleaning Machine

Multijet Ampoule Washing Machine

Automatic External Ampoule Washing Machine

Inverter Type Airjet Cleaning Machine

Inverter type Airjet Cleaning Machine

Automatic Linear Bottle Washer

Applications of Washing and Cleaning Machine

Pharmaceutical Industry
Nutraceutical Industry
Herbal Industry
Ayurvedic Industry
Biotech Industry
Cosmetic Industry
Chemical Industry

Advantages of Automatic Glass Bottle Washing Machine

High-Speed & High-Volume Cleaning

GMP & Regulatory Compliance

Automation & Labor Savings

Robust & Low Maintenance

Seamless Line Integration

Key Features of Automatic Glass Bottle Washing Machine

Compact and Efficient Design: Many models feature a small footprint with single-end or double-end configurations, incorporating soaking tanks, high-pressure jets, and rinsing stations in one unit. This minimizes space requirements and downtime while supporting energy-efficient operation, including automatic temperature, caustic concentration, and speed controls.

Low Maintenance and Consumptions: Equipped with self-cleaning filters, stainless steel pumps, and no complex mechanical parts in some advanced models, leading to reduced water, electricity, and detergent usage. Water recycling systems can further lower operational costs.

Customization Options: Available in rotary, linear, or tunnel-style formats; semi-automatic for smaller outputs or fully automatic for production lines. Integration with filling lines, crate washers, or labeling systems is common.

Safety and Hygiene: Includes features like automatic tank level control, IP55 electrical protection, and final self-centering sprays to eliminate caustic residuals, ensuring bottles exit in a fully sanitized condition.

FAQ for Automatic Glass Bottle Washing Machine

What is an Automatic Glass Bottle Washing Machine?

An Automatic Glass Bottle Washing Machine is an industrial system designed to efficiently clean, rinse, and sanitize reusable or new glass bottles. It uses multi-stage high-pressure jets, soaking, and air blowing to remove labels, residues, dirt, and contaminants, ensuring high hygiene standards for beverage, pharmaceutical, food, and cosmetic industries.

What is the production capacity of the machine?

The machine supports high-speed operation with outputs of 60 to 100+ bottles per minute (e.g., ARBW-64 and ARBW-100 models). It handles a wide range of glass bottle sizes with diameters of 25–100 mm and heights up to 280 mm (with change parts).

What are the key features of the Automatic Glass Bottle Washing Machine?

Geneva mechanism for smooth indexing
Multi-stage washing (four inner + one outer + one air wash)
Customizable sequences and stationary nozzles
SS 316 contact parts for durability and easy cleaning
High-capacity pumps, water recycling, and portable tank stands
Easy loading/unloading and separate control panel for safety

How does the Automatic Glass Bottle Washing Machine work?

Bottles are loaded and inverted. They pass through soaking in caustic solutions, high-pressure internal/external jets, multiple rinses, and final air blowing. The inverted position and precise nozzles ensure complete drainage and thorough cleaning without damaging the glass. The process is fully automated for consistency.

What are the main benefits of using an Automatic Glass Bottle Washing Machine?

Excellent hygiene for food-grade and pharmaceutical use
Significant labor and water savings through automation and recycling
High throughput suitable for large production lines
Gentle yet effective cleaning to protect delicate glass
Robust, low-maintenance design with quick changeover
Compliance with industry standards and seamless line integration
