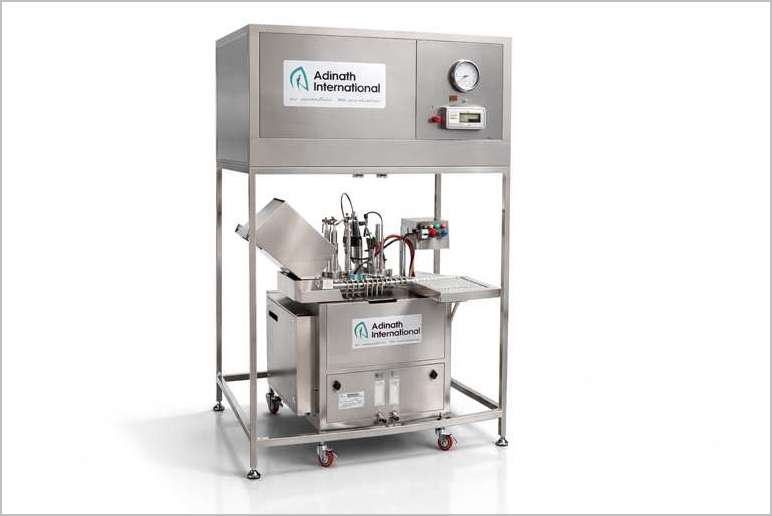

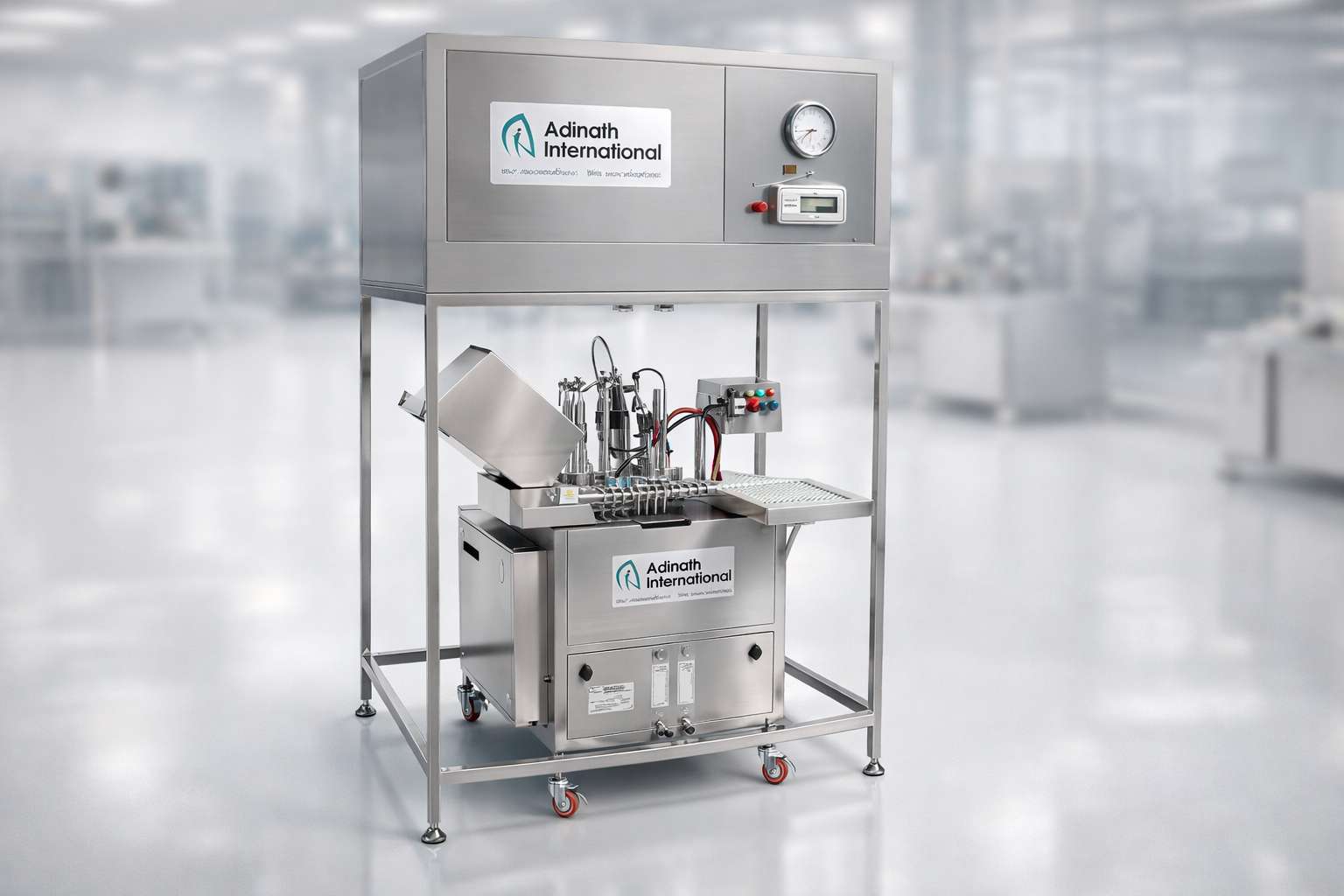

Biological Indicator Ampoule Filling Machine

Q: What are the main applications of the Biological Indicator Ampoule Filling Machine?

This machine is primarily used in the biotech, pharmaceutical, and medical industries for producing biological indicators that verify the effectiveness of sterilization cycles in hospitals, labs, and manufacturing facilities. It is also suitable for filling sterile liquids in small-volume glass ampoules for: Pharmaceuticals (injectables, vaccines) Biotechnology Cosmetics Chemical and veterinary applications It is ideal for both standard and self-contained biological indicator ampoules that require contamination-free processing and long shelf life.

Description

Biological Indicator Ampoule Filling Machine is a specialized piece of equipment designed for the precise filling and sealing of glass ampoules used in biopharmaceutical, biotech, and medical industries. These machines are critical for producing biological indicators (BIs), which are used to validate and monitor sterilization processes, such as steam or formaldehyde sterilization, by containing viable microorganisms like Geobacillus stearothermophilus spores. Below is a detailed description based on available information:

Sterilization: Empty ampoules are washed and sterilized, often via an infeed conveyor from a sterilizing tunnel.

Feeding: Ampoules are loaded into a hopper and fed onto a conveyor or slant travel system.

Nitrogen Purging: Pre-nitrogen flushing removes atmospheric air.

Filling: Precise volumes of liquid (e.g., nutrient broth with spores) are dispensed using filling needles.

Post-Nitrogen Flushing: Additional nitrogen flushing ensures sterility.

Sealing: Ampoules are pre-warmed, rotated, and sealed using gas flames or other methods.

Collection: Sealed ampoules are collected in a dead tray or outfeed conveyor for inspection or further processing.

If you need specific recommendations, pricing details, or a comparison of models for a particular application (e.g., pharmaceutical vs. cosmetic), please provide more details about your requirements.

Salient Features of Ampoule Filling Machine

Compact model as per cGMP standard.
Higher production output up to 12000 Ampoules per hour.
“No Ampoule – No Filling” system.
Machine equipped with pre-warming station.
Full accessibility allows easy maintenance.
Flow Meters for regulating flames easily.

All contact parts made from High Quality Stainless Steel 316L & Non-contact parts made from Stainless Steel 304.
Minimum change over parts from 1ml to 10ml ampoule size.
Ampoule neck centering during gas flushing and filling operations.
Possibility of nitrogen gas flushing before, during and after filling.
Minimum change over time, little maintenance, easy cleaning.

Working Principle of Biological Indicator Ampoule Filling Machine

Empty washed & sterilized ampoules loaded onto infeed hopper of the machine. From where it has been received to receiving rack through starwheel/cassette. The moving rack which moves horizontally collect one/two/four/eight ampoules from the receiving rack and transfer the ampoule to the machine in left to right in an inclined position. During ampoule movement Pre-gassing, Filling, Post Gassing, Pre-heating & Sealing Station perform filling and sealing operations. At the end duly filled and sealed ampoules get collected automatically onto collection tray of the machine. For detailed working process please explore automatic ampoule filler video in top right section of this page.

Technical Specification of Biological Indicator Ampoule Filling Machine

Model	AFS-1	AFS-2	AFS-4	AFS-8
No. of Head	Single	Two	Four	Eight
Syringes	One	Double	Four	Eight
Ampoule Sizes	1 ml to 30 ml	1 ml to 30 ml	1 ml to 20 ml	1 ml to 20 ml
Filling Speed	Up to 25 ampoules/minute	Up to 50 ampoules/minute	Up to 100 ampoules/minute	Up to 200 ampoules/minute
Filling Precision	± 1%	± 1%	± 1%	± 1%
Filling Pump	Piston Pump	Piston Pump	Piston Pump	Piston Pump
Burner Gas	LPG & Oxygen (O₂)	LPG & Oxygen (O₂)	LPG & Oxygen (O₂)	LPG & Oxygen (O₂)
Nitrogen Arrangement	Before & After Filling	Before & After Filling	Before & After Filling	Before & After Filling
Number of Fill Nozzles	One	Two	Four	Eight
Number of Nitrogen Nozzles	Two	Four	Eight	Sixteen
Number of Sealing Burners	Two	Four	Eight	Sixteen
Power Required	0.5 H.P.	1 H.P.	1 H.P.	2 H.P.
Power Voltage	230 Volts, Single Phase, 50 Hertz, 4 Wire System	230 Volts, Single Phase, 50 Hertz, 4 Wire System	230 Volts, Single Phase, 50 Hertz, 4 Wire System	230 Volts, Single Phase, 50 Hertz, 4 Wire System
Contact Parts	Made from Stainless Steel 316L	Made from Stainless Steel 316L	Made from Stainless Steel 316L	Made from Stainless Steel 316L
Overall Dimension	915mm (L) x 610mm (W) x 965mm (H) approx.	915mm (L) x 760mm (W) x 965mm (H) approx.	1200mm (L) x 1070mm (W) x 965mm (H) approx.	2200mm (L) x 1400mm (W) x 1100mm (H) approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Ampoule Filling Machine

Automatic Ampoule Filling Sealing Machine

Laboratory Ampoule Filling Sealing Machine

Closed Ampoule Filling Machine

Open Mouth Ampoule Filling Machine

Onion Skin Ampoule Filling Machine

Single Head Ampoule Filling Machine

Double Head Ampoule Filling Machine

Four Head Ampoule Filling Machine

Six Head Ampoule Filling Machine

Eight Head Ampoule Filling Machine

Applications of Ampoule Filling Machine

Benefits of Biological Indicator Ampoule Filling Machine

High Precision: Ensures accurate fill volumes and consistent sealing, critical for biological indicator reliability.

Contamination Prevention: Nitrogen flushing and aseptic design minimize contamination risks.

Efficiency: Automation and high output (up to 36,000 ampoules/hour) meet large-scale production demands.

Versatility: Handles various ampoule sizes and types, with minimal changeover time.

Durability: Stainless steel construction and cooling systems enhance longevity.

Key Features of Biological Indicator Ampoule Filling Machine

Purpose and Application:
- The machine is used to fill and seal glass ampoules with biological indicators, typically consisting of bacterial spores suspended in a nutrient broth (e.g., Soybean Casein Digest Broth) with a pH indicator like bromocresol purple for detecting spore growth. These ampoules are employed to verify the effectiveness of sterilization processes in industries such as pharmaceuticals, biotechnology, and cosmetics.

Design and Construction:
- Monobloc Design: Combines filling and sealing operations on a single platform, enhancing efficiency and reducing contamination risks.
- Materials: Constructed with high-quality stainless steel (typically 316L for contact parts and 304 for non-contact parts) to meet cGMP (current Good Manufacturing Practice) standards, ensuring durability and compliance with sterile production requirements.
- Compact and Ergonomic: Designed for easy maintenance, accessibility, and cleanability, with some models featuring tool-less format changes for flexibility.

Filling and Sealing Process:
- Filling Mechanism: Operates using volumetric piston pumps, peristaltic pumps, or servo-driven systems to achieve precise filling volumes (0.5ml to 25ml in a single dose). The machine can handle ampoules ranging from 1ml to 30ml.
- Nitrogen Flushing: Equipped with pre- and post-nitrogen flushing units to purge atmospheric air and prevent contamination, ensuring the sterility of the contents.
- Sealing: Utilizes combustible gases (oxygen and LPG/propane) or thermal/laser methods for hermetic sealing. The sealing process includes pre-warming stations to heat the glass for perfect sealing without compromising the ampoule’s integrity. A rotation mechanism ensures uniform sealing by centering the ampoule neck during warming and sealing operations.
- Ampoule Handling: Ampoules are fed via a hopper, transported through a wire mesh conveyor or slant travel system, and advanced in batches (1, 2, 4, 6, or 8 ampoules per stroke) for filling and sealing. A “no ampoule, no fill” system prevents wastage.

Production Capacity:
- Capable of filling 10 to 250 ampoules per minute, depending on the model and configuration (e.g., single-head, four-head, or eight-head machines).

Advanced Features:
- Automation: Fully or semi-automatic models reduce human intervention, minimizing errors and improving efficiency. Automated systems include PLC (Programmable Logic Controller) and HMI (Human-Machine Interface) for real-time monitoring, error detection, and parameter adjustments.
- Sterility and Cleanliness: Some machines integrate with laminar airflow (LAF) hoods, RABS (Restricted Access Barrier Systems), or isolators to maintain aseptic conditions. Inbuilt laminar airflow or CIP/SIP (Clean-in-Place/Sterilize-in-Place) systems ensure sterile class 100 filling.
- Pre-Heating and Cooling: Includes pre-warming stations for thick glass ampoules and cooling systems to prevent overheating, extending machine lifespan.
- Waste Management: Features dead trays for upright collection of sealed ampoules and waste tip collectors to manage glass residues.
- Customization: Supports filling and sealing of both open-mouth (Type B and C) and closed (Type D) ampoules, with flexibility for various neck dimensions, thicknesses, and formats.

Specialized Models:
- Some machines are custom-designed for one-stop assembly and testing of biological indicator products, automating tasks like feeding and assembling ampoule caps, strips, and absorbents. These improve product quality, flexibility, and efficiency.
- Models offer gentle handling, precise filling with multiple pump types (valve piston, peristaltic, or time-pressure), and in-process control (IPC) for weight and stopper checks.

Compliance and Safety:
- Adheres to international standards like ISO, USP, and FDA guidelines for biological indicator production and pharmaceutical packaging.

FAQ for Biological Indicator Ampoule Filling Machine

What is a Biological Indicator Ampoule Filling Machine?

A Biological Indicator Ampoule Filling Machine is a specialized cGMP-compliant monobloc system designed for the precise filling and hermetic flame sealing of glass ampoules used to manufacture Biological Indicators (BIs). These ampoules typically contain bacterial spores (such as Geobacillus stearothermophilus) suspended in nutrient broth for validating and monitoring sterilization processes like steam or formaldehyde sterilization. The machine combines nitrogen flushing, volumetric piston filling, pre-warming, and gas sealing in one compact unit to ensure sterility and product integrity.

What are the main applications of the Biological Indicator Ampoule Filling Machine?

This machine is primarily used in the biotech, pharmaceutical, and medical industries for producing biological indicators that verify the effectiveness of sterilization cycles in hospitals, labs, and manufacturing facilities. It is also suitable for filling sterile liquids in small-volume glass ampoules for:

Pharmaceuticals (injectables, vaccines)
Biotechnology
Cosmetics
Chemical and veterinary applications

It is ideal for both standard and self-contained biological indicator ampoules that require contamination-free processing and long shelf life.

What are the filling range, speed, and accuracy of the Biological Indicator Ampoule Filling Machine?

The machine is available in multiple head configurations (Single, Two, Four, or Eight heads – Models AFS-1 to AFS-8):

Filling range: 1 ml to 30 ml (model-dependent; up to 20 ml on higher-head models)
Output speed: 25 ampoules/min (single head) up to 200 ampoules/min (eight heads), with potential output reaching 12,000 ampoules per hour
Filling accuracy: ±1% using volumetric piston pumps

It supports ampoule sizes from 1 ml to 30 ml with minimum changeover parts, making it flexible for different production scales.

What are the key features of your Biological Indicator Ampoule Filling Machine?

Key features include:

Compact monobloc cGMP design with SS 316L contact parts and SS 304 non-contact parts
Nitrogen gas flushing before, during, and after filling with ampoule neck centering
Pre-warming station and LPG + Oxygen flame sealing for uniform, hermetic seals
“No Ampoule – No Fill” and “No Ampoule – No Seal” safety systems
Easy changeover with minimal parts, low maintenance, and full accessibility
Pre- and post-nitrogen gassing to prevent oxidation
Dead tray for safe collection of sealed ampoules

These features ensure high sterility, minimal wastage, and reliable performance in cleanroom environments.

Why choose this machine for manufacturing biological indicators?

The Biological Indicator Ampoule Filling Machine is specifically engineered for the sensitive requirements of BI production, where precision, sterility, and consistent sealing are critical. It offers:

Superior contamination control through nitrogen flushing and aseptic design
High accuracy and uniform flame sealing with pre-heating to maintain ampoule integrity
Flexibility across multiple models for lab-scale to medium production
Compliance with international standards (cGMP, FDA, ISO)
Cost-effective operation with quick changeover and easy cleaning

It helps manufacturers produce reliable biological indicators that accurately validate sterilization processes while reducing human intervention and product loss.
