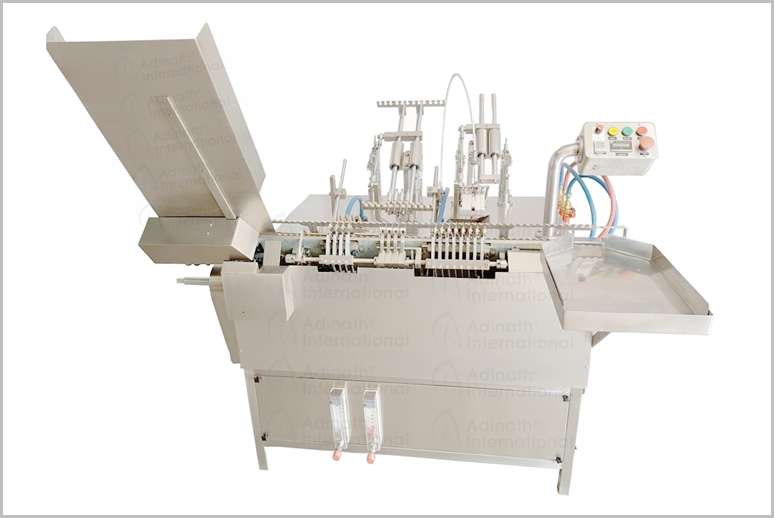

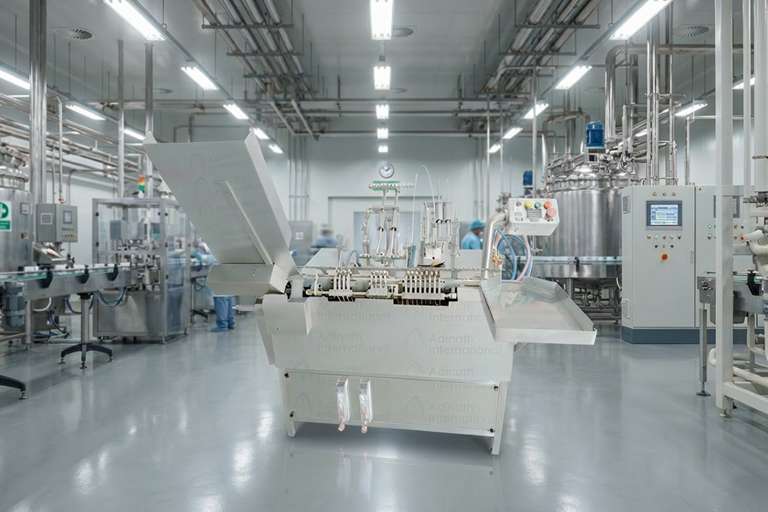

Six Head Ampoule Filling Machine

Description

The Six Head Ampoule Filling and Sealing Machine stands as a state-of-the-art, high-precision automated equipment engineered for efficient filling and sealing of glass ampoules. This advanced pharmaceutical packaging machine delivers exceptional accuracy, speed, and reliability, making it an essential asset for manufacturers in the pharmaceutical, biotechnology, cosmetic, and chemical industries.



Designed with modern cGMP (Current Good Manufacturing Practice) standards in mind, the six-head ampoule filler and sealer processes 80 to 150 ampoules per minute, depending on ampoule size and fill volume. It handles a wide range of fill capacities from 0.5ml to 10ml in a single dose, supporting both open and closed ampoule formats. This versatility addresses diverse production requirements while maintaining strict sterility and product integrity.

Working Principle of Six Head Ampoule Filling Machine

Empty washed & sterilized ampoules loaded onto infeed hopper of the machine. From where it has been received to receiving rack through starwheel/cassette. The moving rack which moves horizontally collect six ampoules from the receiving rack and transfer the ampoule to the machine in left to right in an inclined position. During ampoule movement Pre-gassing, Filling, Post Gassing, Pre-heating & Sealing Station perform filling and sealing operations. At the end duly filled and sealed ampoules get collected automatically onto collection tray of the machine.

Technical Specification of Six Head Ampoule Filling Machine

Model Name

AFS-6

Production Speed

Up to 150 ampules/minute

Ampoule Sizes

1 ml to 20 ml

Filling Error

± 1%

Sealing Gas

LPG and Oxygen (O₂)

Nitrogen Gas

Pre & Post Nitrogen

Power Load

2 H. P.

Power Voltage

230 Volts, Single Phase, 50 Hertz

Contact Parts

Made from Stainless Steel 316L

Non-Contact Parts

Made from Stainless Steel 304

Machine Size

2000mm (L) x 1400mm (W) x 1100mm (H) approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Ampoule Filling Machine

Applications of Ampoule Filling Machine

Benefits of Six Head Ampoule Filling Machine

High Precision: Ensures accurate dosing and reliable sealing, critical for pharmaceutical safety.

Efficiency: High output and fast changeover times boost productivity.

Flexibility: Handles a wide range of ampoule sizes and liquid types with minimal adjustments.

Aseptic Processing: Nitrogen flushing and sterile design minimize contamination risks.

Durability: Stainless steel construction ensures long-term reliability and compliance with GMP standards.

Key Features of Six Head Ampoule Filling Machine

  • Design and Construction:
    • Principle of Operation: Built on the principle of slant travel of ampoules during filling and sealing to accommodate variations in ampoule neck dimensions, thickness, and ovality. This ensures compatibility with a wide range of standard glass ampoules.
    • Material: Contact parts are made of high-quality Stainless Steel 316L, compliant with cGMP standards, while non-contact parts are typically Stainless Steel 304. This ensures durability, corrosion resistance, and hygiene.
    • Frame: Constructed with a sturdy stainless steel square pipe frame, fully encompassed with stainless steel coverings in a matte finish for aesthetic appeal and ease of cleaning. A large bottom opening facilitates thorough cleaning and maintenance.



  • Filling and Sealing Process:
    • Ampoule Handling: Sterilized ampoules are loaded into a slant hopper, and a synchronized star wheel delivers them one by one (or in groups of six) to an eccentric transport rack. The rack pauses sequentially for pre-gassing, filling, post-gassing, pre-heating, and sealing operations.
    • Filling Capacity: Suitable for filling 0.5ml to 10ml or 1ml to 20ml ampoules, depending on the model. Some machines support up to 30ml with minimal changeover parts.
    • Filling Mechanism: Utilizes volumetric piston pumps, peristaltic pumps, or servo-driven systems for precise liquid filling. Nitrogen flushing (pre- and post-filling) is available to prevent contamination and oxidation.
    • Sealing: Features pre-warming and sealing stations using combustible gases (oxygen and LPG/propane). Specially designed rollers rotate ampoules during sealing to ensure uniform, high-quality seals with a sealing efficiency of up to 99.8%. Waste tips are clipped and collected separately.



  • Output and Efficiency:
    • Production Capacity: Typically ranges from 80 to 150 ampoules per minute, with some models achieving up to 9000 ampoules per hour for large-scale production. Output varies based on ampoule size (e.g., 120 ampoules/min for 1ml ampoules).
    • Changeover Time: Minimal changeover time for different ampoule sizes (1ml to 10ml or 20ml) due to fewer changeover parts, enhancing operational efficiency.
    • No Ampoule, No Fill System: Prevents wastage of costly liquids by ensuring filling only occurs when an ampoule is present.



  • Applications:
    • Widely used for filling sterile injectables (e.g., vaccines, drugs), agro-insecticides, veterinary medicines, and cosmetic products. Suitable for liquids, powders, or viscous substances like oils.



  • Maintenance and Cleaning:
    • Designed for easy maintenance with full accessibility and minimal downtime. The large bottom opening and removable parts simplify cleaning, meeting stringent aseptic requirements.



  • Optional Features:
    • Pre-warming station for perfect sealing.
    • Laminar Air Flow (LAF), isolators, or RABS (Restricted Access Barrier Systems) for enhanced sterility.
    • Servo-based or peristaltic pump filling for high-precision needs.
    • Combination machines for processing both ampoules and vials.

FAQ for Six Head Ampoule Filling Machine

This machine is suitable for ampoule sizes from 1 ml to 10 ml (extendable up to 20 ml with change parts). It features quick format changeover with minimum change parts. The slant travel mechanism ensures smooth and gentle handling of ampoules with varying neck dimensions and glass thickness.

The Six Head Ampoule Filling Machine offers a filling accuracy of ±1%. Sterility is ensured through pre- and post-nitrogen gas flushing with neck centering, a “No Ampoule – No Filling” system, pre-warming station before sealing, and full cGMP-compliant design. All product contact parts are made of Stainless Steel 316L, and the machine supports operation under laminar airflow (Class 100 environment).

All product contact parts are manufactured from high-quality Stainless Steel 316L, while non-contact parts and the sturdy frame use Stainless Steel 304 with a matte finish. This material selection ensures corrosion resistance, easy cleaning, long operational life, and full compliance with pharmaceutical industry standards.

The Six Head Ampoule Filling Machine is primarily used in the pharmaceutical industry for sterile injectables, vaccines, antibiotics, and other liquid formulations. It is also ideal for biotech, veterinary, cosmetics (serums and high-value liquids), and certain chemical applications that require precise, contamination-free filling and sealing of glass ampoules.

Yes — Adinath International Six Head Ampoule Filling Machine complies to cGMP, MHRA, FDA and WHO-GMP standards, with optional CE marked equipments and 21 CFR Part 11 software compliance for the HMI/PLC. Machine contact parts having Stainless Steel 316L grade materials with validation documents having IQ, OQ, DQ validation protocols as optional. Organization is ISO 9001:2015 certified.

Manufacturing lead time is generally 7 to 14 weeks from order confirmation. Further it takes 2 to 8 weeks for international shipping depending upon destination. Order can be expediate sooner or later as per specific buying requirements. Destination specific certifications like US FDA, EU, ANVISA, SFDA. CE can add 3 to 6 weeks additionally.

Yes, Adinath International Six Head Ampoule Filling Machine export this machine to more than 48 countries of this world including America, Europe, Asia, Middle East, Africa, CIS and Australia sub continents. Please visit our clientele page for complete list of our customers worldwide. Located at Ahmedabad, India having world class infrastructure.

Service of skilled engineers and technicians provided for technical support of supplied equipments. Installations, commissioning, training and IQ, OQ, DQ validations performed by qualified engineers. Remote support through video call, phone, email and other modes provided for international installations. Spare parts of Six Head Ampoule Filling Machine stocked at our premises in Ahmedabad and shipped immediately after ordering. Standard 12 months manufacturing warranty included with supplied equipment.
