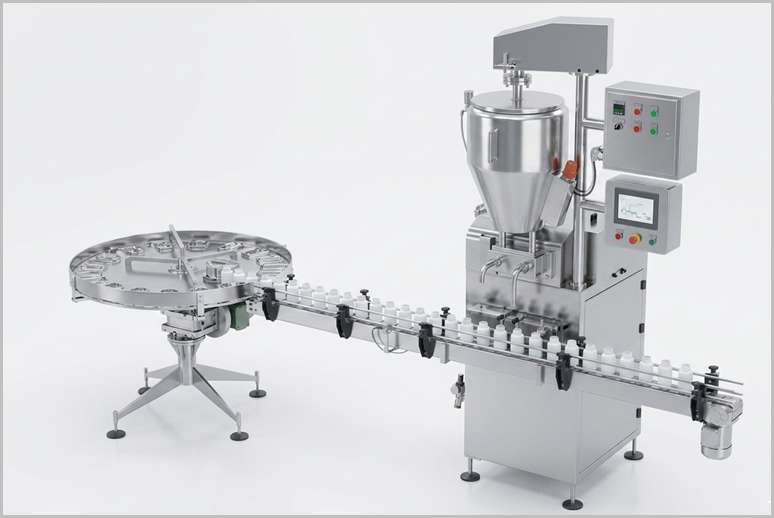

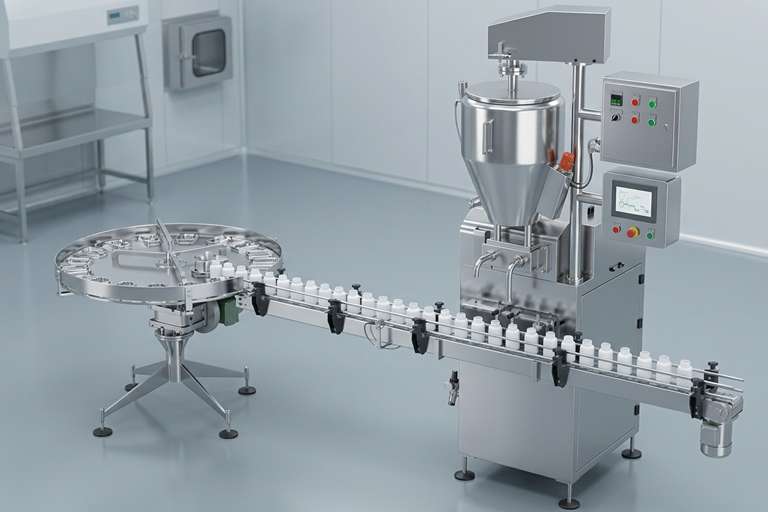

Automatic Gel Filling Machine

Q: What is the production capacity of the Automatic Gel Filling Machine?

The standard model ( APF-4 ) features 4 filling heads and can achieve an output of up to 30 fills per minute . Higher-speed multi-head configurations are available for larger production requirements. The actual output depends on the fill volume, product viscosity, and container type.

Q: What filling range and container types does the machine support?

The machine supports a filling range of 100 – 1000 ml/grams . It can handle a wide variety of containers including bottles, jars, tubes, and pouches. It is suitable for products with particles up to 5mm in size (can be customized further) and works efficiently with different viscosities.

Q: What are the key features of the Automatic Gel Filling Machine?

Key features include: Piston block type volumetric filling with high accuracy “ No Container – No Fill ” system to prevent spillage Diving or shut-off nozzles to avoid dripping All product contact parts in SS 316 , structure in SS 304 Fully pneumatic operation with synchronized automatic functions Conveyor stop during filling to eliminate vibration Easy adjustment of fill volume and quick changeover

Description

Automatic Gel Filling Machine is a specialized industrial device designed to efficiently and accurately fill containers such as bottles, jars, tubes, or pouches with gel-based products. These machines are widely used in industries like cosmetics, pharmaceuticals, food, and personal care for handling viscous substances such as hair gels, hand sanitizers, creams, lotions, and medical gels. Automatic Gel Filling Machines are essential for streamlining the packaging of gel-based products, offering precision, efficiency, and hygiene. They cater to diverse industries with customizable options to match specific production needs.

Viscosity Matching: The machine must be compatible with the gel’s viscosity to ensure smooth dispensing and accurate filling.

Production Scale: Fully automatic machines are ideal for high-volume production, while semi-automatic options suit smaller operations.

Maintenance: Regular cleaning and maintenance are required to ensure longevity and compliance with hygiene standards.

If you need details on specific models, pricing, or comparisons with multi-head machines, let me know!

Salient Features of Automatic Gel Filling Machine

The machine works fully automatically and all operations are synchronized. Except the loading of empty container at in feed conveyor and removing the filled containers at out feed conveyor is to be done by the operator.
The filling operation starts once the containers gets aligned automatically below the nozzles. “NO CONTAINER – NO FILLING” feature is provided to avoid spillage on the machine.
As per the preset filling volume setting, all containers will get filled with the same volume.
This is piston block type filling machine where any kind of paste like honey, mayonnaise, cream or any kind of liquid like shampoo, milk or any kind of semi solid material like pickles, Chana, grease can be filled. Standard Machine can fill particles of the size up to 5mm which can be increased as per the requirement on request (at extra cost).

Shut off nozzle feature can be provided if needed to close the nozzle immediately after filling to avoid any possible dripping of product. Gas Flushing arrangement pre filling or post filling can be provided at extra cost.
The conveyor can be stopped at the time of filling so that there are no vibrations on the container while filling process.
After filling the filled containers moves toward the out feed conveyor and the same cycle get repeated.
It is completely pneumatic operated machine.
All contact parts of the machine are in SS 316 and machine structure will be covered by SS304 Sheets or will be hard chrome plated as per client need.

Working Principle of Automatic Gel Filling Machine

Most Automatic Gel Filling Machines operate on the Volumetric Piston Filling Principle (also called Positive Displacement Filling). This method is ideal for high-viscosity products because it delivers a precise, consistent volume regardless of the product’s thickness.

Step-by-Step Working Process:
- Product Hopper / Tank The gel or viscous product is loaded into a stainless steel hopper (often jacketed for temperature control to maintain viscosity).
- Product Intake (Suction Stroke)
  - A piston inside a cylinder retracts (moves backward).
  - This creates suction that draws the gel from the hopper through a rotary valve or check valve into the filling cylinder.
  - The volume is precisely controlled by adjusting the piston stroke length.
- Product Discharge (Filling Stroke)
  - The rotary valve or direction valve switches position to connect the cylinder to the filling nozzle.
  - The piston moves forward and pushes the exact measured volume of gel out through the nozzle into the container positioned below.
  - Nozzles are designed with anti-drip and cut-off systems to prevent dripping or stringing of viscous gels.
- Container Handling
  - Empty containers are fed automatically via a conveyor belt or indexing system.
  - Sensors (photoelectric or pneumatic) detect the container and stop it precisely under the filling nozzles.
  - For multi-head machines (2, 4, 6, 8+ heads), multiple containers are filled simultaneously.
- Diving Nozzles (Optional but Common for Gels)
  - Nozzles lower into the container (bottom-up filling) to reduce foaming, air entrapment, and splashing, then retract as filling completes.
- Completion & Transfer
  - After filling, the container moves to the next station (capping, sealing, labeling, etc.).
  - The machine resets for the next cycle.

Technical Specification of Automatic Gel Filling Machine

Model	APF – 4
Filling Range	100 – 1000 ml/grams.
No. of Filling Heads	Four
Production Output	Up to 30 fills/minute
Product Contact Parts	Stainless Steel 304
Machine Surface	Stainless Steel 304
Power Supply Voltage	415 Volts, 3 Phase, 50 Hertz
Product Hopper	100 Liters Stainless Steel 304
Type of System	Pneumatic driven
Utility	Air supply of 6 – 8 kg/cm² @ 100 CFM continuous supply
Overall Dimension	1500mm x 900mm x 1750mm approx.
Net Weight	350 Kgs. Approx.
Gross Weight	500 Kgs. Approx.
Polish	· Inner: Mirror polish · Outer: Matt polish

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Bottle Filling Machine

Automatic Bottle Filling Machine

Digital Liquid Filling Machine

Semi Automatic Liquid Filling Machine

Automatic Eye Drop Filling Machine

Motion Liquid Filling Machine

Monoblock Liquid Filling & Capping Machine

Aseptic Liquid Filling Machine

Servo Driven Liquid Filling Machine

Applications of Bottle Filling Machine

Advantages of Automatic Gel Filling Machine

Efficiency: Automates repetitive tasks, reducing manual labor and increasing production speed.

Consistency: Ensures uniform filling, maintaining product quality across batches.

Flexibility: Customizable settings accommodate various gel types, container sizes, and production scales.

Hygiene: Stainless steel construction and easy-clean designs meet strict industry standards.

Key Features of Automatic Gel Filling Machine

Precision Filling Mechanisms:
- Utilizes advanced technologies like piston pumps, servo motors, or rotor pumps to ensure accurate dosing of gels, accommodating a wide range of viscosities (e.g., 100–10,000 mPa·s for products like shampoos, conditioners, or lotions).
- Adjustable filling volumes and speeds allow customization for different container sizes (e.g., 3ml–5,000ml) and production needs.
- High filling accuracy, typically within ±0.5% to ±1%, minimizing product waste.

Automation and Control:
- Equipped with PLC (Programmable Logic Controller) systems and touchscreen HMIs for easy operation, allowing operators to set parameters like fill volume, speed, and timing.
- Features like “No container, no filling” prevent spillage, while adjustable nozzles reduce foaming by moving upward during the filling process.

Material and Hygiene:
- Constructed with stainless steel for contact parts, meeting GMP (Good Manufacturing Practice) standards for hygiene in pharmaceutical, cosmetic, and food industries.
- Easy-to-clean and autoclavable components facilitate quick changeovers between different gel formulations, reducing downtime.

Versatility:
- Handles various container types (bottles, jars, tubes, pouches) and gel products with differing viscosities, such as hand sanitizers, ECG gels, or cosmetic creams.
- Some models integrate additional functions like capping, sealing, or labeling, creating a complete packaging solution.

High Throughput:
- Capable of filling speeds ranging from 5–400 bottles per minute, depending on the machine’s configuration and product viscosity.
- Multi-head designs (e.g., 2, 4, 8, or 12 heads) increase production capacity for large-scale operations.

Safety and Durability:
- Includes safety features like emergency stop buttons and protective covers to ensure operator safety.
- Built with high-quality materials for durability and consistent performance under continuous operation.

FAQ for Automatic Gel Filling Machine

What is an Automatic Gel Filling Machine?

An Automatic Gel Filling Machine is a specialized, fully automatic equipment designed to accurately fill viscous and semi-solid products such as gels, creams, lotions, ointments, hand sanitizers, hair gels, and pastes into containers like bottles, jars, tubes, or pouches. It uses a volumetric piston filling system, making it ideal for pharmaceutical, cosmetic, personal care, and food industries.

What is the production capacity of the Automatic Gel Filling Machine?

The standard model (APF-4) features 4 filling heads and can achieve an output of up to 30 fills per minute. Higher-speed multi-head configurations are available for larger production requirements. The actual output depends on the fill volume, product viscosity, and container type.

What filling range and container types does the machine support?

The machine supports a filling range of 100 – 1000 ml/grams. It can handle a wide variety of containers including bottles, jars, tubes, and pouches. It is suitable for products with particles up to 5mm in size (can be customized further) and works efficiently with different viscosities.

What are the key features of the Automatic Gel Filling Machine?

Key features include:

Piston block type volumetric filling with high accuracy
“No Container – No Fill” system to prevent spillage
Diving or shut-off nozzles to avoid dripping
All product contact parts in SS 316, structure in SS 304
Fully pneumatic operation with synchronized automatic functions
Conveyor stop during filling to eliminate vibration
Easy adjustment of fill volume and quick changeover

Why choose an Automatic Gel Filling Machine for viscous products?

It ensures precise, consistent, and hygienic filling of thick gels and pastes while minimizing product wastage and air entrapment. The machine offers excellent compliance with GMP standards, reduces labor costs, improves production efficiency, and provides flexibility for different container sizes and product types.
